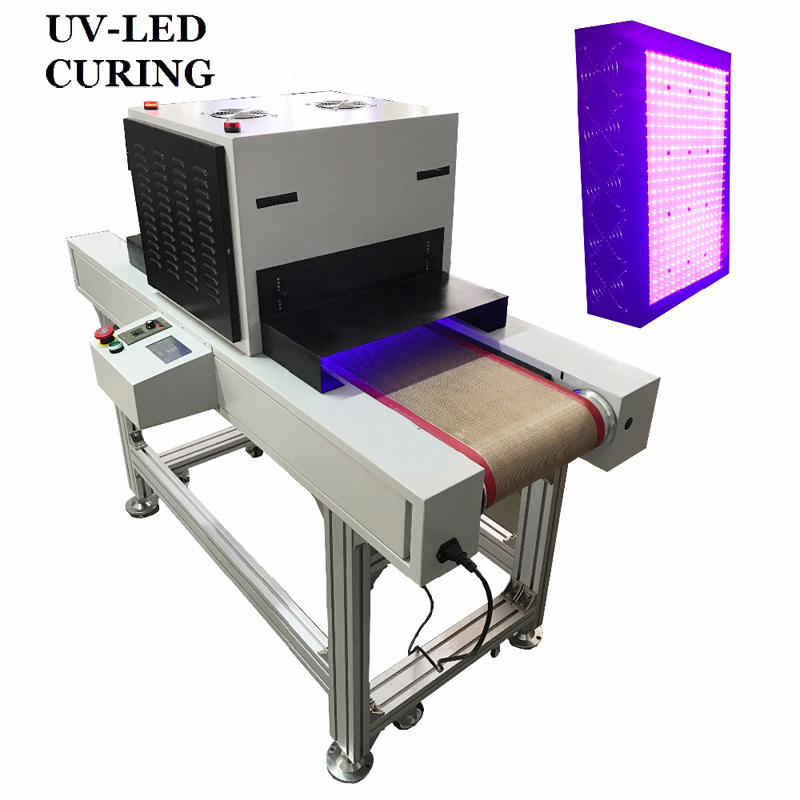

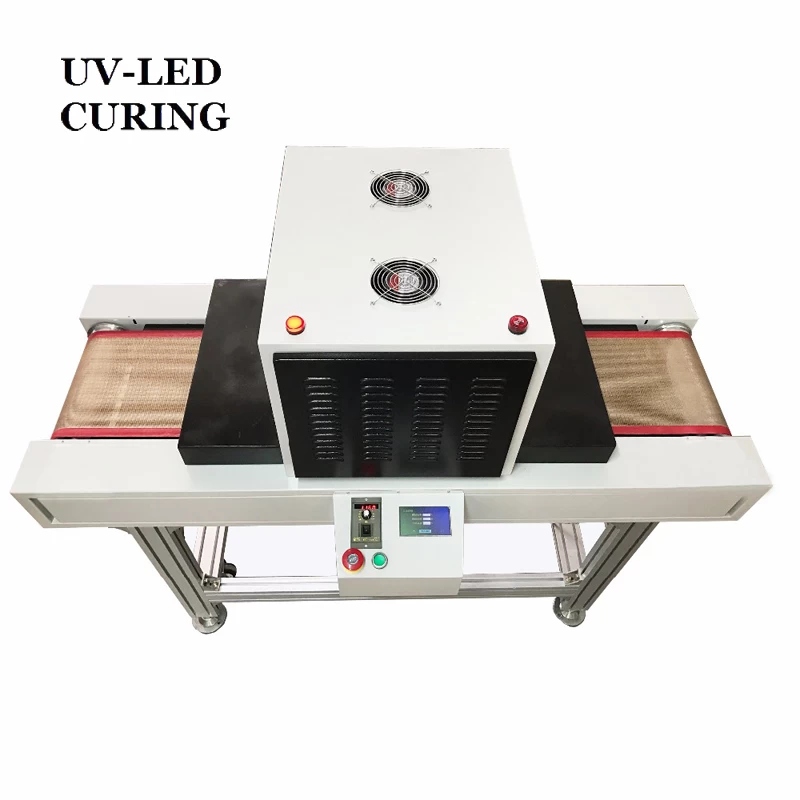

UV LED 1000w Offset Printing Curing Machine is high power, but it can save energy and reduce environment pollution. At the same time, our company chose UV coating with very low VOC content, which is recognized green environmental protection product.
Product Parameters:
|
Type
|
UV LED
|
Place of Origin
|
Guangdong, China (Mainland)
|
|
Brand Name
|
UV-LED CURING
|
Certification
|
CE, RoHS
|
|
Chip Material
|
AlGaInPEmitting
|
Color
|
purple
|
|
Luminous Intensity
|
2W/cm2 ~20w /cm2
|
Luminous Flux(lm):
|
30-40lm
|
|
Optical Attenuation(%)
|
0.1
|
Power
|
0.06W
|
|
Power Dissipation
|
0.1
|
Viewing Angle(°)
|
120
|
|
Color Rendering Index(Ra)
|
100
|
Color Temperature
|
365 - 405nm
|
|
Operating Temperature(℃)
|
10 - 50
|
Storage Temperature(℃)
|
10 - 50
|
|
Wavelength
|
365nm/375nm/385nm/395nm/405nm/415nm
|
|
Technical Data of the Irradiation Light Head:
|
|
Wavelength(±5nm)
|
365nm/385nm/395nm/405nm
|
|
Curing Area
|
300*200mm/Other Sized Available
|
|
Electronic Power
|
1100w
|
|
Input voltage
|
220VAC 50Hz / 60Hz
|
|
Cooling method
|
Air cooling
|
|
Life
|
>10000H
|
|
Conveyor Speed
|
100-400mm Adjustable
|
|
Irradiation distance
|
10-100mm adjustable
|
|
Optic power
|
800mw/cm2 (10mm irradiation distance)
|
|
Recommend Irradiation Distance
|
10-100mm
|
