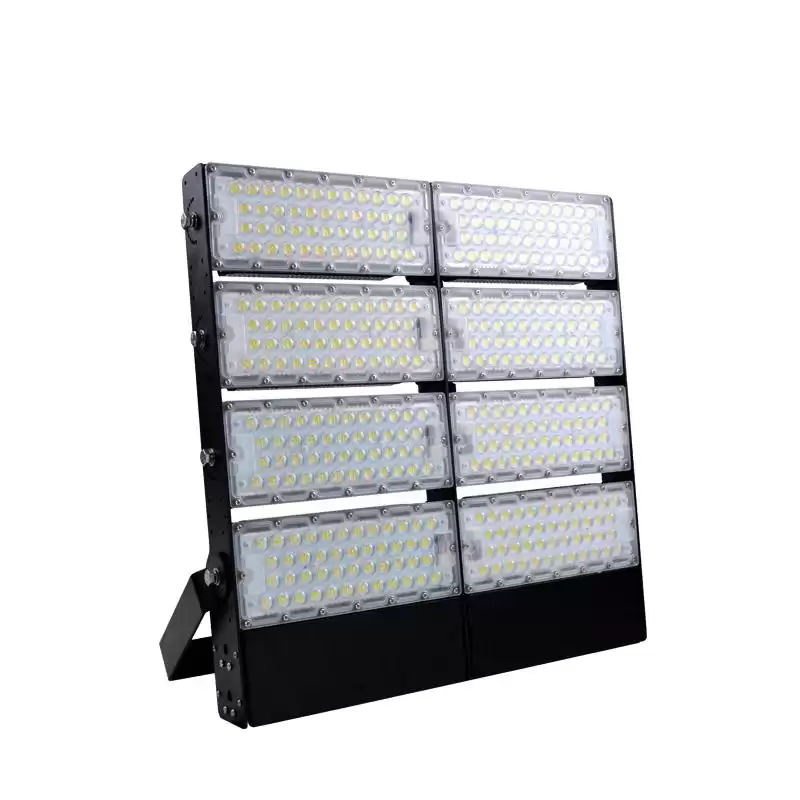

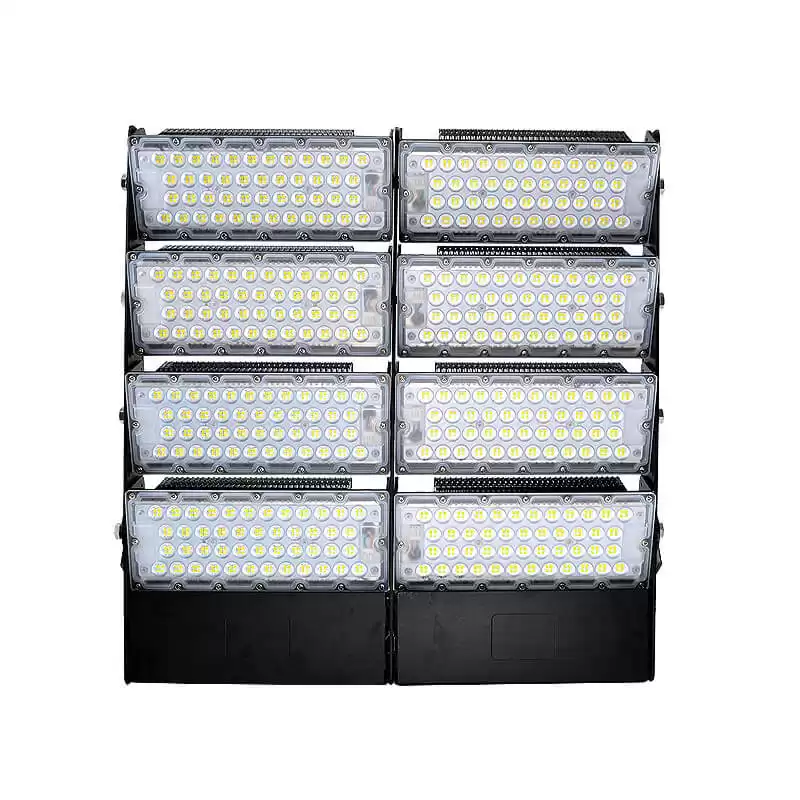

1000w Outdoor Led High Mast Flood Light for Stadium Sport Lighting
This 1000 watt led stadium light fixtures features use Original Philips 5050 Light chip and Mean Well Driver, with 165lm/w high lumen efficacy, Rotatable Modules Allowing for Custom Spread of Light and Eliminating Dark Areas. 1000 watt led outdoor flood lights provids the ability to serve demanding area applications where spacing is wide and illuminance requirements are high.

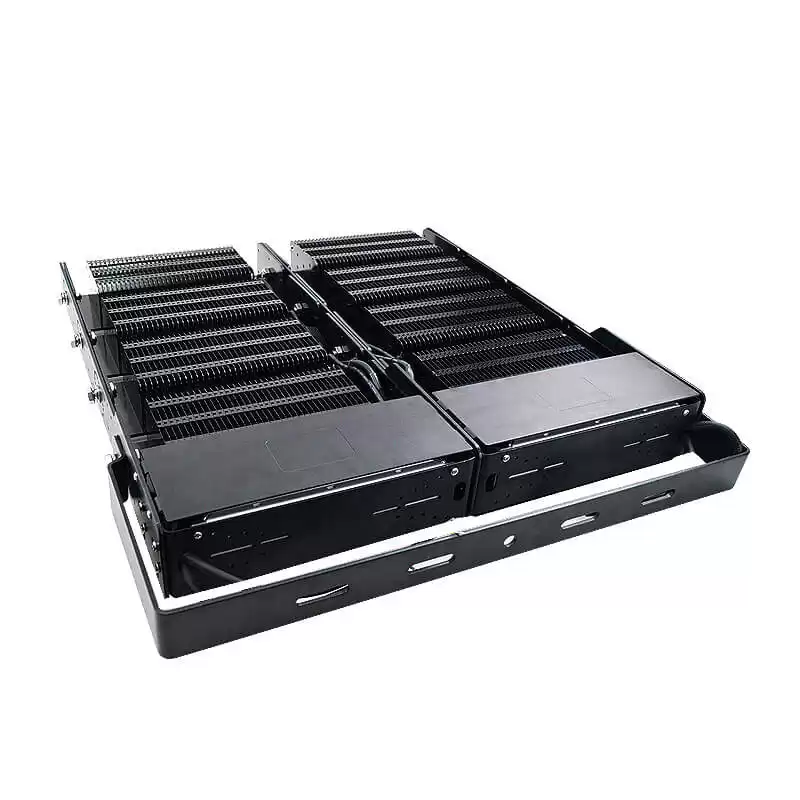

The compact but powerful highly ventilated high power high mast lighting lamp body design ensures very good heat dissipation, with maintaining high lumen output performance. Ideal high power LED luminaire for 2000W MH lamp replacement.
Original Epistar, Bridgelux, Philips LumiLEDs, Osram, Nicha, CREE LED chip and Meanwell or other high quality drivers. Here must have a model you need,welcome to email us at sales@smartlightdesigner.com to get best quotation now!
Specifications:
|
Model:
|
SED-TFD-1000W
|
|
Lumens Per Watt:
|
165 lumens per watt
|
Wattage:
|
120w ~ 1500w available
|
|
Voltage:
|
AC90-305V
|
|
Frequency:
|
50-60 hz
|
|
Power Factor:
|
>0.90
|
Led Chip:
|
1472PCS Philips SMD 3030
|
|
THD:
|
10% Max
|
|
Life Time:
|
>50,000 hours
|
|
Color Temperature:
|
2700-6500K
|
|
CRI:
|
>80
|
|
Beam Angle:
|
20°/40°/60°/90°/140°
|
|
Storage Temp:
|
–30 ~ 55°C
|
|
IP Rating:
|
IP67
|
|
Dimmable:
|
0-10V or Phase Cut | Da Li Optional
|
|
Housing:
|
IP65 Black Finish/Aluminum die-cast housing
|
|
Mounting:
|
Hook / Eye Mount (Standard), pendant mount ,surface mount
|
|
Product Size:
|
650*118*599mm
|
|
Net Weight:
|
17.5KG
|
|
Packaging Size:
|
72*68*18cm
|
|
Quantity/Carton:
|
1PCS/Carton
|
|
Gross Weight:
|
24.5KG
|
|
Warranty:
|
5 years
|
|
Driver:
|
Mean Well Or CE Driver Optional
|
Features:
-
Modular lens design easily repair
-
Anti Glare,Beautiful housing
-
Kinds of Beam Angle,light weight with good heat sink
-
led outdoor flood lights have variety of installation methods, rods can be formulated rod, and the angle is adjustable.
-
Pure aluminum Material,Anti-rust
LED Stadium Flood Light Common Application:
1. Replace traditional high pressure sodium lamp or metal halide lamp.
2. Widely used in Parking Lot Lighting, Sports Stadium lighting, Billboard lighting, Outdoor and Indoor Area Lighting, Warehouses and Security areas etc.
