Inverter Feature

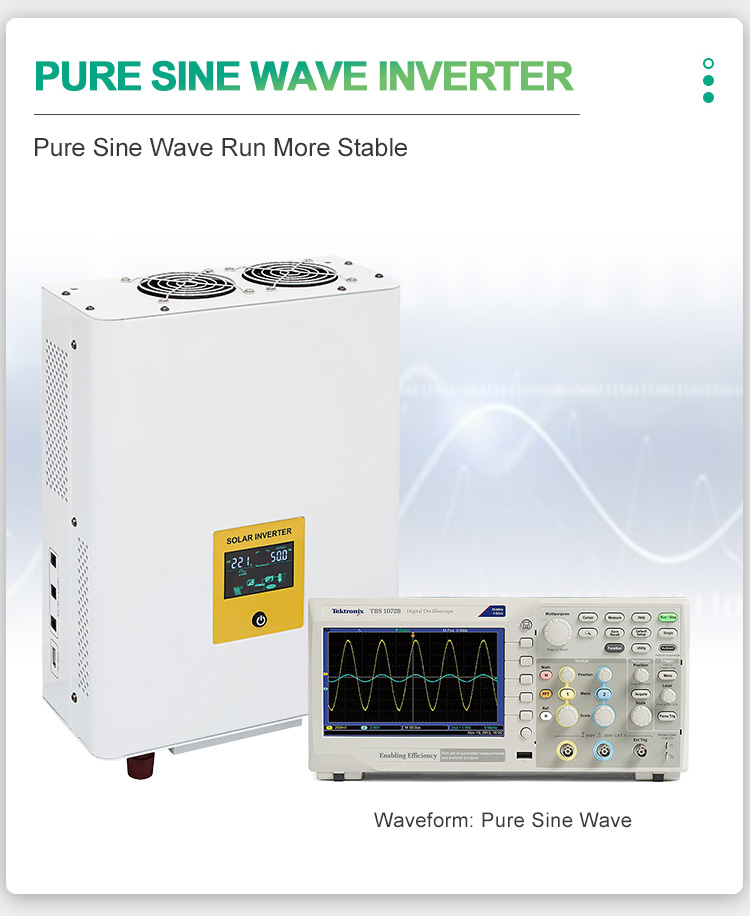

1. Pure sine wave output, Excellent load adaptability and stability
2. DC input and AC output are separated for safe electricity utilization
3. Integrated PV charging and discharging function makes the system configuration easier

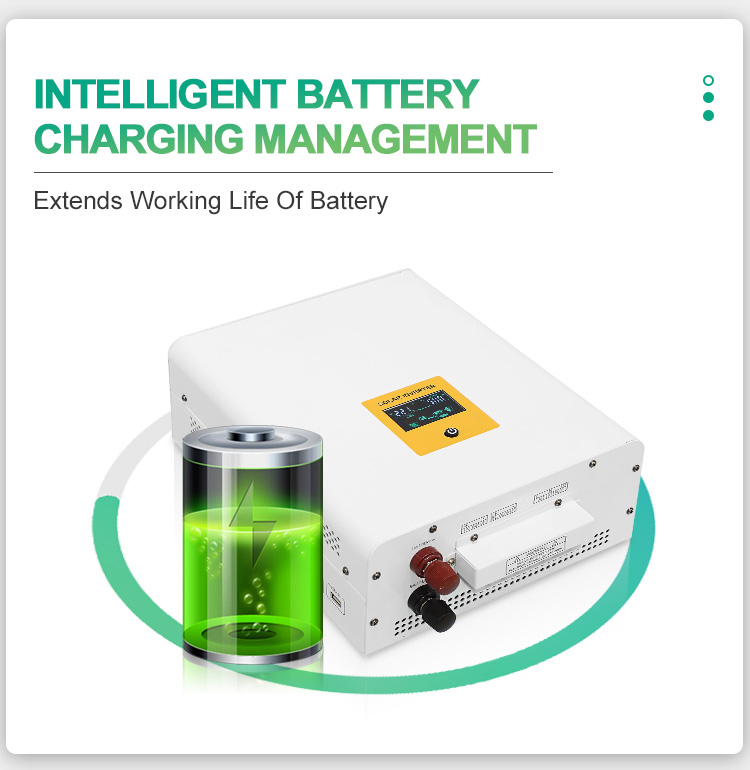

4. Ntelligent battery charging and discharging management function extends the life of battery

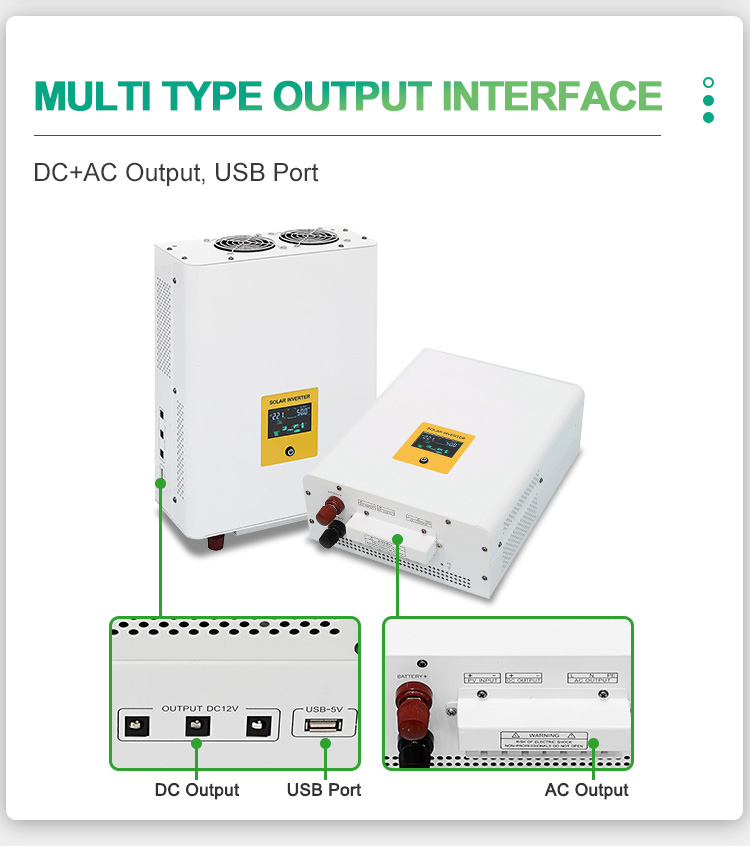

5. DC output supportive brings in more convenience

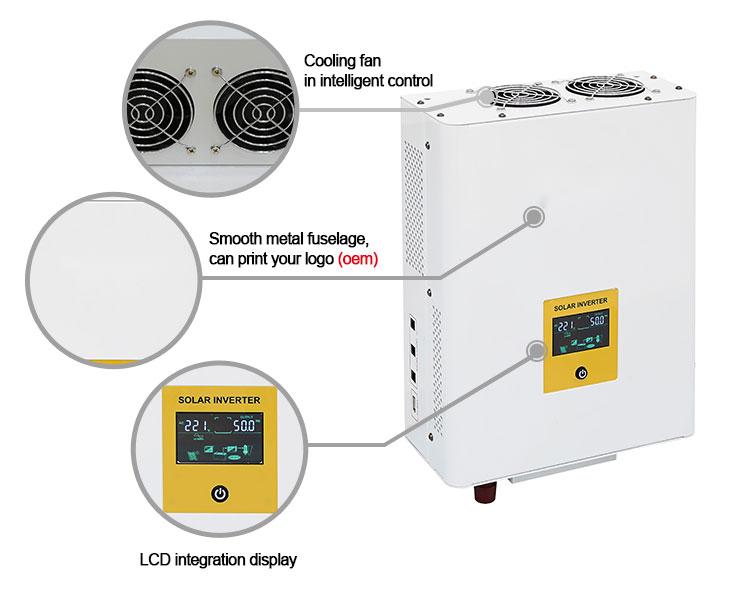

6. LCD display provides a visual user's experience
7. Perfect protection against overload, overheating, overvoltage, undervoltage, short-circuits and etc
Why Choose CT Series Inverter？

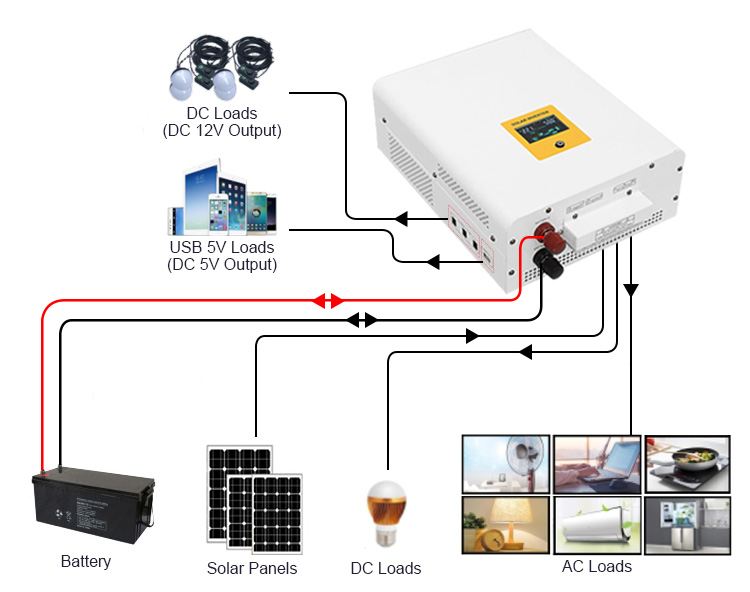

How to Use Inverter?
Inverter Technical Parameters
|
Rated Power
|
200W
|
300W
|
400W
|
500W
|
600W
|
800W
|
1000W
|
1500W
|
2000W
|
2500W
|
3000W
|
|
Battery Voltage
|
DC 12V/24V
|
|
Size(L*W*Hmm)
|
320x220x85
|
330x260x115
|
370X285X115
|
|
Package Size(L*W*Hmm)
|
375x293x160(1pc)/386x304x333(2pcs)
|
410x318x175
|
447X340X172
|
|
N.W.(kg)
|
3(1pc)
|
3(1pc)
|
3(1pc)
|
3.3(1pc)
|
3.5(1pc)
|
6.4
|
6.4
|
6.4
|
6.4
|
|
|
|
G.W.(kg)(Carton Packing)
|
3.7(1pc)
|
3.7(1pc)
|
3.7(1pc)
|
4(1pc)
|
4.2(1pc)
|
7.4
|
7.4
|
7.4
|
7.4
|
|
|
|
Installation Method
|
Wall-Mounted
|
|
Input
|
DC input voltage range
|
10-15VDC (single battery voltage)
|
Voltage of the battery
switched on automatically
|
≥11V (single battery voltage)
|
|
Ouput
|
DC Output
|
12V*3+5V*1(Models of 200W-600W 24VDC does not support DC output)
|
|
Output voltage (battery mode)
|
110VAC±2%/120VAC±2%/220VAC±2%/230VAC±2%/240VAC±2%
|
|
Output frequency (battery mode)
|
50/60HZ±1%
|
|

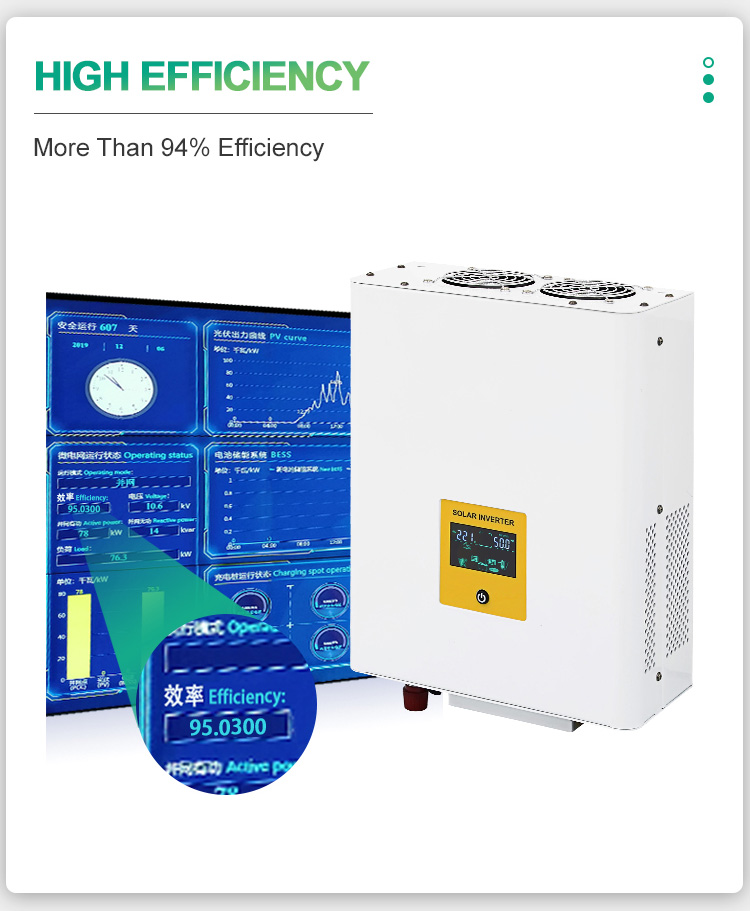

Efficiency
|
≥85%
|
|
Output wave form
|
pure sine wave
|
Solar
controller
|

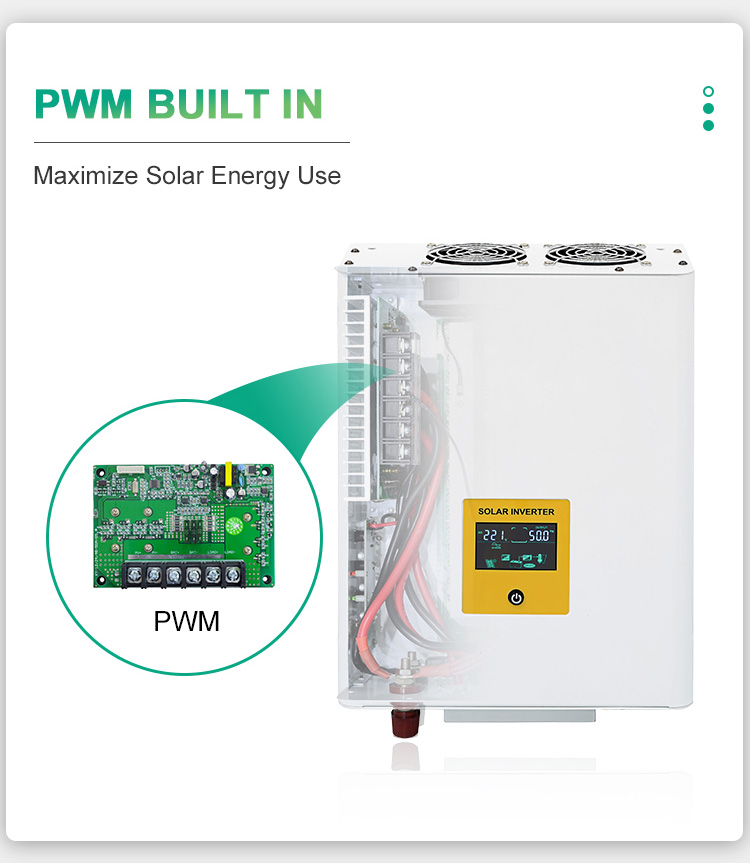

PV charging mode
|
PWM
|
|
PV charging current
|
20A
|
50A
|
Max PV Input Voltage(Voc)
(At the lowest temperature)
|
50V
|
|
Max PV input power
|
280W
|
700W(12V System)/1400W(24V System)
|
Battery
Charging
|
Floating charge
|
13.8V(Single battery)
|
|
Charge voltage
|
14.2V(Single battery)
|
|
Overcharge protection voltage
|
15V(Single battery)
|
|
Battery type
|
Valve Regulated Lead Battery
|
|
Protection
|
Battery undervoltage alarm
|
10.5V±0.5V(Single battery)
|
|
Battery undervoltage protection
|
Inverter output: 9.5V±0.5V; DC output: 10.5V±0.2V(Single battery)
|
|
Battery over voltage protection
|
15V±0.5V(Single battery)
|
Ouput undervoltage protection
(Battery mode)
|
≤187VAC Turn off the output
|
Output short circuit protection
(Battery mode)
|
Shut down output, disconnect battery current
|
|
Over power protection
|
110% more than rated capacity
|
|
Temperature protection
|
≥90℃ machine shut off
|
|
Display
|
LCD
|
|
Thermal method
|
Cooling fan in intelligent control
|
|
Special voltage, power and appearance can be customized according to the users.
Accept OEM/ODM
|

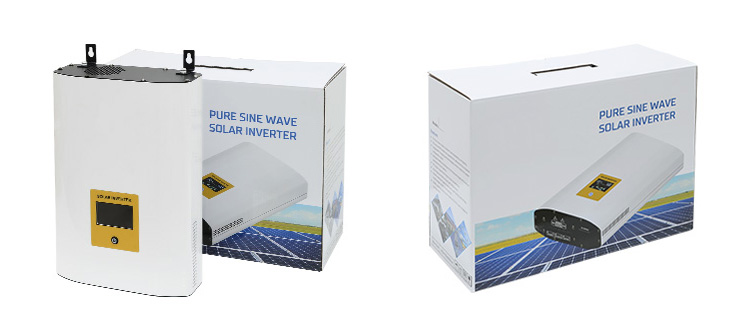

Safe Packaging

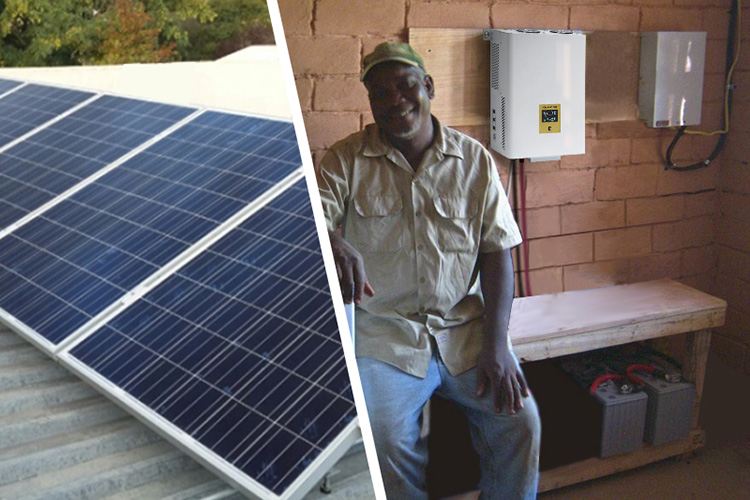

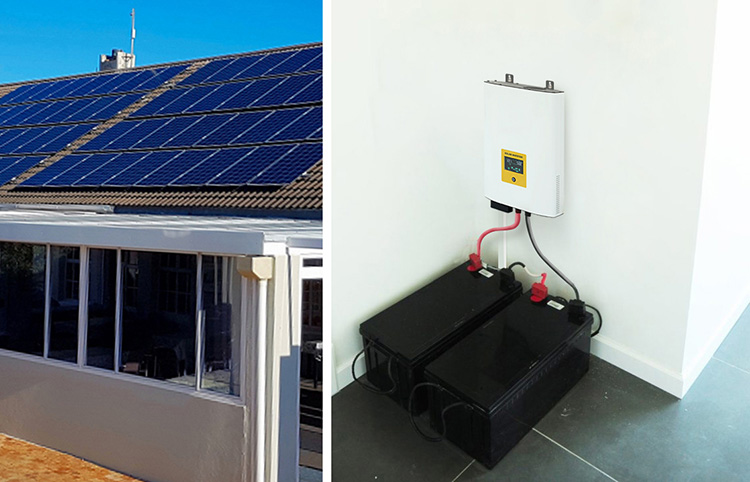

Inverter Application Case
FAQ
Q1: Do you support OEM?
A1: Yes. OEM & ODM are available.
Q2: Do you have any MOQ?
A2: Yes, we have MOQ for mass production, it depends on the different models. 1~10pcs sample order is available. Welcome to take samples for testing.
Q3: What kind of certificate you have?
A3: ISO, CE,IEC etc. All series product pass different laborary testing according to your special requirements.
Q4: How is your after-sale service?
A4: We provide 3 years warranty and 1% sapre parts for free.
We have specialized after-sales service engineers to provide professional after-sales service and technical support.
Q5: Does your company also provide other solar products except Inverter?
A5: Yes, we also provide other solar products for the whole solar power systems, such as solar charge controllers, solar panels, off grid solar inverters, on/off grid in one inverters, batteries, and other accesories related to the solar power system.
Q6: How to choose a right inverter?
A6: Tell us your demand, then our sales will recommend a suitable inverter to you.
Q7 How about the delivery time?
A7: 3- 7 days for sample; 10-20 days for bulk order.
Q8: How to solve the technical problem?
A8: 24 hours after-service consultancy just for you and to make your problem to solve easily.
