1000W Sports Lighting Stadium High Mast LED Flood Lights

High lumen output high mast lighting for sports field, stadiums, sea ports, construction sites, and factory yards, etc. Luminaire system efficacy 120-135LM/W, 5 years warranty.


  • Beam Angle10°/15°/20°/36°/60°/90°/70x140°/80°x135°
  • Light SourceCREE/LUMILEDS/OSRAM, etc.
  • Lumen135,000lm
  • Wattage1000W

Product Item: 1000W Sports Lighting Stadium High Mast LED Flood Lights

Overview:

This range of high power LED high mast stadium light provides an efficient replacement for traditional floodlight fixtures for sports field lighting. It can replace metal halide lamps 800W to 2500W for all kinds of stadiums, sports arenas, and other places like squares, railway intersections, factory exteriors, etc.

Adopting most powerful CREE high power LED and powerful lens, the lumen output of the high mast system lamp can be above 120-135 lumen/W, unlike SMD type of LED, the high power CREE LED offer you unparalleled performance under rainy or foggy weather, with same power and same lumen output, CREE XTE series or CREE XHP series light can cover longer distance than SMD type of light source.

The compact but powerful highly ventilated high power high mast lighting lamp body design ensures very good heat dissipation, whilst maintaining high lumen output performance. Ideal high power LED luminaire for 2000W MH lamp replacement.


Specifications:
Model SR-HMC-1000W
Power
1000W
Lumen Output
135,000lm
Light Source
CREE/LUMILEDS/OSRAM, etc.
Beam Angle
10°/15°/20°/36°/60°/90°/70x140°/80x135°
Driver
INVENTRONICS/MEAN WELL/PHILIPS, etc.
Input Voltage
AC 100-305V, 50/60Hz
Power Factor
>0.95
CRI
Ra>80
CCT
3000K/4000K/5000K/5700K/6500K
IP Rating
IP66
IK Rating IK08
Dimming
Dimmable/Non-dimmable
Material
Die-cast Aluminium, Tempered Glass
Dimension
493x708x211mm
Warranty
5 years warranty

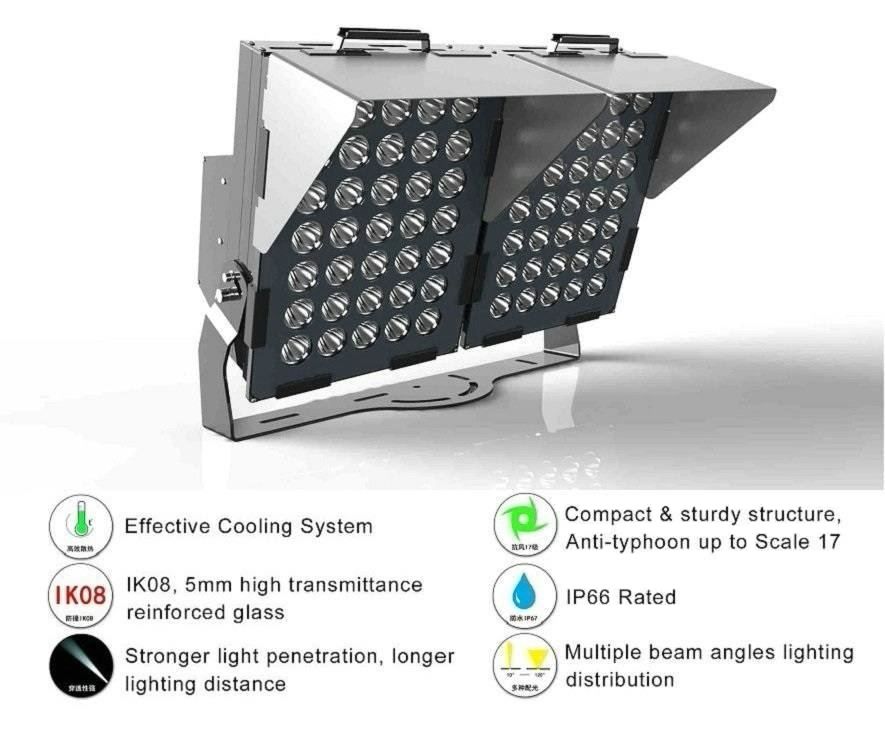

Features:

•Super compact heat sink, smaller lamp size compared with same power high-mast lighting system, wind resistance much less, withstand Scale 17 hurricane.

• World top level LED chip CREE XTE series or CREE XHP series with better performance under high temperature long-time working and with less luminous decay. Compared with SMD type of LED, fixture with CREE or XTEE XHP has stronger light beam and can reach farther under extremely rainy, foggy, or snowy weather.

• High-mast lamp fixture system luminous efficacy 120-135lm/W (Lumileds, Osram, and other LED light source available)

• Inventronics driver with 5 years warranty adopted. (Mean Well and other brands driver available)

• Multiple beam angles Available: 10°/15°/20°/36°/60°/90°/70x140°/80x135°, meet various lighting applications' requirements.

• Black/dark grey powder-coated finish ADC12# die-casting aluminum lamp body, strong bracket with stainless screws.

• Highly ventilated lamp body with deep fins, accelerating heat dissipation and minimize light decrease in future long-time working.

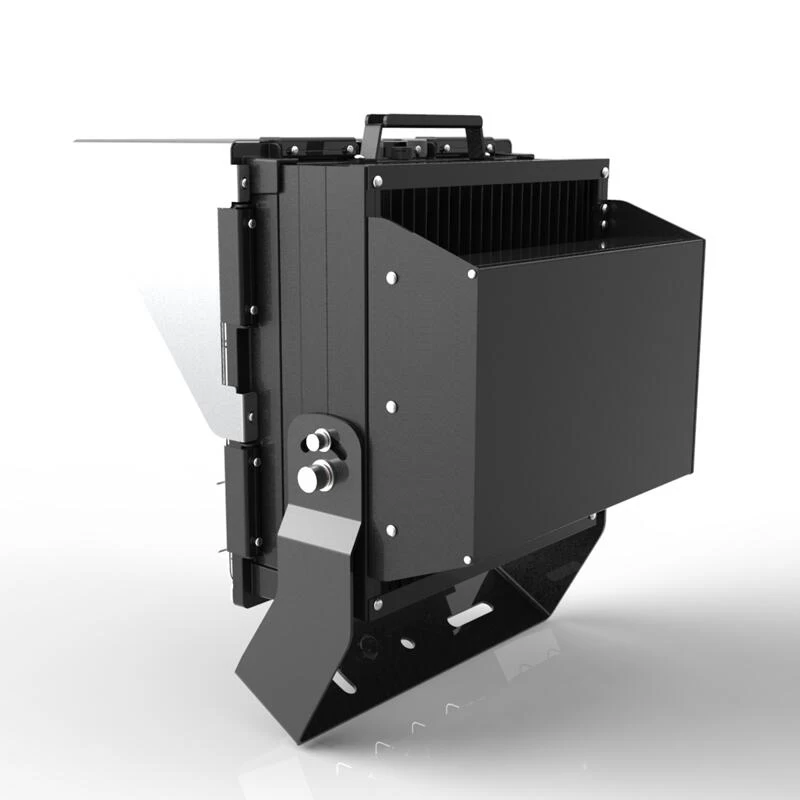

• Separate exterior driver compartment attached at the back.

• IK08, high light transmittance 5mm thick tempered glass for better protection.

• Intelligent dimming available: 1-10V dimming, DALI dimming, ZigBee wireless control.

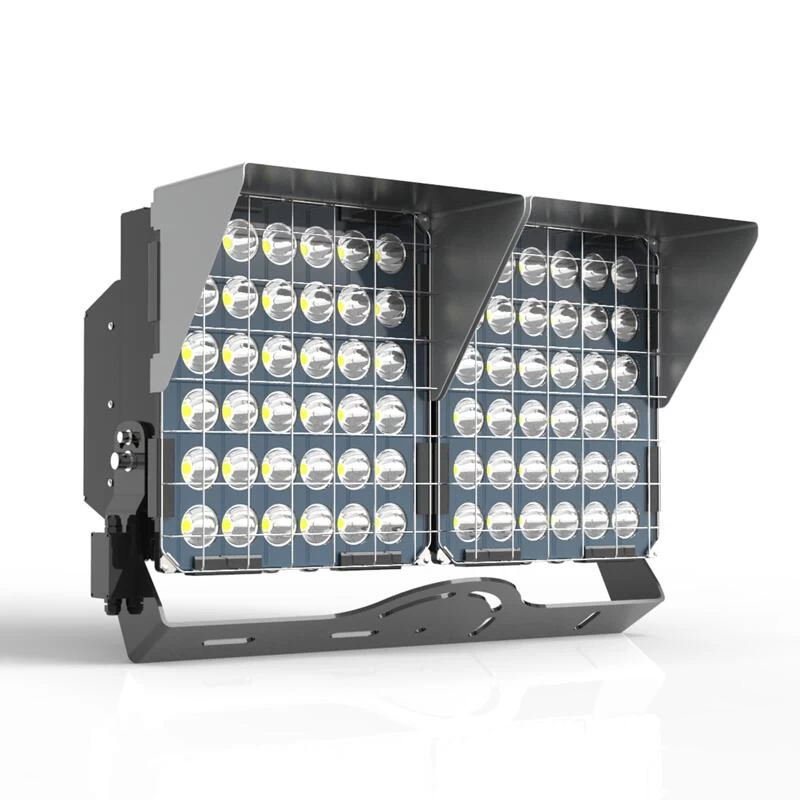

• Light spill shield and anti-collision wire guard available.

• IP66, waterproof, durable even under extreme weather.

• Wattage: 400W, 500W, 600W, 800W, 1000W, 1200W.

• Aiming tool kit available: allows the highest level of control over the aiming of a sports floodlighting project.

• Applications: stadiums, harbors, crossroads, car parks, ski resorts, sports arenas, golf courts, basketball courts, etc.

1000W Floodlight Hockey Pitch Lighting High Mast Lighting System


Different LED Light Source & Lens/Reflector Configuratin:

Light Source

                 Optics

CREE XTE or Lumileds SMD5050

 PC lens
CREE XHP LED

  Reflector


Outdoor 1000W LED High Mast Lighting Fixtures Bulb

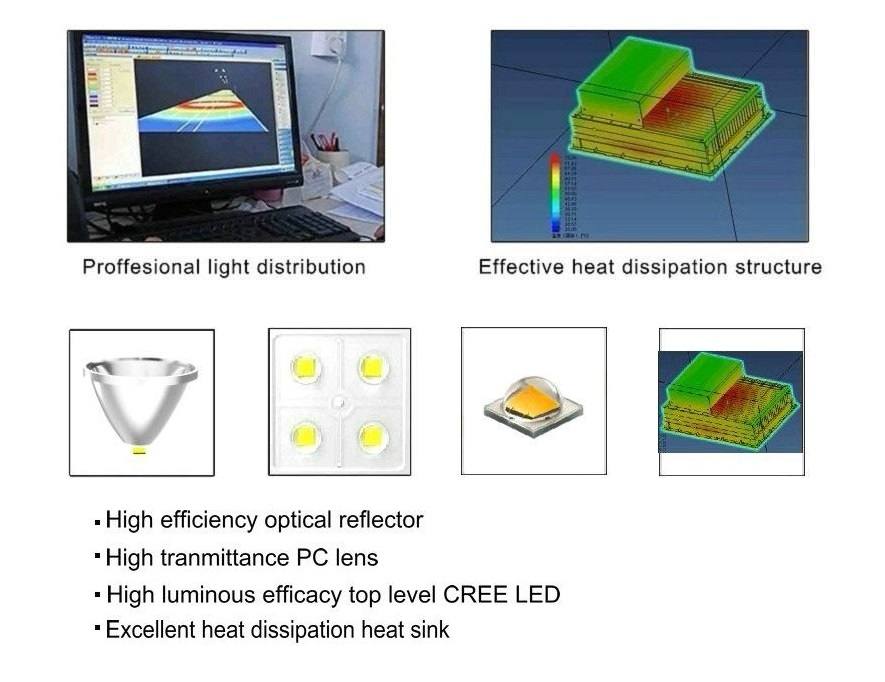

Professional Lighting Optical Design & Thermal Management Design:

High lumen output CREE/Lumileds LED chip, efficiency reflector, lens, super high transmittance tempered glass to ensure high luminous efficacy;

Aluminum lamp body structure designed with large heat dissipatition efficiency, excellent ventilation, and impressive appearance.

Sports Center Lighting FLoodlight for Outdoor Use


Multiple Beam Angles for Various Lighting Applications:

CREE XTE: 15°, 30°, 60°, 90°(adopt PC lens)

CREE XHP: 10°,20°, 36°, 60°(adopt reflector)

Lumileds SMD5050: 30°, 60°, 90°, 80x135° (adopt PC lens)

Both asymmetric and symmetric lighting distribution

CE Approved Asymmetric Beam Floodlight Symmetric High Mast Light


Humanized design:

Lamp Holder: Easy for worker to carry the lamp, easier installation by taking the holder instead of by bracket.

Anti-scratching bar: Avoid unexpected danger of being scratched by lamp sharp edge, while keeping excellent ventilation.

Waterproof Wiring Terminal: Easier wiring and better protection.

180° Adjustable Bracket: Flexible in adjusting lighting area and easier for installation.

CREE 5 Years Guarantee Flood Light Bulb


Better Performance Under Rainy or Foggy Weather:

CREE XTE/XHP LED Adopted: Compared with ordinary SMD LED on market, CREE XTE/XHP LED can reach farther distance under severe rainy or foggy weather, with its stronger light penetration. Moreover, CREE LED can withstand higher temperature with less lumnouse decay for such high power mast lighting. System reliabilty is further strengthened.

LED High Power Lighting for Extreme Weather


Application:

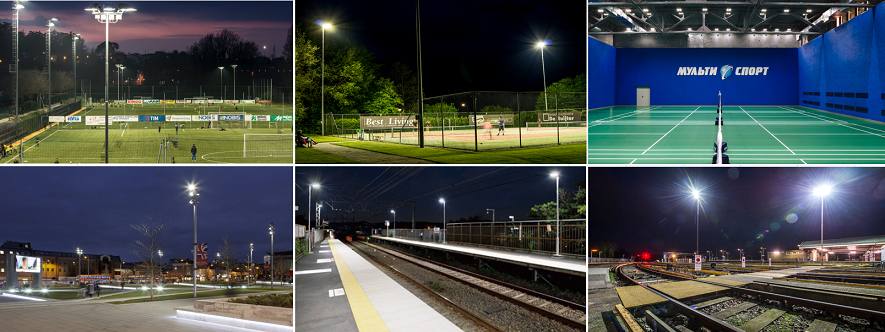

Widely applied to sports stadiums, padel tennis courts, basketball courts, construction sites, hockey fields, dockyards, bridges, railway loading areas, etc.

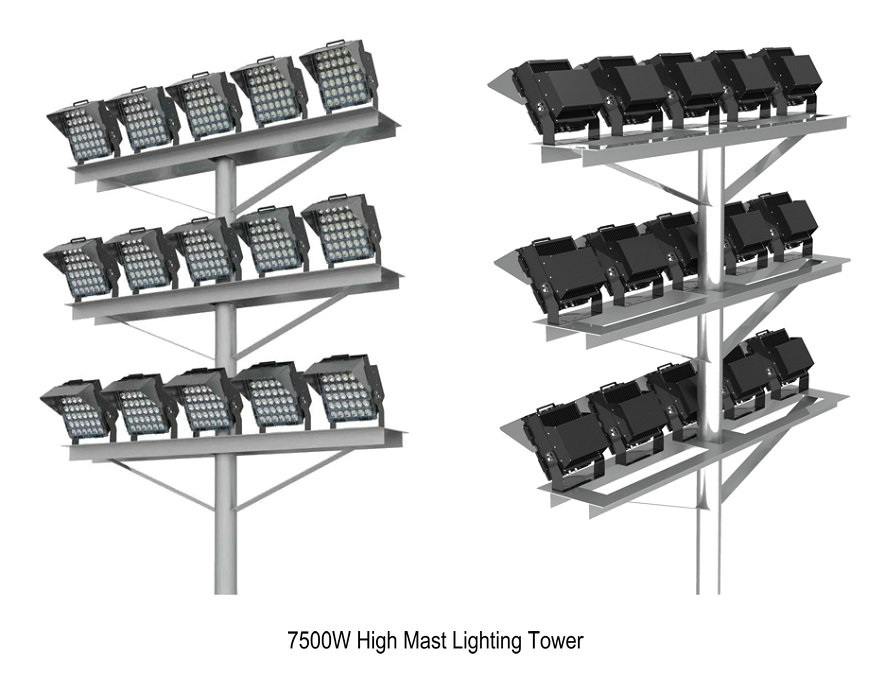

1000W LED High Power LED Lighting ProjectLighting Tower High Mast Lighting 2000W 3000W 5000W 7500W
