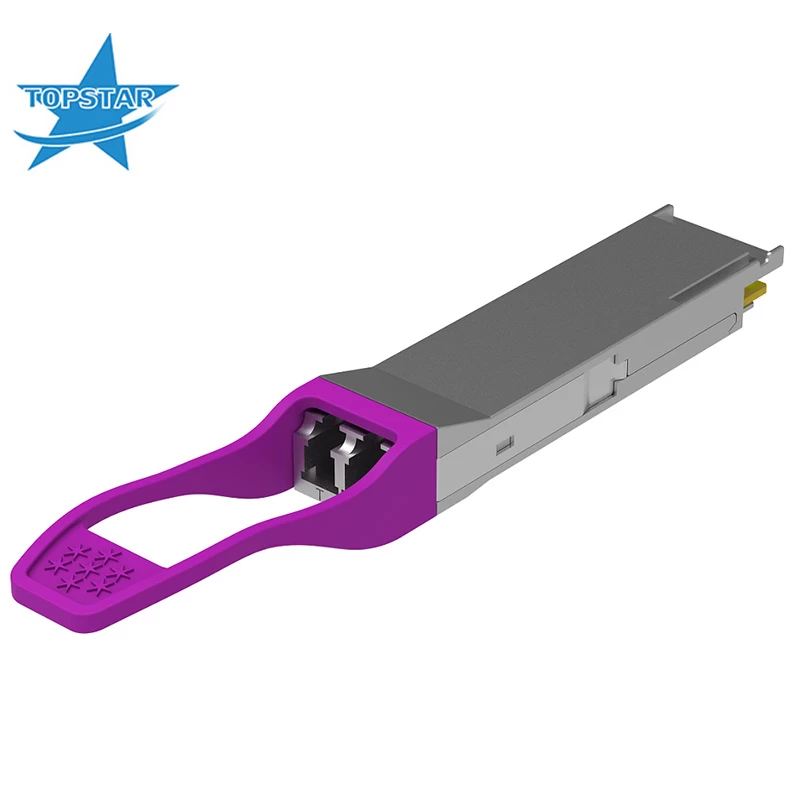

100G QSFP28 4WDM 10km optical transceiver with Hot-pluggable For Fibre Channel and 100G Ethernet SMF 5G Network transceiver module

T100G QSFP28 4WDM 10km industrial optical transceiver (GQS-SPO101-4LR4T) is designed for 100G Ethernet and CPRI/eCPRI links reach up to 10km (w/ FEC) on duplex single-mode fibers.


  • Wavelength1271nm, 1291nm, 1311nm, and 1331nm
  • Distance10km
  • Data Rate4X25Gb/s
  • Temperature-40℃~+85℃
  • ConditionNew
  • Warranty3 Years
  • Connectorduplex LC

5G Network Optical Module 100G Ethernet And Fiber Channel 100G QSFP28 4WDM 10km Optical Transceiver SMF Optical Transceiver Industrial-Temperature For Data Centers

Features

Distance
 10 km
Data Rate (max)
103.1 Gb/s
Protocol
100G Ethernet Compliant
Low End Case Temperature (°C)
-40
High End Case Temperature (°C)
85
Diagnostics
Digital
Transmitter
4x DFB Laser
Receiver
PIN
Voltage Supply
3.3
Connector
LC
Wavelength
1271nm, 1291nm, 1311nm, and 1331nm
Description

  • 4 channels full-duplex transceiver module
  • Hot-pluggable QSFP28 form factor
  • 4 channels uncooled CWDM DFB transmitter and PIN ROSA
  • Compliant with QSFP28 MSA, 4WDM4-10 MSA, and CPRI/eCPRI
  • Data rate up to 103Gbps
  • 4 CWDM wavelengths of 1271nm, 1291nm, 1311nm, and 1331nm
  • Reach up to 10km on SMF with FEC
  • Low power consumption < 3.5W
  • Duplex LC receptacles
  • Operating case temperature range -40 to 85°C (I-temp)
  • Single 3.3V power supply
  • RoHS-6 compliant (lead free)
Applications
  • 100G Ethernet
  • CPRI/eCPRI
