100G QSFP28 4WDM-40 40km Optical Transceiver SMF Compliant with QSFP28 MSA 4WDM-40 MSA For 5G Network 100G Ethernet

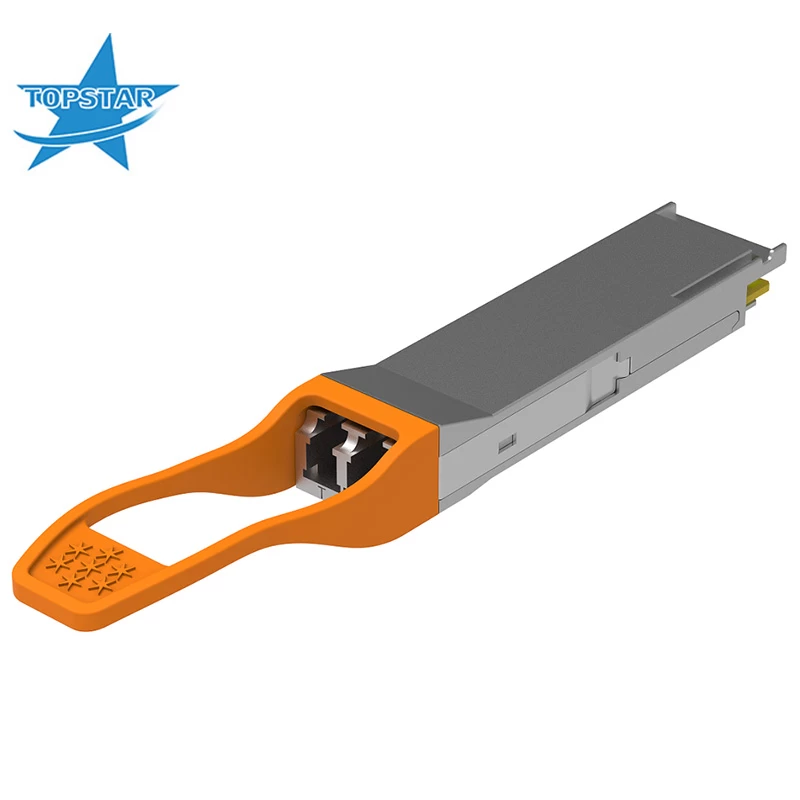

100G QSFP28 4WDM-40 40km industrial optical transceiver (GQS-SPO101-4ER4T) is designed for 100G Ethernet and CPRI/eCPRI links reach up to 30km (w/o FEC) or 40km (w/ FEC) on duplex single-mode fibers.


  • Distance40km
  • Data Rate4X25Gb/s
  • Temperature-40℃~+85℃
  • ConditionNew
  • Warranty3 Years
  • Wavelength1295.56nm, 1300.05nm, 1304.58nm and 1309.14nm
  • Connectorduplex LC

5G Network Optical Module 100G Ethernet And Fiber Channel 100G QSFP28 4WDM 40km Optical Transceiver SMF Optical Transceiver Industrial-Temperature For Data Centers

Description

The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN-WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. Reversely on the receiver side, the module de-multiplexes a 10Gb/s optical input into 4 channels of LAN-WDM optical signals and then converts them to 4 output channels of electrical data.

The central wavelengths of the 4 LAN-WDM channels are 1295.56nm, 1300.05nm, 1304.58nm and 1309.14nm as members of the LAN-WDM wavelength grid defined in IEEE 802.3ba. The high-performance cooled LAN-WDM DFB transmitters and high-sensitivity APD receivers provide superior performance for 100-Gigabit Ethernet and 4WDM-40 applications up to 30km links without FEC and up to 40km links with FEC.

Features

  • 4 channels full-duplex transceiver module
  • Hot-pluggable QSFP28 form factor
  • 4 channels cooled LAN-WDM DFB transmitter and APD ROSA
  • Internal CDR circuits on both receiver and transmitter channels
  • Compliant with QSFP28 MSA, 4WDM-40 MSA, and CRPI/eCPRI
  • Data rate up to 103Gbps
  • 4 LAN-WDM wavelengths of 1295.56nm, 1300.05nm, 1304.58nm and 1309.14nm
  • Reach up to 30km (w/o FEC) or 40km (w/ FEC) on SMF
  • Low power consumption < 3.8W
  • Duplex LC receptacles
  • Operating case temperature range 0°C to +70°C (C-temp)
  • 3.3V power supply voltage
  • RoHS-6 compliant (lead free)



Applications


  • 100G Ethernet
  • CPRI/eCPRI


WHY CHOOSE US TOPSTAR
  • Professional testing equipments: Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner for producing process. Cisco/ Juniper/ Brocade/ Alcatel-lucent/Huawei/ERICSSON/ Datacom etc. guarantee compatibility.
  • Specialized in developing and producing the most Hi-tech products like: 40G QSFP+/ 100G CFP/CFP2/CFP4 / QSFP28 / 25G SFP28 / 200G QSFP56 /400G QSFP DD/400G OSFP .  Every month sales qty transceivers  more than 10W pcs .
  • OEM Compatible  transceivers  have  3-year warranty , support 3 months unconditional  return , 1 year replacement  or repair . Brand transceivers  have 1 year warranty .
  • Stocks holds more than 200,000 transceivers at any one time for immediate delivery. Shenzhen sales center, Shenzhen OEM/ODM factory , Shenzhen  warehouse , HK warehouse  , USA  San Francisco  branch  to support fast service and shipment .
