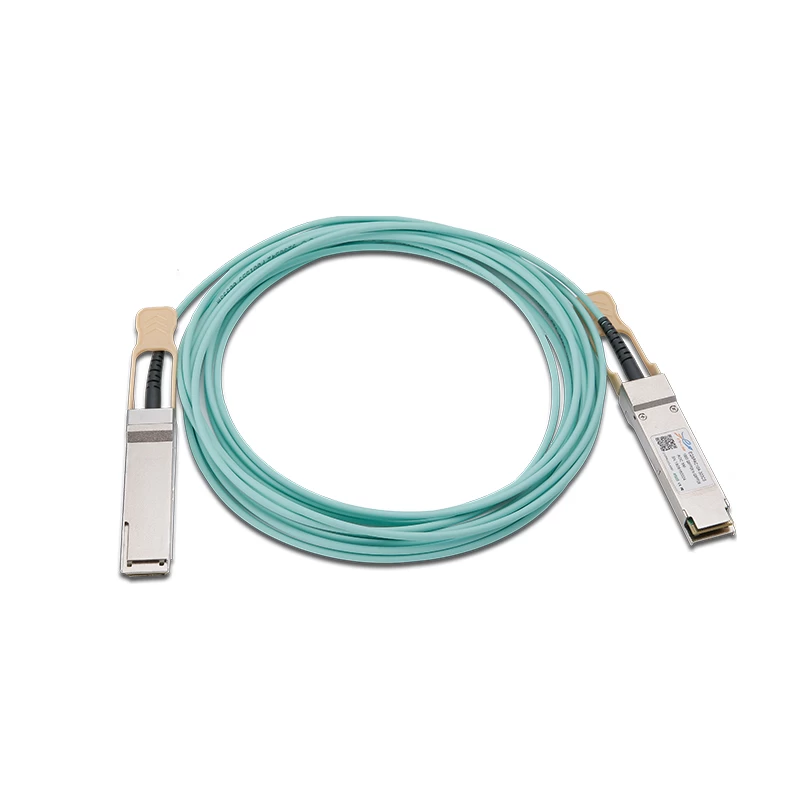

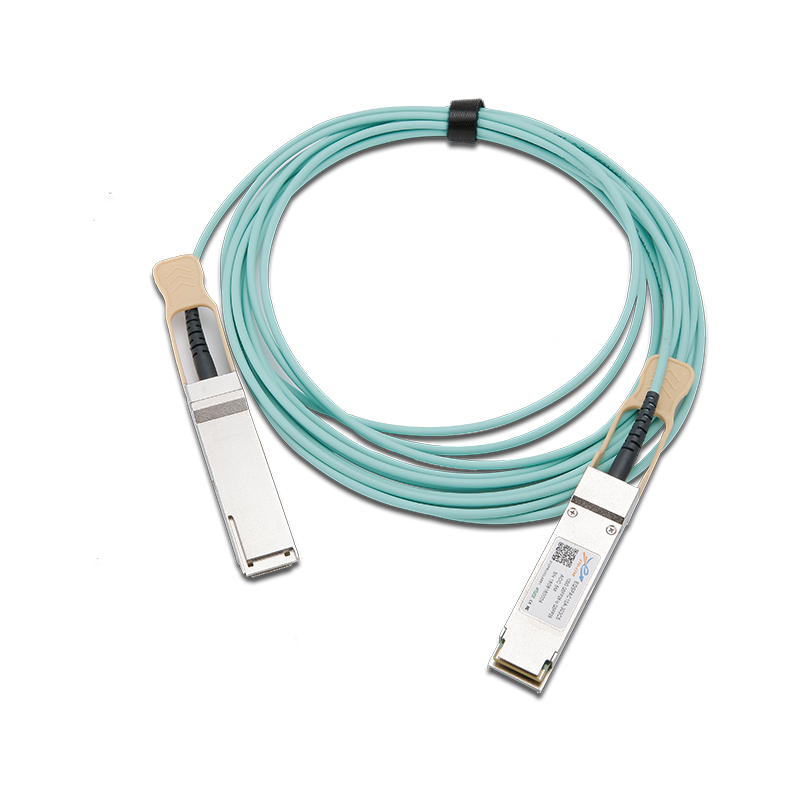

100G QSFP28 AOC

Description: 100Gb/s QSFP28 Active Optical Cable,applications:Infiniband Connectivity SDR/DDR/QDR,  Data Centers and Storage Arrays.



EQ2A10X-33CDxx

100G QSFP28 Active Optical Cable



Features

●Four-channel full-duplex active optical cable

●Transmission data rate up to 26Gbit/s per channel

●Reliable VCSEL array technology using multi-mode fiber

●Available in standard lengths of 3, 5, 10, 15, 20, 30, 50,70m

●Low power consumption <3.5W

●Operating case temperature 0°C to +70°C

●3.3V power supply voltage

●RoHS 6 compliant

●Hot Pluggable QSFP form factor



Applications

● 100G Ethernet

● Data center

● Infiniband QDR/DDR/SDR

● 4G/8G/10G Fibre Channel

Description

The ETU-LINK QSFP28 active optic cables are a high performance, low power consumption, long reach interconnect solution supporting 100G Ethernet ,or InfiniBand QDR/DDR/SDR,  12.5G/10G/8G/4G/2G fiber channel ,PCIe and SAS. It is compliant with the QSFP MSA and IEEE P802.3ba.ETU-LINK QSFP AOC is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 25.78125Gb/s, providing an aggregated rate of 104Gb/s. ETU-LINK QSFP28 AOC is one kind of parallel transceiver which provides increased port density and total system cost savings.
