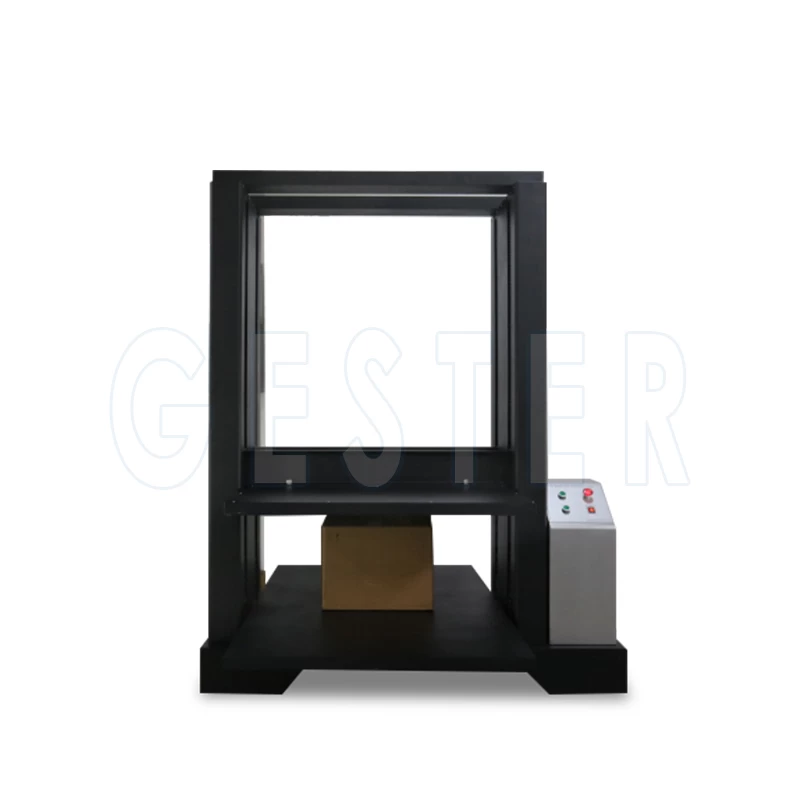

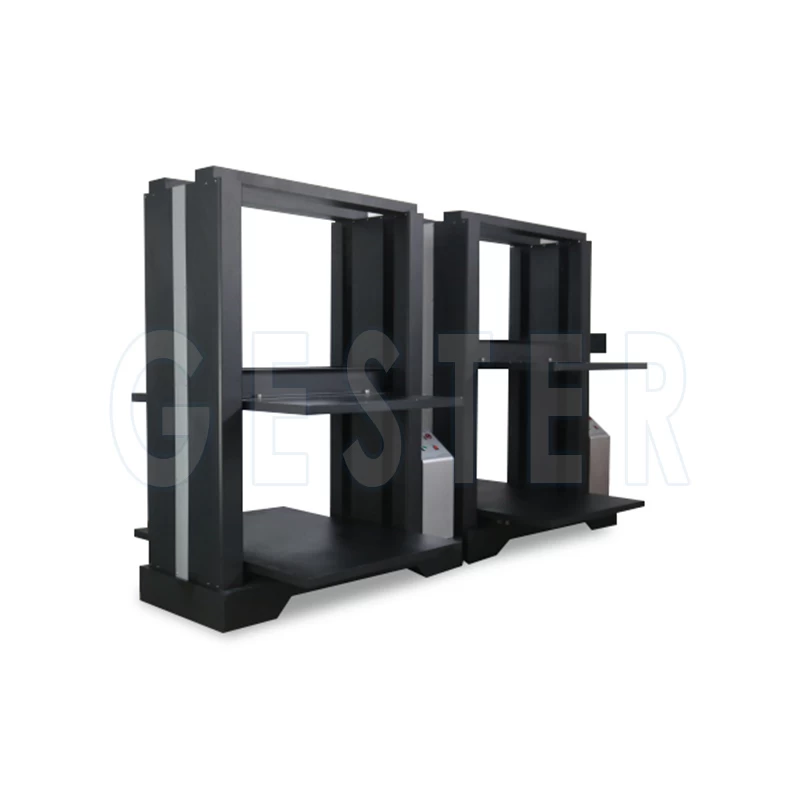

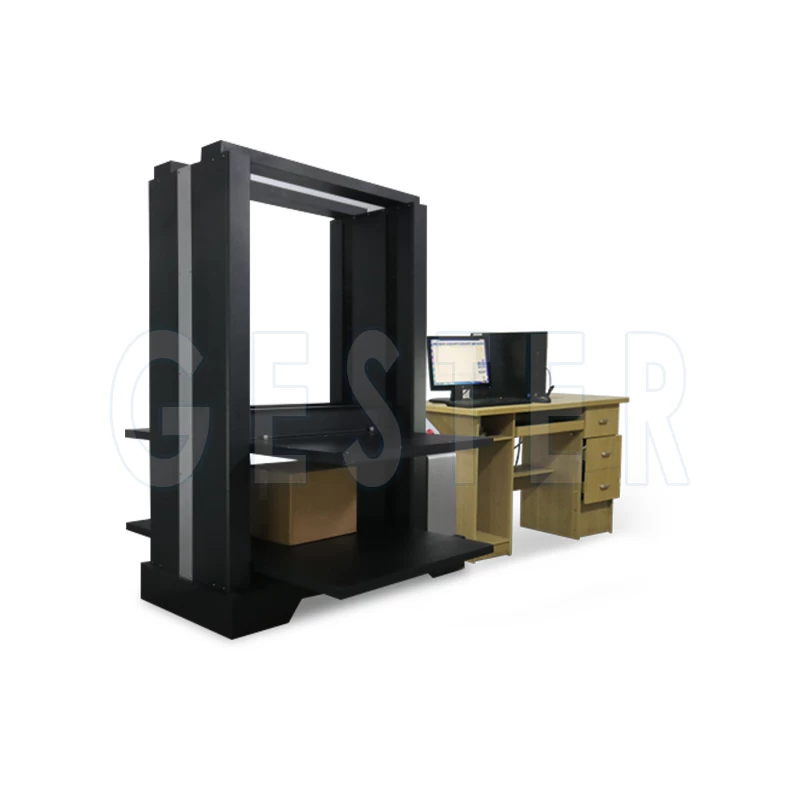

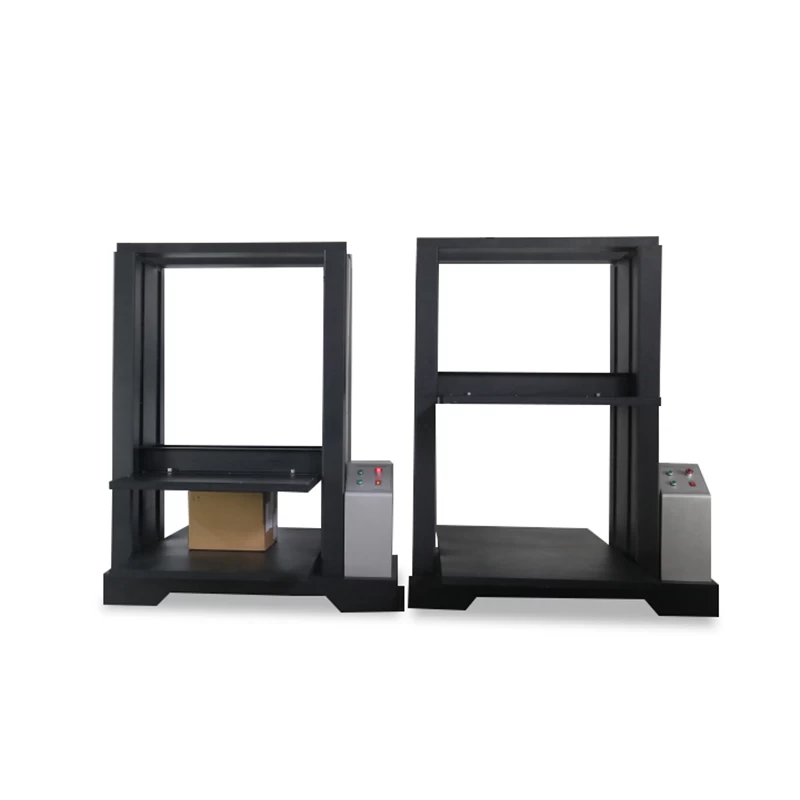

100KN Carton Box Compression Tester GT-N02D

100KN Carton Box Compression Tester uses high-precision force sensor to test the resistance value of pressure and display it directly.


  • certificateISO 9001, UKAS, CE
  • standard
Facebook Twitter Pinterest LinkedIn 分享


box compression testing machine

Applications:

Carton Box Compression Tester uses high-precision force sensor to test the resistance value of pressure and display it directly. The most direct equipment for testing the pressure resistance of containers made of cardboard or other materials. It is used to determine the cargo capacity and stacking height of the carton. It is suitable for the compression and holding test of various packages and cartons. The test results can be used as an important reference for the stacking height of the finished packaging box or an important basis for packaging box designing.


100KN Carton Box Compression Tester Feature

  • Power system: servo motor + servo drive + worm gear reducer + ball screw
  • Speed range: 0.001-500mm/min (adjustable)
  • After the test, it will automatically store and return to the origin
  • Data transmission: RS232 transmission
  • Test space: test width≈1600mm; board travel space≈1600mm
  • Displacement: Encoder 1000 P/R, 4 times better accuracy
  • With LINE DRIVE encoder with anti-interference ability and strong displacement analysis 0.001mm
  • Safety device: overload emergency stop  device, upper and lower stroke limit device, leakage automatic power off system, automatic interrupt stop function
  • Manual control mode: increase the manual operation box


Key Specifications

Model

 GT-N02D



GT-N02D-1

GT-N02D-2

GT-N02D-3

Plate Size(mm)

1200×1200

1600 ×1600

Customized

Max Stroke(mm)

1200

1600

Customized

Capacity

 0-10KN, 20KN, 30KN, 50KN. 70KN, 100KN (Optional)

Accuracy

±0.5%

 Unit

 International units(switch freely)

 Control System

 motor + servo system

 Induction Mode

 high precision load cell

 Display

 Computer screen display

 Test Speed

 0.001-500mm/min adjustable (standard speed 12.7mm/min)

 Return Speed

 0.001-500(adjustable)

 Holding Function

 With Holing Function(holding time / weight can be set)
