100L Capacity Vacuum Planetary Mixer Machine For Lithium Battery Productiong Line
SPECIFICATIONS
The vacuum planetary mixer is excellent for preparing LiCoO3, LiFePO4, Phosphors and ceramic slurry without gas bubble. And the processed material results in the better dispersion and uniformity.
Model
|
Vacuum Planetary Mixer TOB-XFZH100
|
Low speed
revolution and rotation
|
Frequency conversion
motor power
|
11KW
|
variable-frequency drive
|
11KW
|
Revolution speed
|
0～35rpm
|
Impeller speed
|
0～55rpm
|
High speed dispersion
|
Frequency conversion
motor power
|
15KW
|
variable-frequency drive
|
15KW
|
Dispersion plate
|
Diameter : DIN160
Speed : 0～3800rpm
Linear speed : 0～23.5m/s
|
Mixing barrel
|
Dimension
|
Dia.596mm×H.500mm
|
Capacity
|
Design capacity : 140L
Working capacity : 100L
|
Materials
|
Sus304 stainless steel, with thickness 5mm
|
Vacuum degree
|
-0.098MPa, no less than -0.085 MPa after 24hours
|
Voltage supply
|
Operating voltage 380 v / 50 hz / 3 phase,
Control voltage 24 v DC
|
Weight
|
About 2800KG
|
Dimension (L*W*H)
|
2000×1200×2750（mm）
|

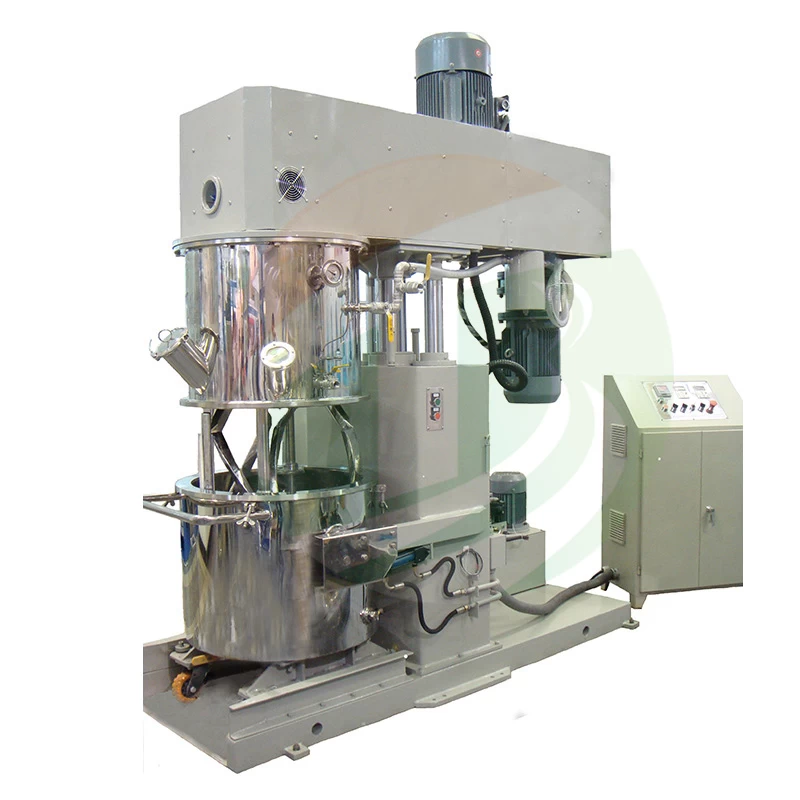

PRODUCT DISPLAY
