100L Vacuum Storage Tank With Pump For Battery Slurry Mixing And Transfer
SPECIFICATIONS

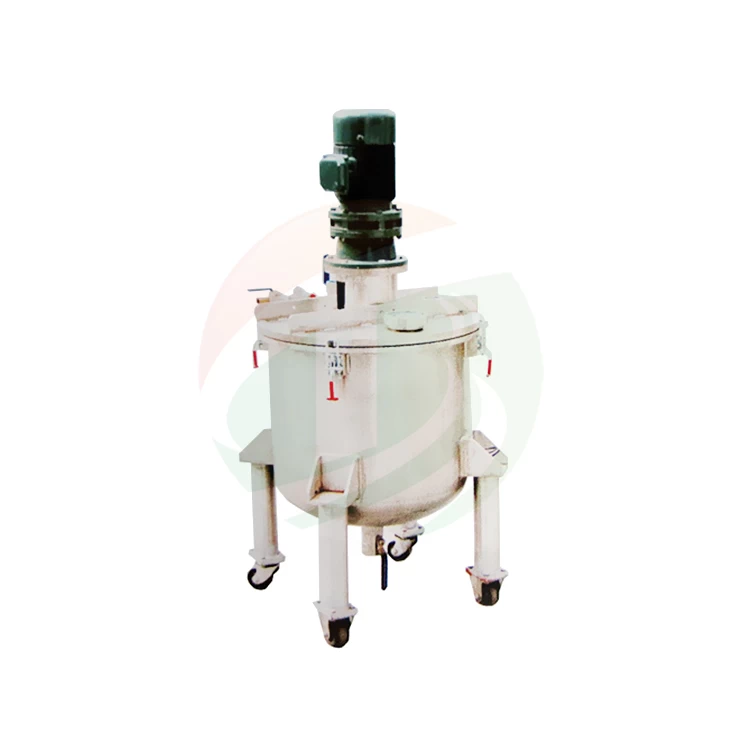

TOB-VST-100Vacuum Storage Tankwith effective volume 100L, It is a set of vacuum mixing, dispersion of efficient equipment, suitable for battery anode/cathode paste and other electronic, chemical industry material mixing process.
It is mainly used for vacuum storage Lithium battery slurry with good viscosity after vacuum mixing and before coating process.The vacuum tank is equipped with Four moving wheels, which can transfer the battery paste/slurry to coating machine from mixing machine.
|
Model
|
Vacuum Storage Tank TOB-VST-100
|
|
Source voltage
|
AC110V/220V, 50/60HZ
|
|
Power
|
2.2KW
|
|
Warranty
|
One year limited warranty with lifetime support
|
|
Mixing speed
|
0-65r/min
|
|
Effective volume
|
100L
|
|
Vacuum degree
|
≤-0.098Mpa
|
|
Storage tank dimension
|
Dia 580*600mm
|
|
Production dimension
(L*W*H)
|
620*620*1650mm
|
|
Application
|
Used for lithium battery anode/cathode slurry vacuum mixing and storage
before coating
|
