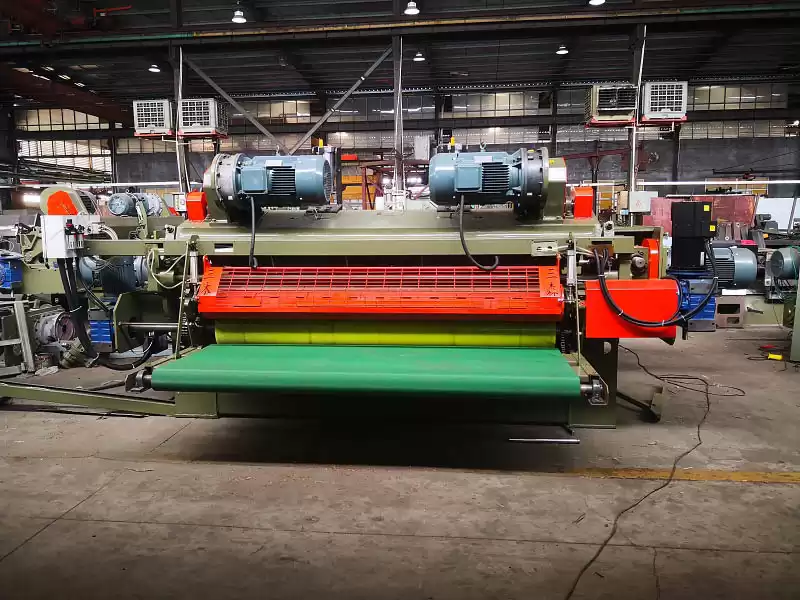

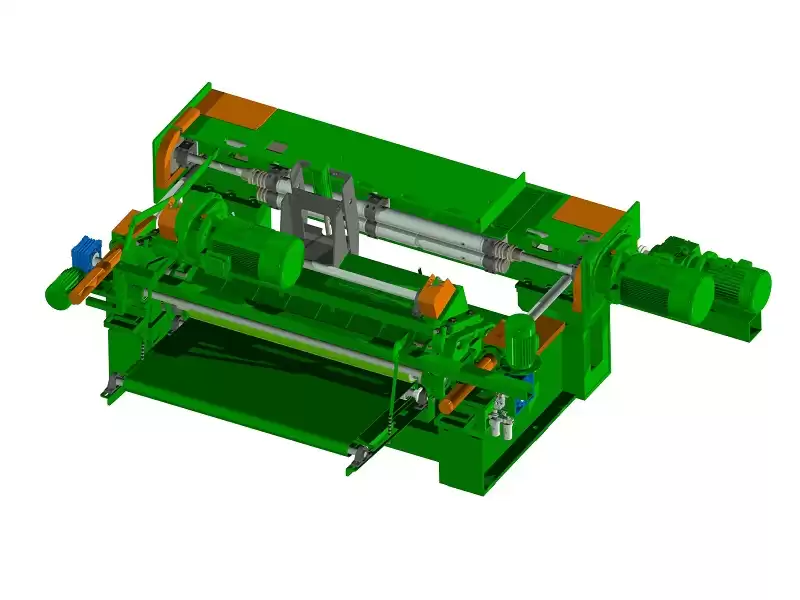

Product Name: 100m/min High Speed Spindleless Wood Lathe Machine/Rotary Lathe/Veneer Lathe
Major Technical Parameters:
|
DESCRIPTION
|
UNIT
|
BQ1813/G6S-J
General
|
|
Length of log
|
mm
|
900-1400
|
|
Diameter of log
|
mm
|
Φ32-Φ650
|
|
Length of blade
|
mm
|
1500
|
|
Thickness of veneer
|
mm
|
0.8-4.0
|
|
Width of cut veneer
|
mm
|
620-1300
|
|
Linear speed of host machine
|
m/min
|
60m/min
83m/min
|
|
Diameter of driving roller
|
mm
|
115
|
|
Diameter of pressurebar roller
|
mm
|
116
|
|
Diameter of rubber roller
|
mm
|
140
|
|
Power ofpressurebar
roller
|
KW
|
11 6 / 15 4
|
|
Power of doubleroller
|
KW
|
11 6 / 15 4
|
|
Power of cutting feed
|
KW
|
11/15
|
|
Power of shear
|
KW
|
3
|
|
Power of PU roller/ output converyor
|
KW
|
1.5
|
|
Total power
|
KW
|
37.5/49.5
|
|
Total weight
|
kg
|
6500
|
|
Overall
dimensions
|
mm
|
3700*2800*1700
|
Main Features:
1. Wood rotary lathe and cutting wood veneer all in one.
2. Simple operation & easy maintenance ; the quality of wood veneer thickness similar to that of veneer peeled by the spindle rotary
peeling machine.
3. Upgraded technology guarantee the flatness, evenness and
smoothness of different thickness veneer

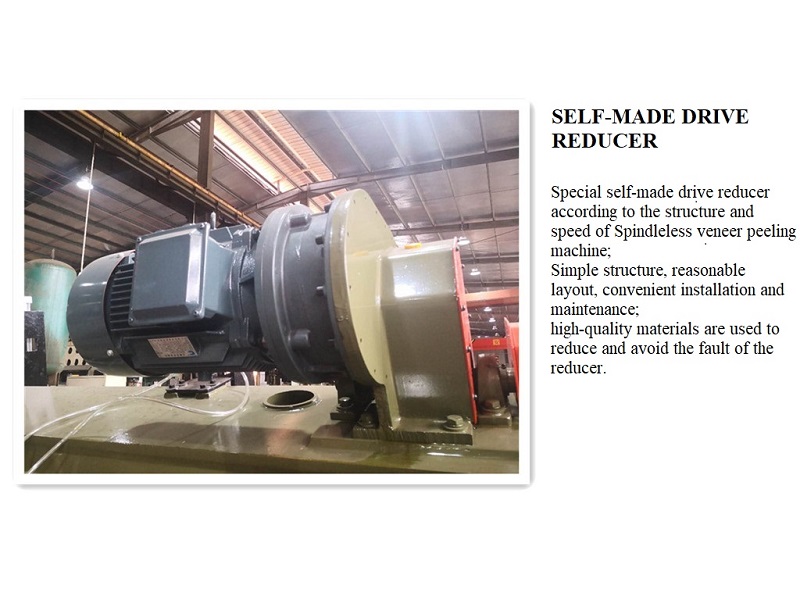

4. Special self-made drive reducer according to the
structure and speed of Spindleless veneer peeling machine
