100mm Micrometer Adjustable Doctor Blade Wet Film Applicator for Battery Electrode Coating

Wet film applicator is the excellent tool to make the quality film for material research in laboratories to make ceramic tape casting, battery electrodes, and various coating at the lower cost.



100mm Micrometer AdjustableDoctor Blade Wet Film Applicatorfor Battery Electrode Coating


Adjustable Film Applicator is unique wet film applicator features micrometer heads for knife blade adjustment.


The operator sets the blade clearance by adjusting the micrometers. This is the excellent tool to make the quality film for material research laboratories to make ceramic tape casting, battery electrodes, and various coating at the lower cost. Stainless steel knife blade with the precision ground edge.


Model Wet Film Applicator / Doctor Blade AOT-KTQ-100

Features

100 mm standard width

Make wet film thickness between 0 - 3500 microns

Micrometer head's controllable accuracy is 10 microns

Made of SS304 stainless steel

Application Notes

Replacement springs are available for future maintenance, please contact us.

Optional

Upgrade to the digital micrometers for better accuracy, with customized doctor blade. Note that the for 100mm applicator, the two digital Micrometer Heads need to sit a little angle due to the width.

NOT naturally compatible film applicator, but could customize our film applicator width above 100mm to fit. Please email us first to order customized doctor blade, the separate orderwill notfit.

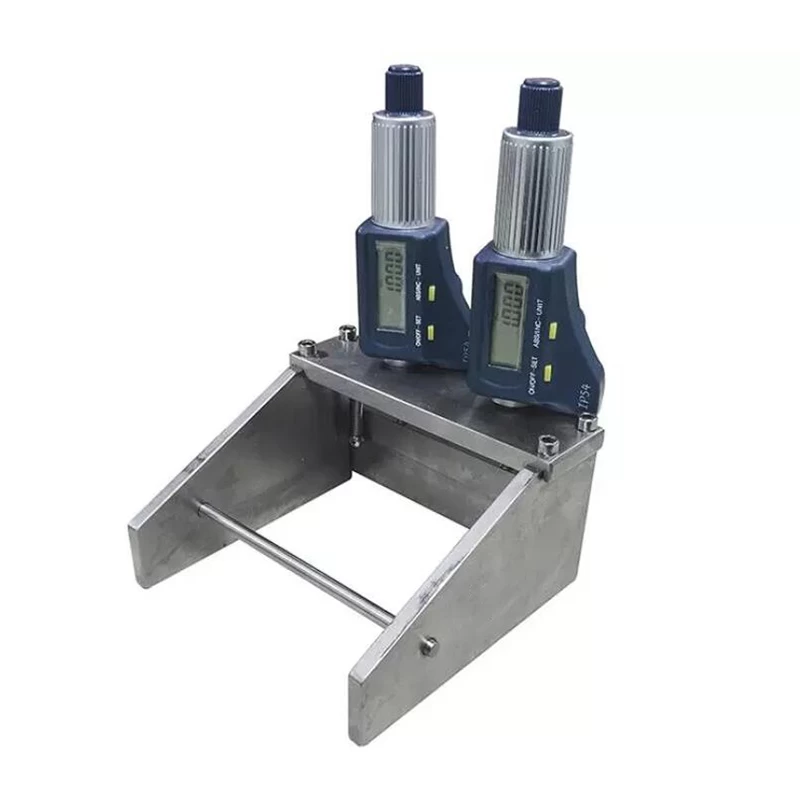

Digital Micrometer
Specifications

Digital Micrometer Head 1" Travel

Reads to 0.001 mm (50 millionths of an inch)

0.003 mm accuracy

Instant inch/millimeter conversion

Film Coating Device Wet Film Applicator AOT-KTQ-100

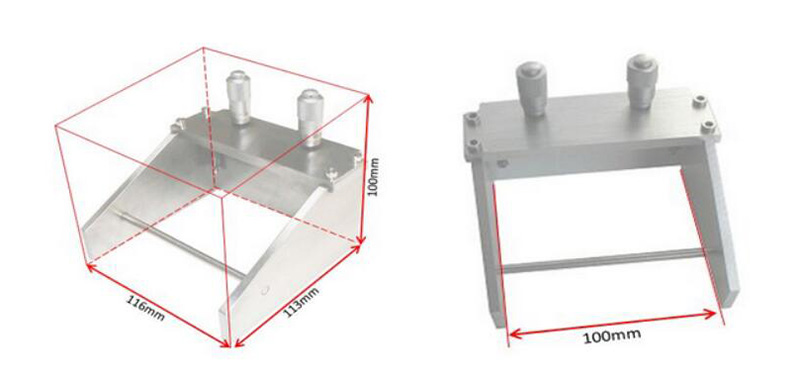

Film Casting Device Wet Film Applicator AOT-KTQ-100 dimension

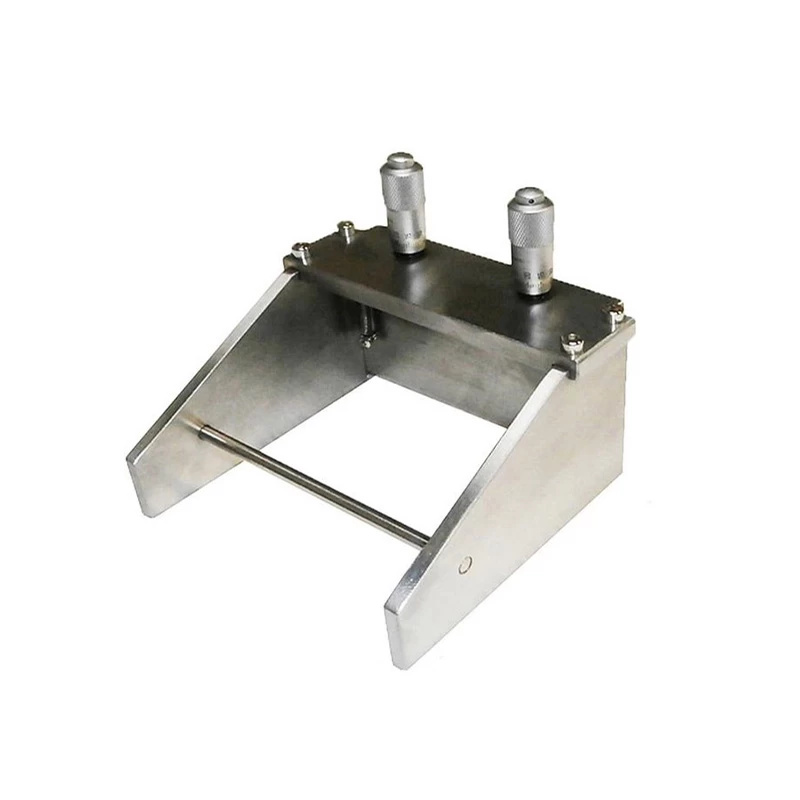

100mm Stainless Steel Film Casting Device Wet Film Applicator
