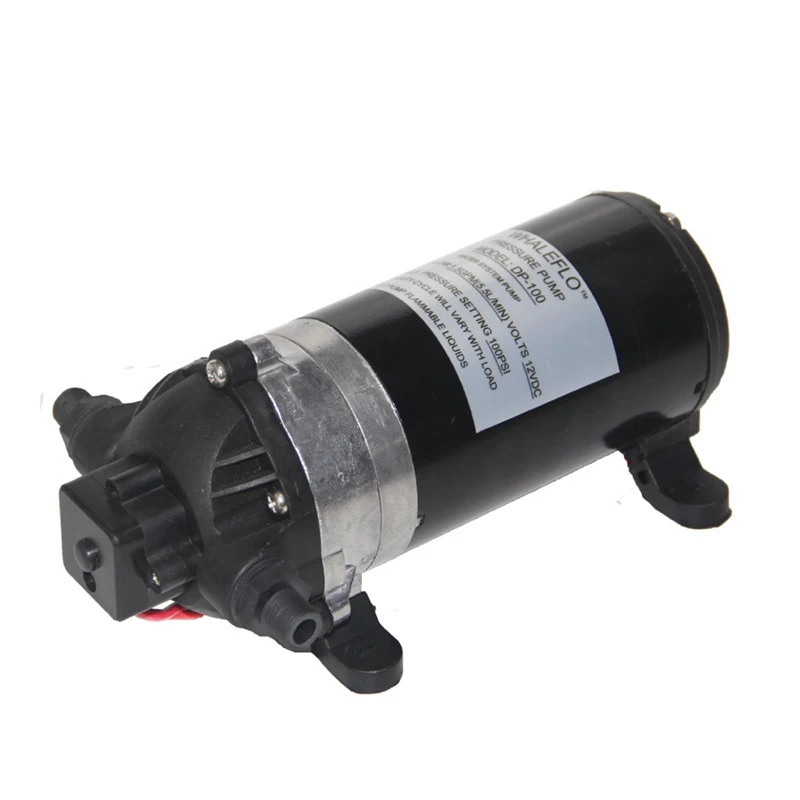

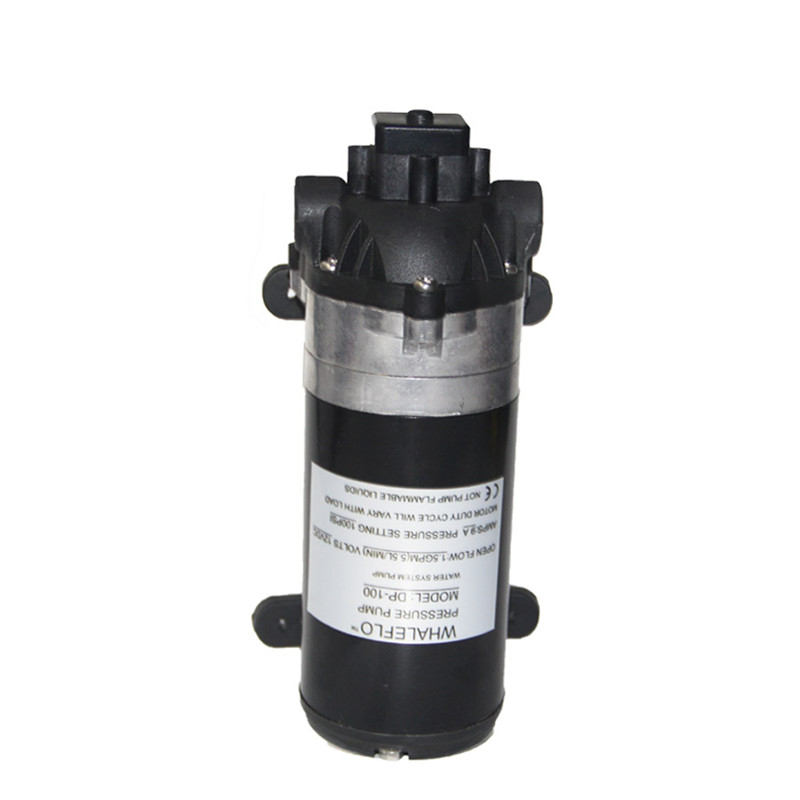

100PSI 12V DC 5.5Liter/min High Pressure Car Electric Wash Pump
Whaleflo DP high pressure wash pump, which is ideal for carpet cleaning, car washing,Outdoor shower,industrial chemical liquids,Sanitary industry , sea water transfer,fresh water transfer.DP series designed basing on three diaphragm.Pump pressure vary from60PSi-160PSi with self-priming ability.
DC pressure wash pump chamber material made of Santoprene.The inside check value is EPDM(Ethylene Propylene Diene Monomer) and Viton use widely for liquid PH value vary from4-11PH value.

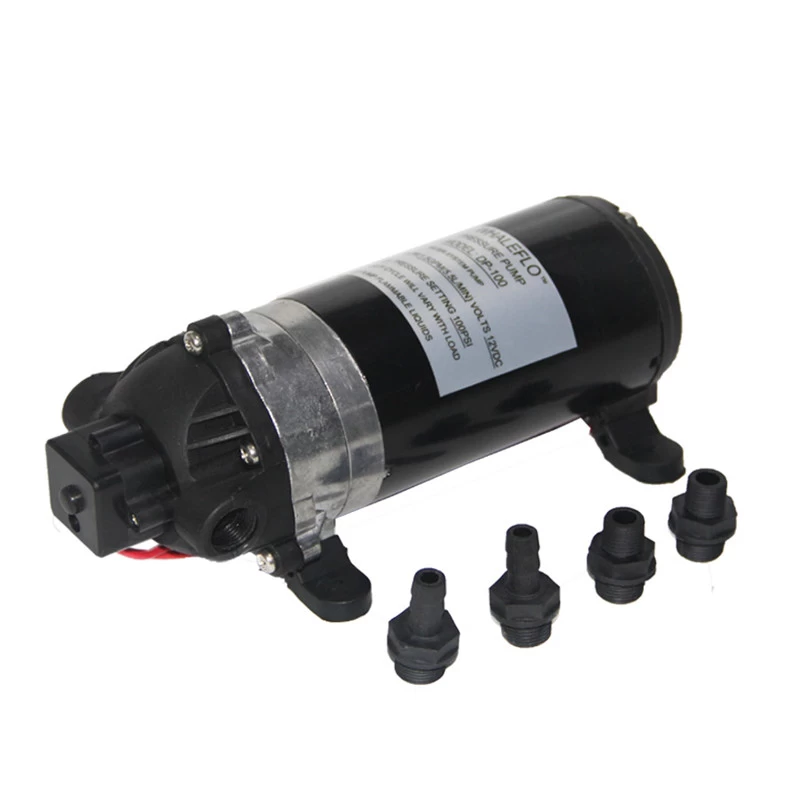

DP pump with3/8’’(10mm) hose barb,1/4’’ male thread and 3/8’’ female thread.
Pump working duty: working intermittent
Shaft made ofStainless steelwith Best heavy duty manufacturer
Pump pressure vary from 60PSi to 160PSIcontrolled by Bypass& pressure switch
Anti airlock designmake motor with long life span and tight sealed well
superior rubberfeet with low noise.
Pump detail install size drawing & manual are available
Mini& Flexible,light weight
Performance
Whaleflo 12V DC Diaphragm Pump with High pressure ,Self-priming ability. Can dry run with damage. Low noise, automatic pressure switch,mini and flexible, superior rubber feet with low noise.
Application
carpet cleaning, car washing,Outdoor shower,industrial chemical liquids,Sanitary industry , sea water transfer
Typical Applications
Agricultural Spraying
General Industrial
Automotive
Marine/RV
Water Treatment/Ro
Beverage/Food Service
Distillation Equipment
Technical data
|
Model
|
Volt(V）
|
Open Flow（LPM/GPM）
|
Demend Pressure（PSI/Bar）
|
Amps Draw(A)
|
Check value
|
Diaphragm
|
Ports
|

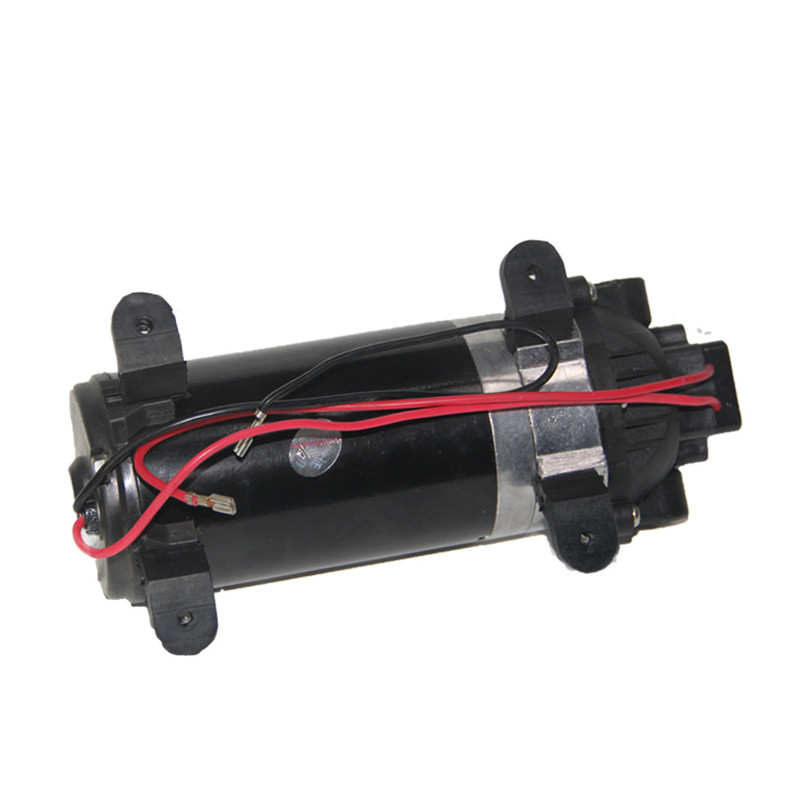

Wire connections
|
|
DP60
|
12
|
4.6(1.2)
|
60(4.1)
|
7
|
EPDM/VITON
|
Santoprene
|
3/8''
|
2-pin/Leads
|
|
DP60B
|
24
|
4.6(1.2)
|
60(4.1)
|
4
|
EPDM/VITON
|
Santoprene
|
3/8''
|
2-pin/Leads
|
|
DP80
|
12
|
5.5（1.5）
|
80（5.5）
|
8
|
EPDM/VITON
|
Santoprene
|
3/8''
|
2-pin/Leads
|
|
DP100
|
12
|
5.5（1.5）
|
100（7.0）
|
9
|
EPDM/VITON
|
Santoprene
|
3/8''
|
2-pin/Leads
|
|
DP120
|
12
|
5.5(1.5)
|
120(8.3)
|
9.5
|
EPDM/VITON
|
Santoprene
|
3/8''
|
2-pin/Leads
|
|
DP120B
|
24
|
5.5(1.5)
|
120(8.3)
|
4.5
|
EPDM/VITON
|
Santoprene
|
3/8''
|
2-pin/Leads
|
|
DP160
|
12v
|
5.5(1.5)
|
160(11)
|
10.5
|
|
Santoprene
|
3/8''
|
2-pin/Leads
|
|
DP160B
|
24
|
5.5(1.5)
|
160(11)
|
4.2
|
|
Santoprene
|
3/8''
|
2-pin/Leads
|
|
DP100M
|
220
|
5.5(1.5)
|
100(7.0)
|
0.6
|
|
Santoprene
|
3/8''
|
2-pin/Leads
|
|
DP120M
|
220
|
5.5(1.5)
|
120(8.3)
|
0.5
|
|
Santoprene
|
3/8''
|
2-pin/Leads
|
|
DP160M
|
220
|
5.5(1.5)
|
160(11)
|
0.6
|
|
Santoprene
|
3/8''
|
2-pin/Leads
|
|
DP160S
|
115
|
5.5(1.5)
|
160(11)
|
1
|
|
Santoprene
|
3/8''
|
2-pin/Leads
|
|
Key
|
Description
|
Quantity
|
|
A
|
Pump Head Assembly
|
1
|
|
B
|
Valve Assembly
|
1
|
|
C
|
Diaphragm Assembly
|
1
|
|
D
|
Motor Assembly
|
1
|
|
1
|
Pressure Switch
|
1
|
|
2
|
Diaphragm of pressure switch
|
1
|
|
3
|
Pump Head
|
1
|
|
4
|
Diaphragm
|
1
|
|
5
|
Rubber feet
|
1
|
|
6
|
Iron Base Plate
|
1
|
|
7
|
Motor
|
1
|
