100T Lab Automatic Hydraulic Press With Programmable Controller
Our Laboratory Hydraulic Pressing Machine has the advantages of small volume, high pressure and high precision of pressure control. It is applied to chemical industry, such as: scientific research, pharmaceutical, teaching, testing, catalysis and so on. In addition, this product can also be used with Fourier infrared spectrometer. Fluorescence spectrometer supporting sample preparation, can replace similar imported products.
Advantages
1.Small size, light weight,No oil linkage, easy to carry.
2.Digital display pressure gauge 0.1MPa,Pressure control is more accurate.
3.The oil pool is easy to replace oil on the main surface of the host, and the hydraulic oil filter is added to the oil path.
4.Special plunger, special custom sealed structure, good sealing effect, no oil leakage
5.The upper plate adopts six angle screws in electroplating sunk head. It is beautiful and saves space.
6.One main plate structure, oil pool, main board, oil cylinder, on one body, no seal connection.
7.Lengthening spring, the rebound effect is good, not easy to deform, can realize the oil cylinder 30mm return no deformation.
8.The Aluminum Alloy handwheel, beautiful, practical, durable, not easy to damage.
Specification
|
Product Name
|
Automatic Hydraulic Press
|
|
Model No.
|
TMAX-100T
|
|
Pressing range
|
0~100t
|
|
Pressing method
|
Programmable control
|
|
Pressure keeping time
|
0~999s
|
|
Pressure exchange
|
Programmable automatic change
|
|
Panel
|
4.3”LCD Touch Panel
|
|
Limit switch
|
Oil tank reach limited height Pressure will relief automatically
|
|
Oil tank distance
|
50mm
|
|

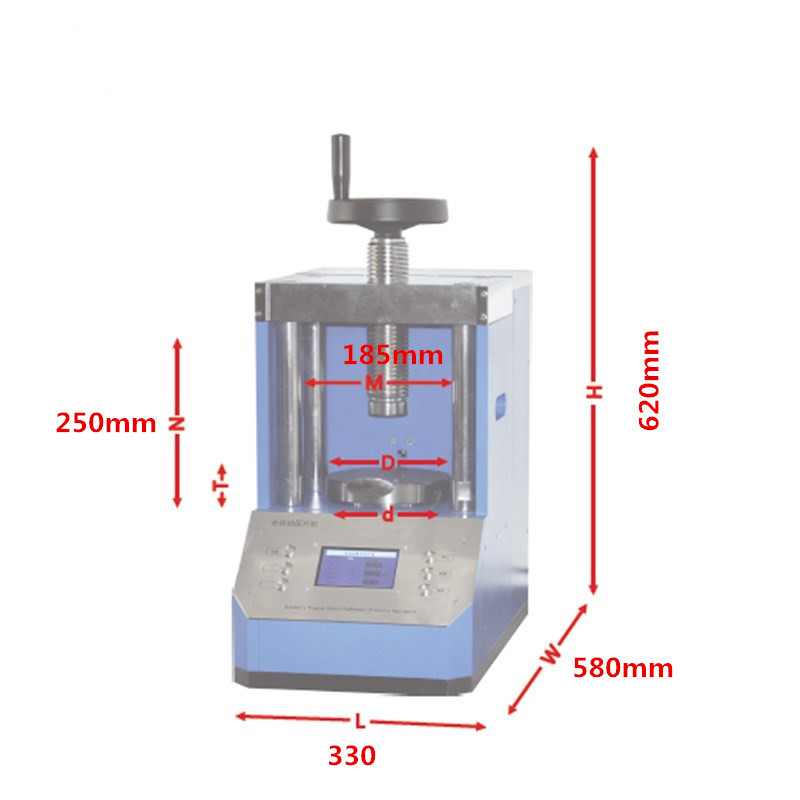

Space dimension
|
185*250mm
|
|
Outer dimension
|
330*580*620mm
|
|
Power supply
|
AC220V 50Hz
|
|
Gross weight
|
240Kg
|
Product Images
Pressure conversion
|
Actual pressure
|
System pressure
|
Double display pressure gauge
|
|
0.2[Tons]
|
1.25[MPa]
|
|
|
0.4[Tons]
|
2.51[MPa]
|
|
0.6[Tons]
|
3.77[MPa]
|
|
0.8[Tons]
|
5.03[MPa]
|
|
1[Tons]
|
6.28[MPa]
|
|
2[Tons]
|
12.5[MPa]
|
|
3[Tons]
|
18.8[MPa]
|
|
4[Tons]
|
25.1[MPa]
|
|
5[Tons]
|
31.4[MPa]
|
It is suggested that the general system pressure should not exceed 35MPa, otherwise it will affect the service life of the equipment.
