100V 10A Charge 20A Discharge Lithium Battery Pack Tester Aging Testing Machine Battery Pack Capacity Tester
Feature
The aging cabinet is mainly used for testing the charging and discharging cycle of finished lithium batteries. The testing items include: battery charging protection voltage, discharging protection voltage, capacity, etc. The equipment has charging, discharging, shelving, and cycling four testing steps. The battery can be tested according to the set process by editing the corresponding steps.
Contact us for more details about Battery Charge Tester!
We also supply all kinds of Aging Machine,Aging Tester for you!
30V 10A 20A / 70V 5A 10A
70V 10A 20A / 85V 10A 20A
100V 10A 20A / 100V 20A 40A
The basic performance of the tester
1. Charging and discharging functions
It has the functions of constant current and voltage charging and constant current discharging, charging and discharging batteries and recording the capacity of batteries.
2. Charge-discharge interface
It fully meets the requirements of charging and discharging ports and charging and discharging ports of battery packages, namely, two wires (P + P-) and three wires (P + P - C-). At the same time, the electric tool battery (CH+P+P-) which can aging positive plate charging protection and negative plate discharging protection can be used.
3. Check Voltage Protection
By charging and discharging the batteries, it can be detected whether the charging protection and discharging protection of the batteries play a role.
4. Safety Protection
Anti-reversal protection function; upper and lower limits of voltage setting protection; safe discharge current protection.
5. Online Mode
If the instrument is single or less than 5, PC can be connected through serial port.
More than 5 computers are connected by network mode. PC computer can control less than 60 instruments by only providing a network port.
6. Control System
The software system adopts classical mature C/S mode. There are two modes of communication: serial port and network. Serial port can realize accurate communication of several instruments in short distance, and network can realize accurate communication of many instruments in long distance.
7. Management software
Based on Windows operating interface, using SQL database to store test data, it is very convenient for staff to inquire and export data online. According to the battery bar code, time and equipment number, the aging curve of charge and discharge can be viewed, and the curve can be derived at the same time.
Specification
|
Technical Parameter
|
|
Input Power Supply
|
Measuring Range
|
10-100V
|
|
Accuracy
|
±(0.2% of reading +0.2% of range)
|
|
Current
|
Charging Range
|
50-10000mA
|
|
Charging Accuracy
|
±(0.2% of reading +0.2% of range)
|
|
Discharge Range
|
50-20000mA
|
|
Discharge Accuracy
|
±(0.2% of reading +0.2% of range)
|
|
Charge
|
Constant Voltage Cut-off Current
|
Minimum 50mA
|
|
Capacity
|
Accuracy
|
±1%
|
|
Power
|
Discharge Power
|
≤1400W
|
|
Time
|
Inspection Time
|
Real-time Collection<2S
|
|
Timing Range
|
0-999h/step
|
|
Data Recording Interval
|
≥5S
|
|
Middle Machine Version
|
1:1 series
|
|
Number of Passages Per Cabinet
|
Seven channels, seven rows and one column
|
|
|
Charge
|
Charging Mode
|
Constant Current and Constant Voltage Charging
|
|
Cut-off condition
|
Voltage, Current, Relative Time, Overcharge Protection
|
|
Discharge
|
Discharge mode
|
Constant current discharge
|
|
|
Cut-off condition
|
Voltage, Relative Time and Over-discharge Protection
|
|
Loop
|
Cyclic measurement range
|
1-999 times
|
|
Single cycle step number
|
100
|
|
Voltage and Current Detection Sampling
|
Four-wire sampling
|
|
Data Base
|
Using SQL database to manage test data
|
|
Upper computer communication mode
|
Based on TCP/IP Protocol/Serial Port
|
|
Data Output Mode
|
EXCEL/TXT/Chart
|
|
Communication Interface
|
Mesh port
|
|
Chassis dimensions
|
450x450x170mm
|
|
Cabinet size
|
980x600x1820mm
|
|
Spatial Dimension of Discharge Battery
|
370x550x190mm
|

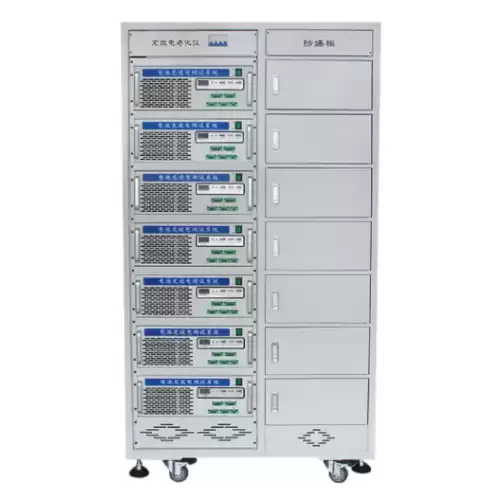

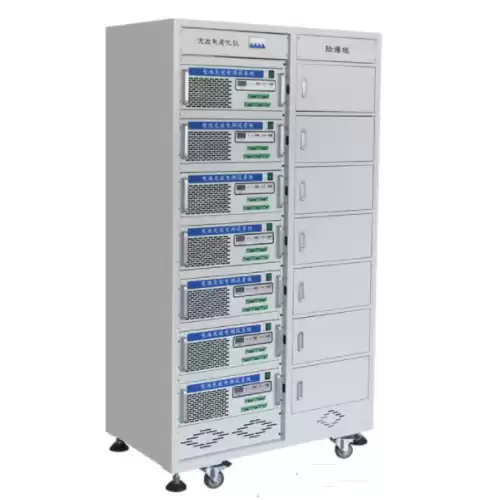

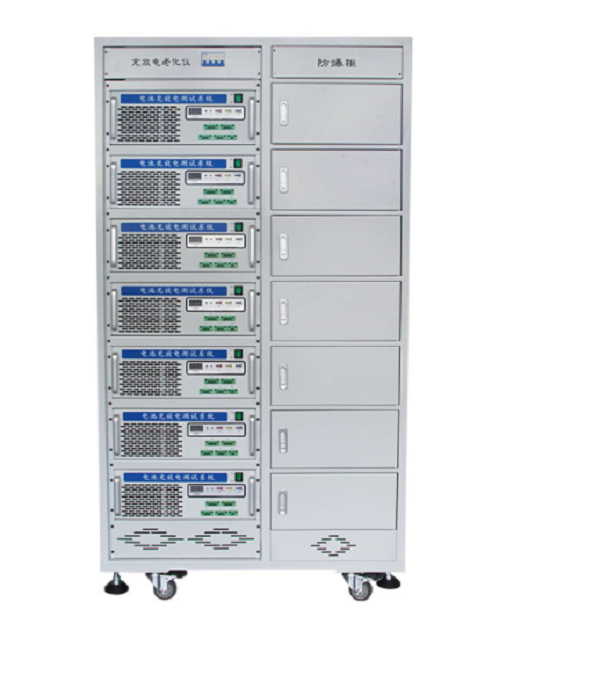

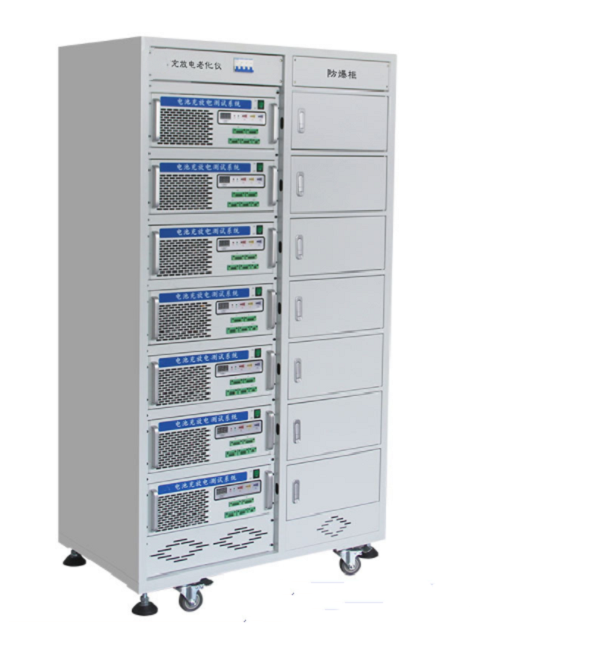

Product Images
