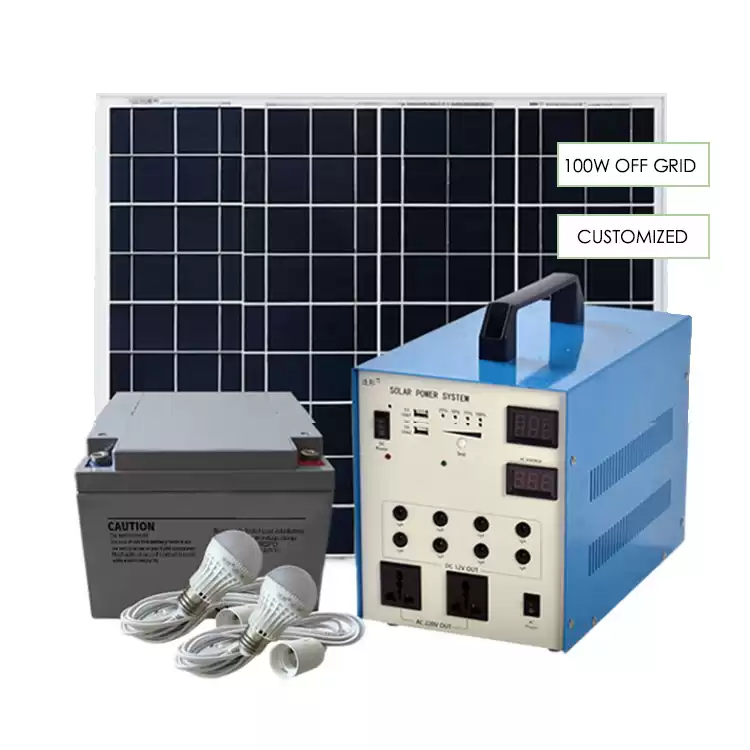

100W 12V Portable home off grid solar power system
This off grid solar power systems includes a host (built-in inverter), a solar panel (maximum output power) 100W, a 12V battery (valve-regulated, maintenance-free gel battery), and accessories that can be equipped according to personal needs.
It can support electrical appliances within 300W, such as a 150W TV, which can be used alone for 4 hours; a 50W fan, which can be used alone for 12 hours; a 5W light bulb, which can be used alone for about 120 hours.
It is a mobile home solar power system, the best all in one solar power system for your home.
Product Specifications:
Host *1
|
Input voltage
|
DC12V
|
Maximum charging current
|
15A
|
Maximum discharge current
|
25A
|
USB
|
1A/5V
|
LED indicator
|
Switch, battery
|
AC220V output interface
|
2PCS
|
DC12V output interface
|
8PCS
|
Charging control method
|
PWM Controller
|
Temperature difference supplement
|
-4MV/0°/2V
|
Load protection
|
Overcharge, overdischarge, overload, short circuit
|
Size
|
345*210*245mm
|
Weight
|
4.03KG
|
Built-in inverter
|
300W
|
Solar panel *1
|
Maximum output power(Pm)
|
100W
|
Optimal power voltage (Vmp)
|
17.6V
|
Optimal power current (Imp)
|
5.71A
|
Open circuit voltage (Voc)
|
21V
|
Short circuit current (Isc)
|
6.4A
|
Size
|
1200*540*30mm
|
Weight
|
7KG
|
Conversion efficiency
|
18%
|
Power deviation
|
3%
|
Cell
|
Monocrystalline silicon
|
Service life
|
More than 25 years
|
Battery *1
|
Battery Type
|
Valve-controlled maintenance-free gel battery
|
Voltage
|
12V
|
Capacity
|
50AH
|
Size
|
229*138*211mm
|
Weight
|
15.5KG
|
Accessories
|
LED lights *2
|
12V/3W
|
LED light wire *2
|
5M
|
Data line *1
|
|
* All accessories such as brackets and connecting wires can be configured according to personal installation environment requirements
* Your requirements can be customized.
|
Key features:
1.Environmental,no pollution &noise
2.High-efficient panel,Durable battery
3.DIY installation and free of maintenance
4.Reliable quality with 5 protection function
