100W 24V 4.2A switching power supply open frame small size with PFC type
Description:
K28A-UP100S24 100W 24V 4.2A smps is a 100-240vac input voltage and open frame 24VDC single output switching power supply with PFC function, high quanlity,it is used in electronic LED driver,we can provide 2 years warranty serve.
Features:
1, 100W high efficiency 24V 4.2A switching power supply;
2, Wide range of AC input voltage,24V 100W single output power supply open frame;
3, Over load, short circuit and overvoltage protection;
4, 100W 24V small size power supply built-in active PFC function.
Parameter
|
|
Item NO
|
K28A-UP100S12
|
K28A-UP100S24
|
K28A-UP100S36
|
K28A-UP100S48
|
|
Output
|
Output Voltage
|
+12V
|
+24V
|
+36V
|
+48V
|
|
Rated Current
|
8.3A
|
4.2A
|
2.8A
|
2.1A
|
|
Current Range
|
0-8.3A
|
0-4.2A
|
0-2.8A
|
0-2.1A
|
|
Rated Power
|
100W
|
100W
|
100W
|
100W
|
|
Ripple & Noise
|
120mVp-p
|
240mVp-p
|
360mVp-p
|
480mVp-p
|
|
Adjustable Output Range
|
±10%
|
|
Output Accuracy
|
±1%
|
|
Line Regulation
|
±0.5%
|
|
Load Regulation
|
±0.5%
|
|
Set up,Rise,Keep up time
|
---
|
|
Input
|
Input Voltage Range
|
100-240V AC
|
|
Input Current
|
1.5A/115V 0.8A/230V
|
|
Input Frequency
|
50-60Hz
|
|
Power Factor
|
---
|
|
Efficiency @230Vac
|
85%
|
86%
|
87%
|
88%
|
|
Inrush Current
|
---
|
|
Leakage Current
|
<0.35mA@240V
|
|
Protection
|
Over Load Protection
|
105~150% Hiccup automatic protection
|
|
Short Circuit Protection
|
---
|
|
Over Temp., protection
|
---
|
|
Environment
|
Working Temp.,Humidity
|
-10~40℃,10~90% RH，No condensation
|
|
Storage Temp.,Humidity
|
-20~85℃,10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min /1cycle, PERIOD FOR 60min EACH AXES
|
|
Safety&EMC Standards
|
Safety Standards
|
GB4943
|
|
Withstand Voltage
|
I/P-O/P, I/P-FG：1.8KV；O/P-FG:0.6KV DC 1min
|
|
Insulation Resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC Standards
|
---
|
|
Others
|
Dimension
|
115*45*35mm(L*W*H)
|
|
Weight
|
0.2kg
|
|
Notes
|
1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output load from 0 to 100% load change measured;
6. Please add full power fan-assisted heat when used;
7. When using low-voltage derating 20% use.
|

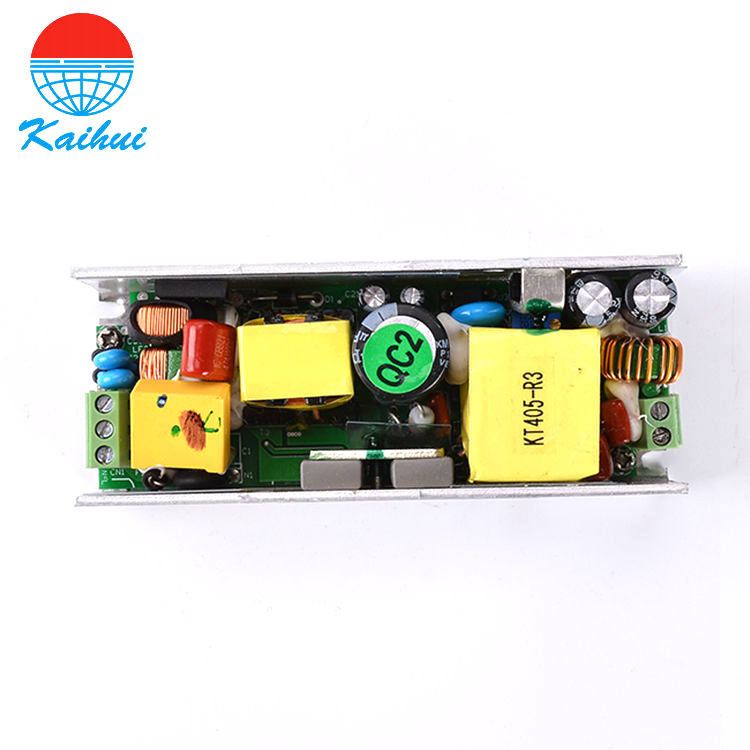

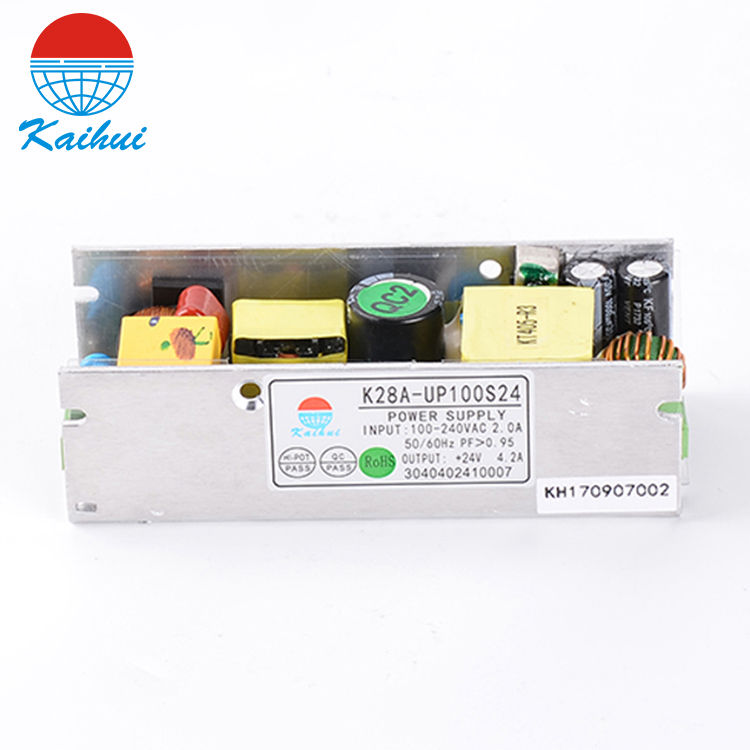

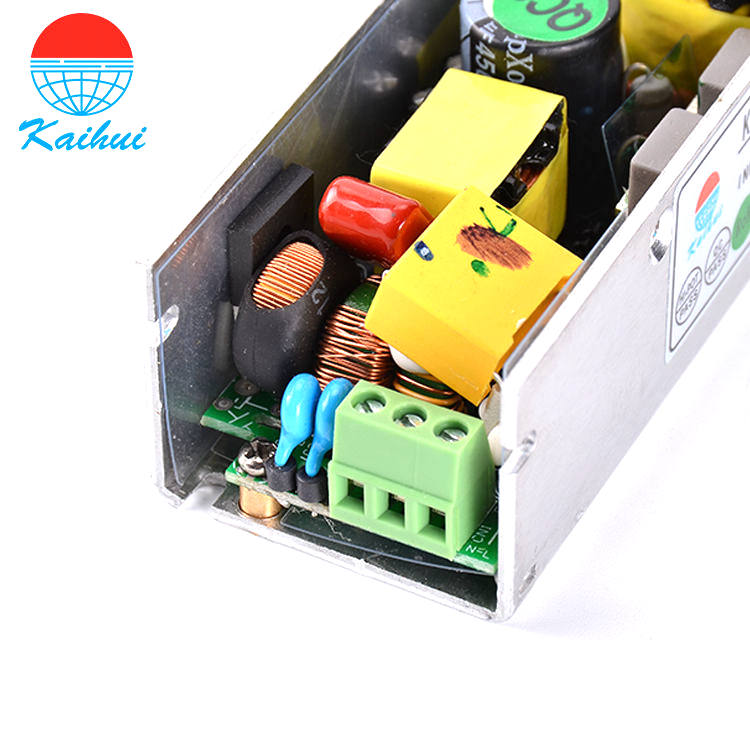

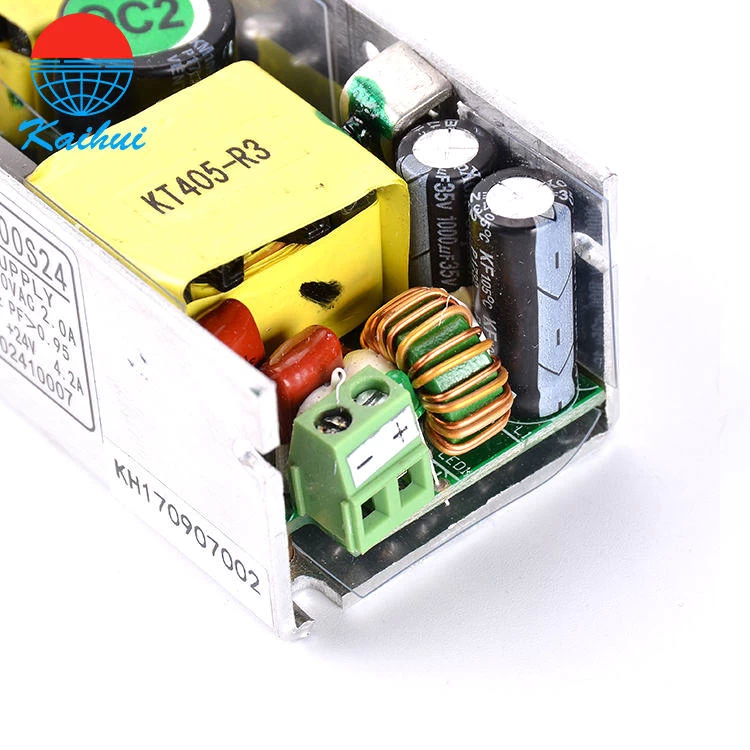

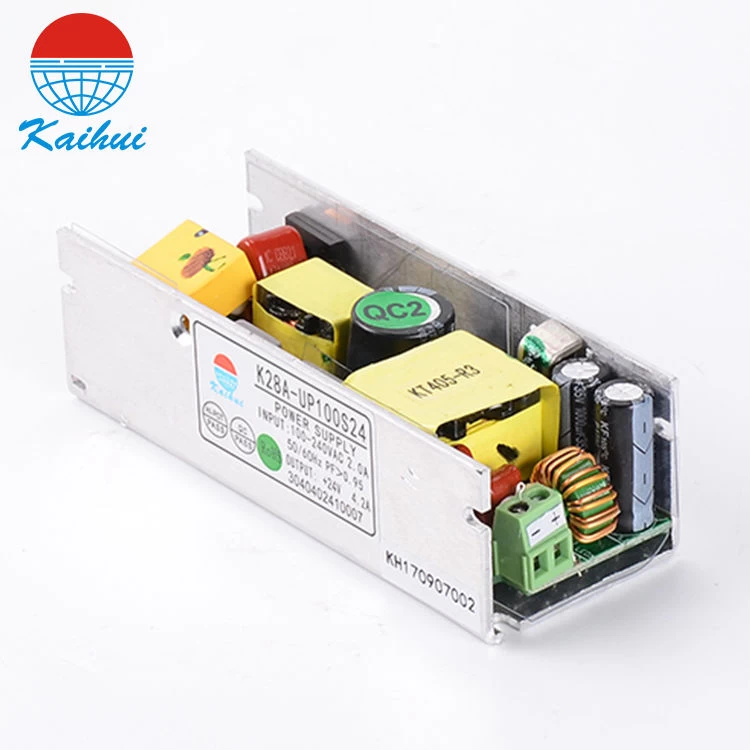

Product picture:
