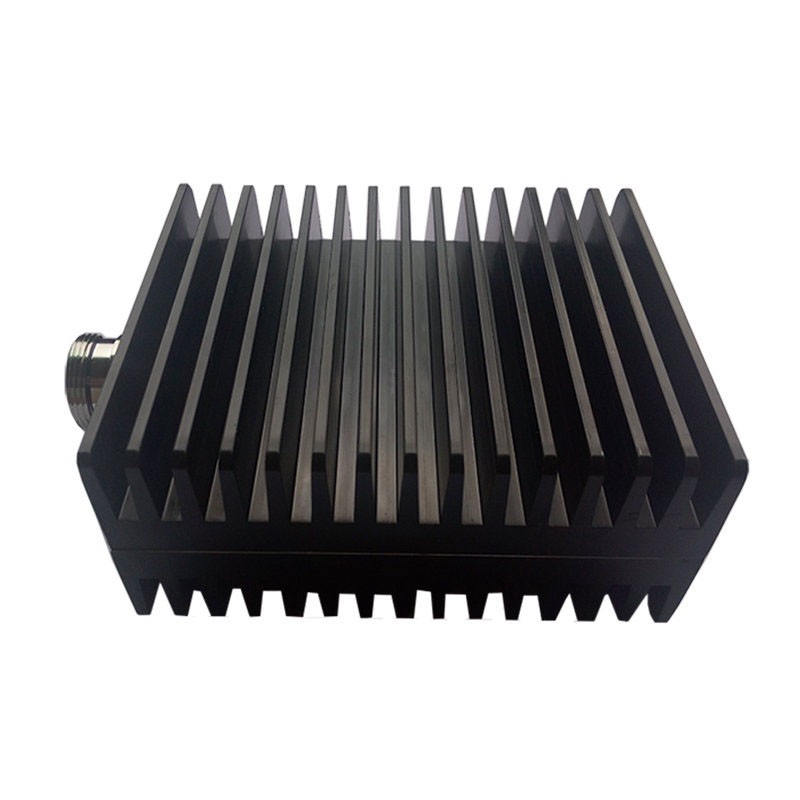

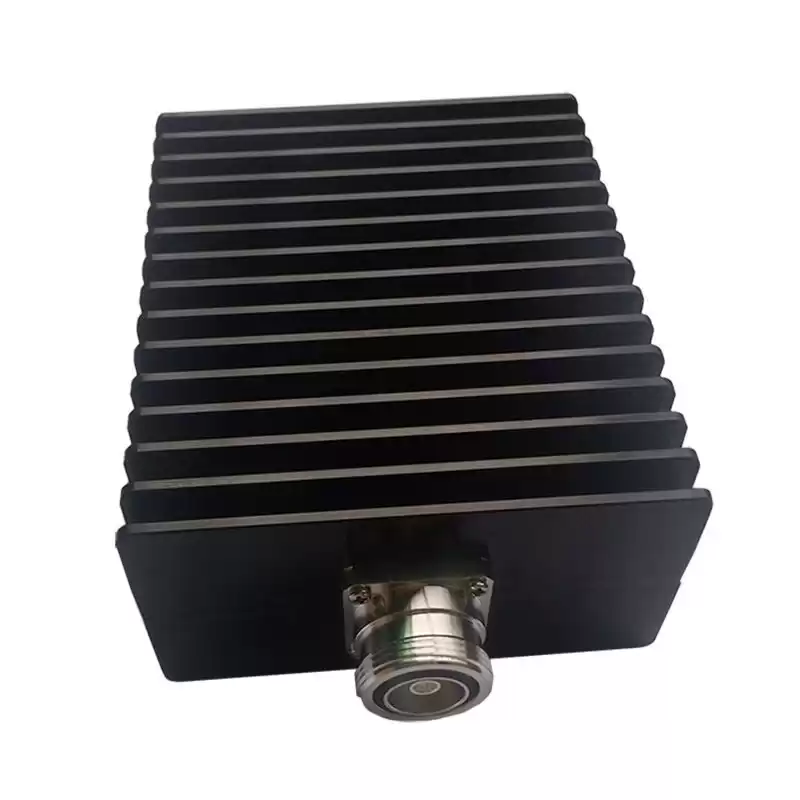

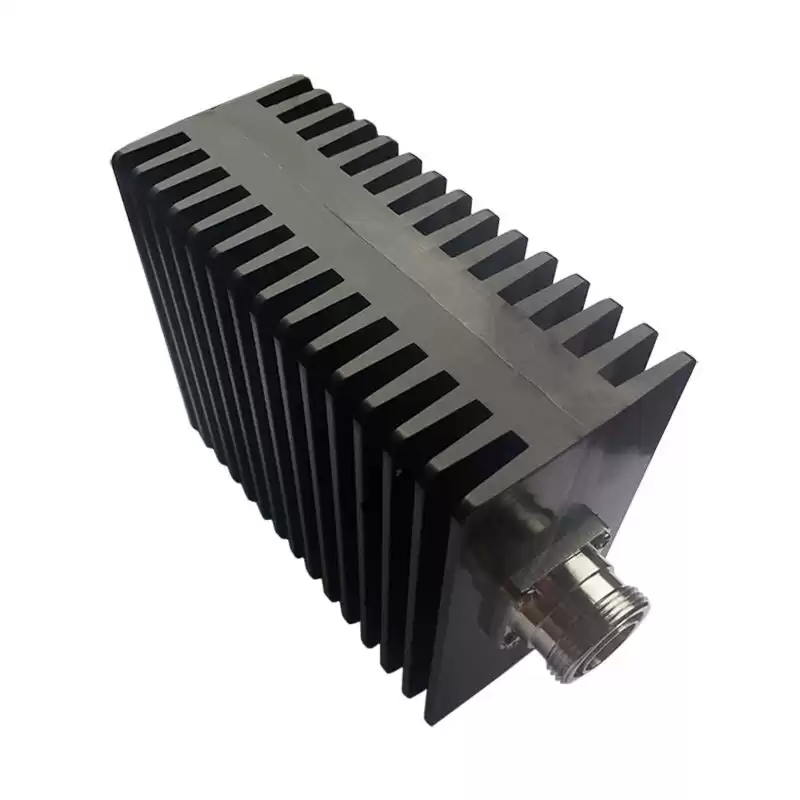

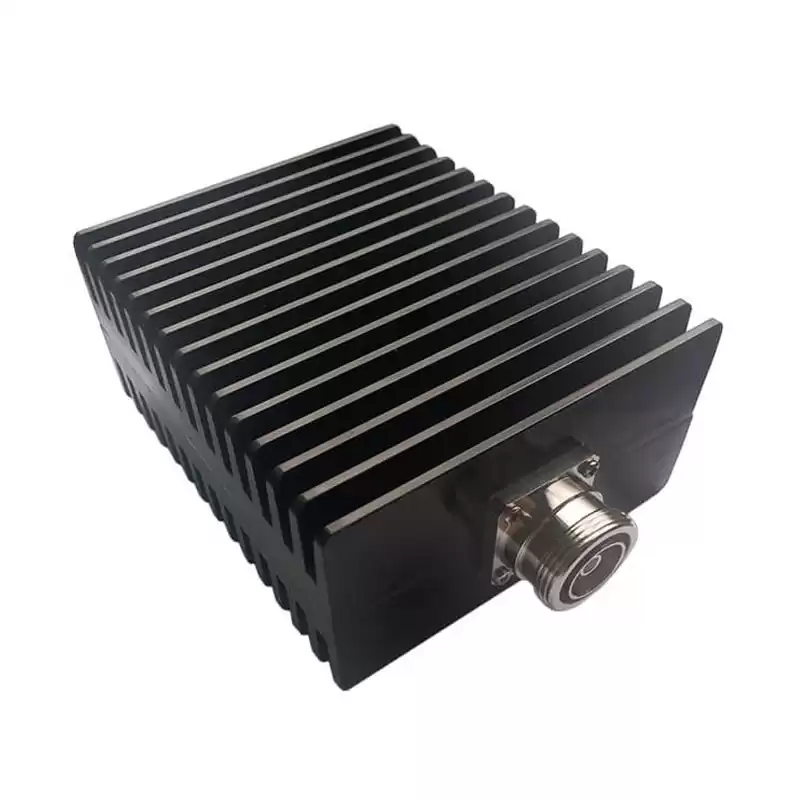

100W DIN 7-16 Female Connector RF Termination Load 50ohm Calibration 3G square Dummy Load
Features:
- Wide frequency Band;
- Supports -105/-120/-150dBc PIM Rating;
- Low VSWR and excellent impedance matching;
- Wide frequency Band;
- High Reliability, IP65 & IP67 waterproof;
- Economic price.
100W DIN 7-16 Female Connector RF Termination Load 50ohm Calibration 3G square Dummy Load
The 100W 7-16 DIN dummy load (also known as 100W 7-16 DIN termination or 100W 7-16 DIN RF load) has a 7-16 DIN connector that is female. This 100W 7-16 DIN female load / termination is rated for a maximum frequency of 3GHz. ROHO's 7-16 DIN female termination load is a rf load termination with a 50ohm impedance;This 7-16 DIN coaxial termination / load has an average maximum VSWR of 1.2:1. and 100W 7-16 DIN female load termination is one of RF, microwave and millimeter wave components, ROHO also could do SMA,DIN,4.3-10,N or other Connector for this product,All specification we can be customized.
Specifications
ELECTRICAL DATA | |
Frequency | DC~3GHz |
Connector | DIN 7-16 Female |
VSWR | ≤1.2 |
Power | 100W |
Impedance | 50Ω |
Temperature Range | -55℃~+125℃ |
MATERIAL DATA | |
Connector body | Brass,Plating Ni |
Insulator | PTFE |
Inner Conductor | Phosphor Bronze ,Plating Au |
Housing | Aluminum,Black |
Applications
- Measurement systems
- Multi-port microwave device
- Directional couplers
- Isolators
