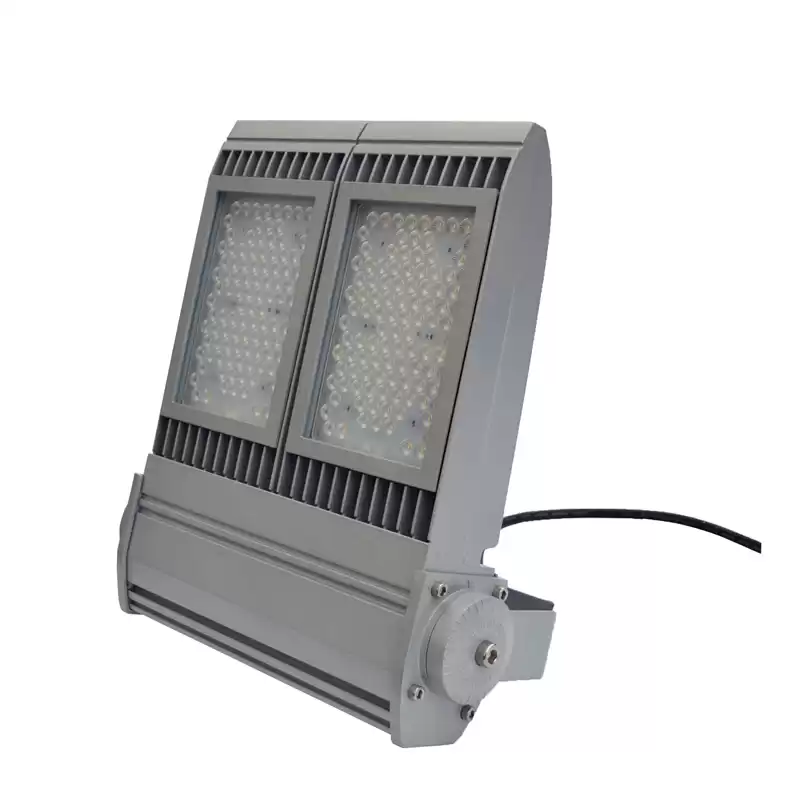

100W High Mast Flood Light

High heat dissipation flood lights can produce highly diffuse, non-directional light. Ideal for LED commercial lighting applications, these flood lights are available in stadium, sports field, plaza, bill board, parking lot, outside walls, and landscape plant.



High Lumen Flood Light


      The good heat dissipation performance of the Module LED Flood Light is attributed to the use of aluminum alloy die-casting of the lamp body and a layer of high temperature resistance, acid and alkali resistance, and aging resistance materials on the surface. Floodlights  for commercial lighting utilize the latest innovations in LEDs, drivers, and optics to achieve excellent coverage of large areas. Therefore, it is a point light source that can illuminate uniformly in all directions and the illumination range can be adjusted arbitrarily, represented by an octahedron icon in the scene. But it cannot illuminate the light with clear outlines, so the shadows produced by floodlights will be softer and more transparent. When 100W outdoor aluminum flood lights are used to illuminate objects, the attenuation speed of the illumination will be much slower than that of spotlights. The series is available with or without integrated photo controls, and is available in white or gray finishes.


Morstar is a trusted,global company with a keen insight into the market. We konw lighting and provide products with excellent quality, reliability and functionality.


PRODUCT SPECIFICATION


Model

CCT

CRI

Lumens

Power

Dimension/MM

Carton/MM

Pcs/CT

NW/KG

MA-EFL1201A-100W

5500K

≥70

12000 LM

100±5W

333*290*66

548*432*330

4

4.7



Product Features

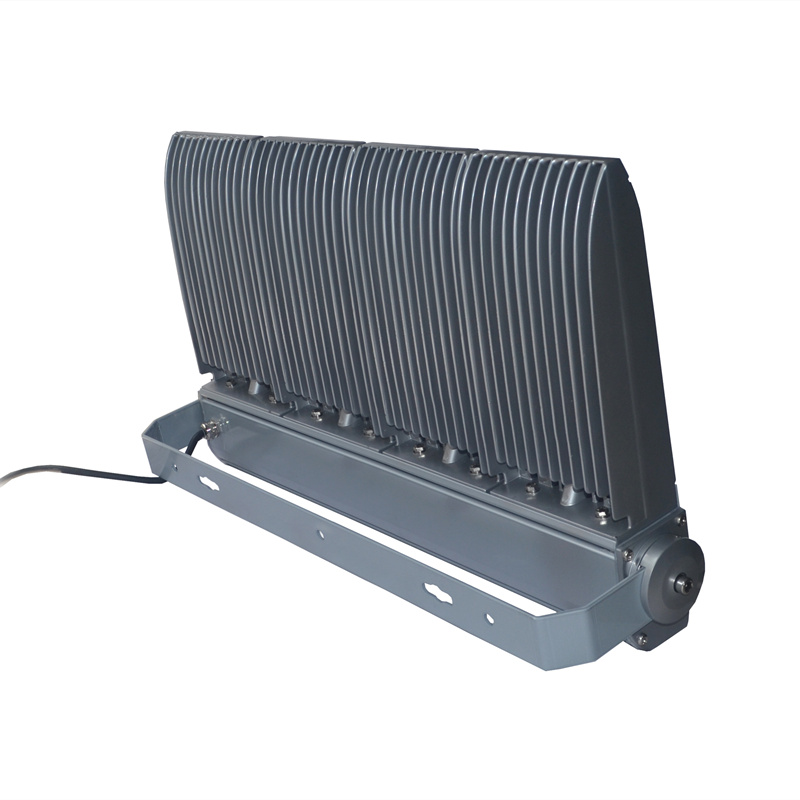

  • Unlike traditional LED flood light which the heat sink is on the back of the lamp, this new item use special fin type heat sink, making the lamp lighter and better in heat dissipation.
  • The LED driver is put aside from the heat sink, not upon the heat sink, Which makes the LED driver be in lower heat working environment, keeping the lamp with longer life span.
  • Philips Lumileds leds and Samsung leds optional.
  • Meanwell driver and Sosen driver optional, 5 years warranty.
  • IP65

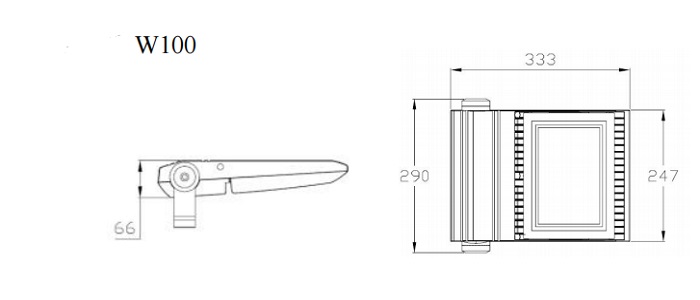

PRODUCT DIMENSION


dimension of flood light

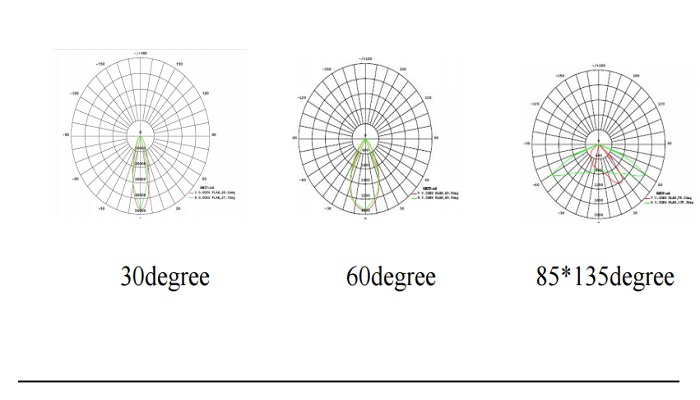

OPTICAL PARAMETER


optical parameter of flood light

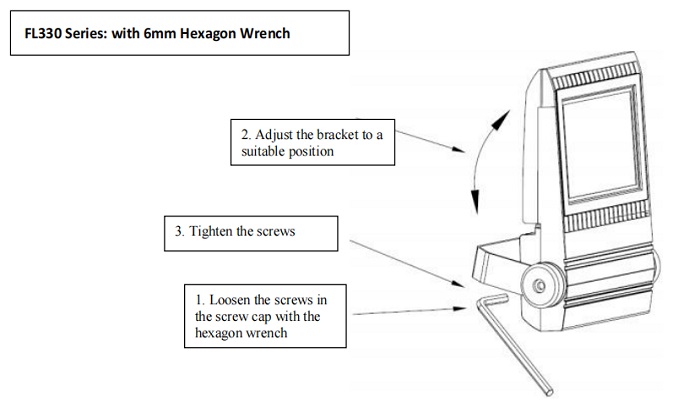

INSTALLATION INSTRUCTION


installation instruction of flood light

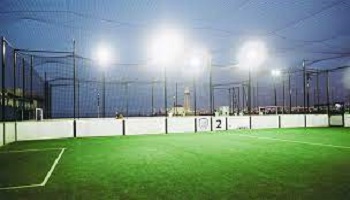

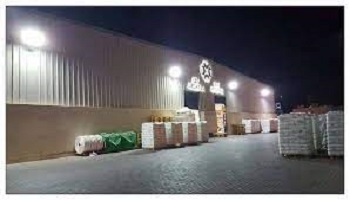

APPLICATION


the application of flood lightthe application of flood light


FAQ:
1. What`s the warranty of the lamp?
- For UL/DLC items we provide 5 years warrantly, others have a 2 years warrantly.
2.Can I have a sample order for led light?
-Yes, we welcome sample order for led light to test and check quality. Mixed samples are acceptable.
3. What about the lead time?
--Samples can be delivered in about 1 week, and bulk orders will take about 2 to 3 weeks.
4. What about the quality?
- Select high quality materials.
- 48 hours aging test to end defective products.
- Quality control testing before shipping.
- Good package to insure safety.
5. Where are your main markets?
- North American and Latin American.And we have LED lighting distribution warehouses in  California,Texas and Michigan
6. Can you design new model?
- Yes, we can open new mould according to your drawings and produce.
7.Any suggestion? Please contact us.
