100w IP67 24v elv Triac Dimmable 4A UL class 2 outdoor led driver

CE ROHS listed, Class 2, Class P approval ·Built-in PFC function / Efficiency > 83% / PF> 0.99, Dimming range: 0~100% / load:10~100%, ·Compliance to worldwide safety regulations for lighting


  • CertificationUL/cUL,FCC,RoHS approval
  • Size330*32*20mm
  • Dimming modetriac dimmable
  • Working Modecv
  • Output Current4A
  • Output Voltage24V
  • Input Voltage100-277vac

100w IP67 24v elv Triac Dimmable 4A UL class 2 outdoor led driver


SMT-024-096VTSW LED Driver is ultra slim led driver class 2, follows safety standard in UL 8750 and UL1310. This unit can be operated with input voltage ranging from 100 to 277 VAC and withstandard voltage 3.75KV..


What is the dimming Operation for SMT-024-100VTSW?


Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.

Compatible with Leading edge or trailing edge triac dimmers, but trailing edge dimmers work better..

Please try to use dimmers with power at least 1.5 times as the output power of the driver.


  Features


·Output constant voltage

·Input voltage range 100-277VAC

·Protections:short circuit/over voltage/over heat

·IP67 design for indoor dry or damp environment installations

·Cooling by free air convection

·Work with Forward phase, Reverse phase, Triac, MLV, ELV Dimmers

·PWM output, does not change the color index

·Full protection aluminum housing, for dry, damp, wet location

·Strong compatibility, flicker-free dimming

·Suitable for LED lighting and moving sign applications

·7 years warranty


  Specification


model

SMT-012-100VTSW

SMT-024-096VTSW

Output

DC Voltage

12VDC

24VDC



Voltage Accuracy

±5%

±5%



Rated current

8.33Amp

4Amp



Rated power

100W

96W (class 2)



Voltage Regulation

±0.5%



Load Regulation

±1%

±1%

Input

Voltage Range

100-277 VAC



Frequency Range

4763HZ



Power Factor ( Typ.

PF≧0.99/110V ;  PF≧0.98/277V



Full Load EfficiencyTyp.

>83%

>84%



AC CurrentTyp.

1.10A/100VAC  /  0.43A/277VAC



Inrush CurrentTyp.

9.2A, 50%, 1ms@120VAC / 26.4A, 50%, 780us@2770VAC



Leakage current

<0.50mA/110VAC; 0.13mA/277VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.



Over Loading

≤120% shut down o/p voltage, re-power on to recover



Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.



Environment

Working TEMP.

-40+60℃



Working Humidity

2090%RH,non-condensing



Storage TEM.,Humidity

-40+80℃1095%RH



TEMP.coefficient

±0.03%/℃050℃



Vibration

10500Hz2G 10min./1 cycleperiod for 60min.

each along X,Y,Z  axes



Triac dimmable led driver
dali led power supply
0-10v led driver
slim size led driver

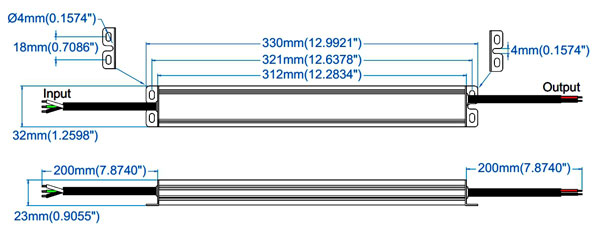

  Mechanical Specification


Triac Dimmable led driver 100w



※Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,

※Output: Red isDIM+,Black isDIM-



  Dimming Operation


※Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.

※Compatible with Leading edge or trailing edge triac dimmers, but trailing edge dimmers work better..

※Please try to use dimmers with power at least 1.5 times as the output power of the driver.


Triac Dimmable led driver 100w
