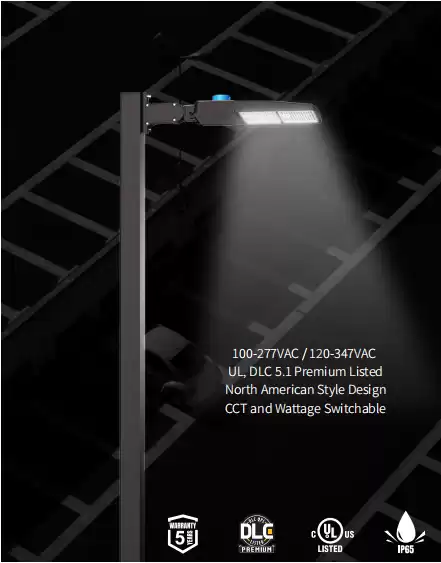

100W LED AREA / SHOEBOX LIGHT With Microwave Motion Sensor
It is unique design that North American Style with strong extruded lamp body. The product using UV stabilized polycarbonate material.
Morstar is a trusted,global company with a keen insight into the market. We konw lighting and provide products with excellent quality, reliability and functionality.

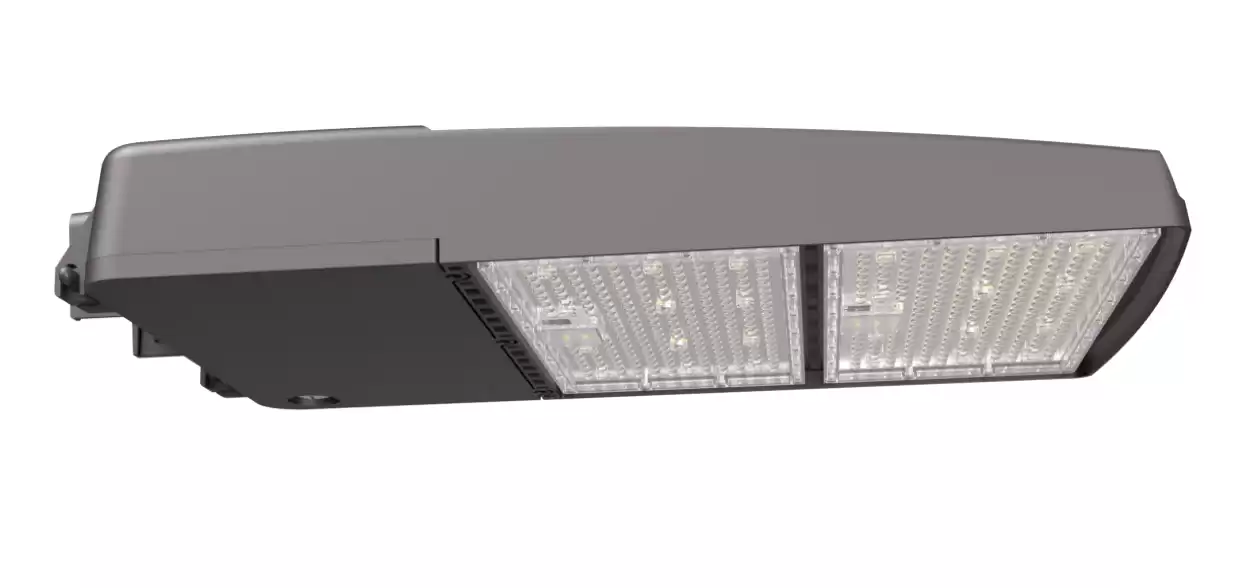

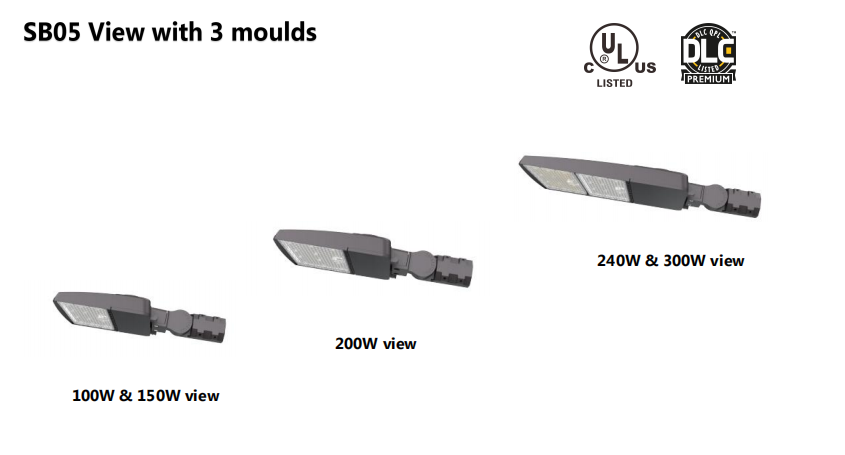

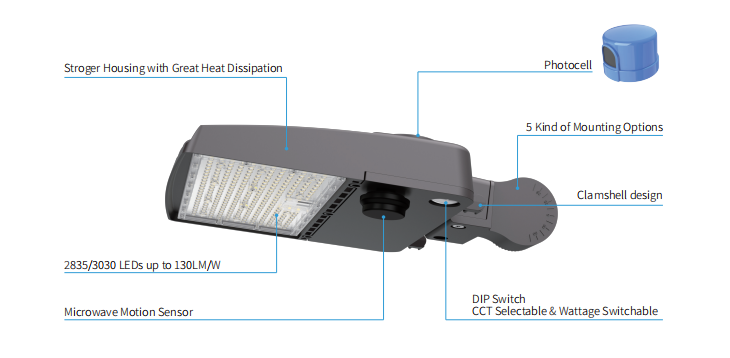

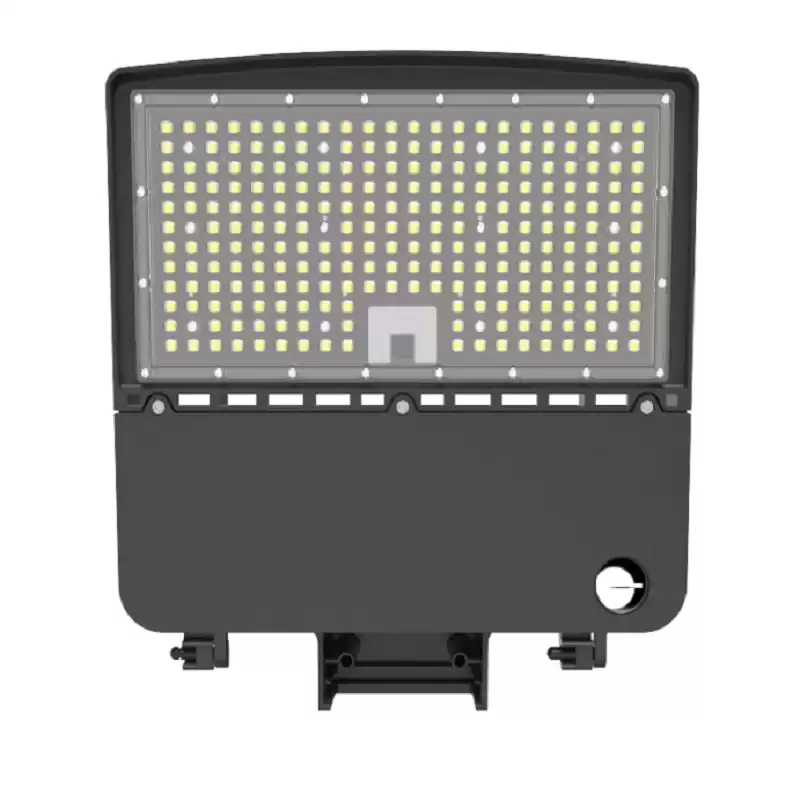

PRODUCT APPEARANCE
PRODUCT SPECIFICATION
|
Model No.
|
MA-EPL901E-100W
|
MA-EPL902E-150W
|
MA-EPL903E-200W
|
MA-EPL904E-240W
|
MA-EPL905E-300W
|
|
Wattage
|
100W
|
150W
|
200W
|
240W
|
300W
|
|
Lumens
|
13000LM
|
19500LM
|
26000LM
|
31200LM
|
39000LM
|
|
LED QTY
|
240
|
240
|
324
|
480
|
480
|
|
Replaces HID
|
320W
|
450W
|
600W
|
750W
|
1000W
|
Efficacy: 130LM/W (±10%)
Input voltage: 120-277VAC / 120-347VAC
CCT: 4000K / 5000K / 5700K
THD: < 20%
LED Type 2835 / 3030
Light Distribution Type II/Type III/Type IV/Type V
IP Rating: IP65
Power Factor: ≥ 0.95
IK Degree: IK08
Certifificates UL/cUL, DLC 5.1 Premium
Frequency 50/60Hz
Lens Material UV stabilized polycarbonate
Housing Die-cast Aluminum
CRI Ra>70
Operating Temperature -40°F to 104°F (-40°C to +40°C)
Finish Black/Bronze/Customized (Optional)
Additional function 0-10V dimmable, Photocell /Microwave Motion Sensor /CCT Selectable / Wattage Switchable
Life Time: ＞50,000Hrs (Ta=30°C@L80)
Warranty: 5 Years

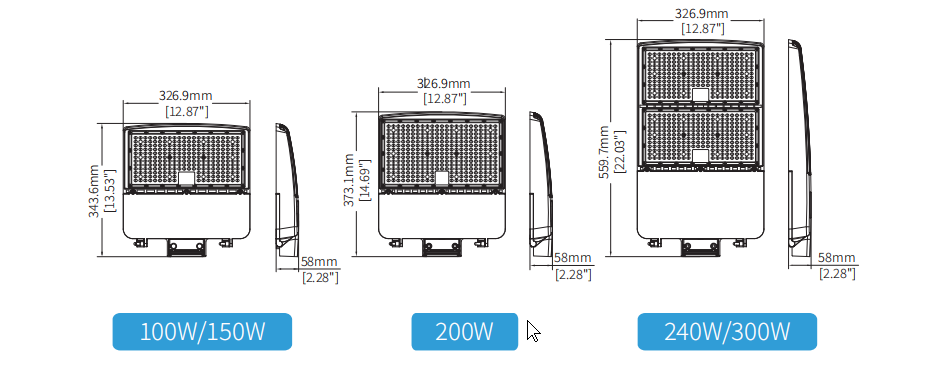

PRODUCT DIMENSION

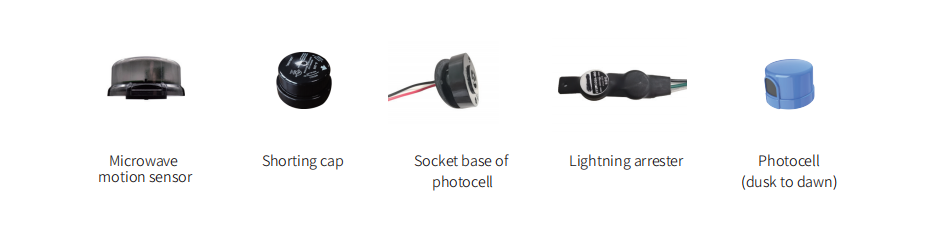

ADDITION ACCESSORIES

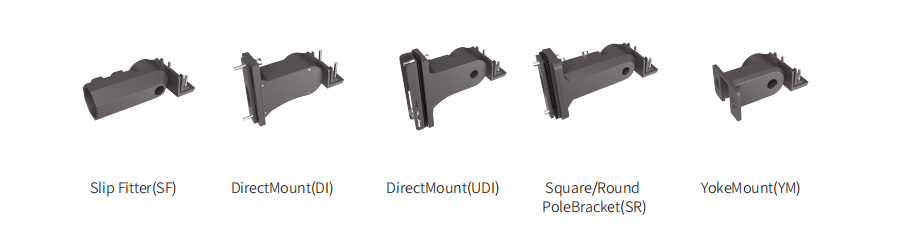

BRACKET OPTION
PACKING INFORMATIONS
|
Model No.
|
Prouduct Dimension
(mm&inch)
|
Carton Size
(mm&inch)
|
PCS/CTN
|
20GP
|
40GP
|
40HQ
|
MA-EPL901E-100W
|
343.6X326.9X58mm
13.53''X12.87''X2.28''
|
400*370*140mm
15.75ʻ’X14.57''X5.51''
|
1PCS
|
1350
|
2606
|
3281
|
MA-EPL902E-150W
|
343.6X326.9X58mm
13.53''X12.87''X2.28''
|
400*370*140mm
15.75ʻ’X14.57''X5.51''
|
1PCS
|
1350
|
2606
|
3281
|
MA-EPL903E-200W
|
373.1X326.9X58mm
14.69''X12.87''X2.28''
|
435*370*140mm
17.13ʻ’X14.57''X5.51''
|
1PCS
|
1242
|
2396
|
3017
|
MA-EPL904E-240W
|
559.7X326.9X58mm
22.03''X12.87''X2.28''
|
625*370*140mm
24.6ʻ’X14.57''X5.51''
|
1PCS
|
865
|
1668
|
2100
|
MA-EPL905E-300W
|
559.7X326.9X58mm
22.03''X12.87''X2.28''
|
625*370*140mm
24.6ʻ’X14.57''X5.51''
|
1PCS
|
865
|
1668
|
2100
|

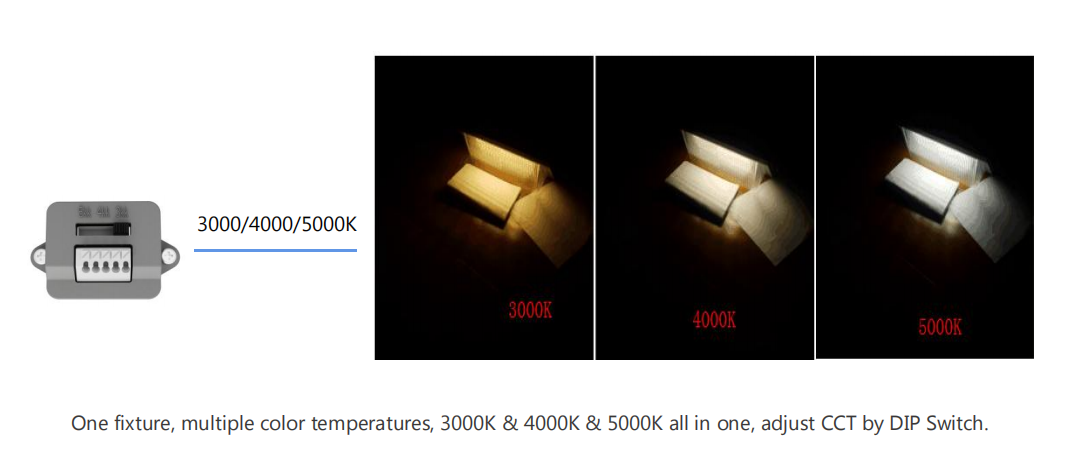

4 Color CCT Selectable Capacity

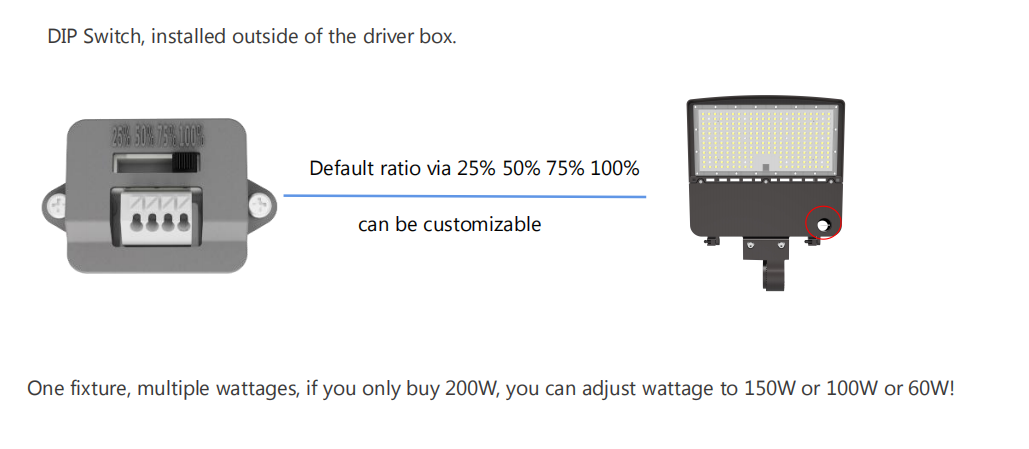

Power / Watts Selectable Capability

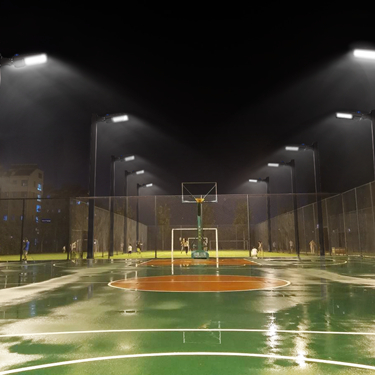

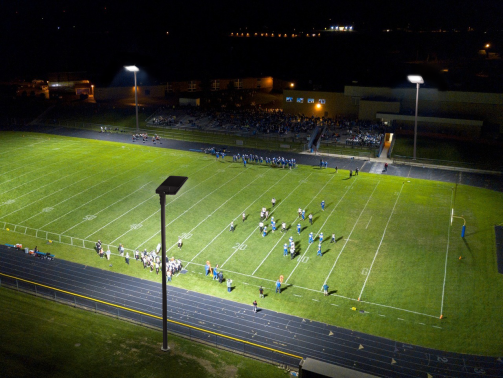

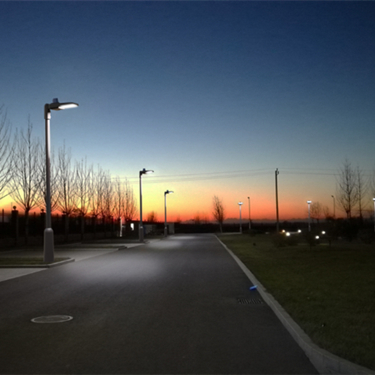

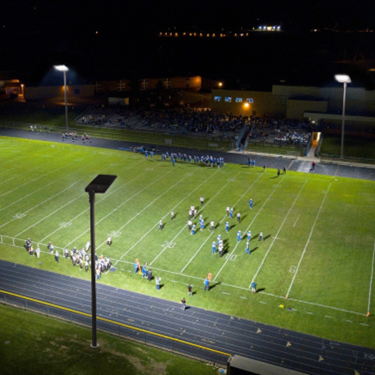

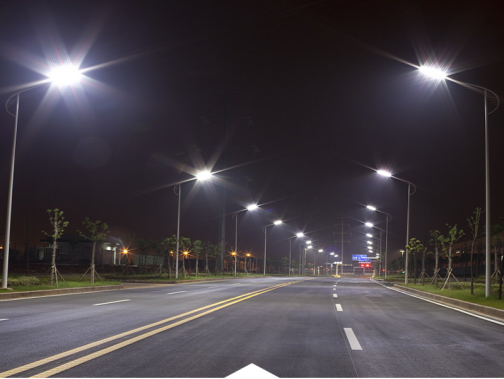

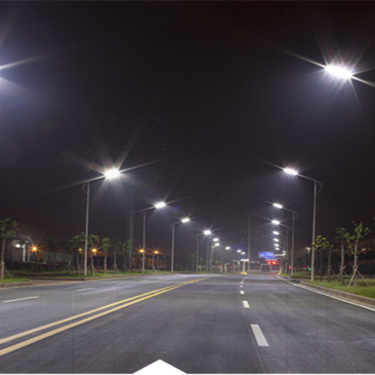

APPLICATIONS
20GP and 40HQ FULL CONTAINER
FAQ：
1. What`s the warranty of the lamp?
- For UL/DLC items we provide 5 years warrantly, others have a 2 years warrantly.
2.Can I have a sample order for led light?
-Yes, we welcome sample order for led light to test and check quality. Mixed samples are acceptable.
3. What about the lead time?
--Samples can be delivered in about 1 week, and bulk orders will take about 2 to 3 weeks.
4. What about the quality?
- Select high quality materials.
- 48 hours aging test to end defective products.
- Quality control testing before shipping.
- Good package to insure safety.
5. Where are your main markets?
- North American and Latin American.And we have LED lighting
distribution warehouses in California，Texas and Michigan
6. Can you design new model?
- Yes, we can open new mould according to your drawings and produce.
7.Any suggestion? Please contact us.
