100W LED Street Light Patenetd Products
The LED street light fixture power supply box is made of die-casting aluminum alloy, which makes drivers have good heat dissipation,and improves the life of the product.This lamp is suitable for installation at 8-12m height.
In raw material LED street light area, it is Imported SMD3030LED light source with high brightness and long life, and driver character is DOB Program ,without driver. The LED has LM-80 certification.
Application: they are a commercial LED streetlight suitable for urban and rural road, garden road, industrial park road, etc.

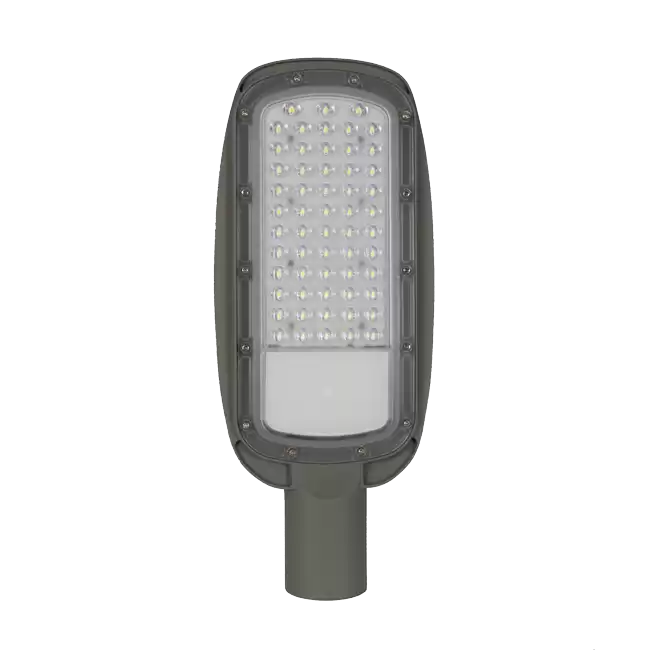

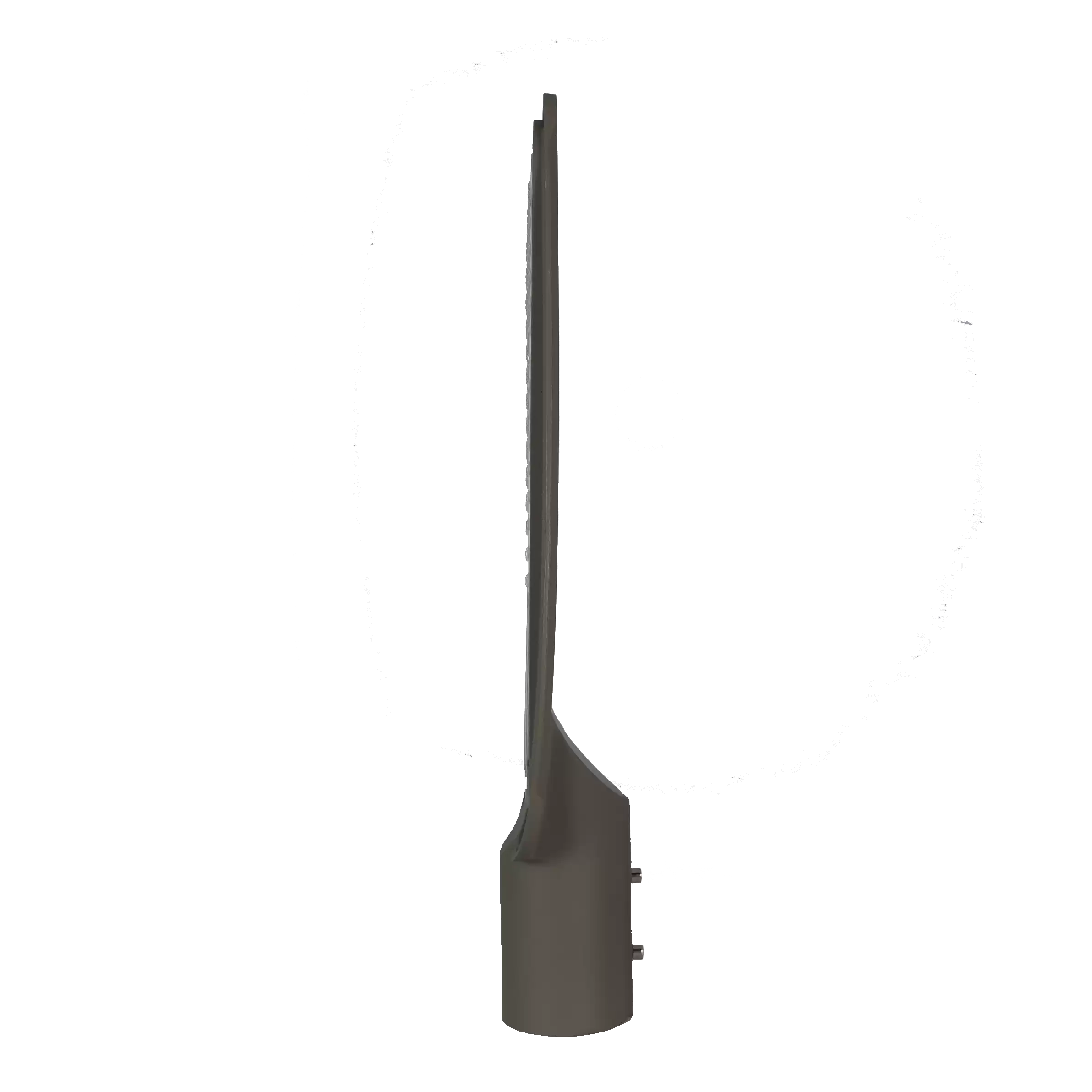

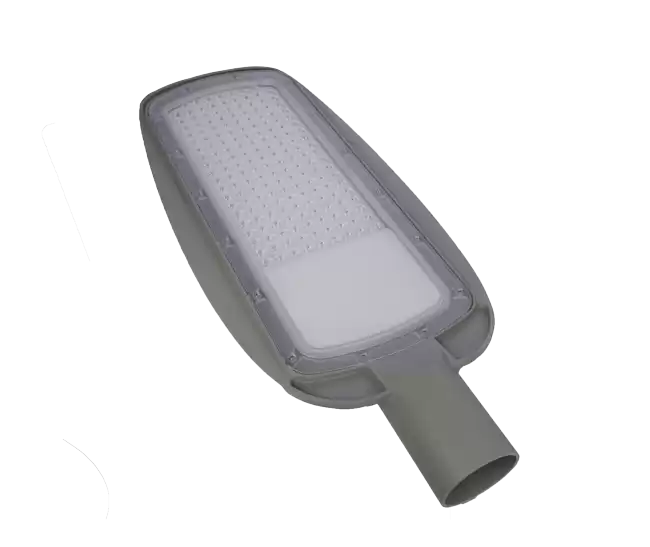

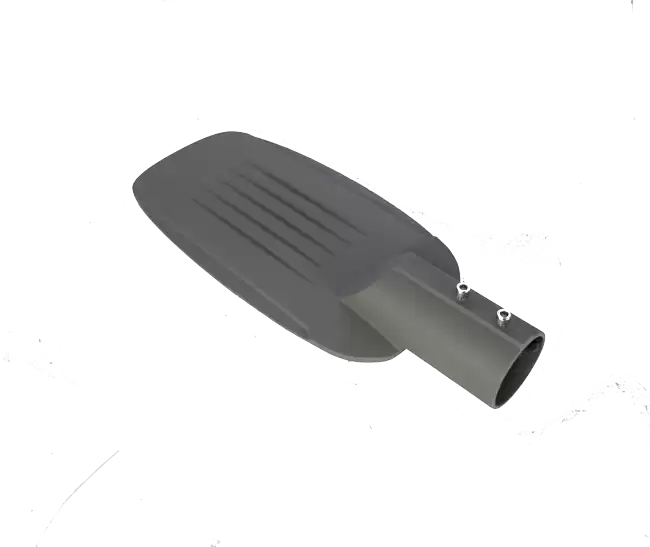

PRODUCT APPEARANCE
PRODUCT SPECIFICATION
|
Product No.
|
MS-EST1001A-50W
|
MS-EST1002A-100W
|
MS-EST1003A-150W
|
|
Power
|
50W
|
100W
|
150W
|
|
Voltage
|
AC85-265V
|
AC85-265V
|
AC85-265V
|
|
Material
|
AL+PC
|
AL+PC
|
AL+PC
|
|
Luminous
|
5000LM
|
10000LM
|
15000LM
|
|
Angle
|
70*140°
|
70*140°
|
70*140°
|
|
Size(mm)
|
380*160*75
|
505*205*75
|
600*260*75
|
Input Voltage: AC 85-265V/180-240V
Rated Wattage: 50±5W
Driver Efficiency: 89%
Power Factor: 0.90
Beam Angle: 70°x150°
Color Temperature: 2700-3000/ 4000-4500/ 6000-6500
Luminous Flux: 4500/ 5000/ 5500
CRI: >70 Ra
Working Temperature: -20～40
Life Time: 3 Year
IP Grade: Ip65
Surge protection: 4KV AC

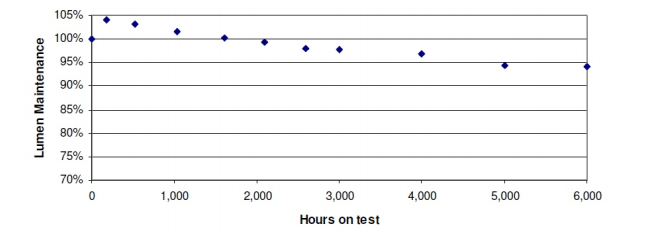

DIAGRAM OF CONTINUE OPERATING FOR 6000H

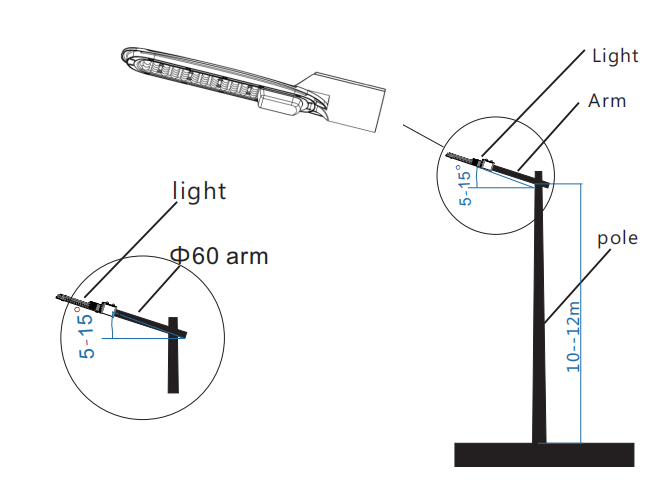

INSTRUCTION
PACKING INFORMATION
|
Production No.
|
MS-EST1001A-50W
|
MS-EST1002A-100W
|
MS-EST1003A-150W
|
|
Net Weight
|
0.9kg
|
1.6kg
|
2.5kg
|
|
Gross Weight
|
1.2kg
|
2kg
|
3kg
|
|
Carton Size (MM)
|
380*160*70
|
505*205*83
|
600*260*83
|

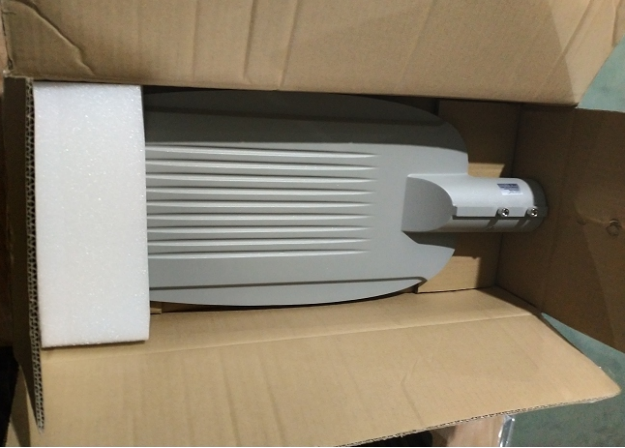

PACKING DIAGRAM
