100W LED UFO HIGH BAY LIGHT With Sensor

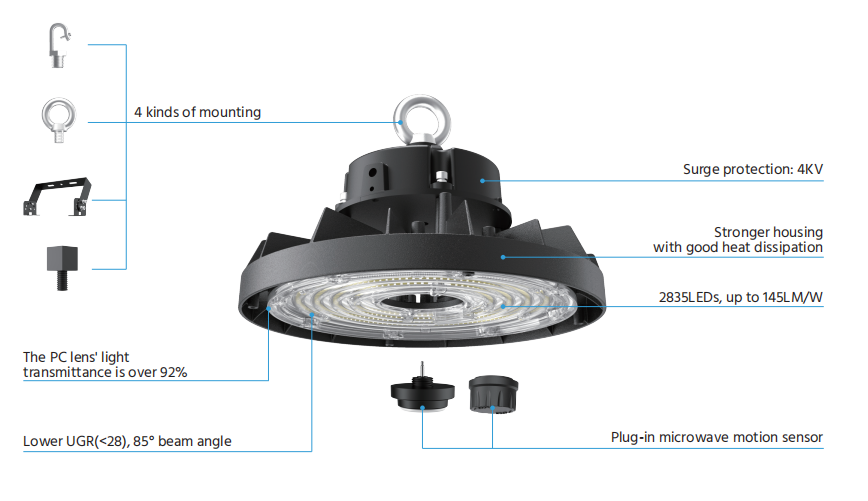

Morstar's UFO High Bay Light 03 series (MA-HHB901A-100W) is widely used in the warehouses, gymnasiums and production assembly areas. It is high efficacy product that up to 145LM/W. This production are including 4 kinds of mounting option, Surge protection: 4KV, Stronger housing with good heat dissipation, Lower UGR(<28) and Plug-in microwave motion sensor. Besides, UFO High Bay Light offer 100-277VAC / 120-347VAC available.

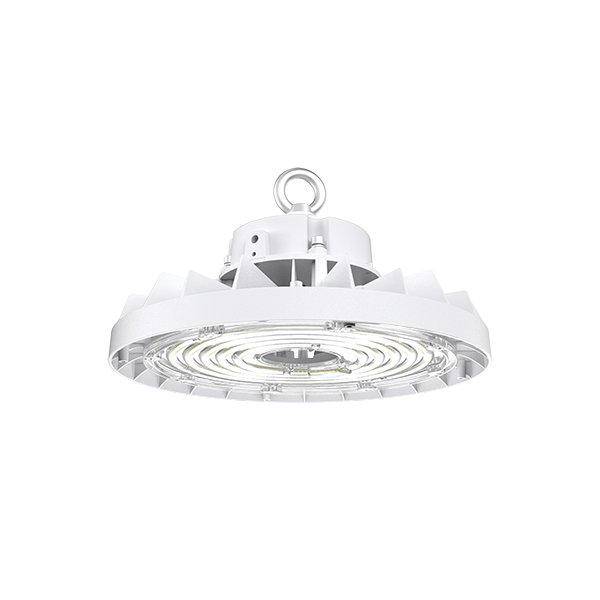

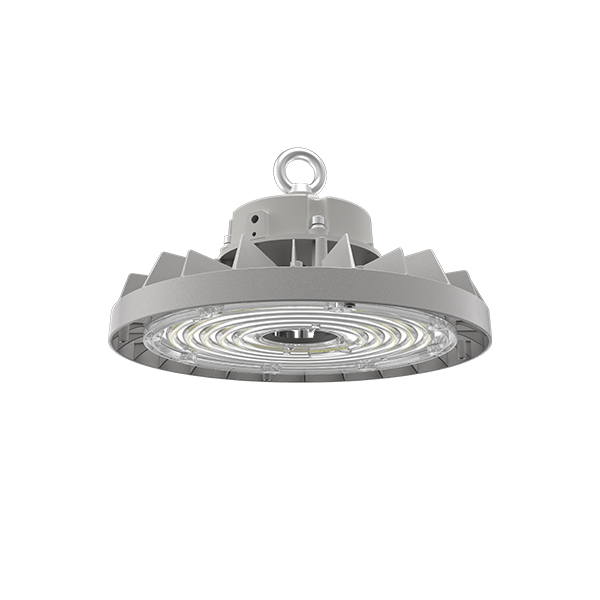

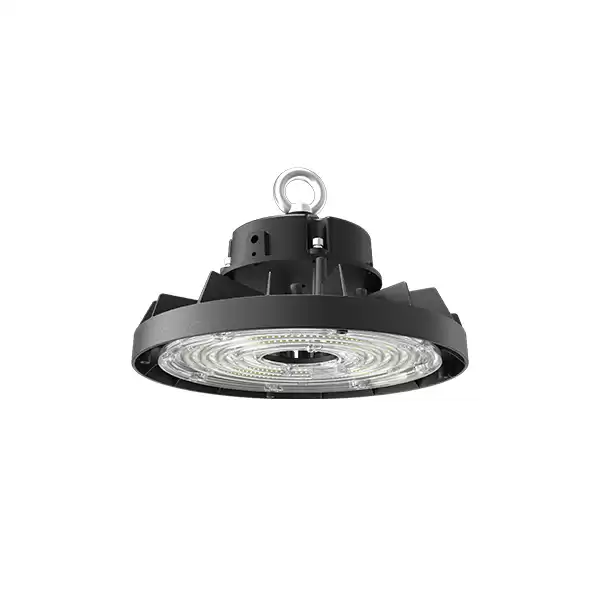

PRODUCT APPEARANCE

500W UFO high bay light



PRODUCT SPECIFICATION

Product No.
MA-HHB901A-100W
MA-HHB902A-150W
MA-HHB903A-200W
MA-HHB904A-240W
Wattage
100W 150W 200W 240W
Lumens
14500lm 21750lm 29000lm 34800lm
LED QTY
320PCS 456PCS 624PCS 780PCS

Replaces PSMH

250W 320W 420W 500W



Efficacy :145LM/W (±10%)
Input voltage 100-277VAC/120-347VAC
CCT 2700-6500K
THD <20%
LED Type 2835
Beam Angle 85°
IP Rating IP65
Power Factor ≥0.95
IK Degree IK08
Certificates UL/cUL, DLC 5.1 Premium
Frequency 50/60Hz
Lens Material UV Stabilized Polycarbonate
Housing Die-cast Aluminum
CRI Ra>70
Finish Black/Grey/White/ Customized (Optional)
Additional function Plug-in Sharkward / Haisen Microwave Motion Sensor
Life Time >50,000Hrs (Ta=30°C@L80)
Warranty 5 Years

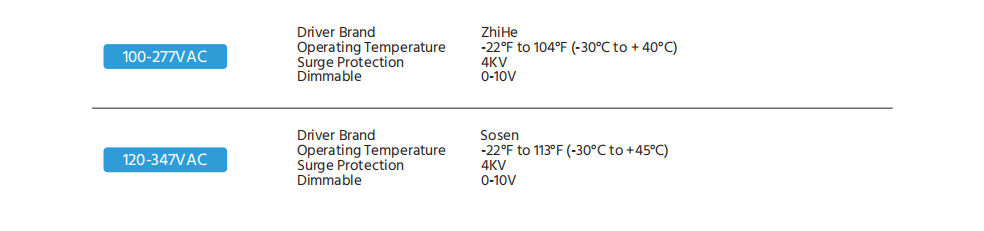

ELECTRICAL SPECIFICATION

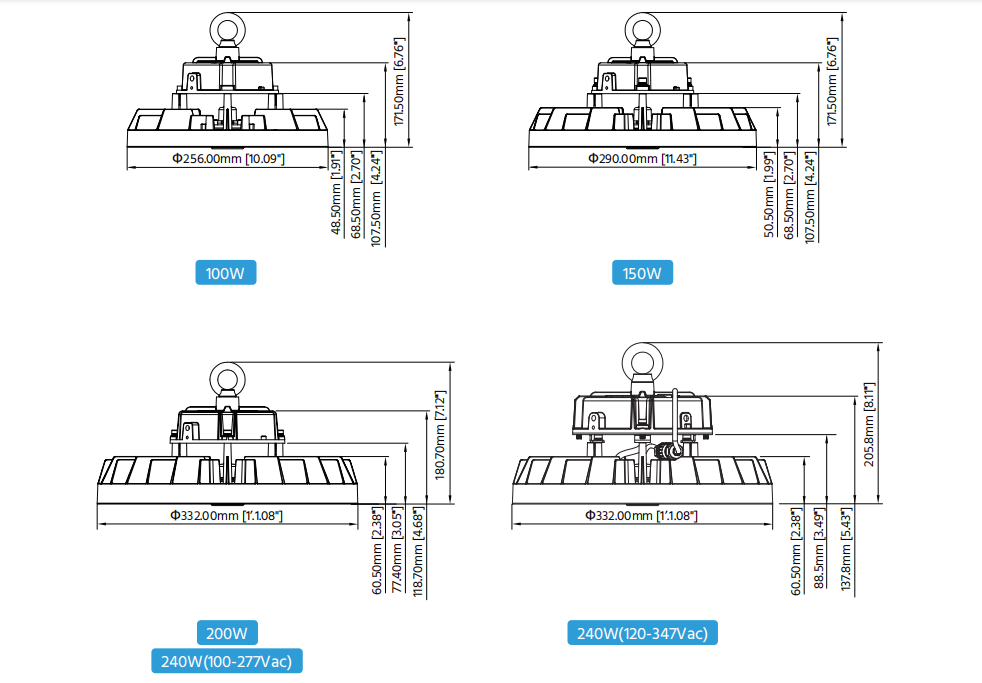

PRODUCT DIMENSION

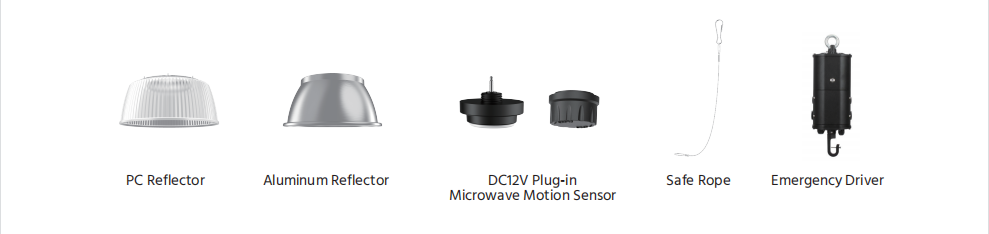

ADDITION ACCESSORIES

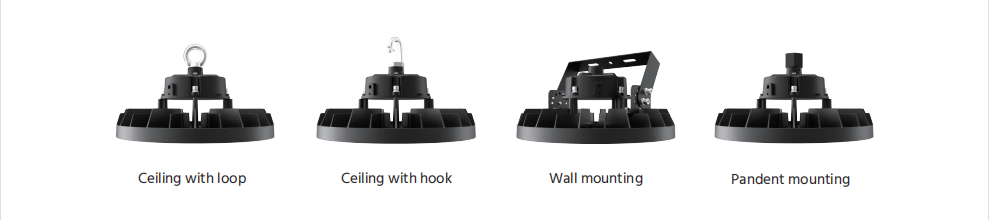

MOUNTING OPTION



PACKING INFORMATIONS

Model No.
Prouduct Dimension
(mm&inch)
Carton Size
(mm&inch)
Net Weight
(KG)
Gross Weight
(KG)
20GP
40GP
40HQ
MA-HHB901A-100W
Ø256X171.5
(Ø10.09″X6.76″)
314x314x162
(12.36X12.36X6.38)
2.0 2.54 1495 3212 3655
MA-HHB902A-150W
Ø290X171.5
(Ø11.43″X6.76″)
347x347x162
(13.66X13.66X6.38)
2.33 2.93 1231 2645 3010
MA-HHB903A-200W
Ø332X180.7
(Ø13.07″X7.12″)
390x390x170
(15.35X15.35X6.7)
3.19 4.07 937 2013 2291

MA-HHB904A-240W

(100-277VAC)
Ø332X180.7
(Ø13.07″X7.12″)
390x390x170
(15.35X15.35X6.7)
3.19 4.07 937 2013 2291

MA-HHB904A-240W

(120-347VAC)
Ø332X205.8
(Ø13.07″X8.11″)
390x390x192
(15.35X15.35X6.7)
3.69 4.57 843 1812 2062

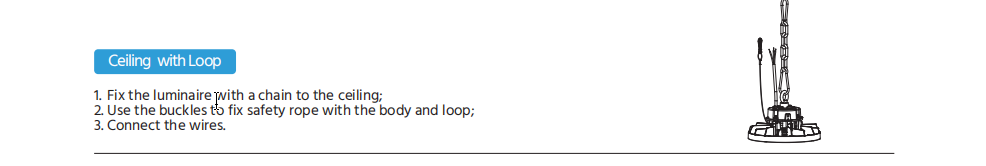

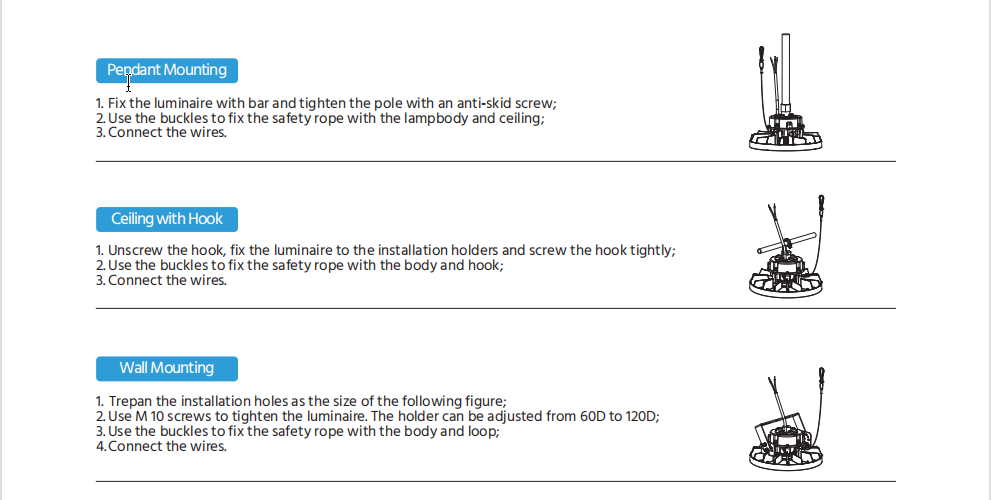

INSTALLATION INSTRUCTION

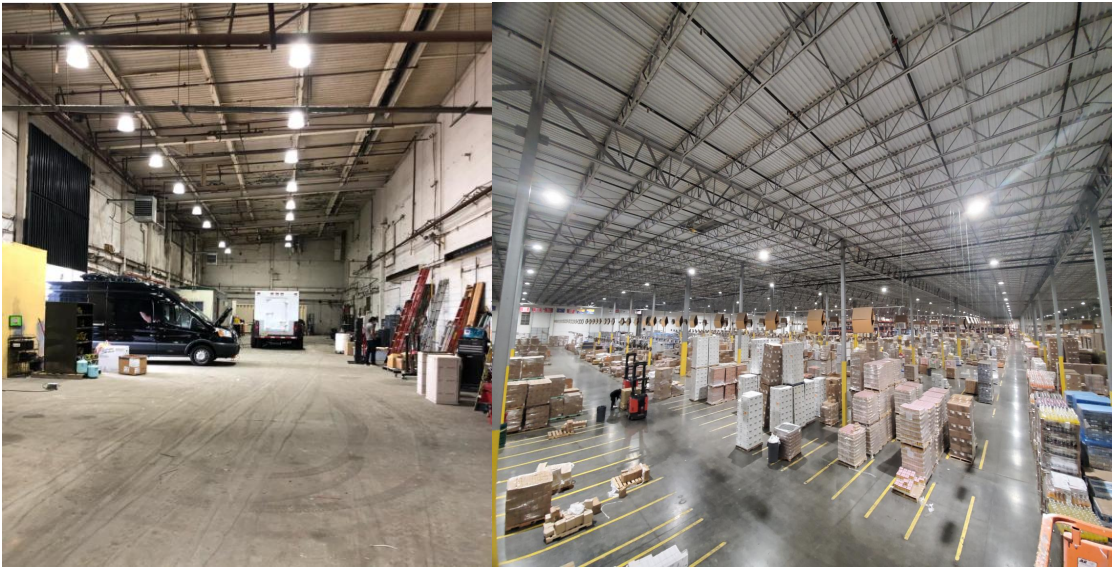

APPLICATIONS

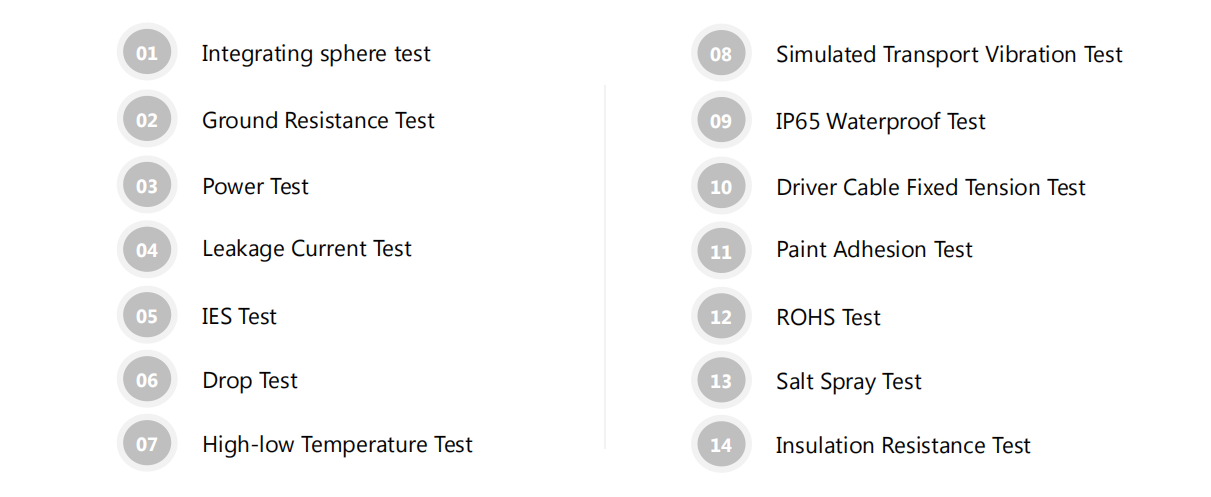

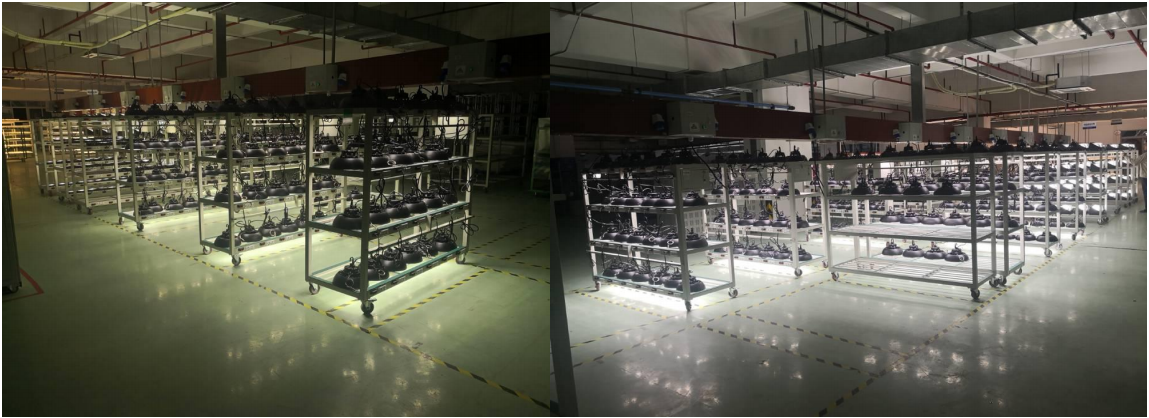

RELIABILITY TESTS

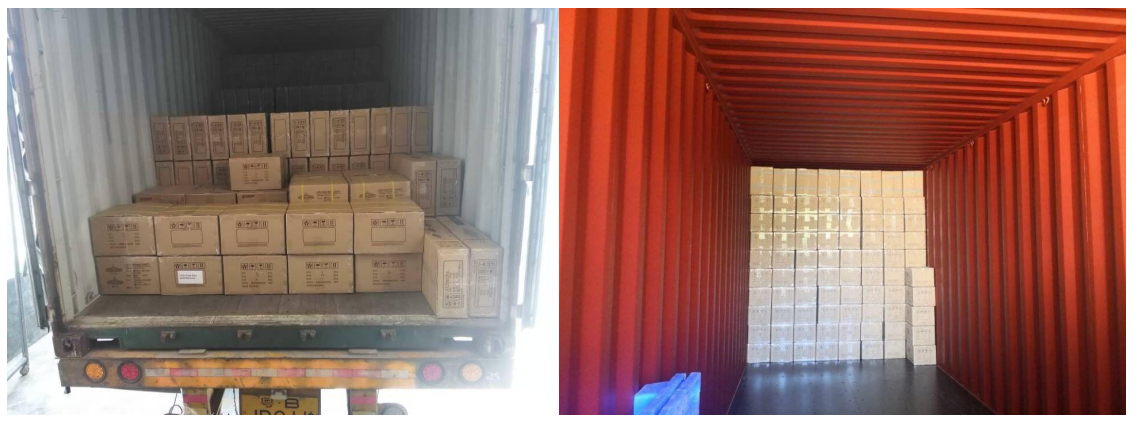

20GP and 40HQ FULL CONTAINER
