Product Name

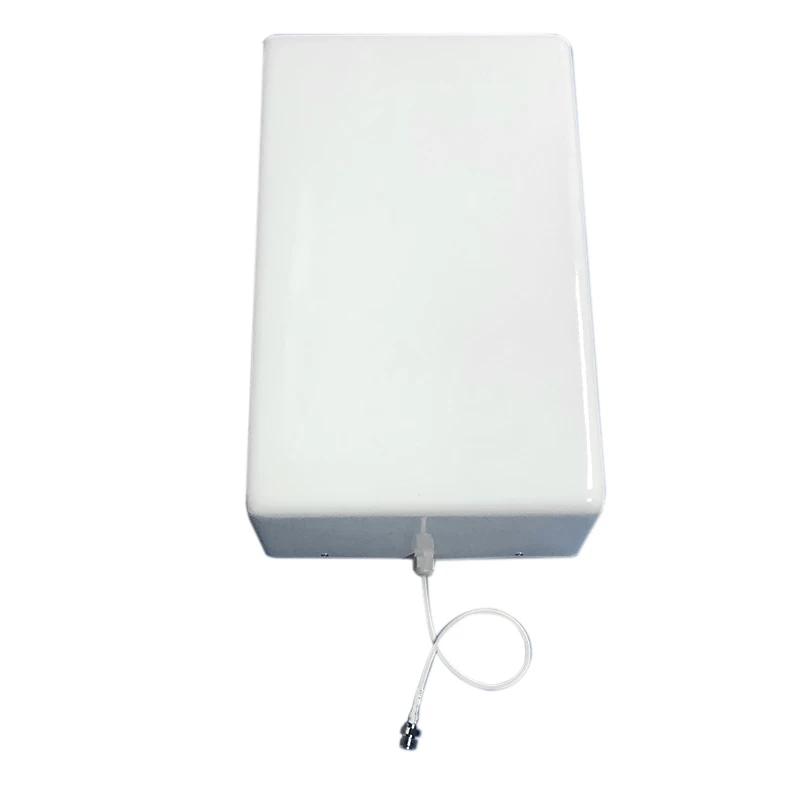

This type panel Antenna with single-polarization character the installation method is Wall Mount,usually customer purchase 100W single-polarization Wall Mount panel antenna
Product Feature
◆ Wall Mount installation
◆ 2G/3G/4G/LTE Coverage
◆ High Gain with 5-6dBi
◆ Widely used for In-building Solutions
Technical &Mechanical Specifications:
|
Model No.
|
MN-WA-402-514-NK
|
|
Frequency Range
|
402-514/806-866MHz
|
|
Gain(dBi)
|
5±1dBi
|
|
VSWR
|
≤2.0≤1.5
|
|
Polarization
|
vertical polarization
|
|
Vertical Beamwidth(0º)
|
60±3º
|
|
Horizontal Beamwidth(0º)
|
75±5º
|
|
Front-to-back ratio(dB)
|
≥18
|
|
Input Impedance（Ω）
|
50Ω
|
|
Maximum input power(W)
|
100W
|
|
Connector type
|
N-K
|
|
Radome
material
|
FRP
|
|
Installution Method
|
Wall mounting
|
Services:
1. Professional skills support forDual band single-polarization Wall Mount antenna 100W 402-514/806-866MHz 5dB
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.
NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose
Horizontal radiation Pattern: Vertical Pattern
