Product Name
DC-3GHz 100W RF Termination Load N male RF Load
Product Features
◆ Wide Frequency Band DC-3GHz RF Termination
◆ 2G/3G/4G/LTE Coverage
◆ Low VSWR RF Load
◆ Widely used for In-building Solutions
This termination operates from DC to 3 GHz,which is matched to 50 ohms and can handle up to 100 Watts of power.
It has low VSWR and 50 Ohm.
Maniron has different styles to meet your requirements,please don’t hesitate to contact us if you are interested in.
Technical &Mechanical Specifications
|
Model No.
|
MNL-100-3G-NM
|
Freq(MHz)
|
DC-3GHz
|
VSWR
|
≤1.2
|
Power(W)
|
100
|
Impedance
|
50 ohm
|
Connector
|
N-male 4.3-10 Male or DIN Male
|

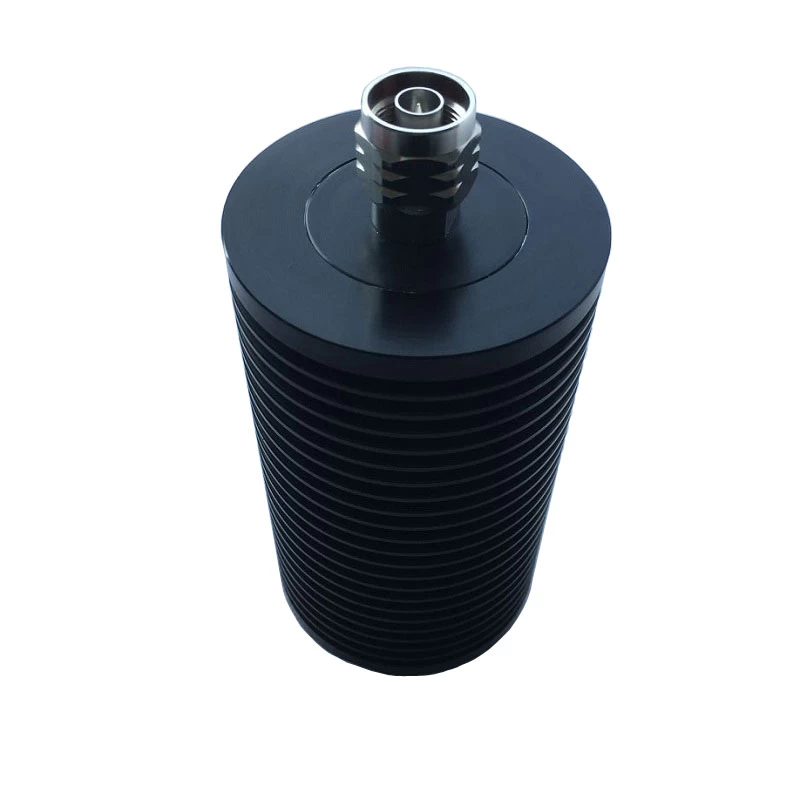

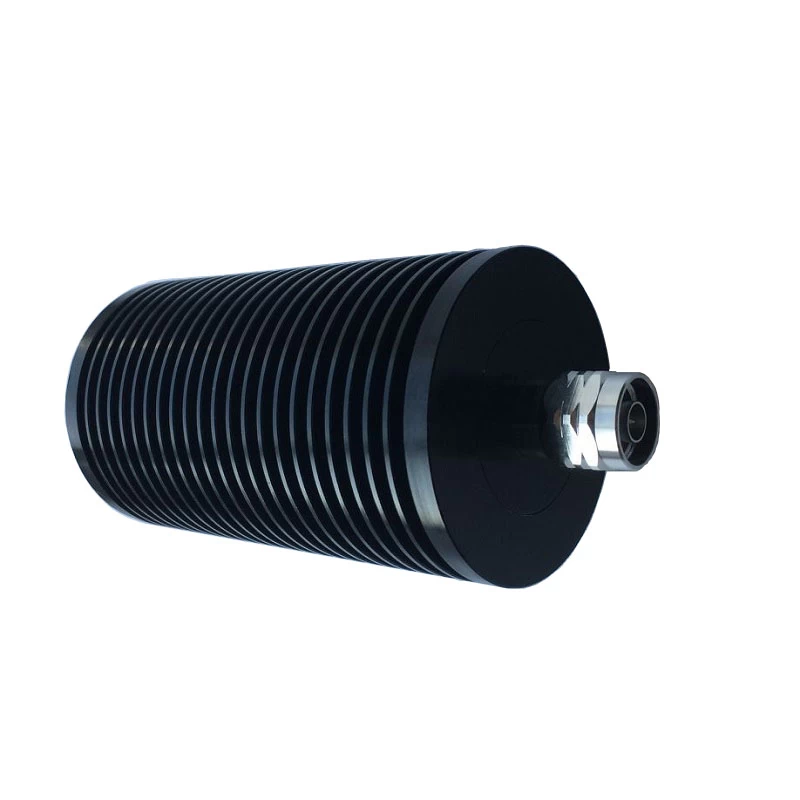

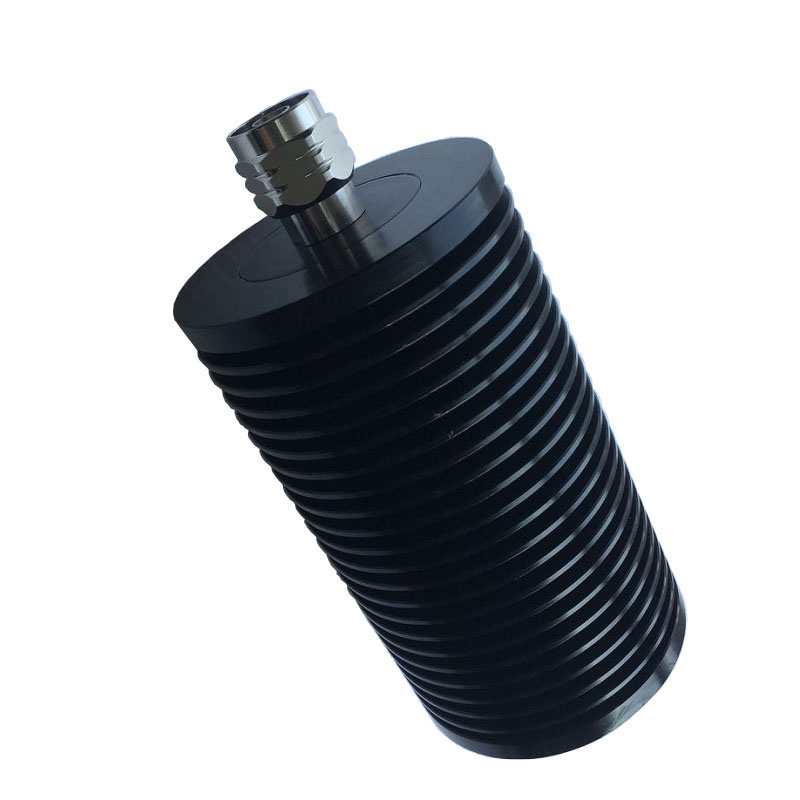

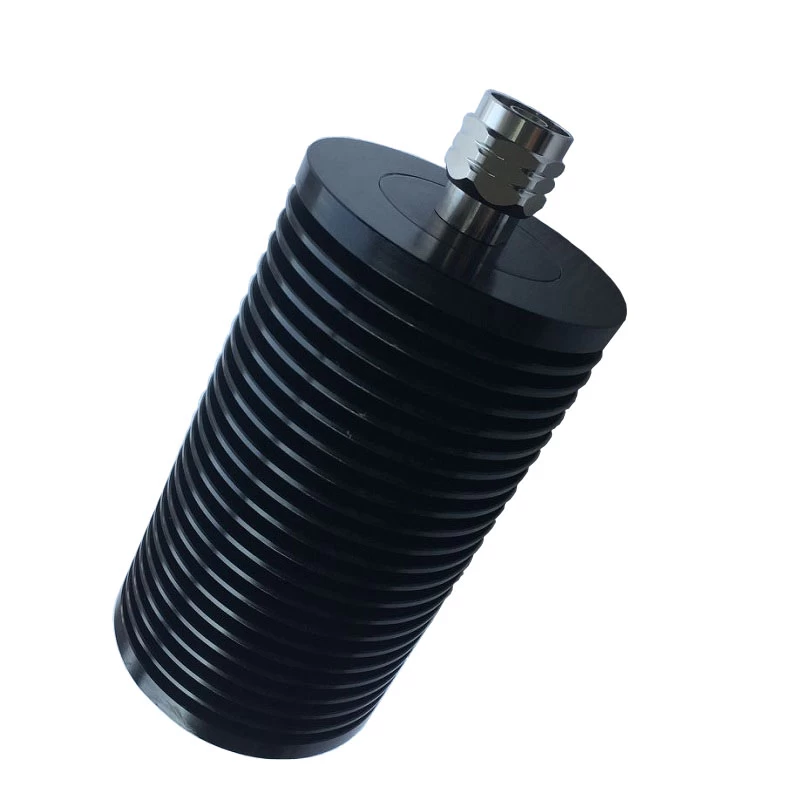

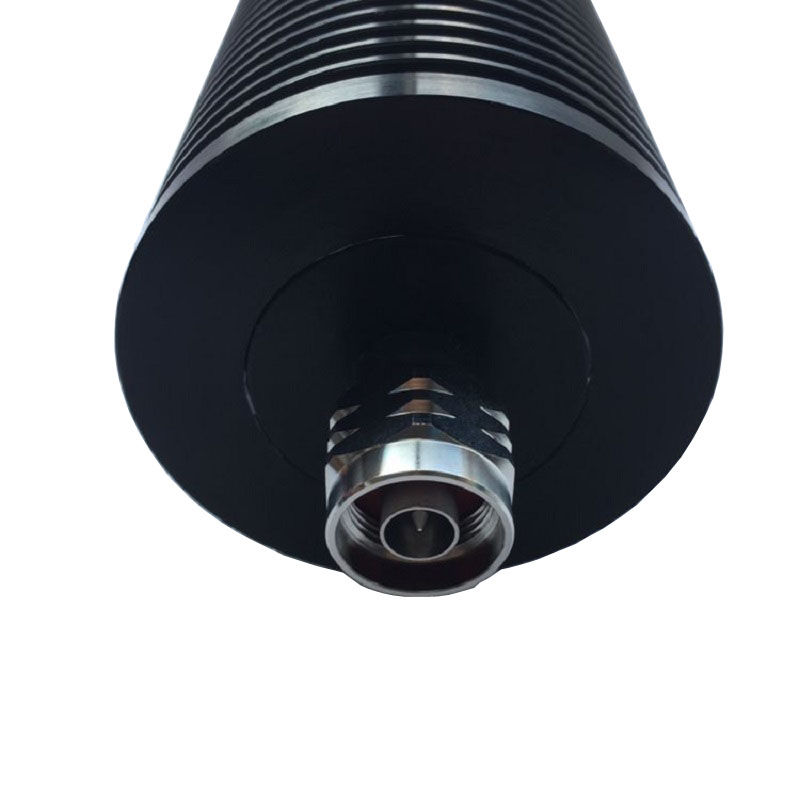

Pictures
