100w smps switched power supply triple output 5v 12v 24v

KAIHUI dc power supply 5v 12v 24v triple output smps 100w built in EMI-filter and low ripple noise with 100% load aging.



KAIHUI 5+12+24 triple output voltage 100w universial power supply psu for stage led lighting

Description:

The K07-U100T5+12+24 is a triple output AC-DC power supply, operating for 85-264Vac input voltage, and this model have overload and short circuit protection, can be customized with 5+12-5, 5+12-12, 5+15-15 and etc.


Features:

1, 100w power supply high efficiency;

2, This triple power supply built in EMI filter, low ripple noise;

3, This triple power supply 100% load aging;

4, 5v 12v 24v triple power supply overload and short circuit protection.


                                      Parameter

Item NO



K07-U100T5+12+24

CH1

CH2

CH3

Output

DC Output Voltage

+5V

+12V

+24V

Rated Current

2A

2A

2A

Current Range(natural cooling)

0.2-2A

0.1-2A

0.1-2A

Rated power

82W

Ripple & Niose

50mVp-p

100mVp-p


150Vp-p

DC Output ADJ

CH1:±10%

DC Output Tolerance

±1%

±10%

±10%

Line Regulation

±0.5%

±5%

±5%

Load Regulation

±0.5%

±5%

±5%

Set up,Rise,Keep up time

200ms,100ms,30ms

Input

Input Voltage Range

85V-264V AC,120V-360VDC

Input Range

AC230V@2A

Input frequency

47-63Hz

Efficiency

80%

Inrush Current

30A@230V AC

Leakage Current

------

Protection

Over Load Protection

105~150%,Hiccup,automatic recovery

Over Voltage Protection

Rated output-voltage 130~160%,Hiccup,automatic recovery

Environment

Working Temp.,Humidity

-10~+60℃@100% LOAD10~90% RH,No condensation

Storage Temp.,Humidity

-20~85℃10~95% RH

Temp., Drift

±0.03%/℃(0~50℃)

Vibration

10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES

Safety & EMC Standard

Safety standards

GB4943,EN60950,EN55022 CLASS B

Withstand Voltage

I/P-O/PI/P-FG1500VO/P-FG:0.5KV DC 1min.

Insulation resistance

I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms

EMC standards

------

Others

Dimensiosn

159*97*38mm

Weight

0.5Kg

Notes

1.All the parameters in the 230VAC input, rated load, temperature 25 ℃, humidity 70% under the conditions of determination;

2.Accuracy: including setting error, line adjustment rate, load regulation rate;

3.Ripple test: connect the power supply and load with 30cm long wire and 0.1u and 47u capacitance at the load end, measured on the load side with 20MHz oscilloscope;

4.Line regulation: at rated load conditions, the input voltage changes from low to high measured;

5.Load regulation: the measured output load from 0 to 100% load change measured, other load fixed at 60% load.

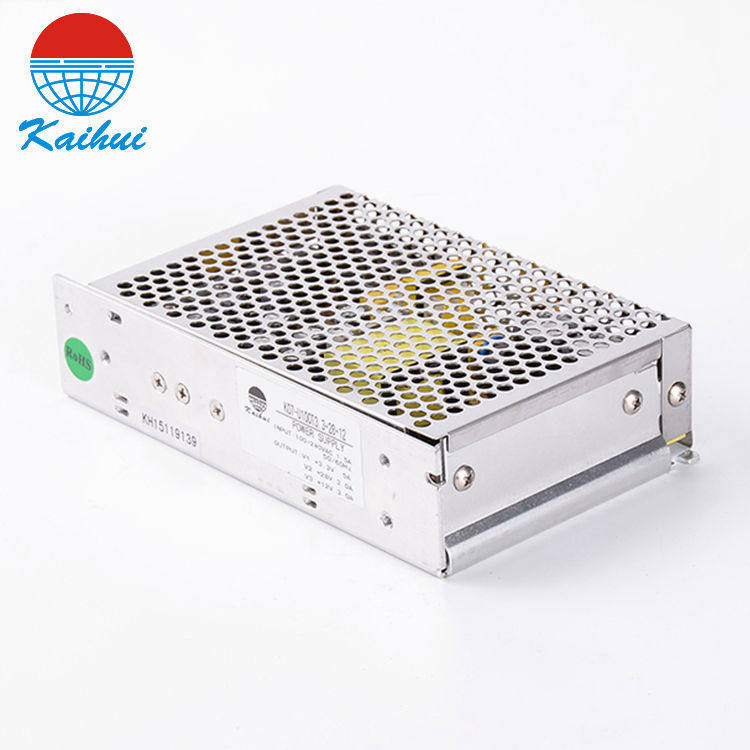

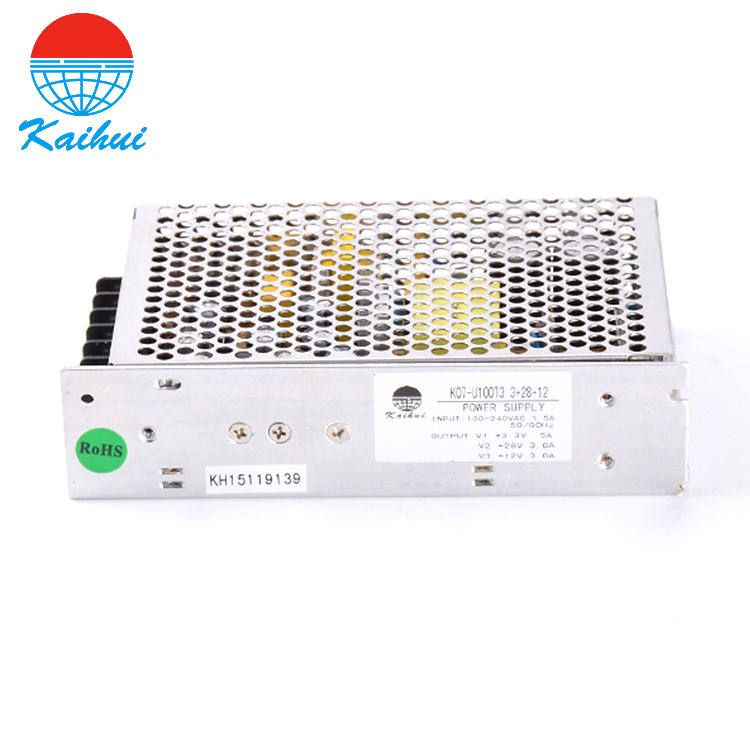

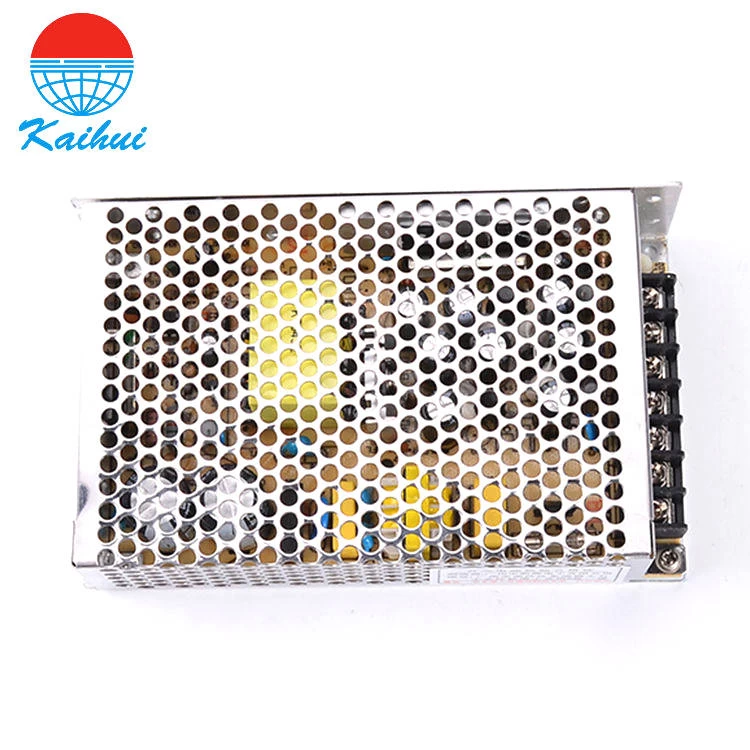

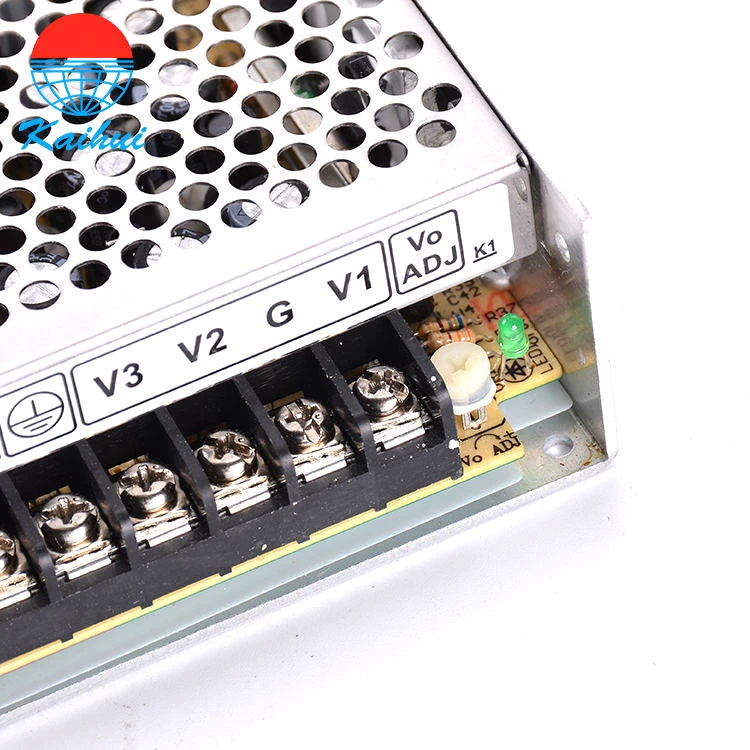

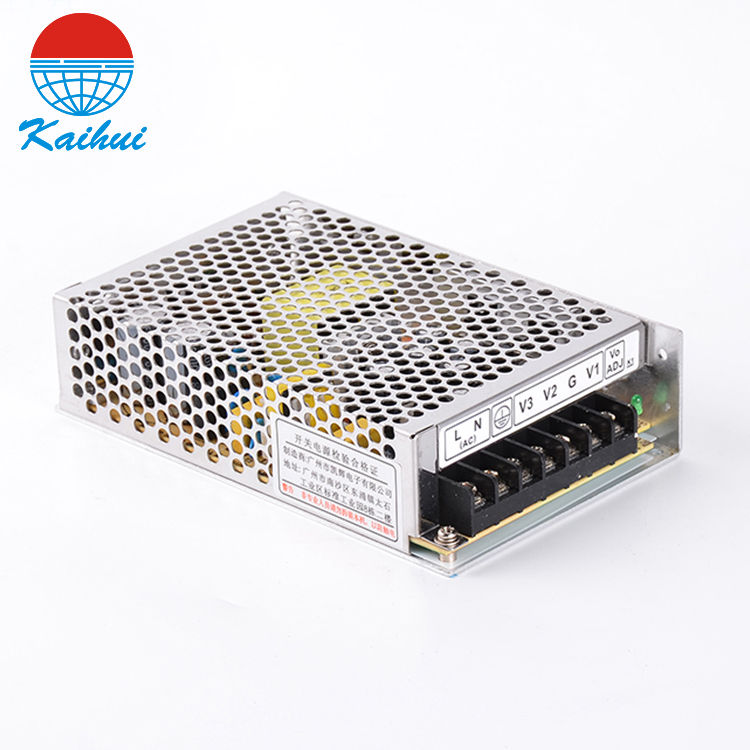

Product picture:
