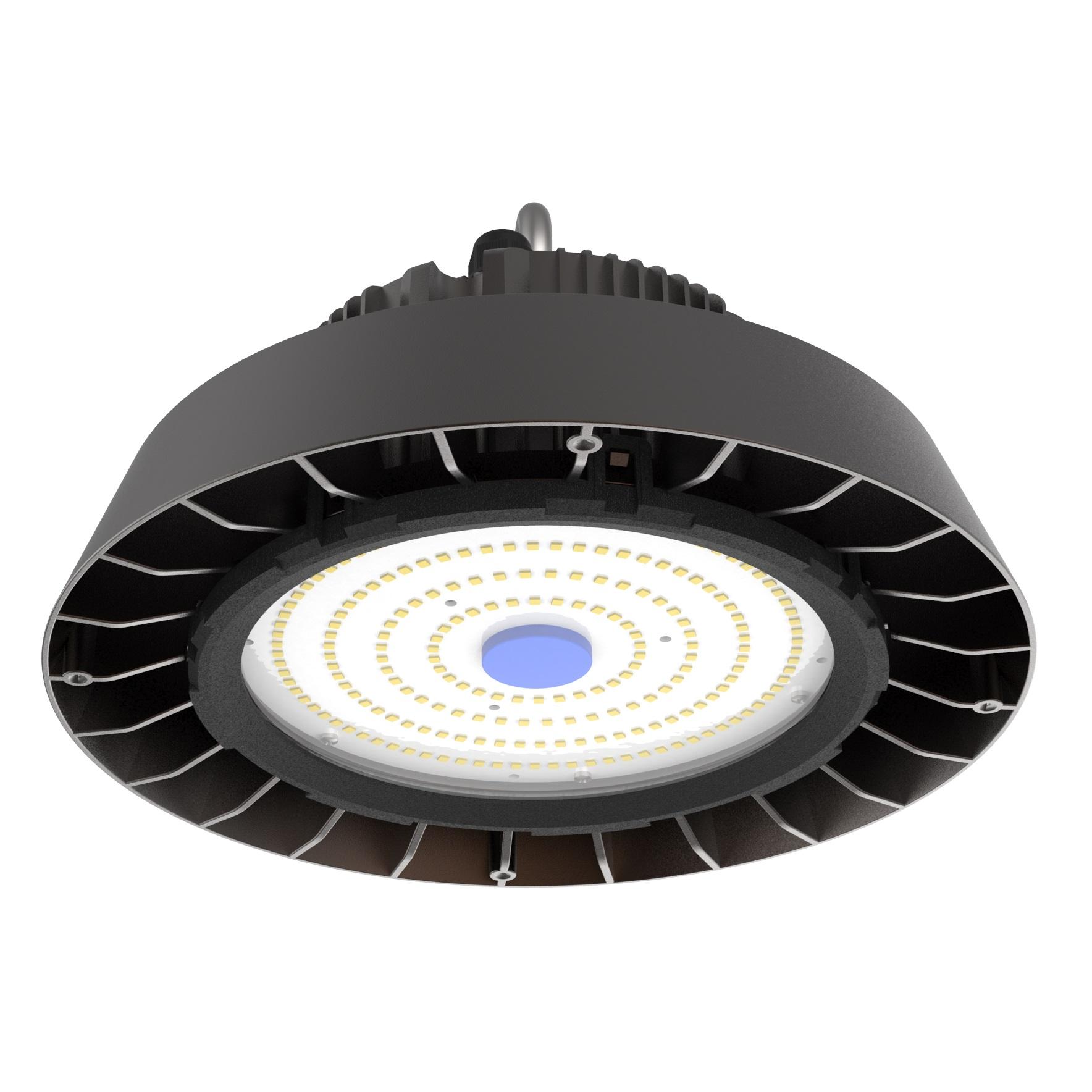

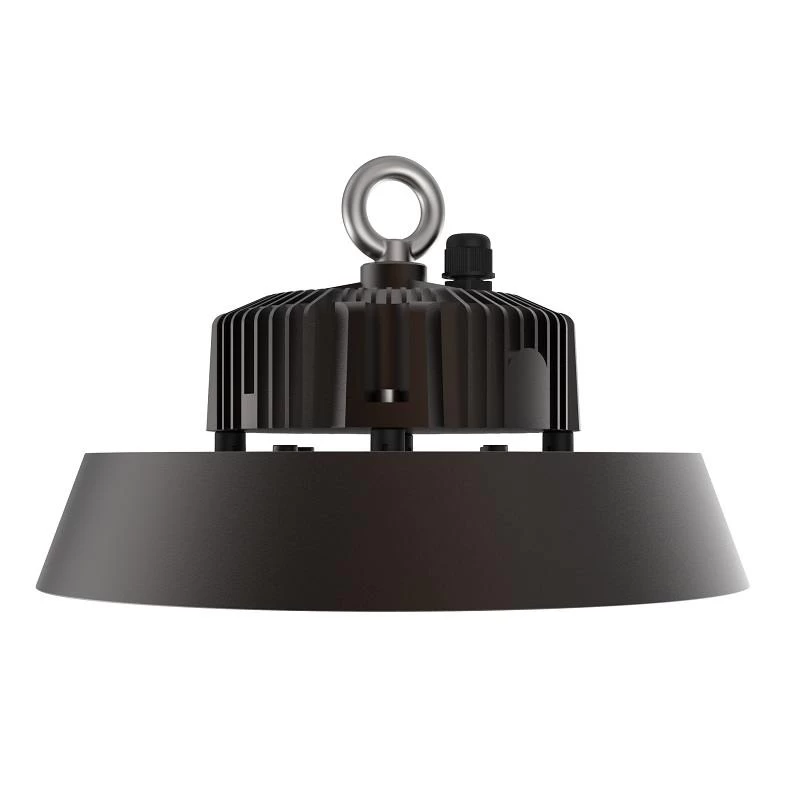

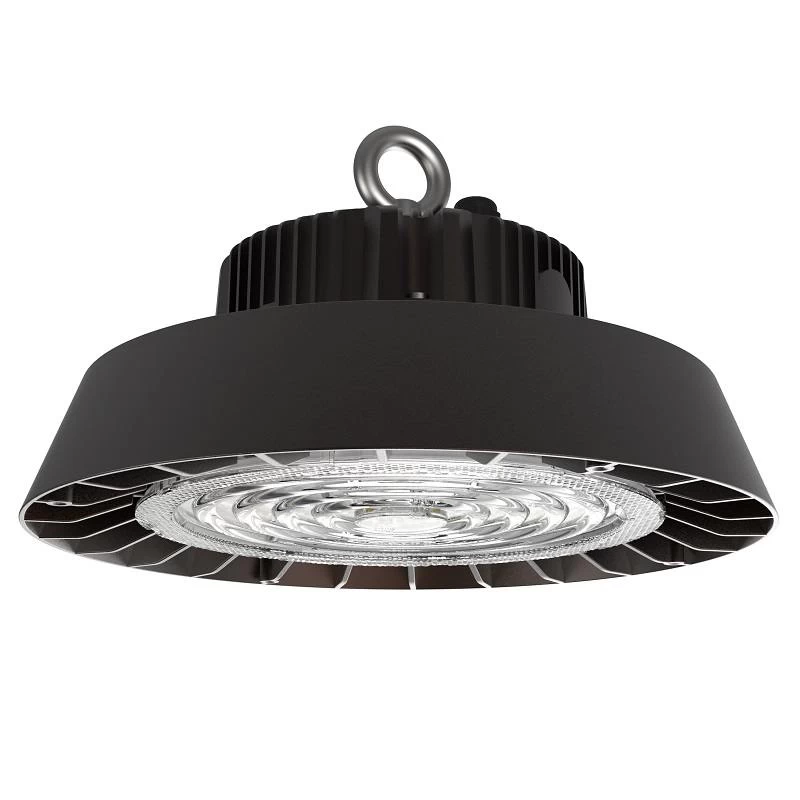

Product Item: 100W UFO LED Bay Lights For Workshop Lighting
Overview:
The high brightness UFO LED high bay lights are highly energy efficient and offers superb brightness. The die-cast aluminum housing with efficient cooling system can have excellent heat control for longer lifespan. With system power consumption 100W, 150W, 200W, 240W, this UFO highbay light can replace metal halide type fittings or other HID fixtures from 200W to 500W. Driven by industry leading Mean Well driver, the UFO series is able to deliver an outstanding 130-140lm/ luminous efficacy(other LED chips and drivers on request).
This LED UFO light is backed by a 5 years warranty Mean Well driver with high efficiency. For any kind of industrial lighting applications, this multi-function UFO LED luminaire can be used either for high bay lighting, low bay lighting, or multi-bay lighting. With benefit of 70% energy savings, improved lumen performance & improved CRI, this UFO LED light with high brightness is widely used for sports gym lighting, theater lighting, billiards lighting, boxing ring lighting, factory lighting, etc.
Specifications:
|
Model
|
SR-HBUN-100W
|
Power
|
100W
|
Lumen Output
|
14,000lm
|
Light Source
|
LUMILEDS/OSRAM/NICHIA/CREE, etc.
|
Beam Angle
|
60°/90°/120°
|
Driver
|
MEAN WELL/PHILIPS/DRIVERLESS, etc.
|
Input Voltage
|
AC 90-305V, 50/60Hz
|
Power Factor
|
>0.95
|
CRI
|
Ra>80
|
CCT
|
3000K/4000K/5000K/5700K/6500K
|
IP Rating
|
IP65
|
Dimming
|
Dimmable/Non-dimmable
|
Material
|
Die-cast Aluminium, PC
|

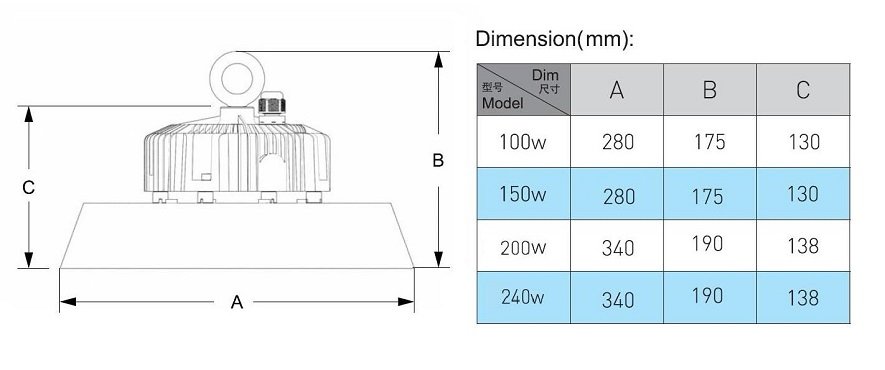

Dimension
|
φ280x175mm
|
Weight
|
2.8KG
|
Warranty
|
5 years warranty
|

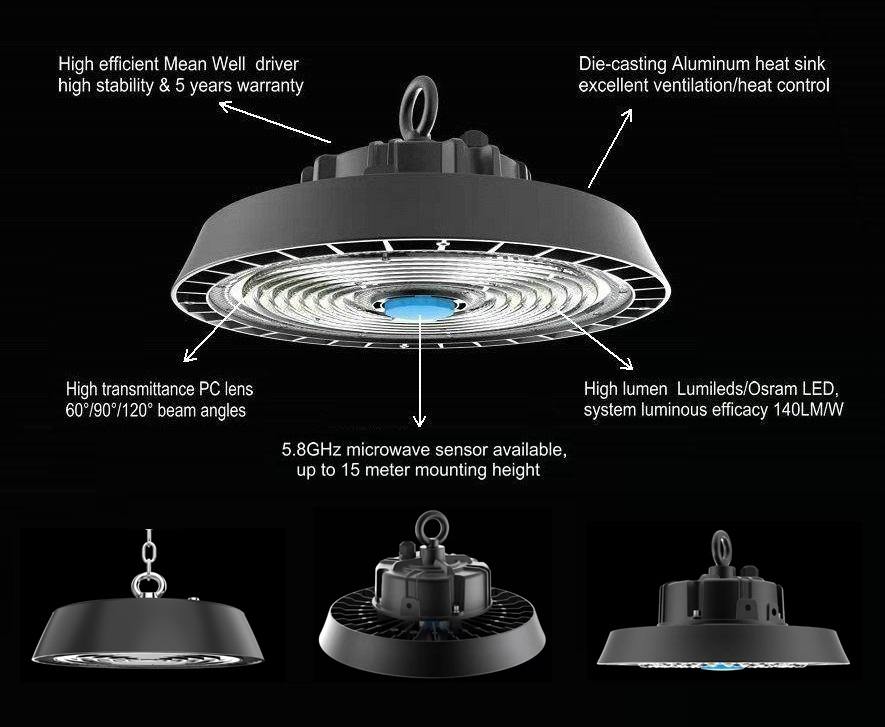

Features:
-
System Power: 100 Watt, 150 Watt, 200 Watt, 240 Watt
-
Luminous efficacy up to 140 lumen per watt with high quality Lumileds/Osram/Cree LED(other LED chip available)
-

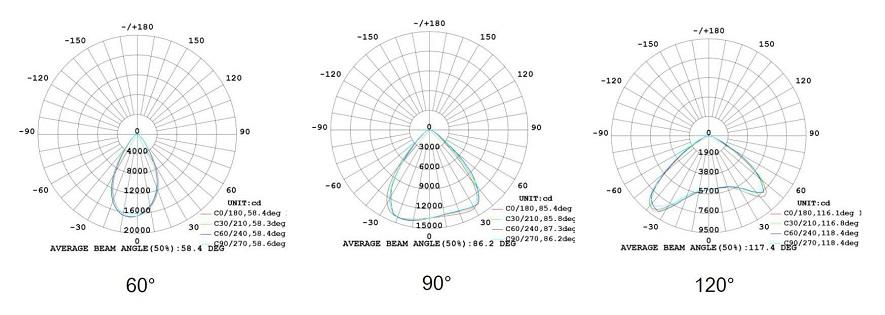

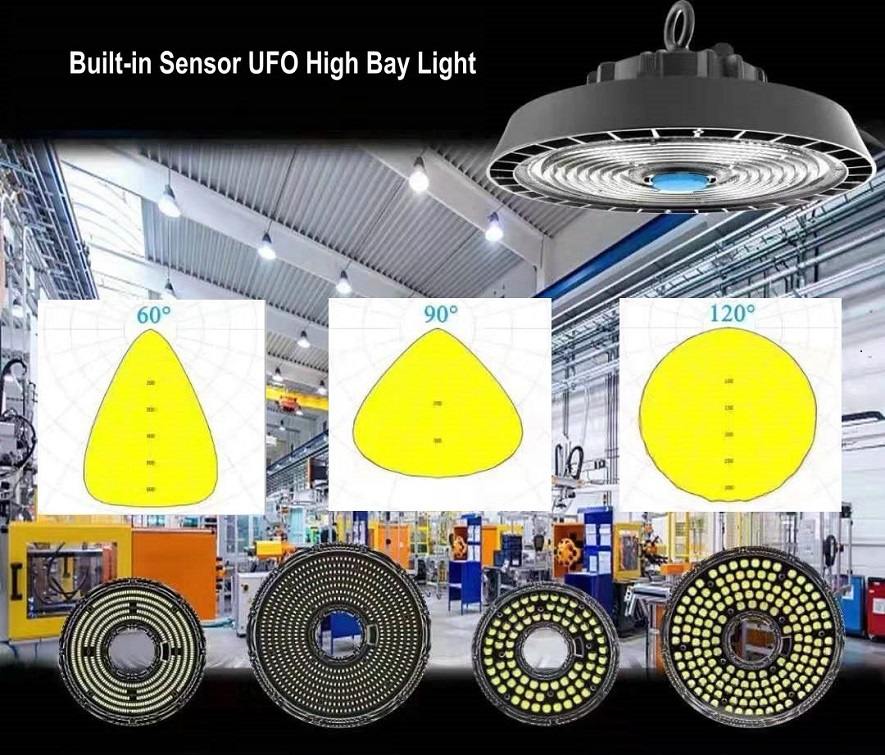

High transmittance optical lens beam angles: 60 degree, 90 degree, 120 degree.
-
Die-casting aluminium heat sink with well-designed ventilation system for good thermal management.
-
Wide input voltage range 90-305V AC with Mean Well driver(other driver brands available).
-
Colour temperature 2700-6500K, colour rendering index>80.
-

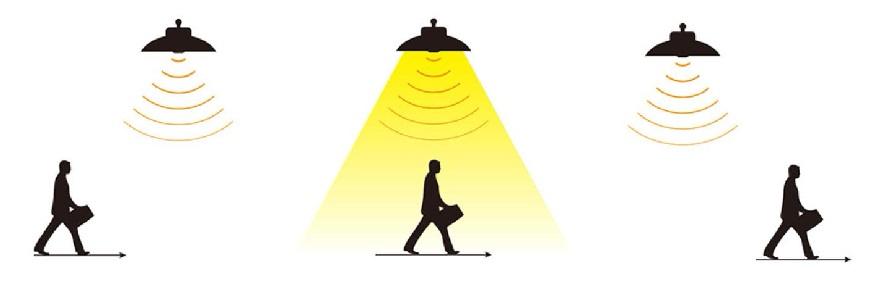

Further options include dimmable options: 1-10V & DALI with advanced programmable occupancy controls suitable for daylight & non-occupancy detection/ daylight-dimming, Detection modes including: ON/OFF, 2-step dimming, 3-step dimming.
-

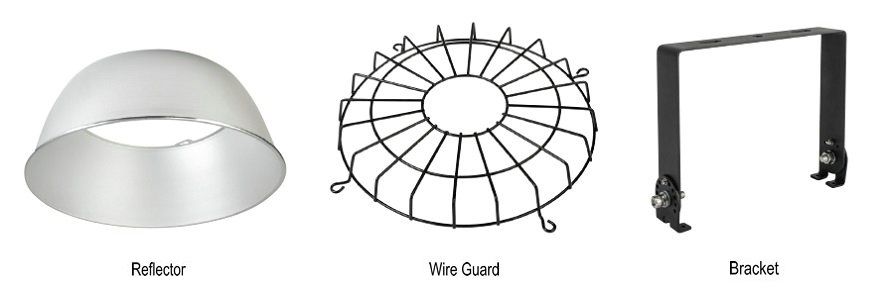

Accessories: protection wire guard, reflector, bracket, etc.
-
Energy saving: save over 70% energy than traditional luminaires, flicker-free and mercury-free.
-

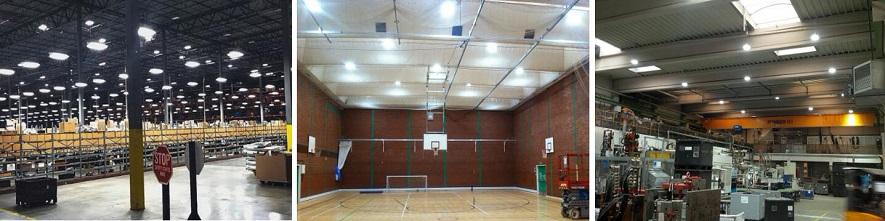

Application: lighting for warehouses, factories, gymnasiums, billiards centres, boxing courts, table tennis courts, etc.
|
|
|
|
