CE 5v output voltage 10w Ultra-thin power supply smps single output switching power supply
Description:
The K41-U60S12 is a single output AC-DC power supply that is compliant for use within the LED lighting, CCTV and printer industry and etc.
Features:
1, 60w power supply high efficiency;
2, 12v 5a contains filter, low output noise;
3, DC 12V 60w power supply wide range of AC input voltage;
4, 12v 60w power supply overload and overcurrent protection.
The K41-U60S12 is a single output AC-DC power supply that is compliant for use within the LED lighting, CCTV and printer industry and etc.
Features:
1, 60w power supply high efficiency;
|
Parameter |
|||||
| Item NO |
K41-U60S12 |
K41-U60S24 |
K41-U60S36 |
K41-U60S48 |
|
| Output |
Output Voltage |
+12Vdc |
+24Vdc |
+36Vdc |
+48Vdc |
|
Rated Current |
5A |
2.5A |
1.67A |
1.25A |
|
|
Current Range |
0-5A |
0-2.5A |
0-1.67A |
0-1.25A
|
|
|
Rated Power |
60W |
60W |
60W |
60W |
|
|
Ripple & Noise |
100mVp-p |
200mVp-p |
300mVp-p |
400mVp-p |
|
|
Adjustable Output Range |
No |
||||
|
Output Accuracy |
±2% |
||||
|
Line Regulation |
±1.5% |
||||
|
Load Regulation |
±0.5% |
||||
|
Set up,Rise,Keep up time |
200ms,100ms,30ms |
||||
| Input |
Input Voltage Range |
100V~240V AC |
|||
|
Input Current |
1.5A/115Vac |
||||
|
Input Frequency |
50~60Hz |
||||
| Power Factor | ------ | ||||
|
Efficiency |
86% @230Vac |
88% @230Vac |
89% @230Vac |
90% @230Vac |
|
|
Inrush Current |
Cold start 10A/230Vac |
||||
|
Leakage Current |
<0.5mA@240V |
||||
| Protection |
Over Load Protection |
105~180%automatic recovery |
|||
|
Output overvoltage |
15V automatic recovery |
||||
| Over Temp., protection |
------- |
||||
|
Environment |
Working Temp.,Humidity |
-20~40℃，10~90% RH，No condensation |
|||
|
Storage Temp.,Humidity |
-20~85℃，10~95% RH |
||||
|
Temp.,Drift |
±0.03%/℃(0~50℃) |
||||
|
Vibration |
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES |
||||
|
Safety&EMC Standards |
Safety Standards |
GB4943 |
|||
|
Withstand Voltage |
I/P-O/P:4KV; I/P-FG：1.8KV；O/P-FG:0.6KV AC 1min. |
||||
|
Insulation Resistance |
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms |
||||
|
EMC Standards |
EN55022B |
||||
| Others | Dimension |
76*76*30mm |
|||
| Weight |
0.2KG |
||||
| Notes |
1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity; 2. Accuracy: includes set up tolerance, line regulation, load regulation and so on; 3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end; 4. Line regulation: at rated load conditions, the input voltage changes from low to high measured; 5. Load regulation: the measured output load from 0 to 100% load change measured. |
||||

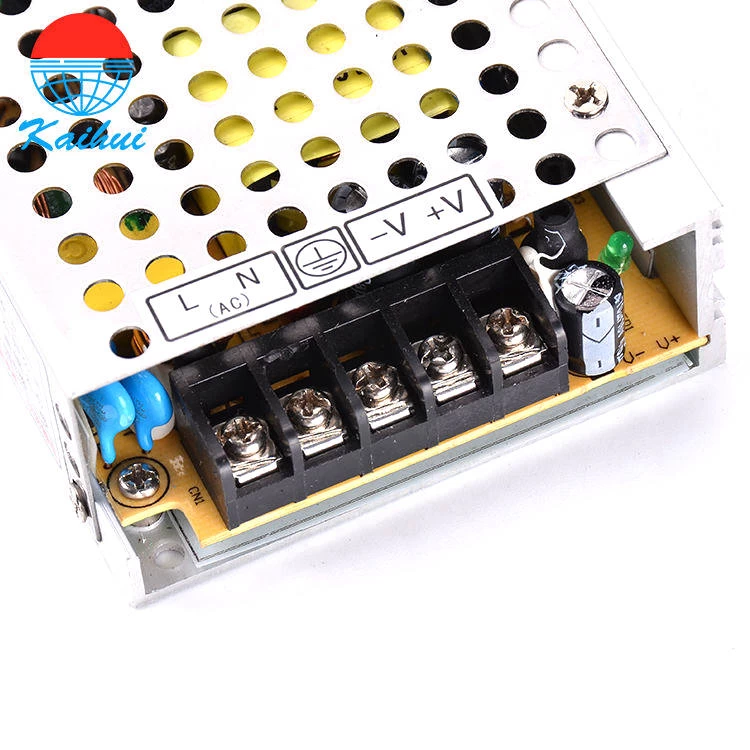

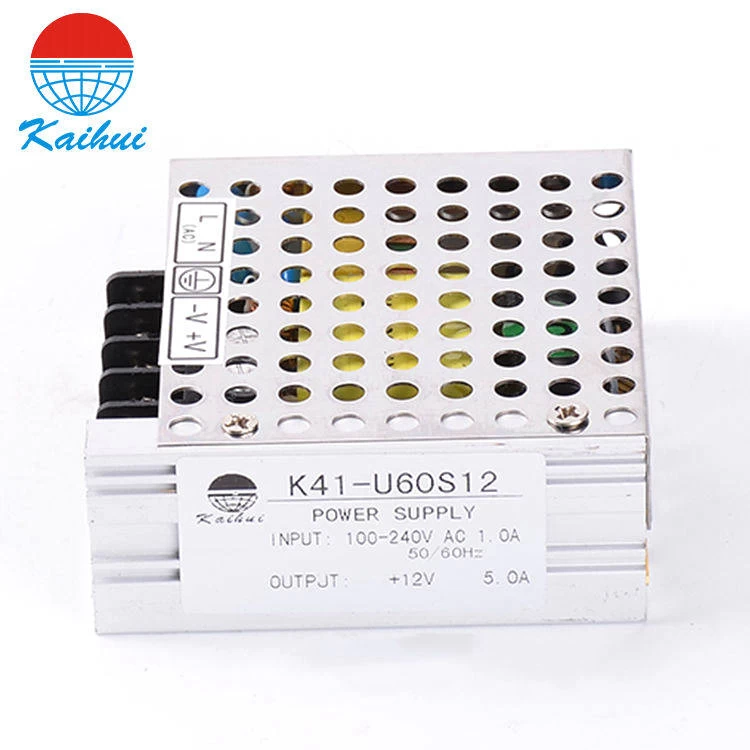

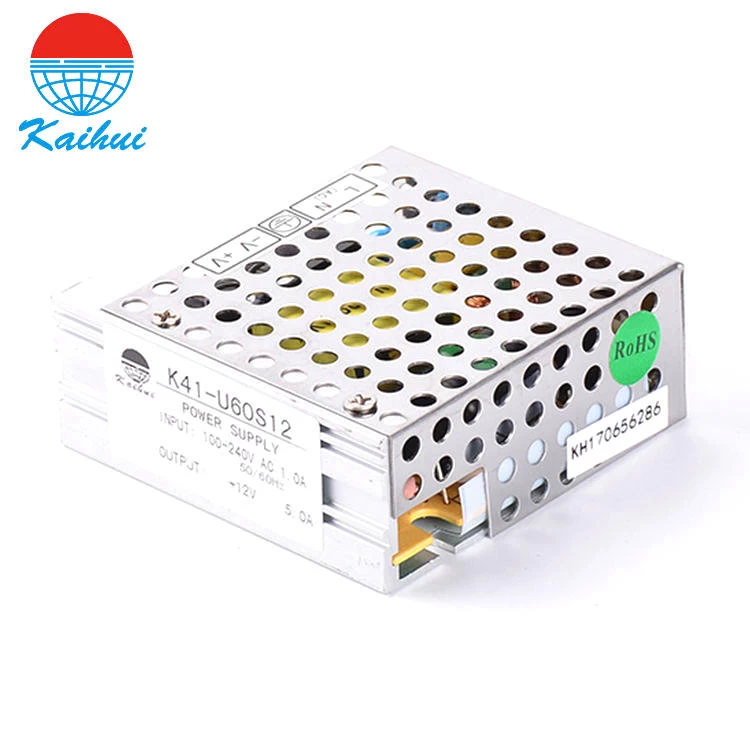

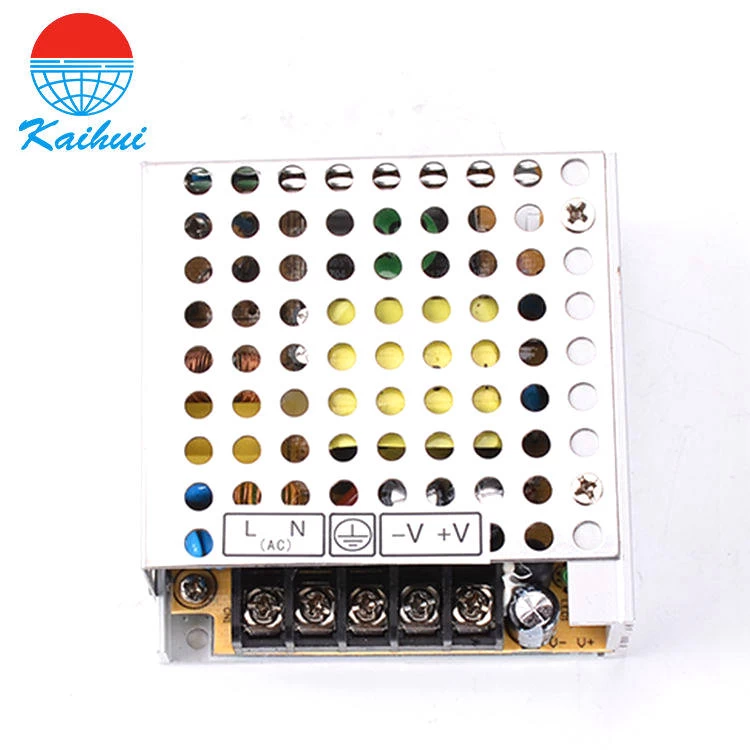

Product picture:
