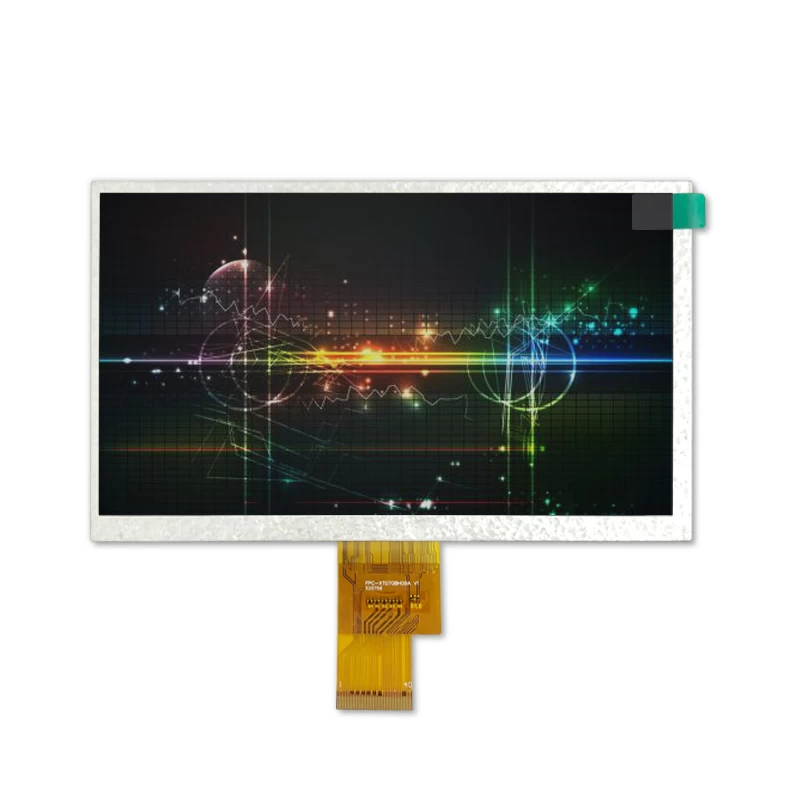

1024×600 resolution 7 inch IPS TFT LCD Display with 350 nits luminance
| Specification | ||
| Part No. | TST070XVZH-05 | |
| Outline Dimension(mm) | 164.9*100*3.5 | |
| Active Area(mm) | 154.21*85.92 | |
| Resolution(dots) | 1024*RGB*600 | |
| Operating temperature(°C) | -20-70 | |
| Storage temperature(°C) | -30-80 | |
| Number of Pixel(pixels) | 1024RGB(H)xRGBx600(V) | |
| Touch panel | without | |
| Dot Pitch | 0.0642(W)x0.1790(H) | |
| Pixel arrangement | RGB Vertical stripe | |
| Display mode | Normal white,IPS, 7.0 inch TFT | |
| Surface treatment | Antiglare | |
| View direction |
ALL |
|
| Brightness |
350 cd/m2 |
|
| Power Consumption(w) | Panel | 0.226(Typ.) |
| B/L system | 1.674(Typ.) | |
| Interface |
LVDS |
|
| Module lifetime(Hours) | 50,000-100,000 | |
