1024x600 Resolution 10.1" FPC Connect TFT Screen China Supplier
It is a 1024x600 high resolution 10.1" tft screen with FPC connecting. The FPC is able to be customized according clients' pin assignment requirement by their design.
For a 10.1" tft display module, there are TN type and IPS type. Users are able to get better view effect by IPS type tft screen.
Middle Size TFT Screen
Product Parameters
| Display Type |
TFT Display |
| Display Size |
10.1 Inch |
| View Angle |
IPS/TN |
| Resolution |
1024x600 |
| AA |
125.28x222.72mm |
| Backlight Color |
White LED |
| Brightness |
450cd/m2 |
| Interface |
I2C/SPI/MIPI/LVDS/RGB/MCU/UART |
| Control IC |
HX8282 |
| Connector |
FPC |
| Operating Temperature |
-10-60°C |
| Operating Voltage |
2.8V |
| Touch Panel |
Capacitive/Resistive |
| Requirements On Environmental Protection |
ROHS HSF |

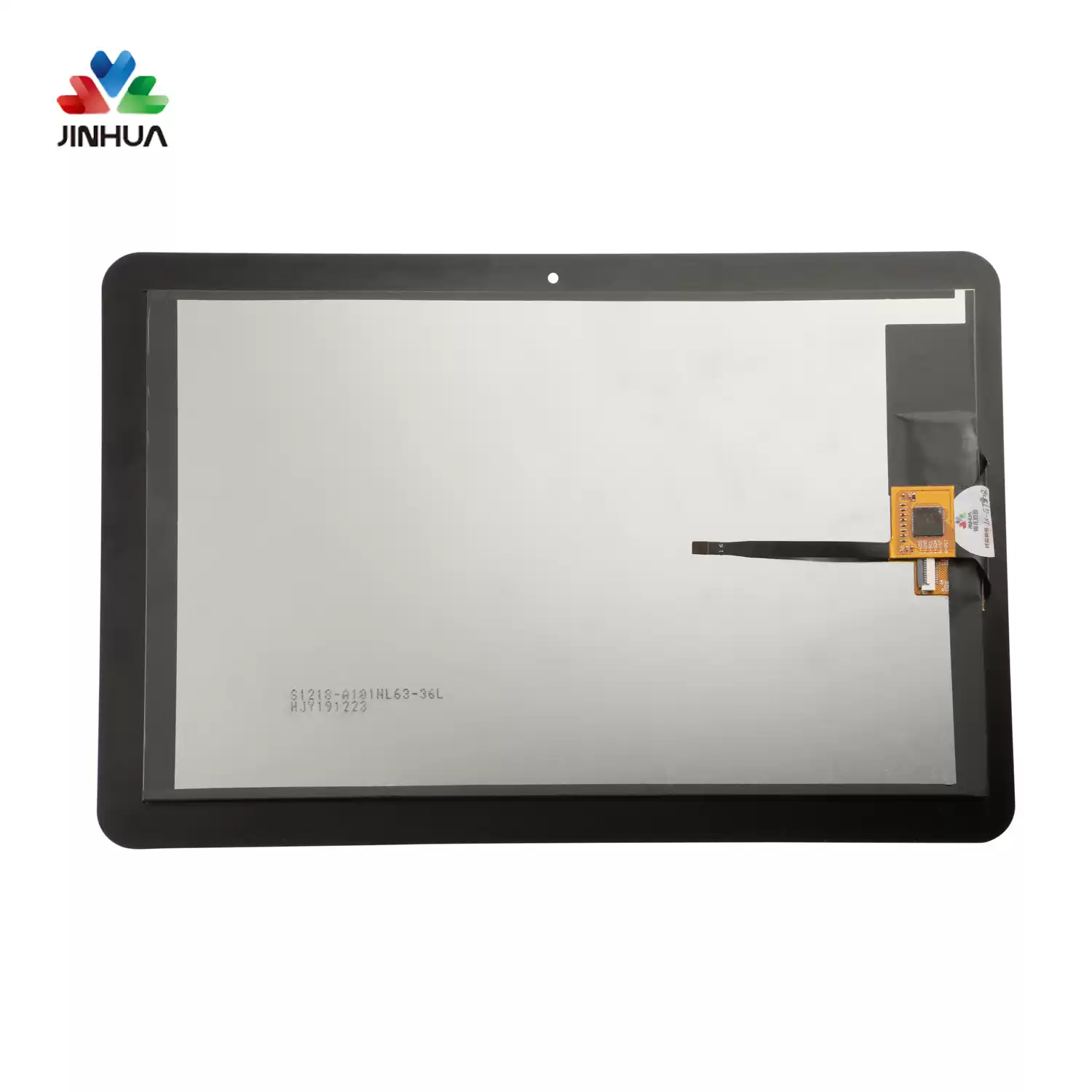

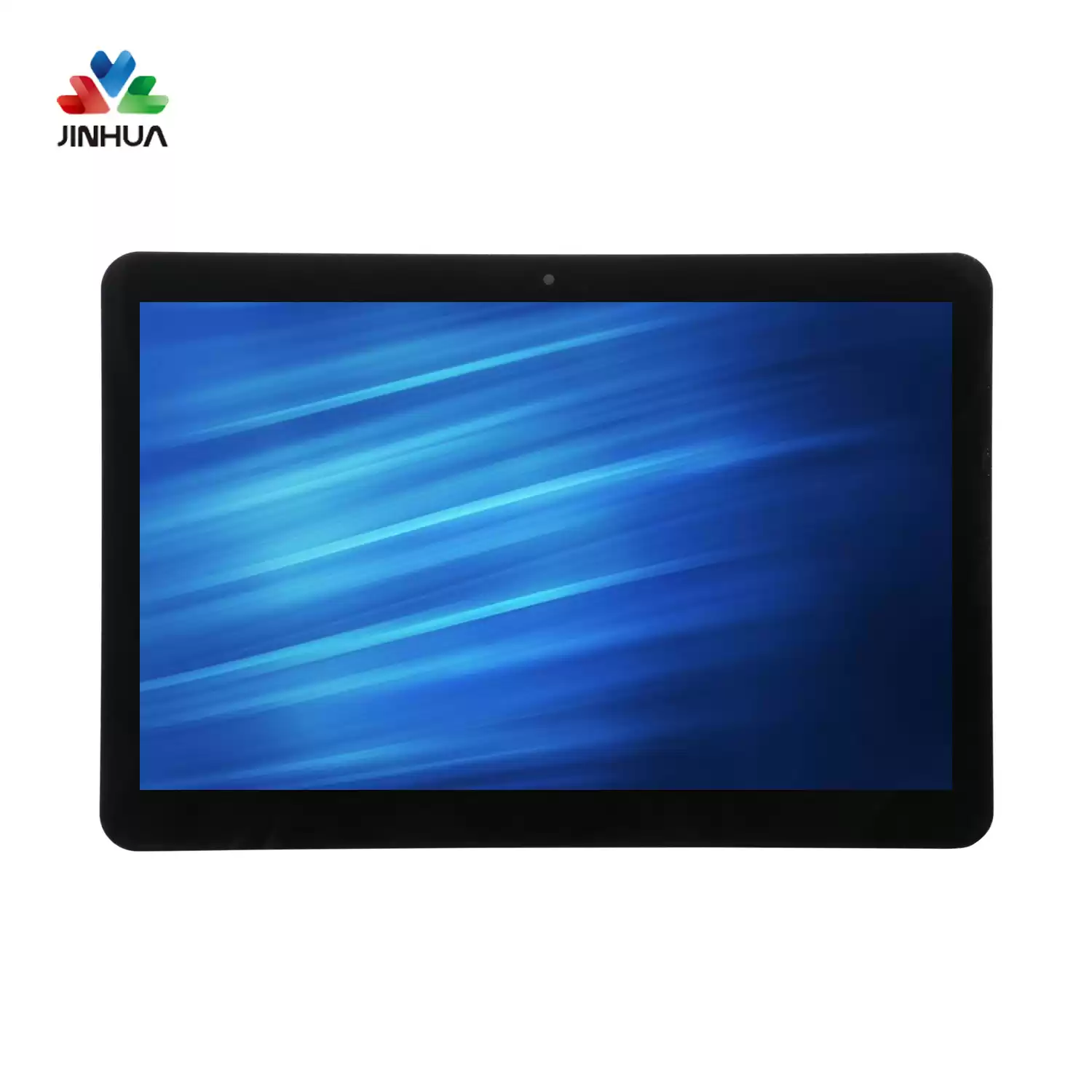

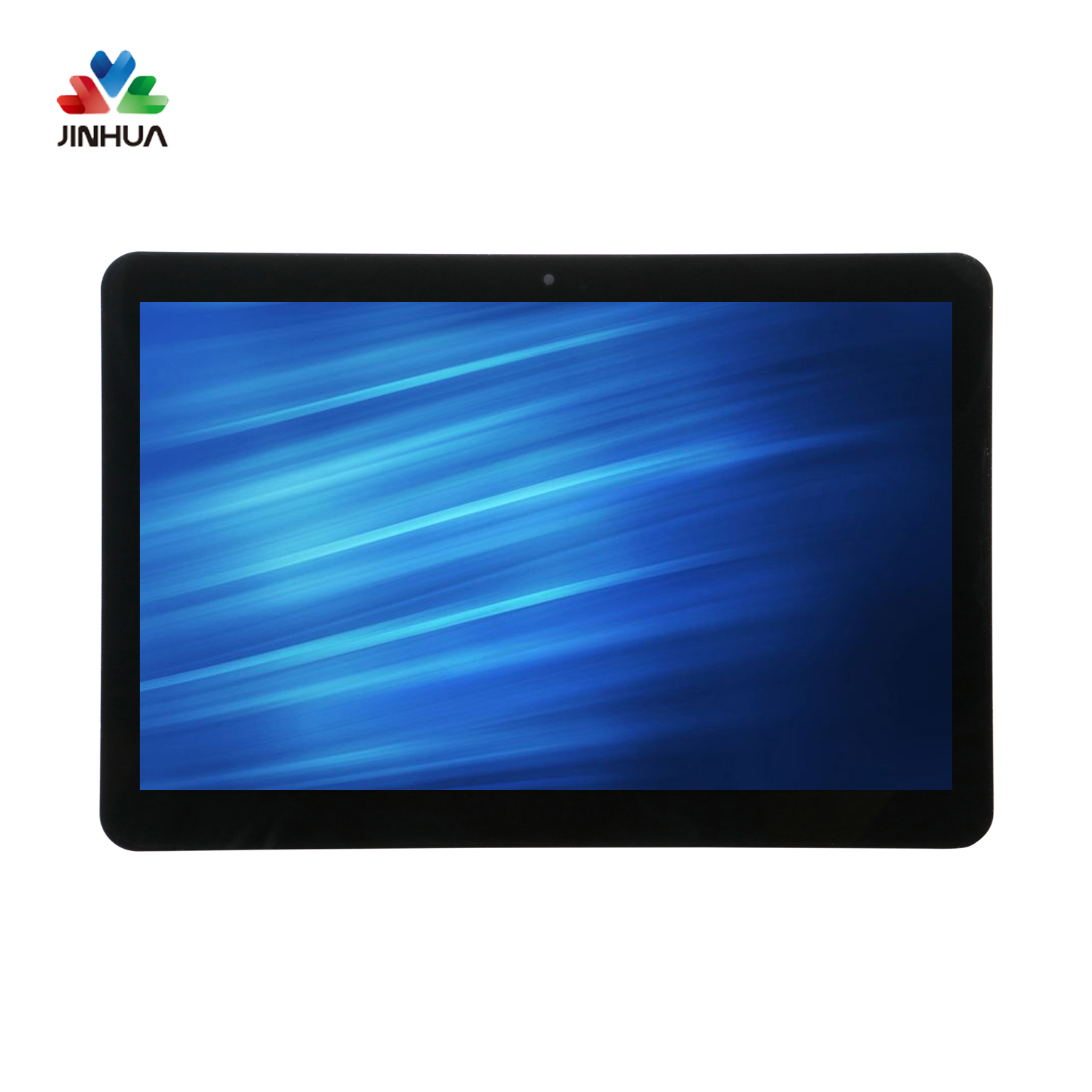

Detailed Picture
Features
Δ Wide Viewing Angle
Δ All Kinds Of Emitted Colors And Size
Δ I.C. Compatible
Δ Low Power Consumption
Δ Long Lifespan
Δ RoHS Compliant
Δ High Luminance
Δ Wide Range Working Temperature
Application
Middle Size TFT Display has different kinds of resolution such as 600x800, 800x1024, etc. to meet variable application such as smart hardware, car network terminal, instrument & meter, hand held terminal, face recognition, smart medical, converstional terminal, etc.
