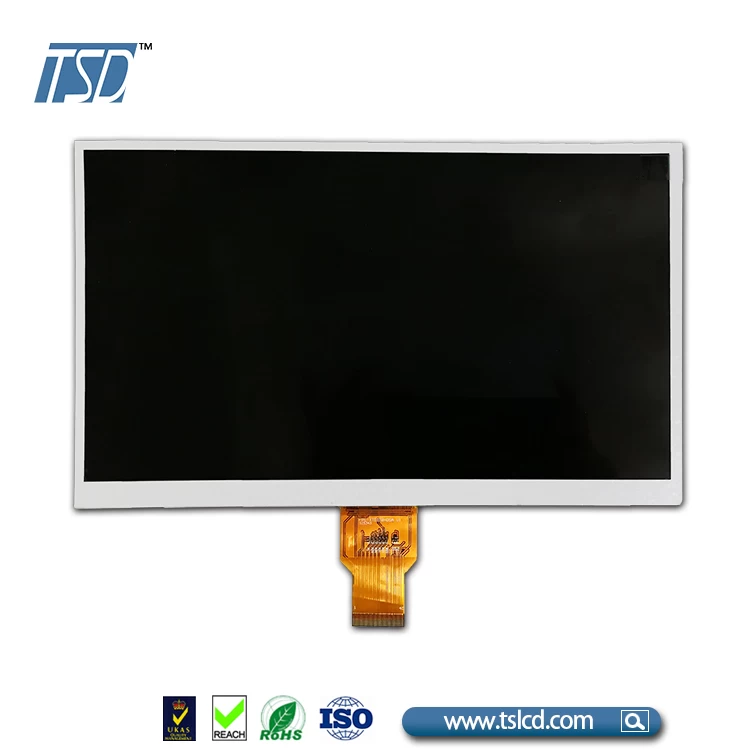

1024x600 resolution 10.1" tft lcd module 40pins 600 nits 10 inch lcd monitor LVDS interface
|
Specification
|
|
LCD type
|
10.1" tft lcd module
|
|
Display type
|
10.1 inch TFT, 16.7M color, normally white
|
|
Driver element
|
color active matrix thin film transistor
|
Viewing angle
|
12H
|
|
Outline Dimension(mm)
|
229.46*149.1*2.7
|
|
Active Area.(mm)
|
216.96*135.6
|
|
Resolution(dots)
|
1024xRGBx600
|
Operating Voltage
|
3.3V
|
|
Operating temperature(°C)
|
-20-70
|
|
Storage temperature(°C)
|
-30-80
|
|
Pixel arrangement
|
RGB Vertical Stripe
|
|
Display mode
|
Normally white
|
|
Luminance(cd/m2)
|
500(typ.)
|
|
Contrast Ratio
|
500(typ.)
|
|
Application
|
Notebook, advertisement display, etc.
|
Number of pins
|
50
|
|
Interface
|
LVDS
|
|
Module lifetime(Hours)
|
50,000-100,000
|
