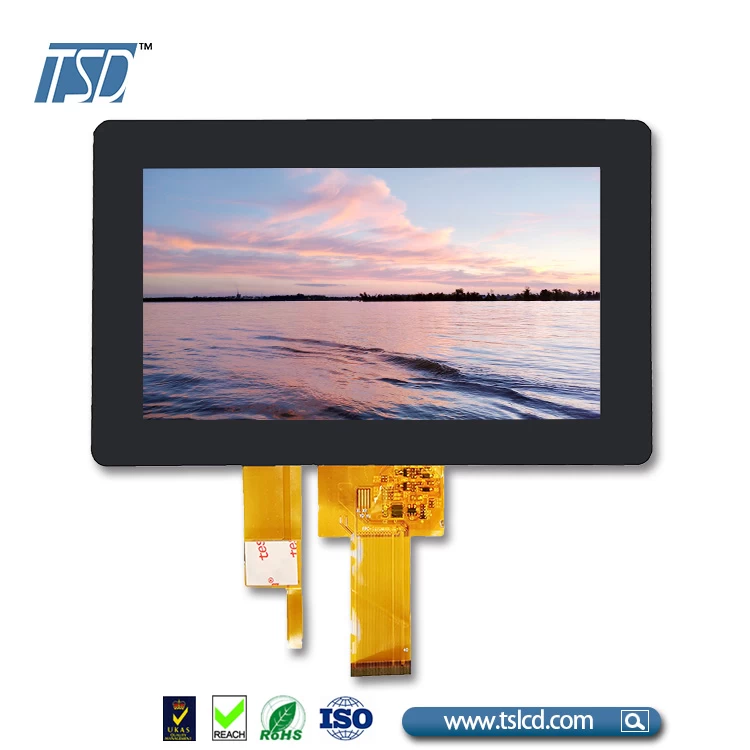

1024x600 resolution 10.1 inch touch screen TFT LCD display with RGB interface
|
Specification
|
|
LCD type
|
10.1" tft lcd display Module
|
|
Display type
|
10.1 inch TFT, 16.7M color, normally white
|
|
Driver element
|
color active matrix thin film transistor
|
|
Backlight
|
white LED
|
|
Outline Dimension(mm)
|
235*143*6.65
|
|
Active Area.(mm)
|
222.72*125.28
|
|
Resolution(dots)
|
1024xRGBx600
|
|
Viewing Direction
|
12H
|
|
Operating temperature(°C)
|
-20-70
|
|
Storage temperature(°C)
|
-30-80
|
Backlight LEDs
|
24 white LEDs
|
Color depth
|
16.7M
|
|
Luminance(cd/m2)
|
425(typ.)
|
|
TP/Lens
|
with CTP (GT928)
|
|
Application
|
Notebook, advertisement display, etc.
|
|
IC
|
HX8282+HX8689
|
|
Interface
|
RGB
|
|
Module lifetime(Hours)
|
50,000-100,000
|
