The supply voltage of the FSC system is 24 Vdc, which can be powered from the plant's 24 Vdc supply system with battery back-up. The FSC system uses an internal 5 Vdc to power the FSC modules.
|
|
|
10300/1/1 136-010875B Data sheet
|

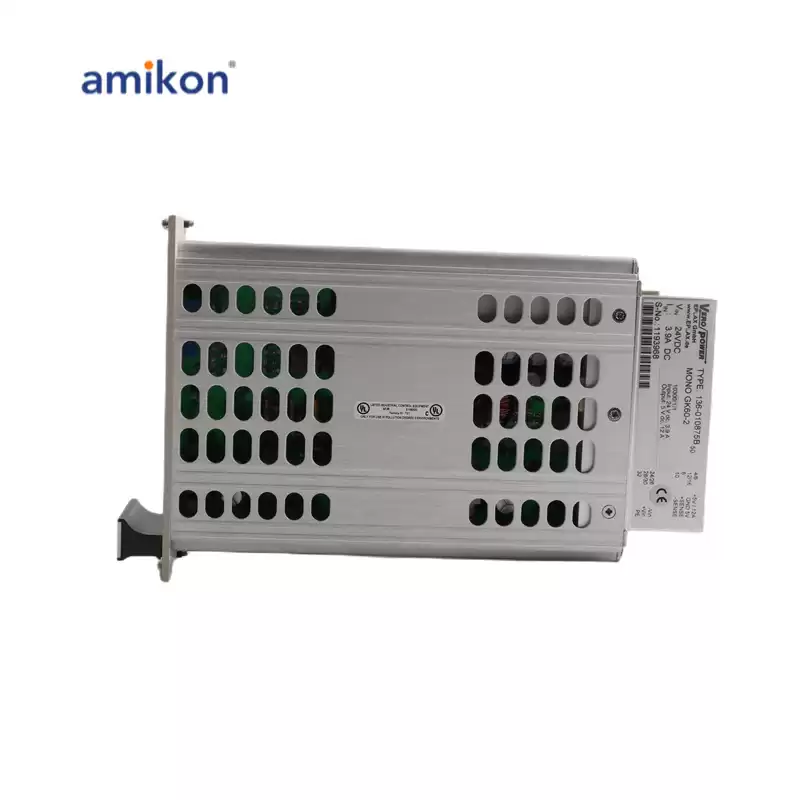

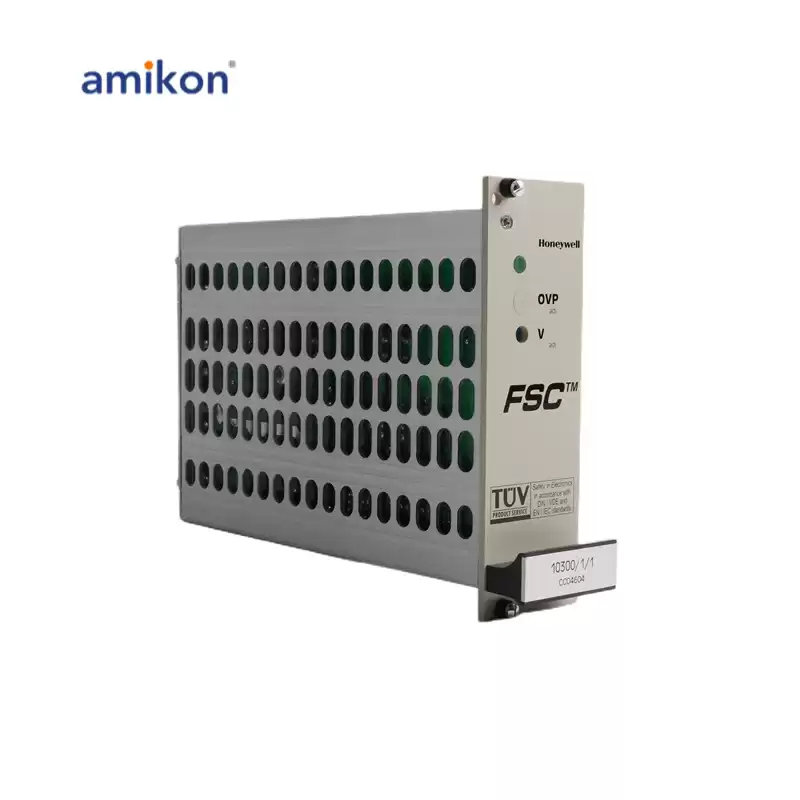

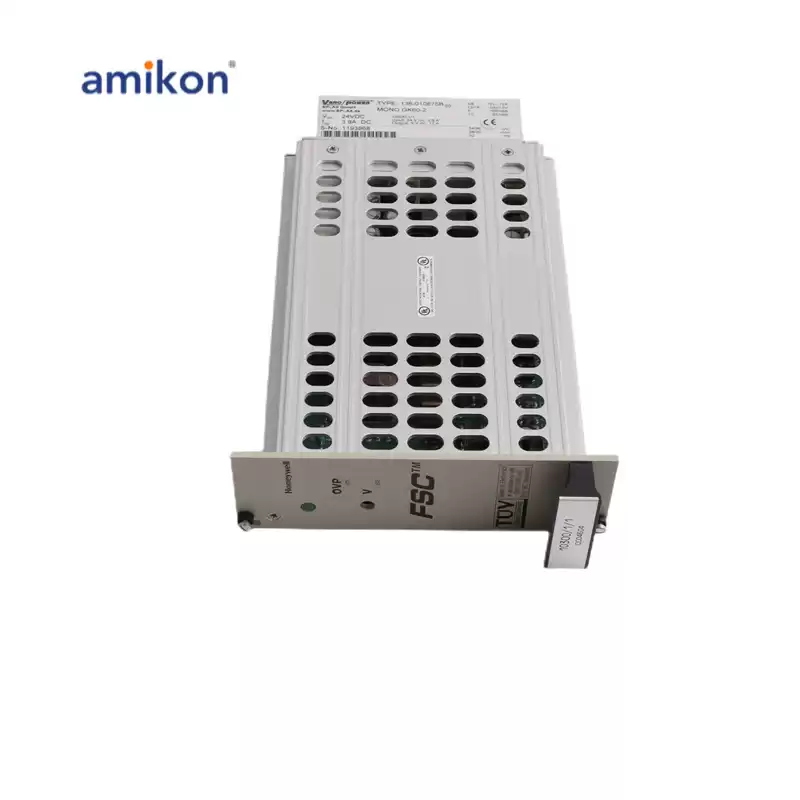

The 10300/1/1 DC/DC converter provides the internal 5 Vdc with galvanic isolation between the two supply voltages.
|
|
As the limits on the 5 Vdc power supply are very tight (± 5%), this module must be placed closely to the system bus (e.g. 12-SBUS).
|
|
Use the sense wires correctly and use short wires of proper wire diameter to minimize voltage drop over the wiring.
|
|
