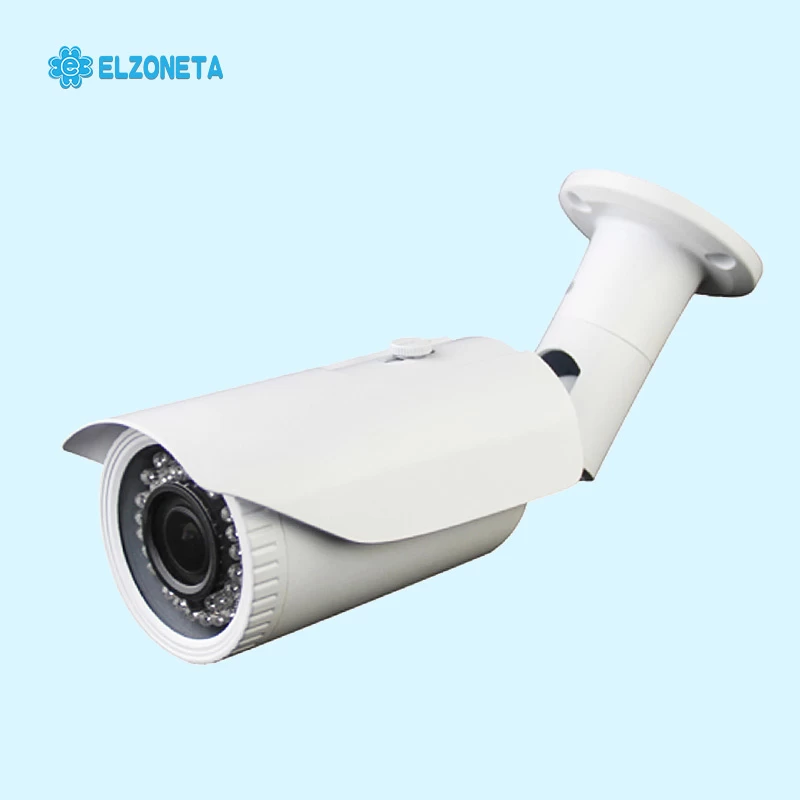

EC-AG04S 2.0MP Varifocal AHD Bullet Camera
Features:
1. AHD Bullet Camera
2. IR LED: 42PCS IR Leds
3. Night Vision: 40M IR Range
4. IP Range: IP 66, High Reliability
5. Material: Aluminum Alloy Casing
6. Product Guarantee: 2 years
Specifications:
|
Model
|
EC-AG04S
|
|
Type
|
AHD Bullet Camera
|
|
Horizontal Resolution
|
2.0MP
|
|
Image Sensor
|
1/3"HD1080P
|
|
Effective Pixels(HxV)
|
1920(W)*1080(V)
|
|
Mini illumination
|
0.05lux(IR off)
0.00lux(IR on)
|
|
WDR
|
D-WDR
|
|
BLG
|
On/Off
|
|
AGC
|
Auto/Manual/Off
|
|
White Balance
|
ATW/Manual/Off
|
|
OSD
|
OSD
|
|
DNR
|
3D-DNR
|
|
Signal System
|
PAL/NTSC
|
|
Lens
|
2.8-12mm HD lens
|
|
IR LEDs
|
42pcs IR leds
|
|
Night Vision
|
40M
|
|
AES
|
PAL=1/50 ~1/100,000sec；NTSC=1/60 ~1/100,000sec
|
|
S/N Ratio
|
> 48dB（Auto Gain Off）
|
|
Video Output
|
1.0V P-P,75Ω
|
|
Operating Temperature
|
-10 ~ 50℃（relative humidity: max95%）
|
|
Power Voltage
|
DC12V±10%
|
|
IP range
|
IP66
|
|
Material
|
High Quality Aluminum
Alloy
|
|
Net Weight
|
0.62kg
|
|
Camera Dimension
|
270(L)x95(W)x75(H) mm
|
