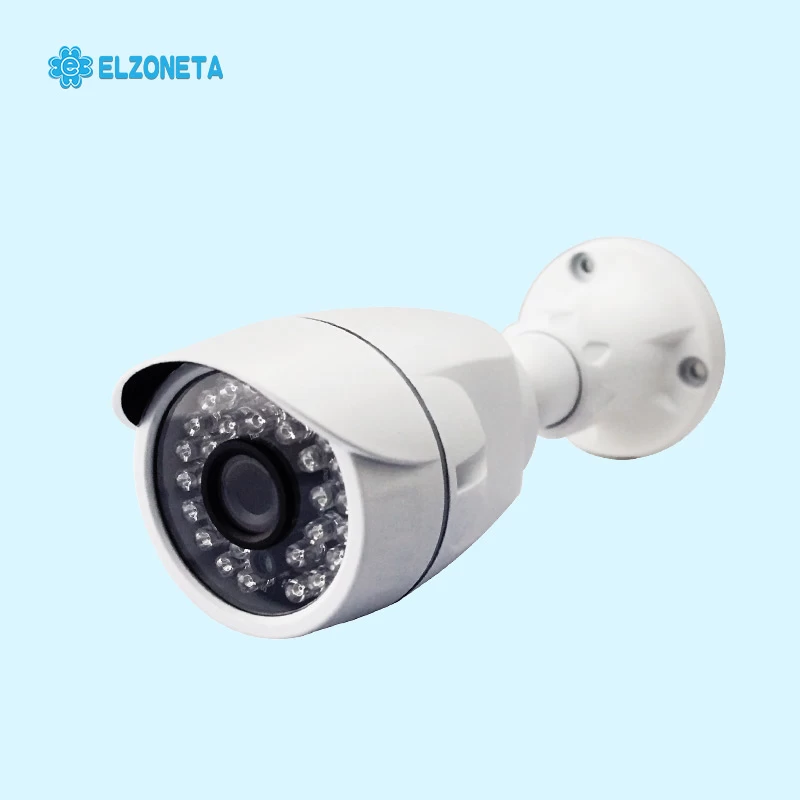

EC-AG03 AHD Bullet Camera
Key Features:
1.) Type: HD IR Bullet Camera
2.) Resolution: 1.0/2.0/3.0/4.0megapixel
3.) Lens: 3.6mm HD fixed lens
4.) IR Leds: 36pcs IR leds
5.) IR range: up to 30meter
6.) Material: Aluminum Alloy
7.) Color: White
8.) Product Guarantee: 2 years
Specification:
|
Camera
|
|
Model No.
|
EC-AG03U
|
EC-AG03S
|
EC-AG03M
|
EC-AG03W
|
|
Sensor
|
4.0MP
Cmos Sensor
|
2.0MP
Cmos Sensor
|
1.3MP
Cmos Sensor
|
2.4MP Cmos Sensor
|
|
Effective
Pixels (HxV)
|
2592(H)*1520(V)
|
1920(H)*1080(V)
|
1280(H)*960(V)
|
1280(H)*720(V)
|
|
Signal
System
|
PAL /
NTSC
|
|
Mini
Illumination
|
0.01lux(IR
off)
0.00lux(IR
on)
|
0.02lux(IR
off)
0.00lux(IR
on)
|
0.02lux(IR
off)
0.00lux(IR
on)
|
0.05lux(IR
off)
0.00lux(IR
on)
|
|
Lens
|
3.6mm HD fixed
lens
|
|
Lens
Mount
|
M12
|
|
Day
& Night
|
ICR
(IR cut filter with auto switch)
|
|
IR
Leds
|
￠5X36PCS
|
|
IR range
|
up to 30meter
|
|
Angle
Adjustment
|
Pan:
0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°
|
|
AES
|
PAL=1/50
~1/100,000sec；NTSC=1/60 ~1/100,000sec
|
|
S/N Ratio
|
> 48dB（Auto Gain Off）
|
|
4in1 Function
|
|
Output
Model
|
TVI/AHD/CVI/Analog
is optional
|
|
OSD Menu
|
OSD is
optional
|
OSD is
optional
|
OSD is
optional
|
OSD is
optional
|
|
WDR
|
D-WDR
|
D-WDR
|
D-WDR
|
D-WDR
|
|
DNR
|
3D-DNR
|
3D-DNR
|
3D-DNR
|
3D-DNR
|
|
General
|
|
Operating
Condition
|
-20
°C - 45 °C (-4 °F - 113 °F), Humidity 90% or less (non-condensing)
|
|
Power
Supply
|
12
VDC±15%
|
|
IP Rate
|
IP65
|
|
Weight
|
0.41 kg
|
|
Dimension
|
165(L)*59(W)*55(H)mm
|
