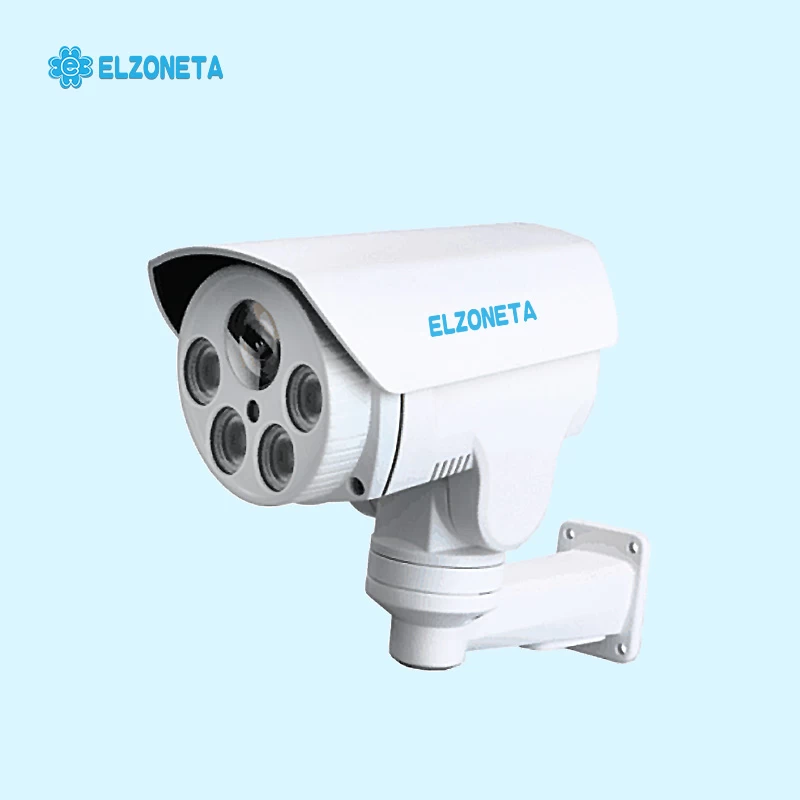

EC-AG01S-PTZ 2.0MP AHD PTZ Bullet Camera
AHD PTZ means a camera with Analog High Definition and Pan Tilt Zoom functions. This kind of CCTV security camera need to connect with wire and it must be used with AHD compatible Digital Video Recorder. And PTZ indicates the surveillance camera can be rotated in horizontal and vertical way and zoomed with 4X motorized lens. It also can monitor maximum 255 positions as your setting in advance.
Features
4pcs Array LEDs, IR Distance 50 Meters (164ft)
4X Motorized Zoom Lens, Auto Focus .
True Day/night with ICR module, cable through bracket
IP66 waterproof
Product Guarantee for 2 years
Specifications
|
Image Sensor
|
1/2.8” CMOS Sensor
|
|
Resolution
|
1920*1080
|
|
System Mode
|
PAL/NTSC
|
|
Lens
|
4X Motorized Zoom Lens
2.8-12mm lens
|
|
IR Distance
|
50 Meters (164ft)
|
|
Day/Night
|
Auto ICR
|
|
Minimum illumination
|
0.05 lux IR LED on: 0 lux
|
|
S/N Ratio
|
50dB or more
|
|
Horizontal rotation angle
|
0°~250°
|
|
Vertical rotation angle
|
-10°~55°
|
|
Horizontal rotation speed
|
0.5°~12°/ s
|
|
Vertical rotation speed
|
0.5°~12°/ s
|
|
Presets
|
255
|
|
Gamma
|
0.45
|
|
BLC
|
Auto
|
|
Electronic Shutter
|
Auto:1/50(1/60)-1/100,000Sec
|
|
White Balance
|
Auto
|
|
Video Output
|
1.0Vp-p,75Ω , BNC
|
|
Power Supply
|
DC12V 2A
|
|
Working Temperature
|
-20℃―50℃
|
|
Gross Weight
|
950g
|
|

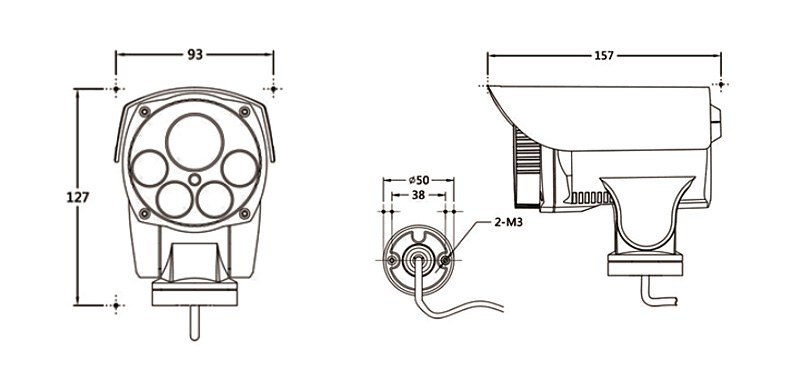

Size
|
153 * 93 * 130mm
|
