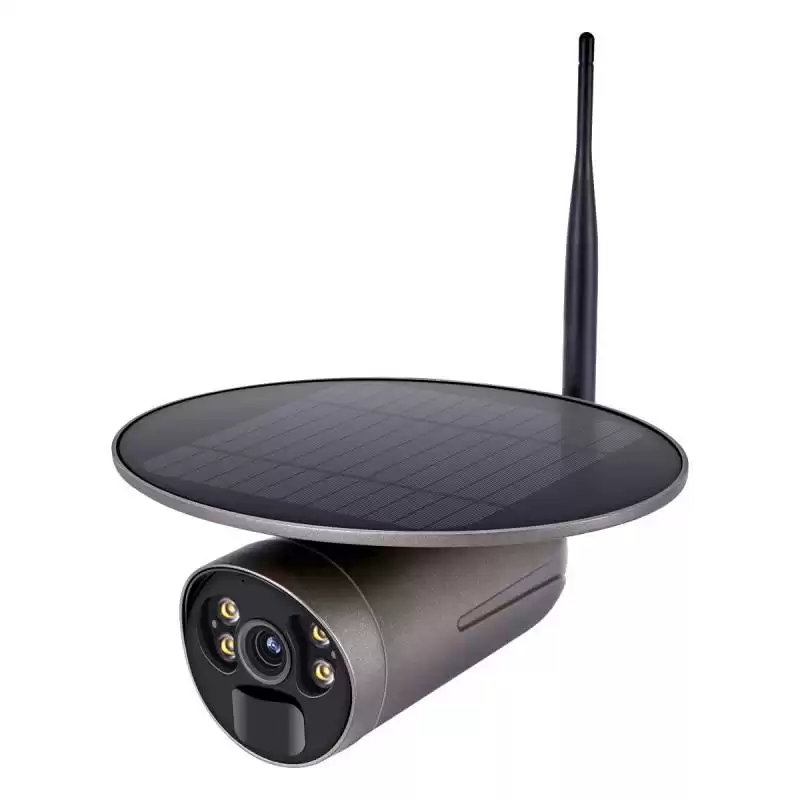

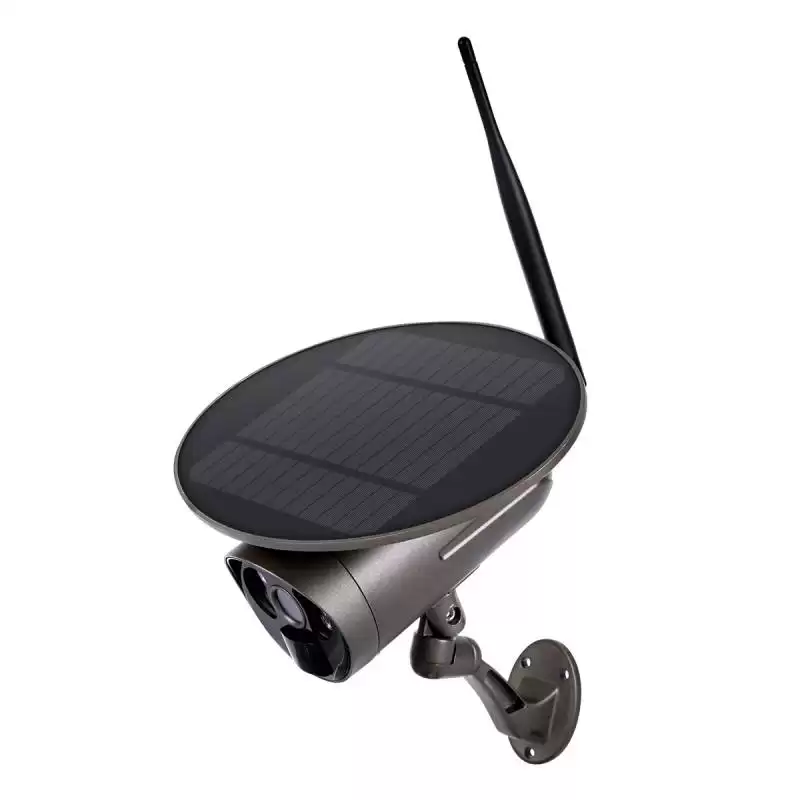

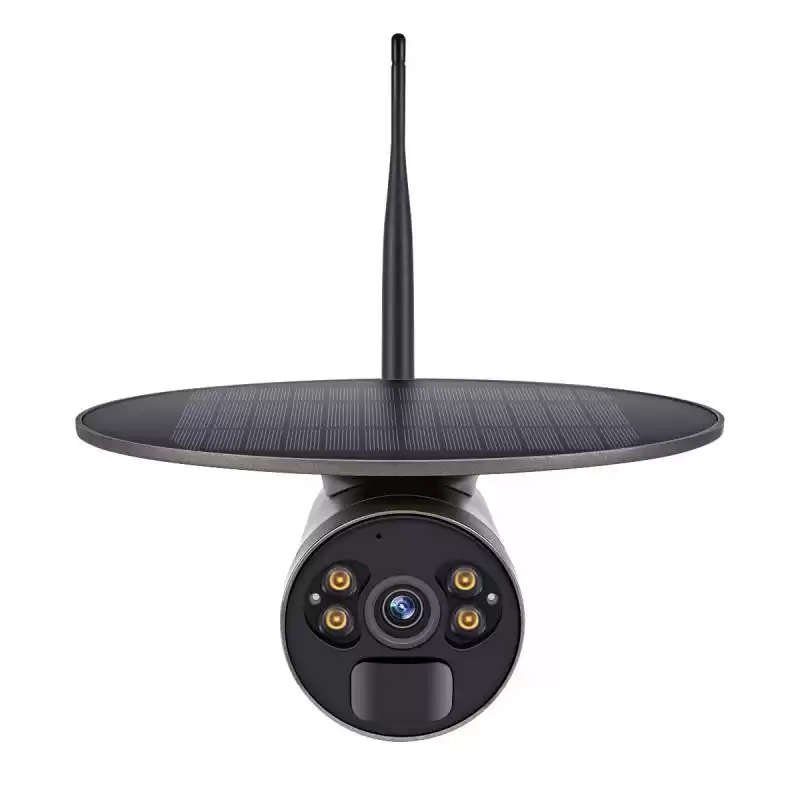

Product Name:1080P Cloud Storage WIFI Battery PIR Alarm IP Camera With Solar Panel Full Color Night Vision Two Way Audio IP66
Feature
●HD1080P, 1920*1080, high definition image quality, resolution up to 2.0 megapixel.
●AP connection, with wireless access point, camera can be connected to phone directly without router. WiFi connection, without cabling work, via WiFi, it can be easily connected with your mobile for remote surveillance.
●Removable 3.5W solar panel,sustainable charge the battery and uninterruptible power supply for camera.
●Powered by 10000mAh polymer lithium battery, ultra-low power consumption, super long time standby, and intelligent power saving function, standby time more than 180 days.
●PIR motion detection, through the newest algorithm, the equipment push accurate alarm, reduce mistake report.
●Two way talk, build in microphone and high quality audio speaker with loud volume, it can do two way talk online between camera and mobile phone.
●Day/night vision, built-in 4pcs lamp, can effectively improve the night vision sharpness, max up to 10m IR range.
●IP66 waterproof, suitable for indoor and outdoor use,all weather environment applications.
●TF card storage and cloud storage, supports 64GB TF card storage, or cloud storage to meet different customer requirements.
Specification
|
Model
|
ANSDEN YAB-QF360
|
|
Camera Parameter
|
|
General
|
|
Main Processor
|
HI3518E
|
|
Operation System
|
Android, IOS
|
|
Image Senor
|
1/2.7″ progressive sensor
|
|
Compression
|
H.264
|
|
Resolution
|
1920*1080 1080P
|
|
Internet Connection
|
|
WIFI
|
WIFI（2.4G)
|
|
Alarm
|
|
Detection Mode
|
PIR
|
|
Detection Distance
|
0~10M
|
|
Detect Angle
|
120°
|
|
Alarm
|
Message push to APP
|
|
Night Vision
|
|
Full Color Night Vision
|
0.00001 Lux
|
|
IR LED
|
Infrared LED 10M IR distance
|
|
White Light LED
|
White light LED 20M distance
|
|
Audio
|
|
Built-in Speaker
|
3W
|
|
Built-in Microphone
|
Voice monitoring distance 10M
|
|
Lens
|
|
Lens
|
3.6mm
|
|
Lens Angle
|
90°
|
|
Storage
|
|
Cloud Storage
|
Storage when alarm recording
|
|
Local Storage
|
TF card max 64G
|
|
Power
|
|
Power
|
Solar energy and 18650 battery
|
|
Solar Energy Consumption
|
3.5W
|
|
Battery Capacity
|
Built in 4pcs 2500MA 18650 battery
|
|
Operating Power Consumption
|
Max 3W
|
|
Standby consumption
|
0.003W
|
|
Others
|
|
Working Environment
|
Outdoor,IP66 waterproof
|
|
Operation Temperature
|
-35°~+65°
|
|
Humidity
|
0%~80%RH
|
|
Package
|
|
Product Weight
|
0.87kg
|
|
Product Size
|
206*70*70mm
|
|
Packing Weight
|
1.3kg
|
|
Packing Size
|
226*190*112mm
|
|
Carton Weight
|
15.9kg/12pcs
|
|
Carton Size
|
460*330*500mm
|
|
Package List
|
WIFI camera*1,Screw kit*1,USB charging cable*1,User manual*1,Bracket*1
|

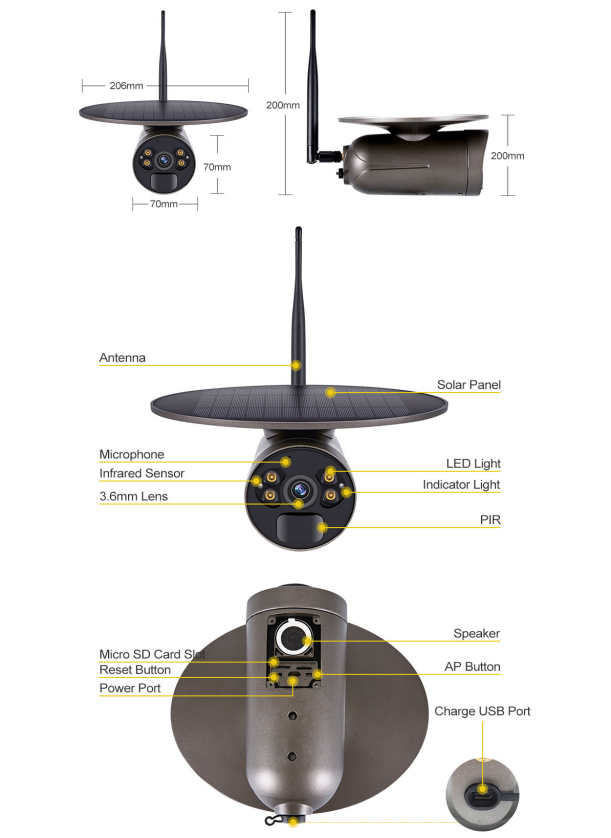

Dimension
Removable 3.5W solar panel,sustainable charge the battery and uninterruptible power supply for camera.
Powered by 10000mAh polymer lithium battery, Ultra-low power consumption, super long time standby, and intelligent power saving function, standby time more than 180 days.
Application
AP connection, with wireless access point, camera can be connected to phone directly without router. WiFi connection, without cabling work, via WiFi, it can be easily connected with your mobile for remote surveillance.
