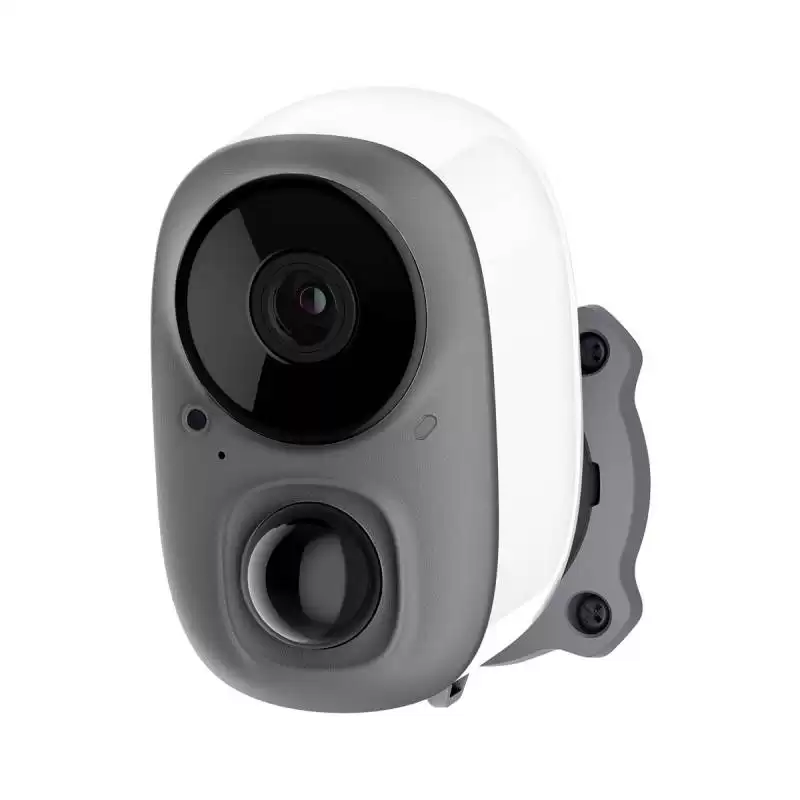

Product Name: 1080P Full HD AI Recognition Rechargeable Battery PIR Alarm Cloud Storage WiFi Camera
Feature
●1.Smart battery camera, wireless design, built-in rechargeable battery, no need for power wiring, easy installation to save your time and worry, get rid of power restrictions, can be placed anywhere.

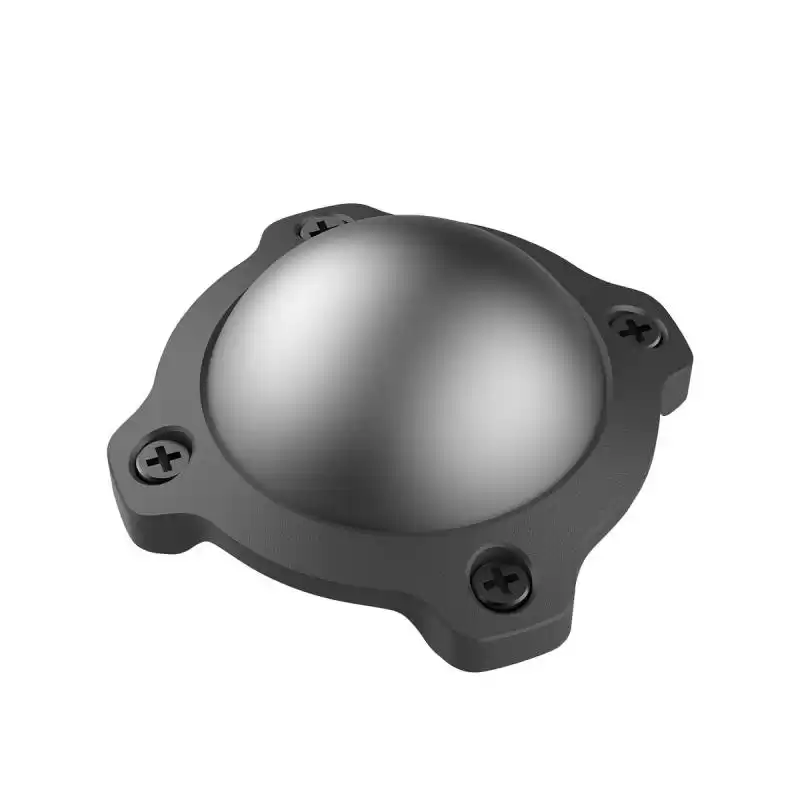

●Magnetic installation, built-in powerful magnet with hemispherical metal base, adjustable camera orientation, easy disassemble of the charging parts.
●Al recognition technology, object recognition, artificial intelligence recognition algorithm, intelligently distinguish human, vehicles, pets while analyzing their behaviors refined analysis results ( pass,stop or leave ) instant push notification to the app, keep tracking of what's happening thousands of miles away Intelligent filtering of redundant information in the cloud, send targeted push notification.
●Smart notification, set the monitoring target category in the APP, the cloud Al system will only push notification when the corresponding target is identified, no more interference.
Everything in the monitoring area is under control.
Push notification of pet activity, snapshot of cute moment.
Set up custody items Immediate alarm as soon as they are moved.
Intelligent anti-theft alarm function with real-time notification.
●Built-in 5200mAh super lithium battery, battery capacity is higher than the similar product standards,charge for 8 hours and last for up to 6 months. 5200mAh high capacity, USB charging. standby time is about 6 months.
●HD 1080P 1920*1080, high definition image quality, resolution up to 2.0 megapixel.
●PIR motion detection, PIR infrared sensing technology + local image analysis capability. Through the newest algorithm, the equipment push accurate alarm, reduce mistake report. it will make alarm record and save.
●Area monitoring, accurately draw the customized activity zones in mobile APP, filtering irrelevant information outside the monitoring area in the push notification, accurately monitoring the key areas.
●Two way audio, built-in waterproof microphone and Hi-Fi speakers.
in emergency situation, you can talk remotely for real-time warning to stop the loss live chat, regardless of time and place, experience intimate interaction.
●8pcs IR IED, 10m distance, HD infrared night vision. Multi-channel infrared LED with enhanced night vision, max up to 10m range, clear imaging at night for safety at night.
●Two storage methods safe video storage, supports 128GB TF card storage, or cloud storage to meet different customer requirements.
Specification
|
Model
|
ANSDEN YAB-G15
|
|
Camera Parameter
|
|
Image Sensor
|
|
Sensor
|
1/3" Color 2MP CMOS Sensor GC2053
|
|
Lens
|
2.8mm
|
|
Visual angle
|
H (horizontal) 95 degrees; V (vertical) 55 degrees; D (diagonal) 110 degrees
|
|
Minimum Illumination
|
0.01 Lux
|
|
Audio
|
|
Input/Output
|
Two-way voice intercom available (built-in Microphone and speaker)
|
|
Audio Compressing Method
|
AAC
|
|
Video
|
|
Video Compressing Method
|
H.265
|
|
Lighting Frequency
|
50Hz, 60Hz
|
|
Image Frame Rate
|
15 fps
|
|
Maximum Image Resolution
|
1920*1080P
|
|
Light Source for Night Vision
|
IRCUT double optical filter automatic switching, and 8 infrared lights (850nm wavelength)Irradiation distance: 10M
|
|
Network
|
|
Wireless Network
|
2.4G Wi-Fi (IEEE802.11b/g/n), built-in antenna
|
|
IP Address
|
Dynamic IP address
|
|
AI
|
|
Intelligent Features
|
Human contour detection,activity zone,intelligent push,pet snapshot
|
|
Alarm Notification
|
|
Alarm Methods
|
Alarm push by mobile APP, white light flashing and alarm sound
|
|
Wake-up
|
|
Wake-up Method
|
PIR body induction wake-up, and remote positive wake-up
|
|
Video Recording
|
|
Recording Method
|
Alarm triggered recording, and manual recording
|
|
Video Storage
|
Cloud storage ( Free one month experience ),local Micro SD card ( Max to 128G )
|
|
Battery
|
|
Capacity
|
5200mAh
|
|
Removability
|
Unremovable
|
|
Battery Life
|
6 months ( provided that 20 times 10s videos are recorded per day )
|
|
Standby Time
|
1 year
|
|
Charging Voltage
|
DV 5V
|
|
Charge Time
|
Within 8 hours
|
|
Power Consumption
|
|
Standby Power Consumption
|
2.4mW(3.8V 0.63mA）
|
|
Power Consumption of Daytime Operation
|
1W((3.8V 264mA）
|
|
Power Consumption of Operation at Night
|
2.17W((3.8V 571mA）
|
|
Interfaces
|
|
Power Supply
|

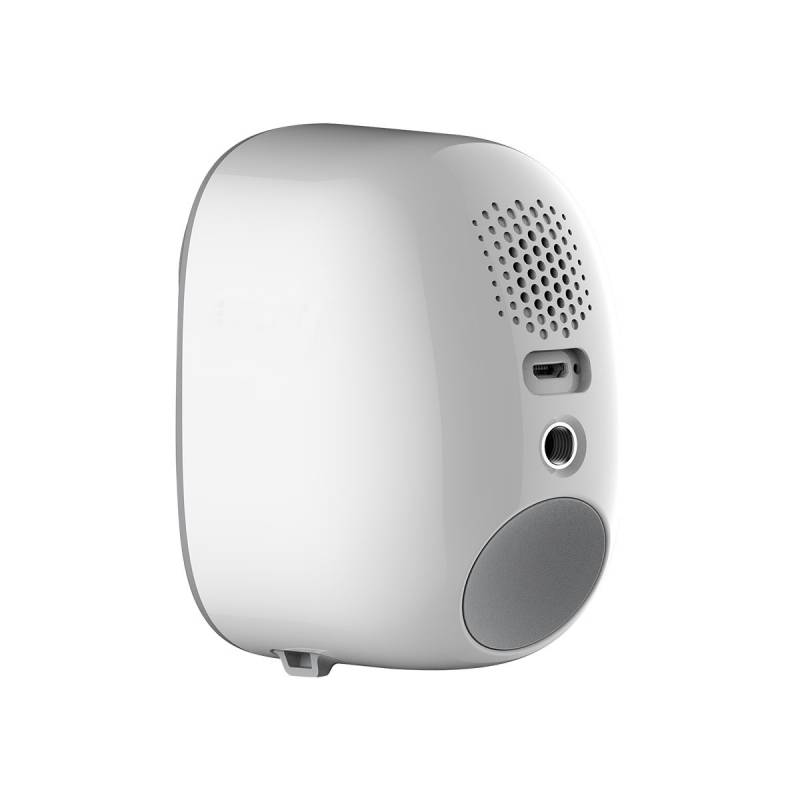

1 Micro USB interface
|
|
SD Card
|
1 Micro SD card (up to 128GB supported)
|
|
Keys
|
1 reset key and 1 on/off key
|
|
Installation Method
|
|
Installation Method
|
Magnet and 1/4 universal screw holes
|
|
Environment
|
|
Dustproof and waterproof
|
IP65
|
|
Operating Environment
|
-10° ~ 45°C /10% ~ 80% (no condensation)
|
|
Storage Environment
|
-20°C ~ 60° /0% ~ 90% (no condensation)
|
|
Specifications
|
|

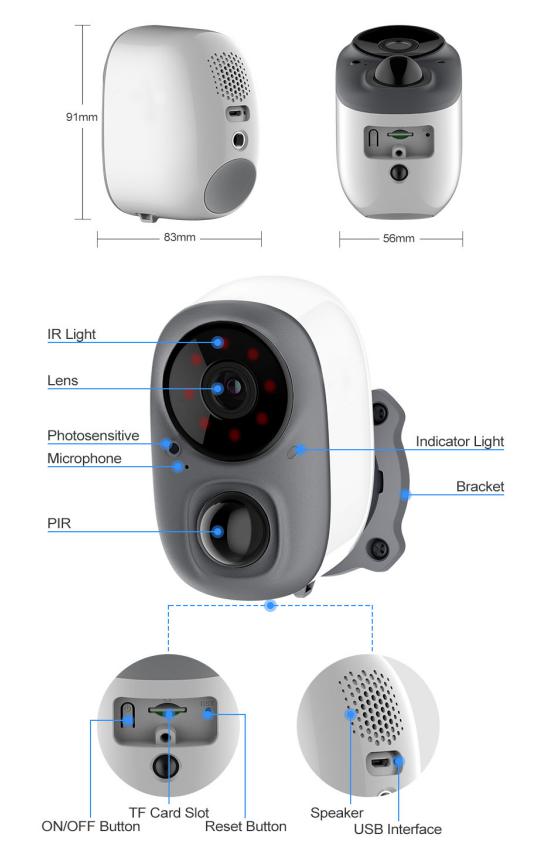

Product Size (LxWxH)
|
56mm*83mm*91mm(Without bracket)
|
|
Weight of Bare Machine
|
253g(Without bracket)
|
|
Package Weight
|
490g
|
|
Package Size(LxWxH)
|
177mm*128mm*100mm
|
|
Package List
|
Battery Camera*1, Magnetic Bracket*1, USB cable*1, 3M double-sided tape*1, Screw pack*1, Manual*1
|
Dimension
The built-in rechargeable lithium battery with long battery life functions for up to 6 months under normal circumstances and can stand by for 12 months.
Application
Al recognition technology, object recognition, artificial intelligence recognition algorithm, intelligently distinguish human, vehicles, pets while analyzing their behaviors refined analysis results ( pass,stop or leave ) instant push notification to the app, keep tracking of what's happening thousands of miles away Intelligent filtering of redundant information in the cloud, send targeted push notification.
