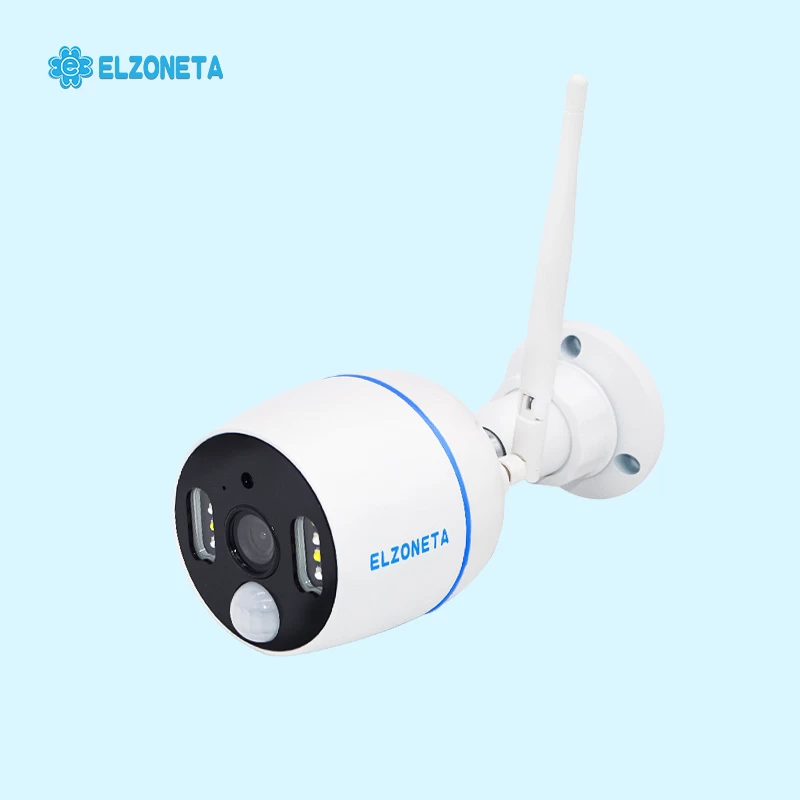

EC-G22S-PIR PIR Motion Sensor Security Bullet Camera
The advantages of WIFI PIR Motion Sensor Security Camera
1.The Wireless PIR Motion Activated Security Bullet Camera has powered and multifunctional features such as PIR detection, white light, IR led lights, Mob alarm, Wifi IP, Audio and Siren, speaker and TF card etc;
2.Perfect combination from CCTV system and Burglar alarm system
. When someone go inside the WIFI PIR Motion Sensor Camera's working zone, the devices of motion detection and PIR detection will catch the information and send the message and video to client’s smart phone. Probably someone is going to do something bad, your have two choices to stop that. Both are available. On the one hand you can inform the policemen or your workers to stop it, on the other hand you can use your cell phone send voice warnings to the bad guys , “get out ! the policeman is coming. " Because this PIR camera includes the microphone so that you can speak to the camera from your cell phone at home or any some place with network.
. The siren will ring and the white lights will open then like warning the guys - stop it, you are under the monitor, please take care your behaviors!
3.Reduce the false alarm rate greatly. As we know the ordinary CCTV security cameras in high rate of false alarm, just like the breeze blowing and some flies fly past would touch alarm system and send message to clients’ computer and smart phone. Elzoneta’s engineer spent one year and half researching the more smart alarm system. Finally we get success. Only when motion detection and PIR detection (special for people) be touched and working together, the alarm system would be opened and inform the client’s cell phone.
Features:
1.)WiFi IP PIR Motion Sensor Security Bullet Camera
2.)Resolution: 2.0megapixel
3.)Alarm Type: PIR+Motion detector
4.)White lights: 4pcs white array leds
5.)IR lights: 4pcs IR array led
6.)Support Audio function
7.)Support two-way speaker
8.)Support TF card recording
9.)H.264/H.265 video encoding
10.)Plug and play tech(P2P)
11.)Offer CMS and Mobile APP
12.)3-axis adjustment

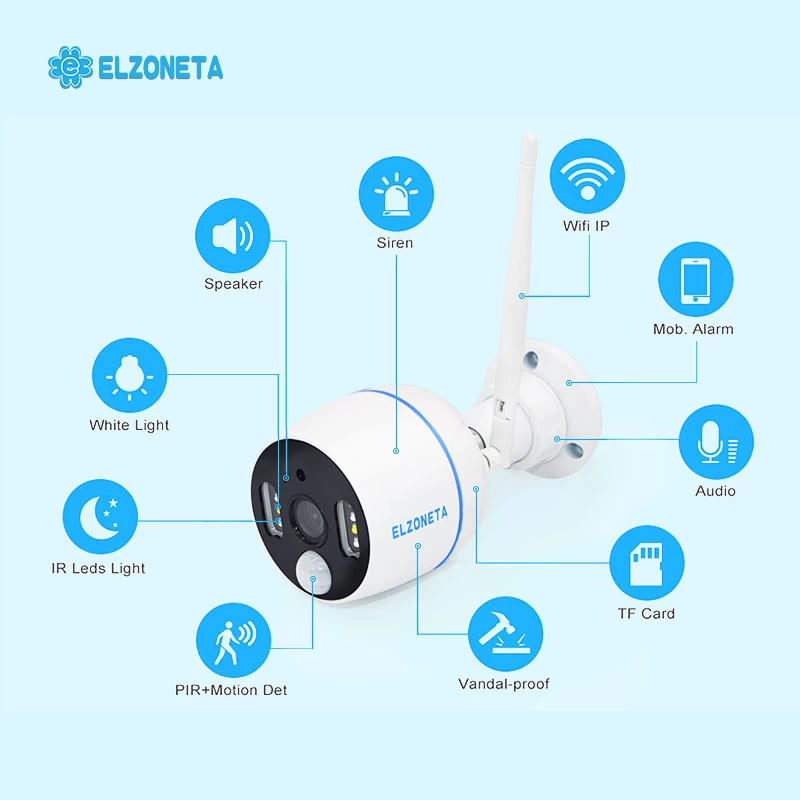

Main Functions:
1)Integrated Alarm system and CCTV system to protect you
2)WiFi easy installation
3)PIR+Motion detector detects intruder at day and night
4)Scare intruder with bright white leds at night(day time white light will not switch on)
5)Get clearly color video at night with bright white leds at night
6)Scare intruder with siren
7)Two-way speaker can warning intruder or talk with guest
8)Real time Alarm push to mobile app(can turn on/off from app)
Specifications:
|
Camera
|
|
Model No.
|
EC-G22S-PIR
|
|
Image Sensor
|
2.0MP Cmos Sensor
|
|
Effective Pixels (HxV)
|
1920(H)*1080(V)
|
|
Signal System
|
PAL / NTSC
|
|
Mini Illumination
|
0.02lux(IR off)
0.00lux(IR on)
|
|
Lens
|
4.0mm, 6mm HD fixed lens optional
|
|
Angle of View: 83°(4.0mm), 55°(6mm)
|
|
Lens Mount
|
M12
|
|
Day & Night
|
IR cut filter with auto switch
|
|
Audio
|
Yes
|
|
Two-way speaker
|
Yes
|
|
TF card
|
Support max 128GB
|
|
Alarm Function
|
|
Alarm type
|
PIR(Passive Infrared Detector)+Motion detector double detect
|
|
PIR distance
|
4-8 Meter range
|
|
Alarm control
|
TianJian PIR IC chipset
|
|
White lights
|
4pc white Matrix Leds
|
|
Up to 25meter
|
|
IR Lights
|
4pcs IR Matrix Leds
|
|
Up to 25meter
|
|
Siren
|
Built-in
|
|
Alarm type
|
Mobile alarm push
|
|
Interface
|
1ch RJ45/1ch power
|
|
WiFi and Network
|
|
WIFI
|
3Db WiFi antenna
|
|
LAN
|
RJ45 10M/100M adaptive Ethernet
|
|
Dual stream
|
Support
|
|
Access protocol
|
ONVIF/CGI/GB28181
|
|
Mobile APP
|
IOS/Android
|
|
Support protocol
|
TCP/IP;UDP;HTTP;IGMP;ICMP;DHCP;RTP/RTSP;DNS;DDNS;FTP;NTP;PPPOE;UPNP;SMTP
|
|
Intelligent functions
|
Support PIR detection, Motion detection, Smart IR&white lights, mobile alarm push, Siren, two-way speaker, TF card etc.
|
|
General
|
|
Operating Condition
|
-20 °C - 45 °C (-4 °F - 113 °F), Humidity 90% or less (non-condensing)
|
|
Power Supply
|
12 VDC±15%
|
|
Power Consumption
|
Max. 4W
|
|
IP Rate
|
IP65
|
|
Weight
|
0.65 kg
|
|
Dimension
|
242(L)*82(W)*75(H)mm
|
