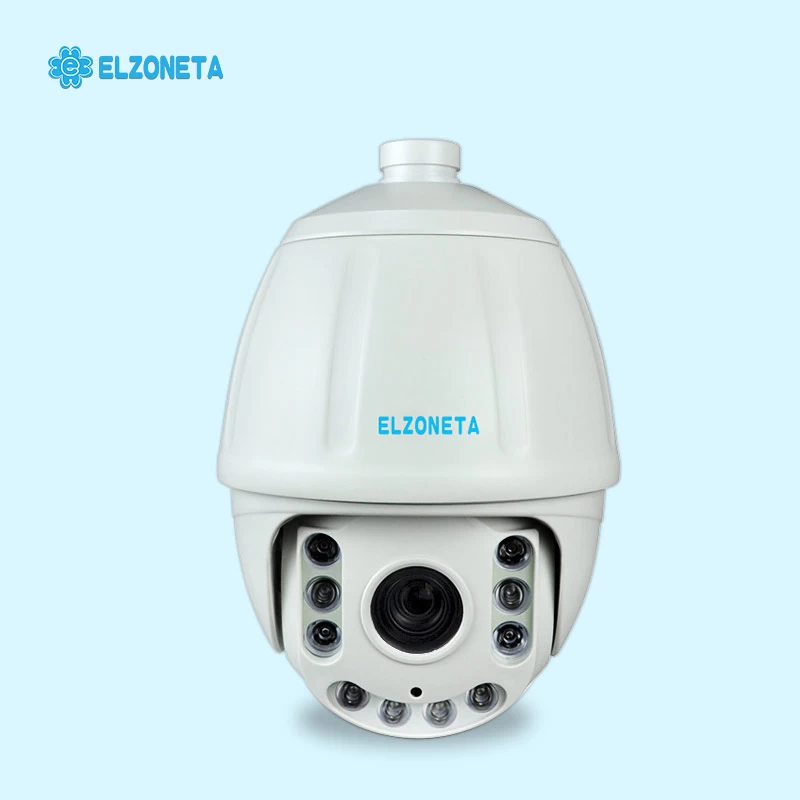

EC-HS01S 2.0MP PTZ CCTV Dome Camera
1080P Waterproof High Speed PTZ dome Camera can move between pre-set positions and zoom in automatically in response to detected events.
Product Information
Image sensor: 1/3″CMOS
Video resolution: 1920×1080
Pixel: 2.0MP
Compression: H.264 / JPEG
Frame rate: up to 25fps
Video bit rate: 88Kbps～2.5Mbps adjustable
Lens
Viewing angle
Horizontal Speed: Rotation Speed: 0.05-300°/s, can be adjusted
Vertical Speed: Rotation Speed: 0.05-180°/s, can be adjusted
Zoom speed: Approx.3s
Optical Zoom : 18X / 36X optional
Features
Auto exposure : Support
Auto gain control: Support
Auto white balance: Support
3D DNR: Support
Number of Preset: 255
RS-485 Protocols: Pelco-P, Pelco-D
Screen display : Camera name, Preset location, Date, Time, Temperature of PTZ camera etc.
Network timing: Support
QR code scan: Support to create the QR code and scan to add equipment
Timing restart: Support
Intelligent fog removal: Support
ROI coding : Support ROI enhancement coding and enhancement exposure
Privacy masking: Can mask 4 areas at the same time
Motion detection: Support
Image setting: Contrast, Brightness, Saturation, Acutance are adjustable
Day and night function: White light full color mode
Screen setting: Support exposure time setting
Night vision optimization: Support
Software WDR: Support
Picture setting: Mirror image, reversal image
IP adaptive technology : Support automatically adapt IP address optional function
Detection alarm: Email alarm push, clients alarm push
Remote control: System management, Bit stream management, User management, Network management
External extended interface: Audio Input
Network
Network : 1 RJ45 10M/100Mbps self-adaptable Ethernet port
Video coding: 1080P, 720P, Internet
Network Protocol: HTTP,TCP/IP,ICMP.RTSP,RTP,UDP,RTCP,SMTP,FTP,DHCP,DNS,PPPOE
Control protocol: ONVIF
Web Browser: Support IE8+,Chrome18+,Firefox5.0+,Safari5.02+ . Support Chinese and English
User rights: Administrator, Ordinary user, Visitor
Other Features
Infrared light : Array LED
IR distance : 120M / 200 M optional
Level of protection : IP66
Power supply: DC12V/4A or AC24V3A
Operating Temperature: -20℃~+60℃
Operating Humidity: 10%~90%
Color / Material : aluminium alloy
Size(W×H×D)(cm): 31*31*43
Net weight: 3.7Kg
Product Guarantee: 2 years
