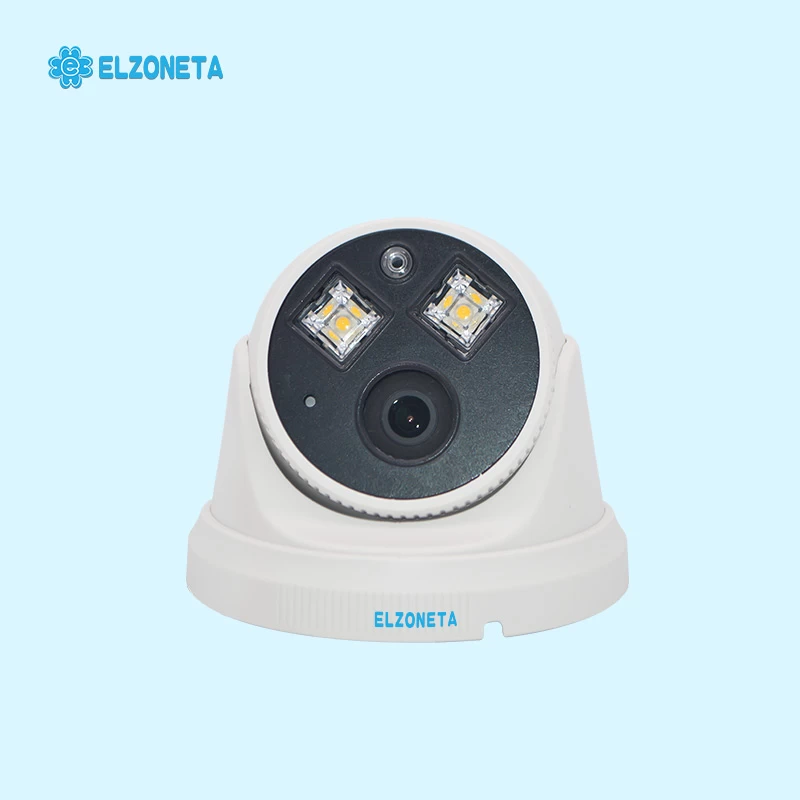

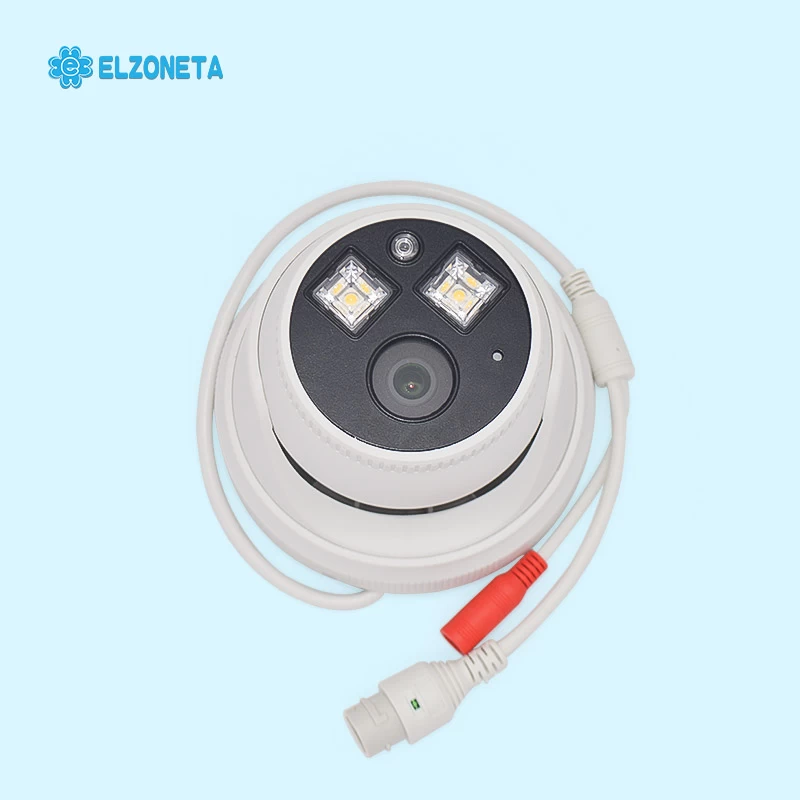

EC-B14S5-CXG Starlight Surveillance Dome Camera
Starlight Night Vision Camera is still not yet widely known by the people,while the one becomes the new star in the CCTV camera system due to imaged may be a conversion to visible light by faint light of both faint visible light and near-infrared. In addition to merit of imagery,uninterrupted HD color picture quality,low fever work and long application life,resulting in starlight camera technology will play an important role in the security camera system in our daily life in future.
Features:
1.Super Starlight Security CCTV Camera
2.2.0MP SONY STARVIS 1/2.8" IMX307 ,colorful 0.001Lux@ F1.2（AGC ON),black & white 0Lux(IR ON)
3.30fps lens: 4mm/6mm/8mm optional
4.IR light /IR CUT /IR distance: 10-30M
5.Support color vision at night
6.Support motion detect
7.Including audio
8.H.265+/H.265/H.264, 24 hours video recording just need 4-8G
9.Support IOS/Android remote
10.Support ONVIF
11.POE Optional
Specifications:
|
Camera
|
|
Model No.
|
EC-B14S5-CXG
|
|
Image Sensor
|
SONY STARVIS 1/2.8"(IMX307) 2.0MP 30fps Super Star Light
|
|
Effective Pixels (HxV)
|
1920*1080
|
|
Signal System
|
PAL / NTSC
|
|
Mini Illumination
|
colorful 0.001Lux@ F1.2（AGC ON),black & white 0Lux(IR ON)
|
|
Lens
|
4mm/6mm/8mm optional
|
|
IR range
|
up to 30 meter
|
|
DNR
|
3D DNR
|
|
WDR
|
D-WDR
|
|
AES
|
PAL=1/50 ~1/100,000sec；NTSC=1/60 ~1/100,000sec
|
|
S/N Ratio
|
> 48dB（Auto Gain Off）
|
|
Video Compression
|
H.265+ (24 hours video recording just need 4-8G)/H.265/H.264
|
|
Network
|
|
LAN
|
RJ45 10M/100M adaptive ethernet
|
|
WIFI
|
1*RJ45, 10/100Mbps,1*DC3.3V WIFI module, 2.4G frequency
|
|
POE function
|
Optional
|
|
Dual stream
|
Support
|
|
Access protocol
|
ONVIF/CGI/GB28181
|
|
Support protocol
|
HTTP,TCP/IP,IPv4,DHCP,NTP,RTSP,ONVIF,P2P,PPTP,GB/T28181 etc.
|
|
ROL Codec
|
Support
|
|
Corridor Type
|
Support
|
|
Audio
|
Support
|
|
Mobile View
|
Support (Android,IOS)
|
|
Intelligent functions
|
Support COLORFUL VISION AT NIGHT, MOTION DETECT
|
|
General
|
|
Operating Condition
|
-20 °C - 45 °C (-4 °F - 113 °F), Humidity 90% or less (non-condensing)
|
|
Power Supply
|
12V1A
|
|
Power Consumption
|
<12W
|
|
IP Rate
|
IP66
|
|
Weight
|
0.4 kg
|
|
Dimension
|
140(L)*140(W)*110(H)mm
|
More Information:

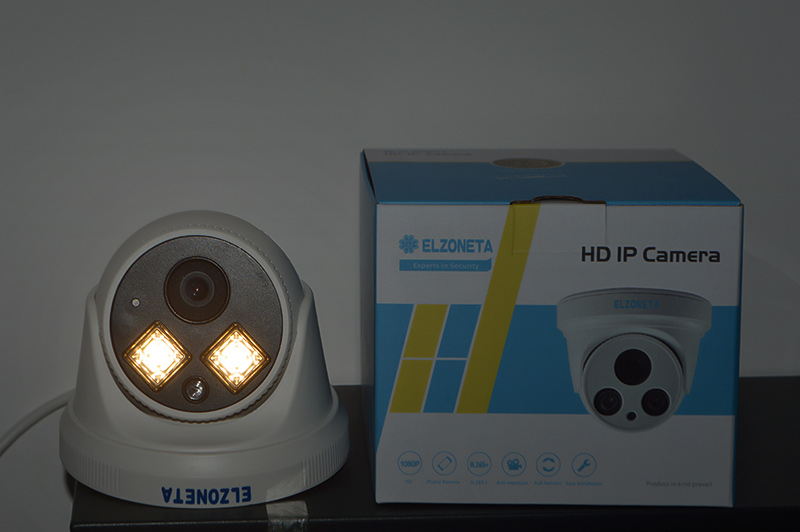

When the working zone is too dark to work,Starlight Security Camera will automatically start the fill light to achieve the colorful night vision effect.

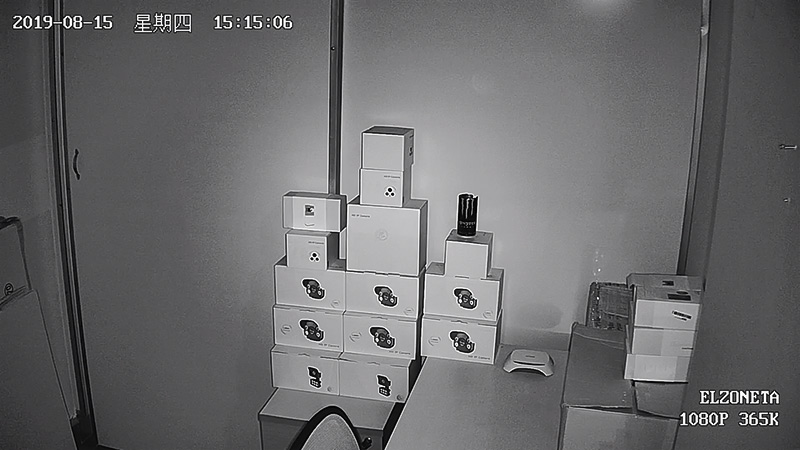

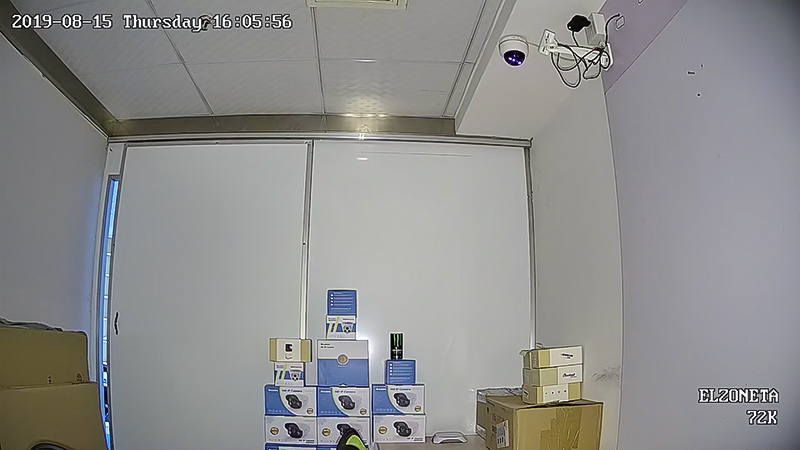

Comparison between traditional IR Night Vision IP Camera and Super Starlight Night Vision IP Camera:
