Garbage Compactor Vehicle Isuzu 14CBM

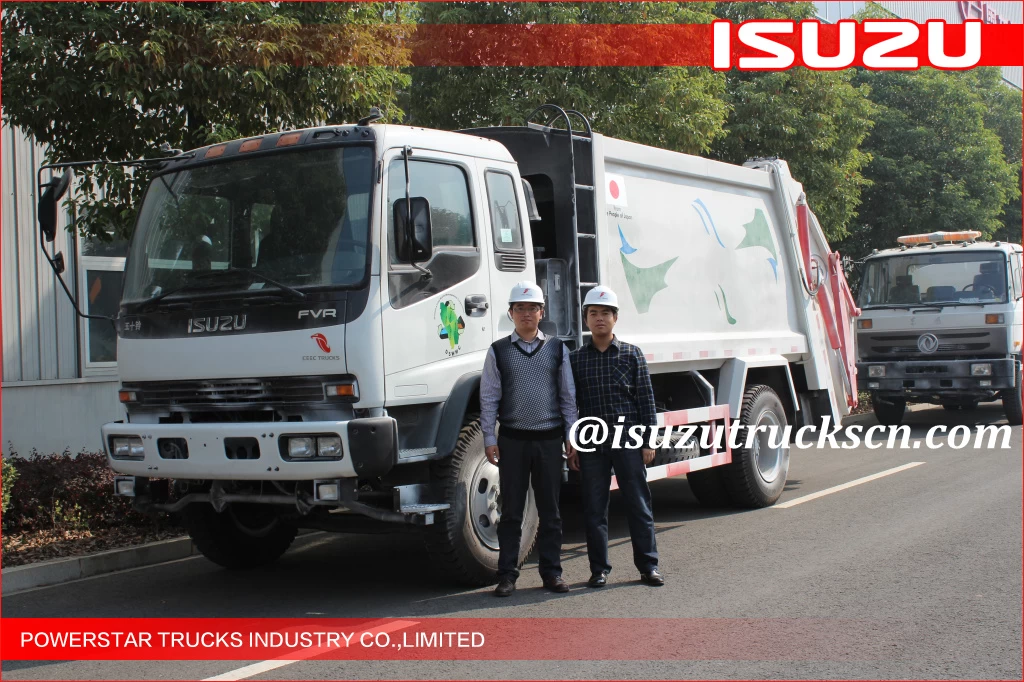

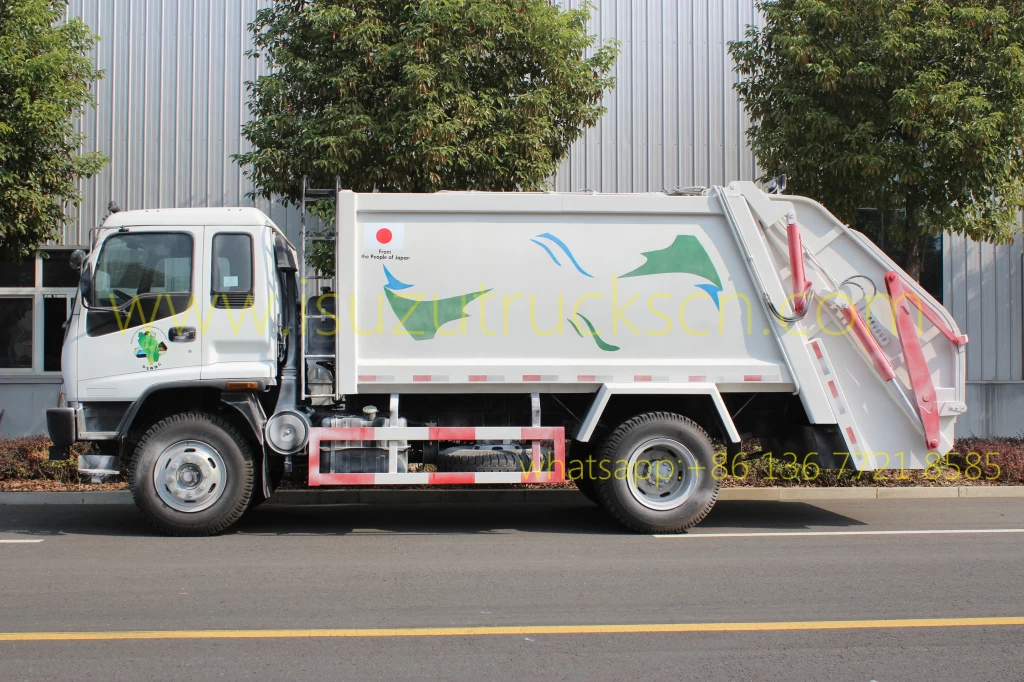

Garbage Compactor Vehicle Isuzu 14CBM specifications and picture


 Garbage Compactor Vehicle Isuzu 14CBM specifications and picture   Garbage Compactor Vehicle Isuzu 14CBM specifications and picture

 Garbage Compactor Vehicle Isuzu 14CBM specifications and picture    Garbage Compactor Vehicle Isuzu 14CBM specifications and picture


Function:

Refuse compactor truck Isuzu 14 CBM (also called as Garbage transport compactor truck, refuse compactor with truck chassis, rubbish transport vehicle, garbage refuse compactor truck, compressed garbage truck, compression refuse collector truck, compactor refuse truck)  is widely used in daily rubbish transport in such living areas as all kinds of cities, large station, port and whart, airpot and densely-populated areas like industrical and mineral enterprises and military units.


All our compressed garbage truck optional hanging bucket or barrel tilting mechanism, automatic operating, simple and efficient garbage collection. It can be converted into various special garbage truck according to clients' special requirement.


Features:

---- ISUZU chassis, perfect performance.
---- Compression ration > 60%
---- Compression body capacity from 3 CBM TO 20 CBM
---- Sealed transportation avoid the second time pollution
---- Massive, durable, perfect performance

Specifications:



Rear loader Garbage Truck Isuzu (14 CBM)

General

Vehicle Brand

POWERSTAR

Chassis Brand

ISUZU

Overall Dimension

9530 * 2500 * 2760 mm

GVW / Kerb Weight

16,000kg / 8,890kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

ISUZU

Power

240 HP (178 KW)

Displacement

5200ml

Emission Standard

Euro IV or V

Chassis

Drive Type

4X2, (left hand drive)

Transmission

ISUZU MLD 6 speed levers with 1 reverse

Wheelbase/No. of axle

4700 mm / 2

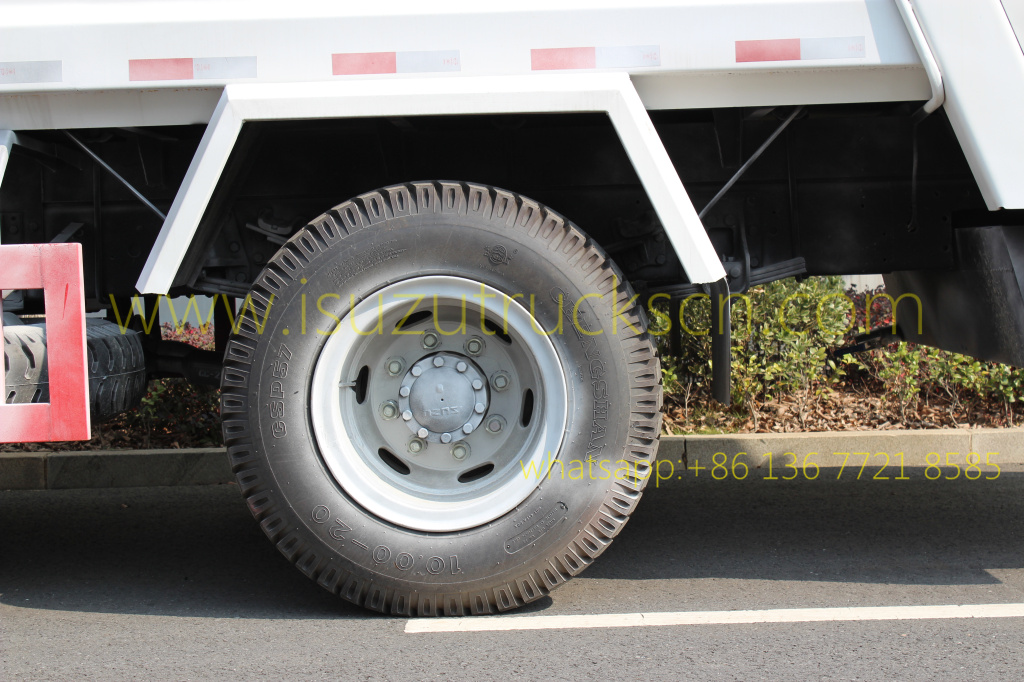

Tire Specification

10.00-20

Tire Number

6 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Body Capacity

14 CBM

Fill Hopper Capacity

1.6 m3

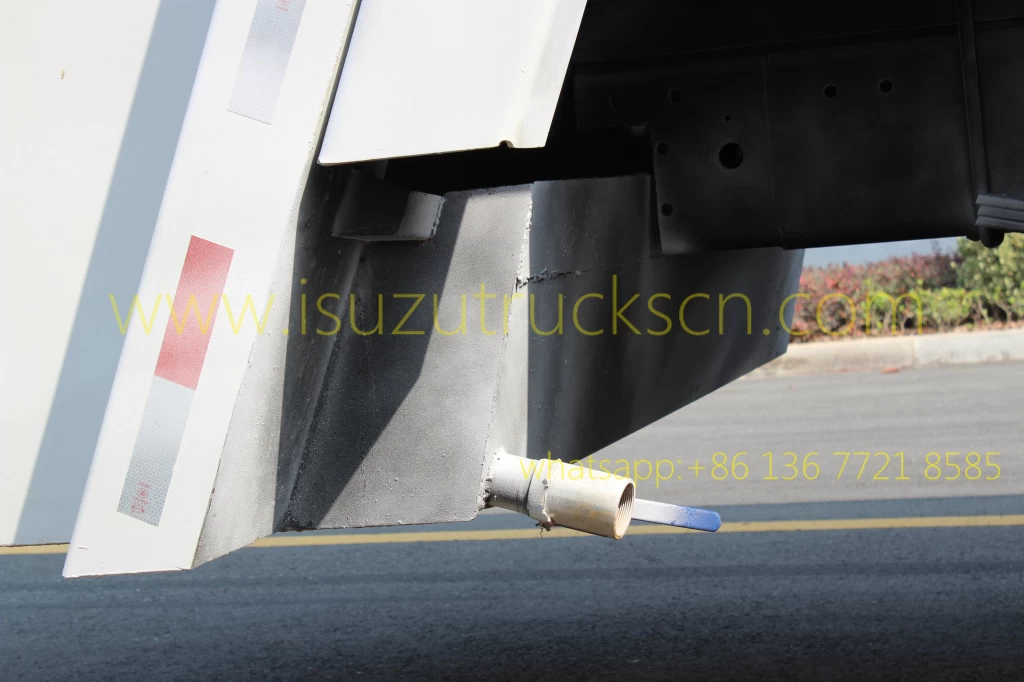

Sewager Tank volume

200 L

Body Material

Weather resisting steel

Filling work cycle time

20~25 s

Filling lift time

6~9 s

Filling lift capacity

8 Tons

Discharge time

18~22 s

Max compression force

12 Tons

Discharge model

Horizontal Ejection

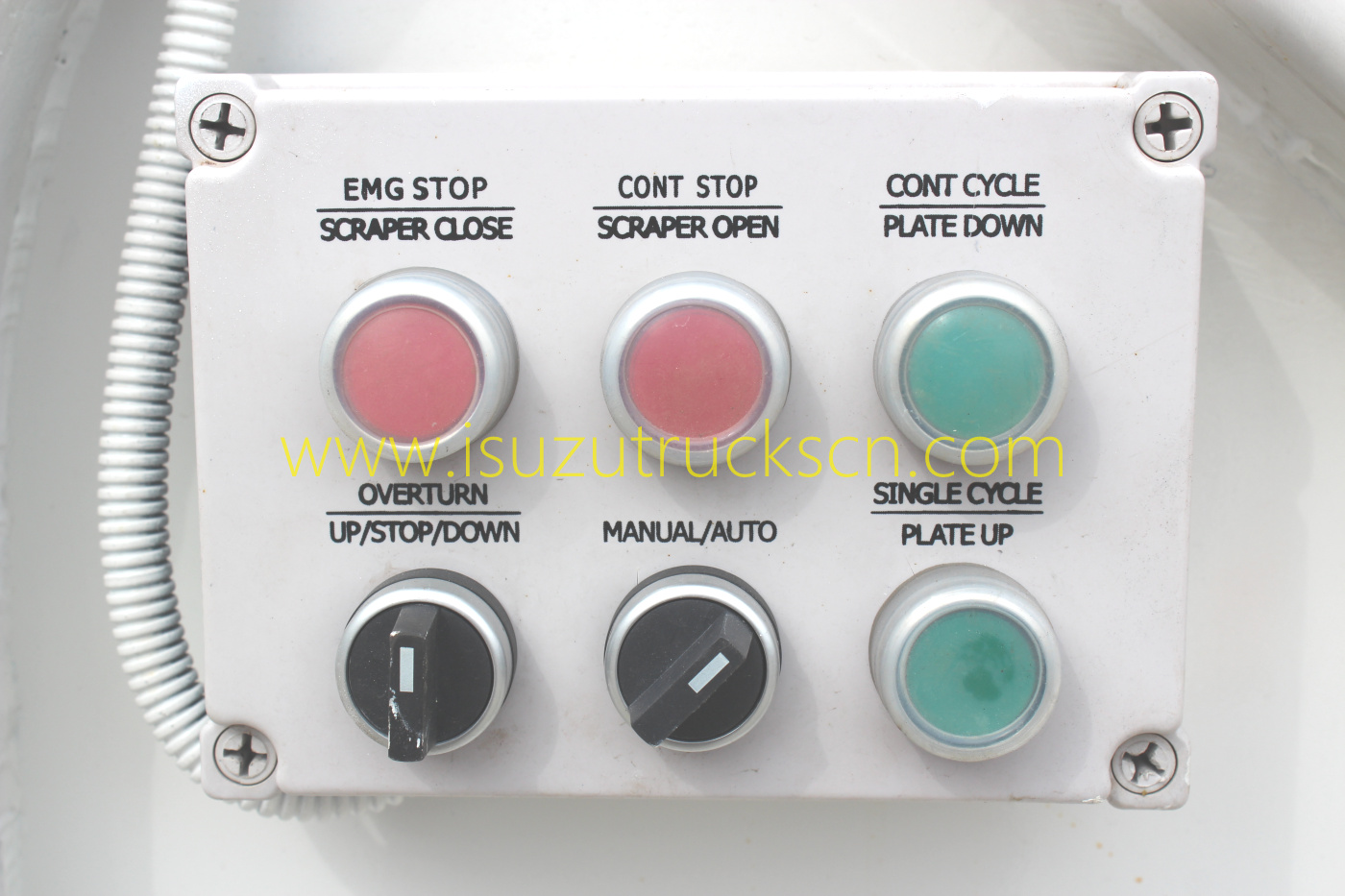

Control

Electrically Hydraulic control

Manual Hydraulic control

Emergency Stop Button

Hopper Both Sides

All standard accessories: Warning lights, music alarm, basic tool kit, English manual……

Optional

** Backup alarm can be equipped.
** Camera can be equipped.
** Operation language can be English or Appointed language.

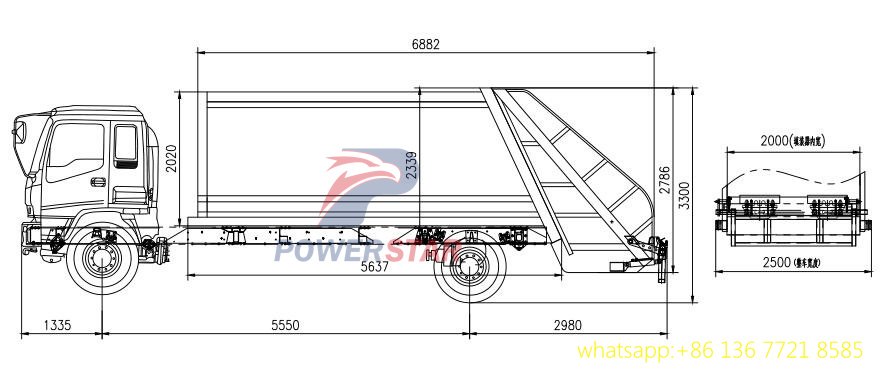

Technical drawing for Isuzu refuse compactor truck 14cbm


Working Principles of Garbage Compactor

Technical drawing for Isuzu NPR Refuse compactor (Garbage compactor truck)

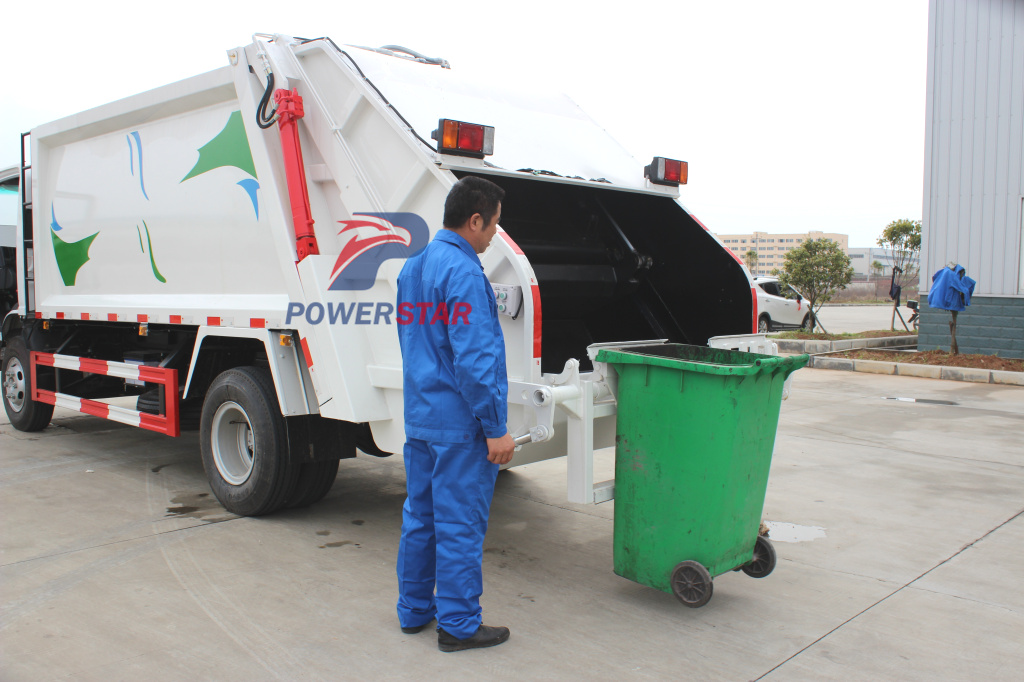

Different bin optional:

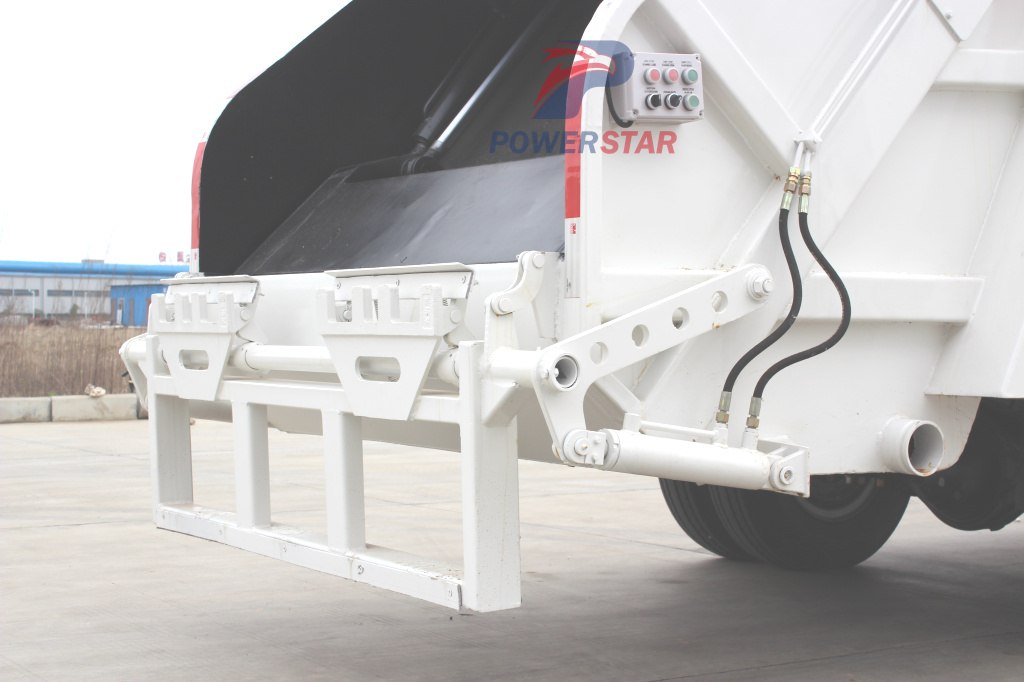

 bin hopper for garbage compactor truck

  bin hopper for garbage compactor truck

 bin hopper for garbage compactor truck    bin hopper for garbage compactor truck


Detail pictures:

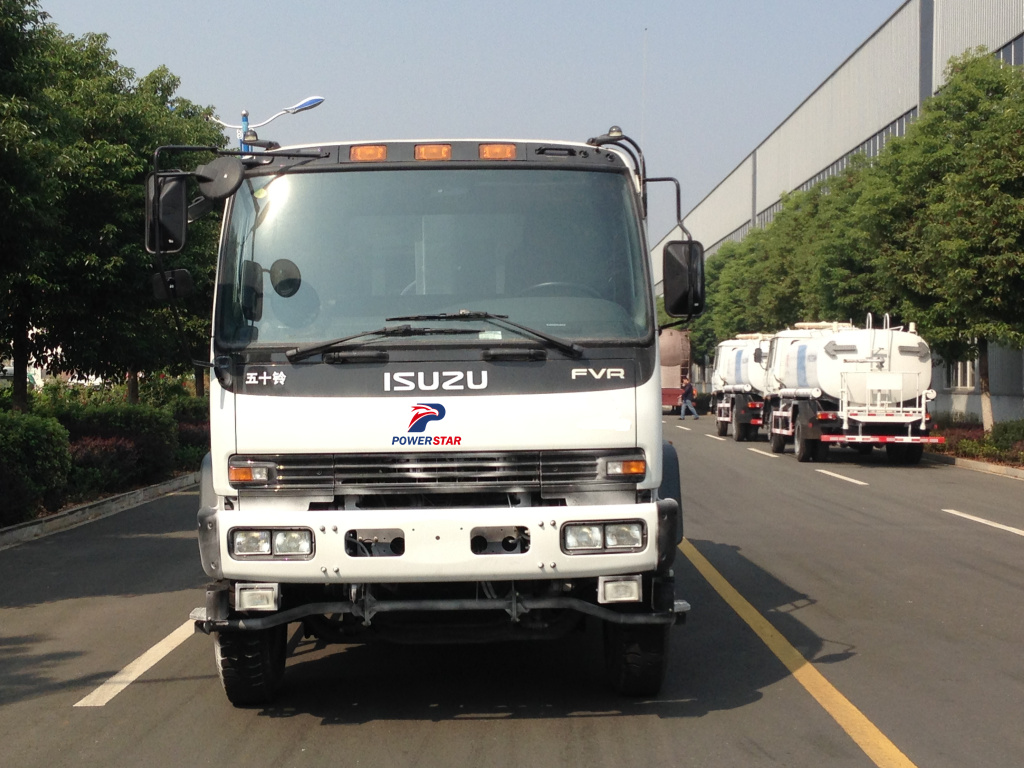

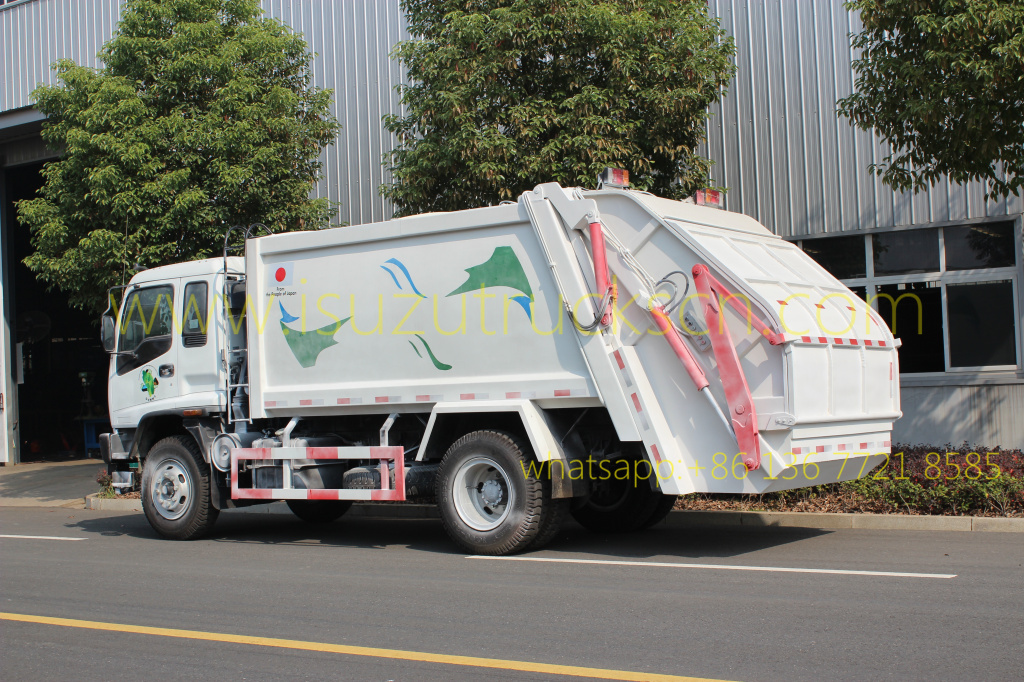

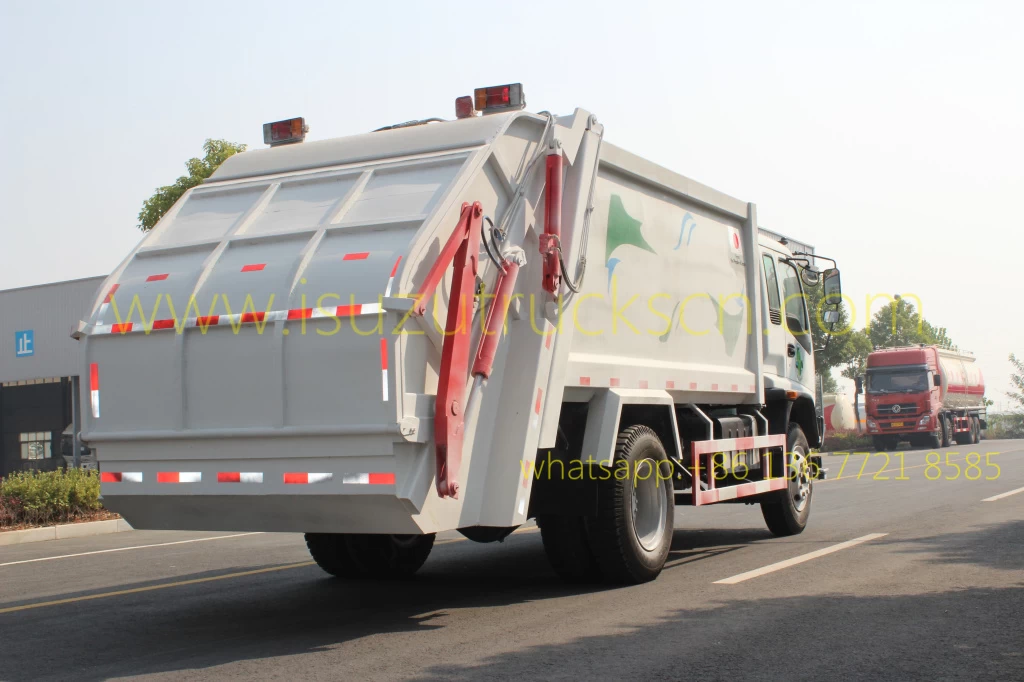

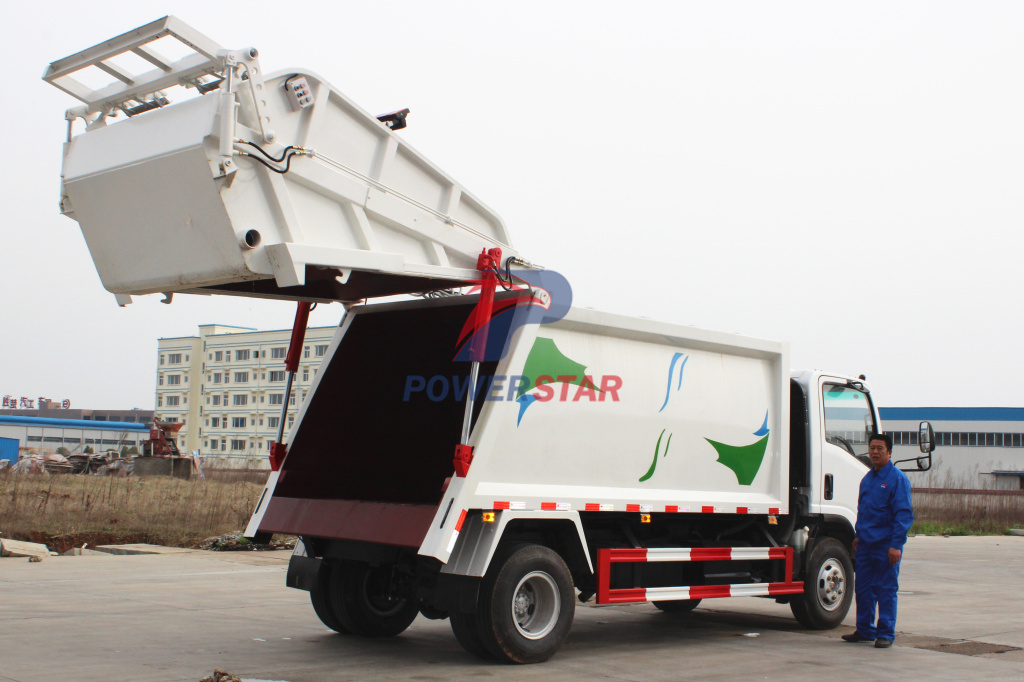

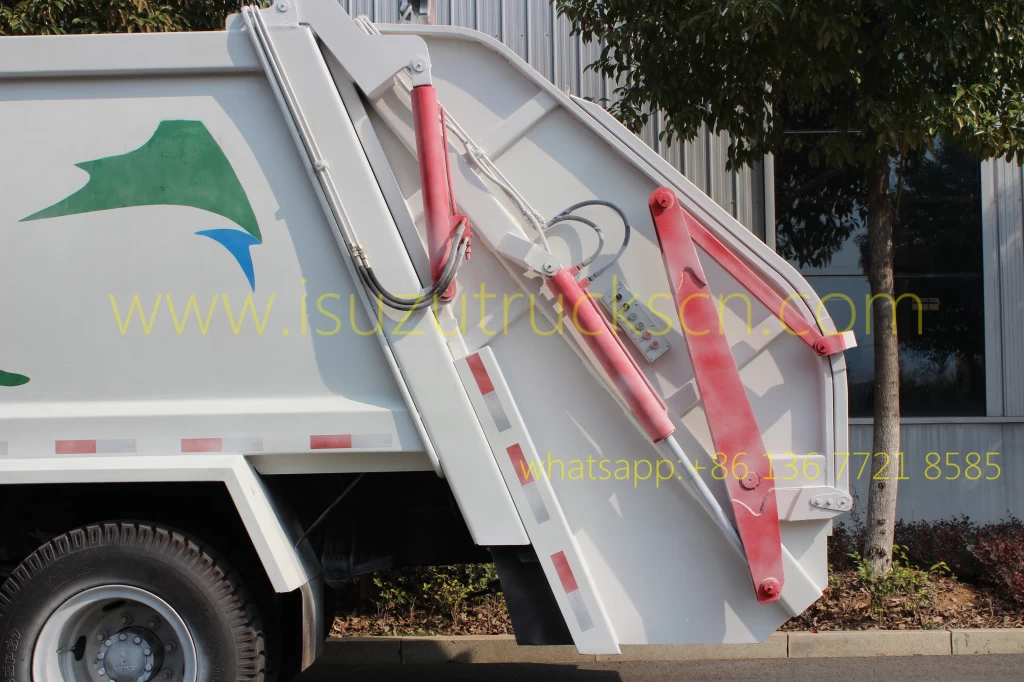

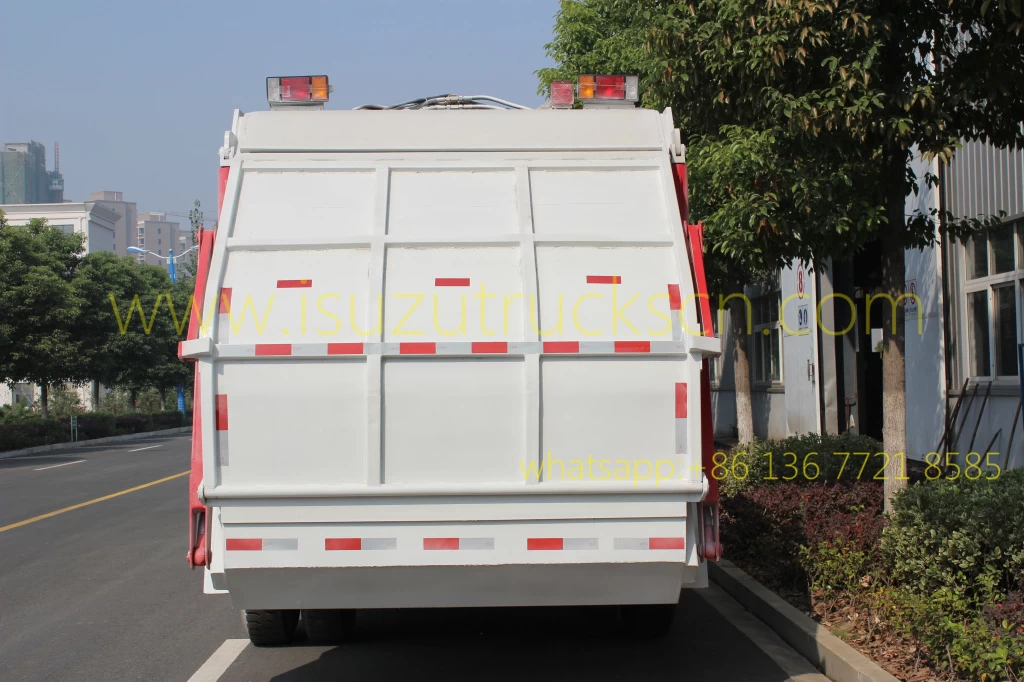

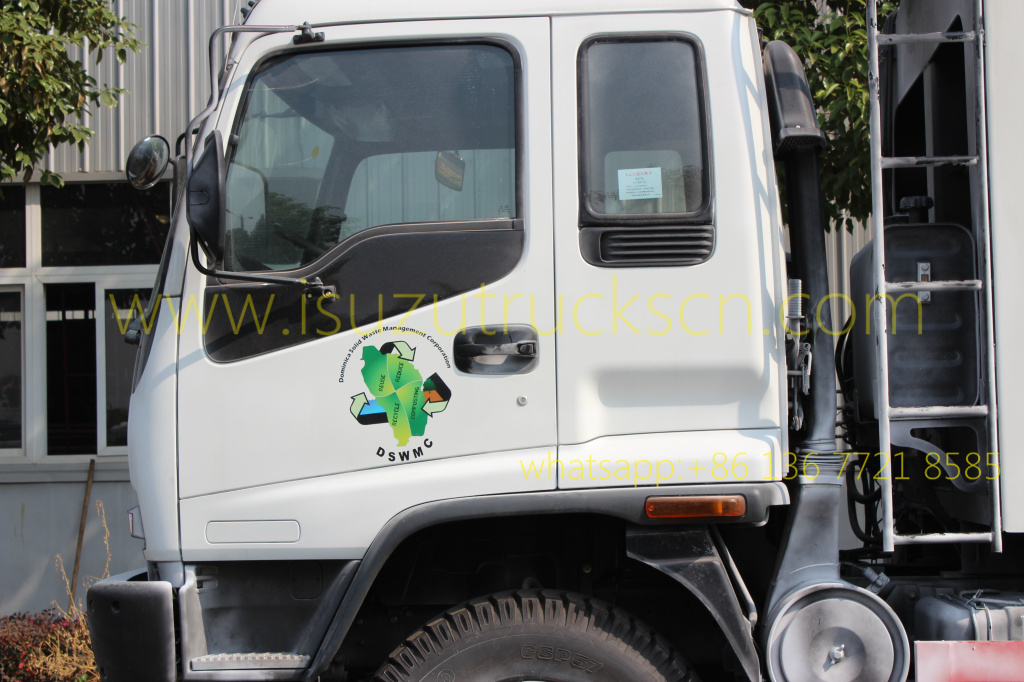

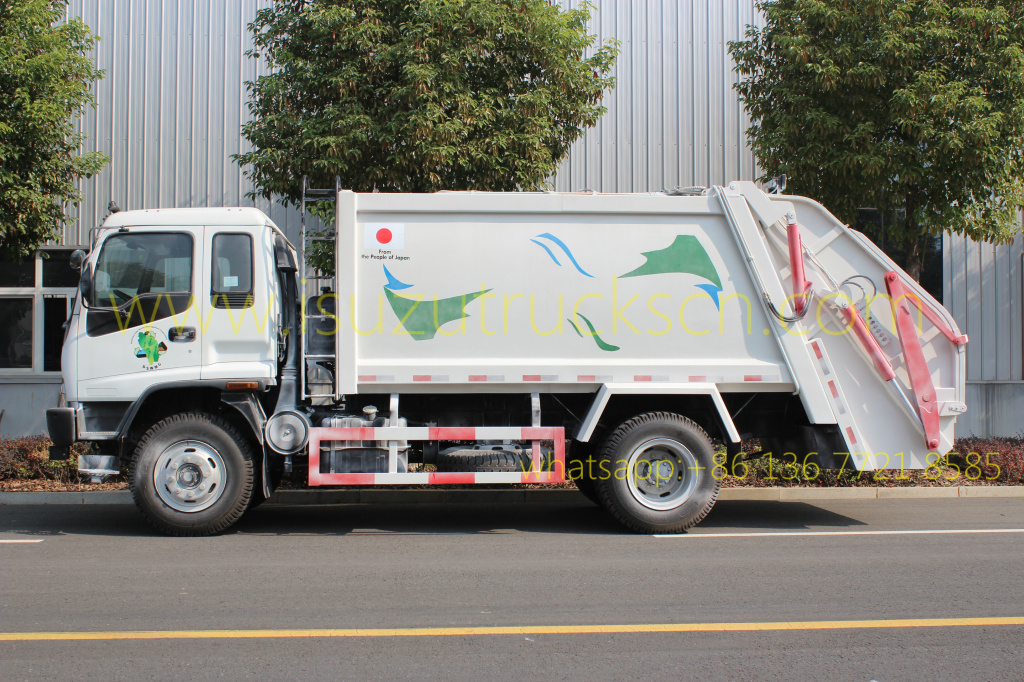

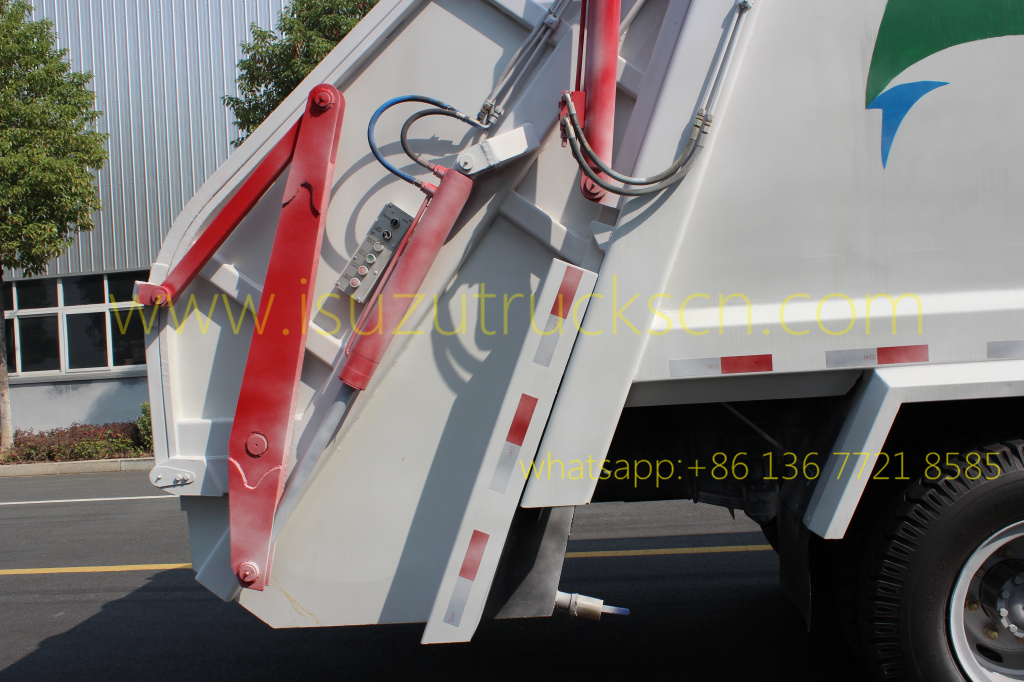

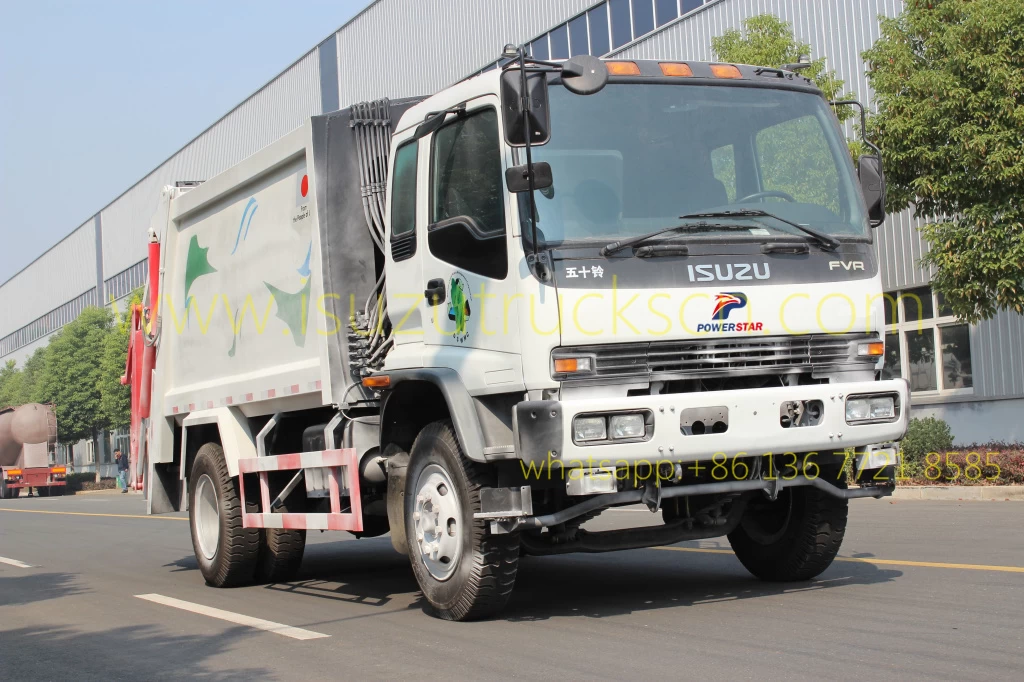

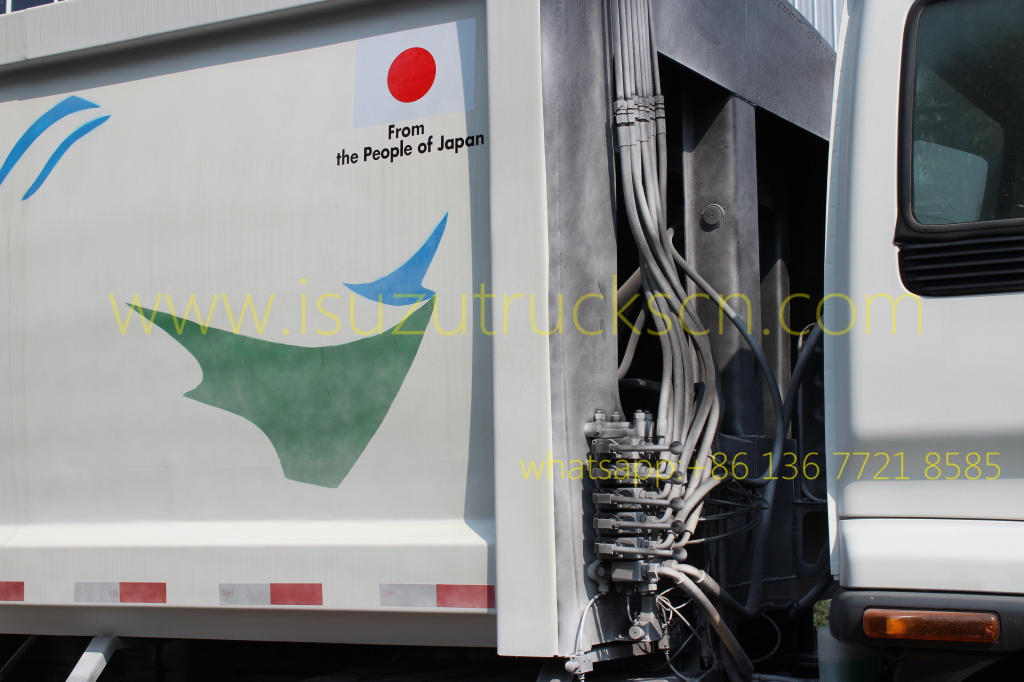

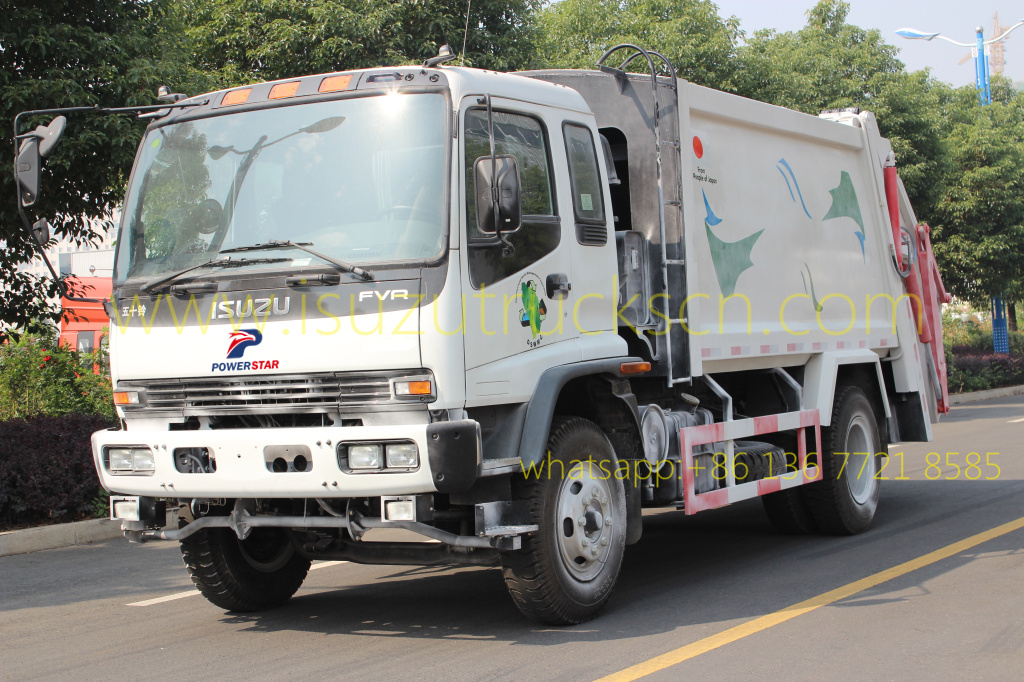

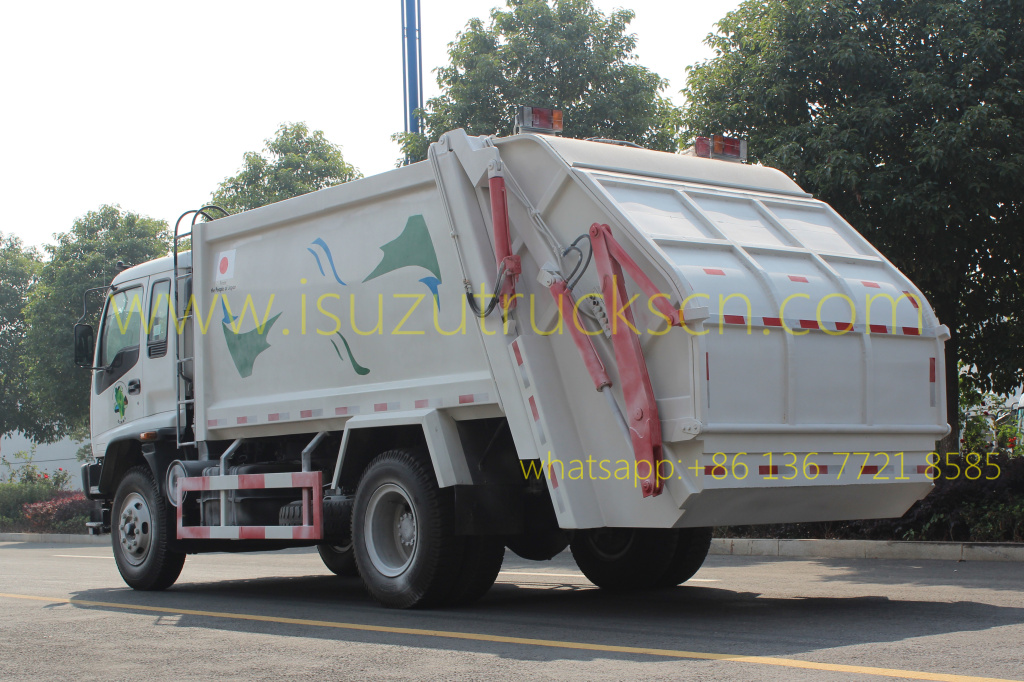

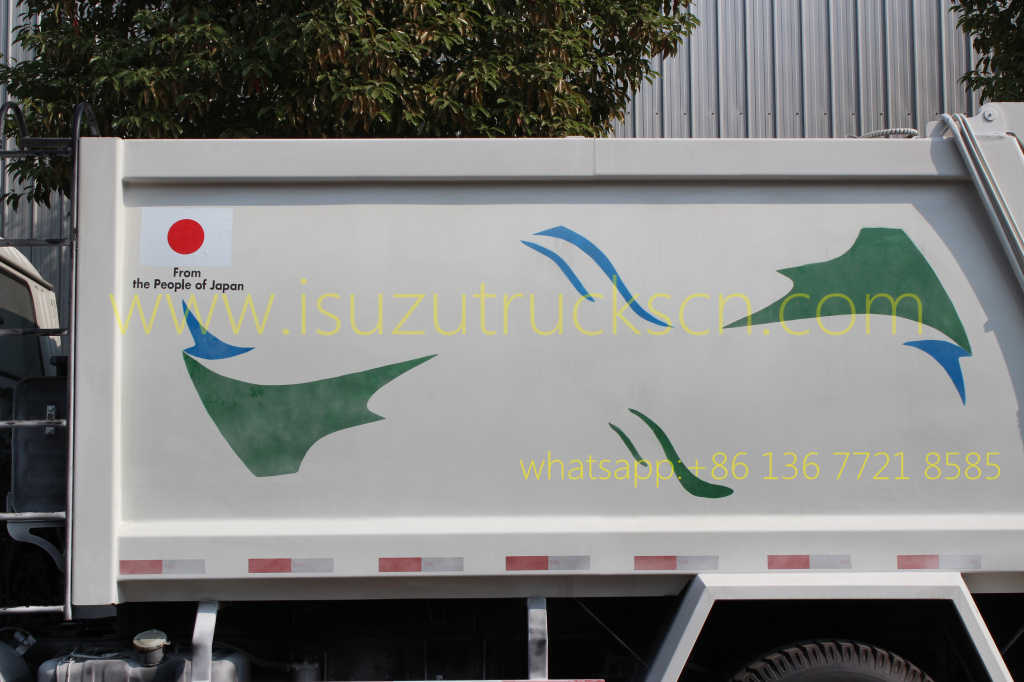

details picture and specification for rear loader garbage truck Isuzu 14 cbm



details picture and specification for rear loader garbage truck Isuzu 14 cbm


details picture and specification for rear loader garbage truck Isuzu 14 cbm


details picture and specification for rear loader garbage truck Isuzu 14 cbm


details picture and specification for rear loader garbage truck Isuzu 14 cbm


details picture and specification for rear loader garbage truck Isuzu 14 cbm


details picture and specification for rear loader garbage truck Isuzu 14 cbm

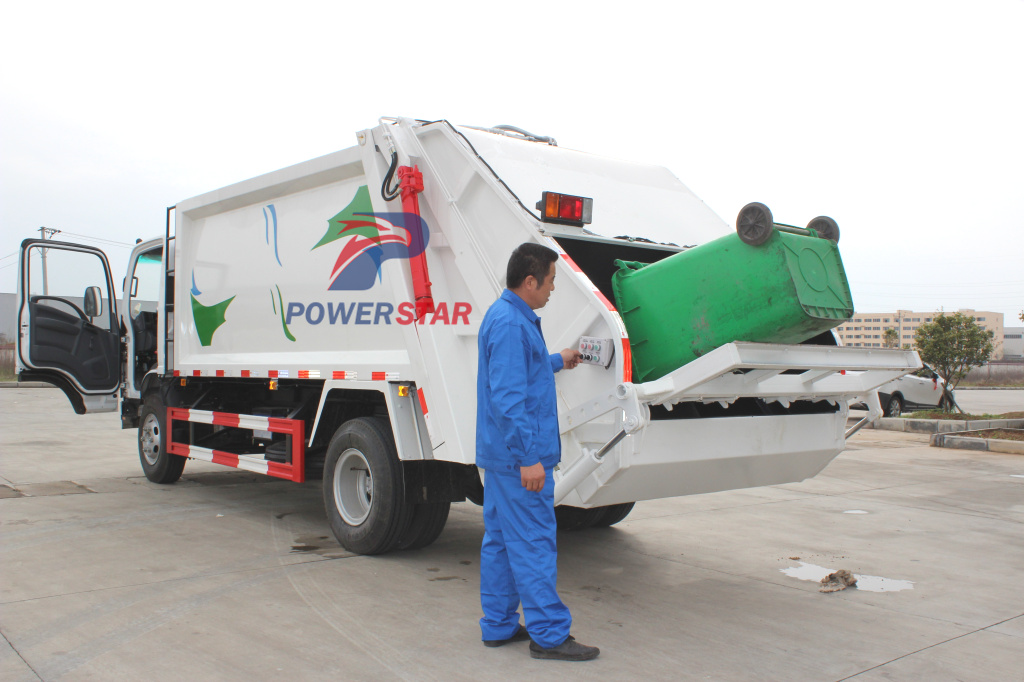

 how to operation garbage compactor truck?    how to operation garbage compactor truck?

 how to operation garbage compactor truck?    how to operation garbage compactor truck?

Operation manual for Isuzu refuse compactor garbage trucks


Operation manual for Isuzu refuse compactor garbage trucks

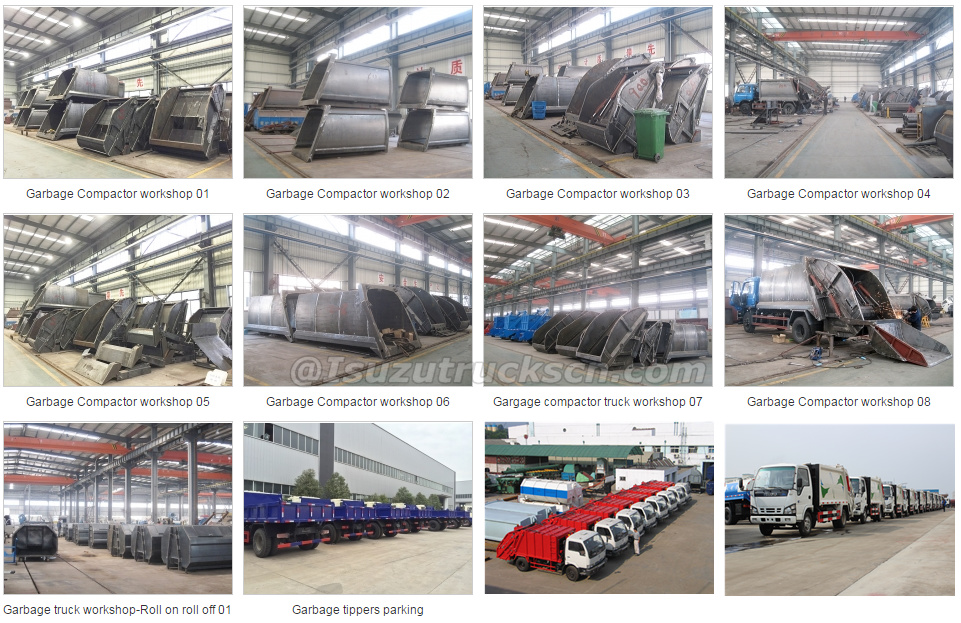

Isuzu Garbage compactor truck workshop factory


Working Principles of ISUZU Truck Garbage Compactor
