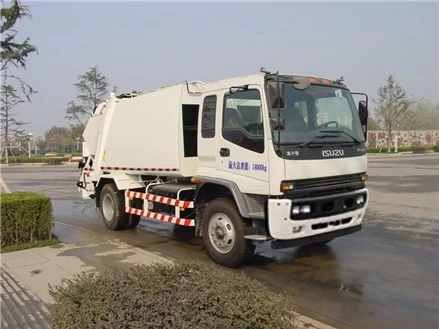

10CBM FTR ISUZU Garbage Compactor Truck (new model)
Isuzu Garbage truck classification and loading volume:
Isuzu Compactor garbage truck:4-18m3
Isuzu Dump garbage truck:3-10m3
Isuzu Hermetic garbage truck:3-14m3
Isuzu Swing arm garbage truck:4-12m3
Isuzu Pull arm garbage truck::3-16m3
Isuzu Butt-joint garbage truck:4-17m3
Isuzu Loading & unloading garbage truck:3-14m3
Main specifications:
Chassis
|
ISUZU ELF
|
Model
|
PT5140ZYS
|
Driving Type
|
4x2 (Left hand drive)
|
Wheelbase
|
4475 mm
|
Overall Dimension
|
7650x2200x2600 mm
|
Garbage Container capacity
|
10Cbm to 12Cbm
|
Loading type
|
Rear loading
|
Compression ratio
|
1: 3.2
|
Operation control system
|
Electrically hydraulic control + Manual hydraulic control
|
Discharging system
|
Horizontal ejection
|
Loading cycle time: (sec)
|
10~15
|
Rubbish discharging time: (sec)
|
20
|
Max hydraulic pressure (Mpa)
|
16.2
|
Feeding equipment lift angle
|
≥90
|
Multi-way shuttle valve
|
Imported
|
Body material
|
Weather resisting steel
|
Cab
|
Forward control over engine, all-steel-welded construction
|
Engine
|
Model:
|
4HK1-TCG40
|
Type:
|
Diesel, turbo charged inter-cooled, 4 cylinder
|
Max. Power:
|
139 KW (190HP)
|
Gearbox
|
MLD 6-shift, mechanical type, 6 forward and 1 reverse with
|
Tire
|
9.00-20
|
Color
|
Red (Any color & logos up to wish)
|
Max Speed
|
90 km/h
|
