Applications:

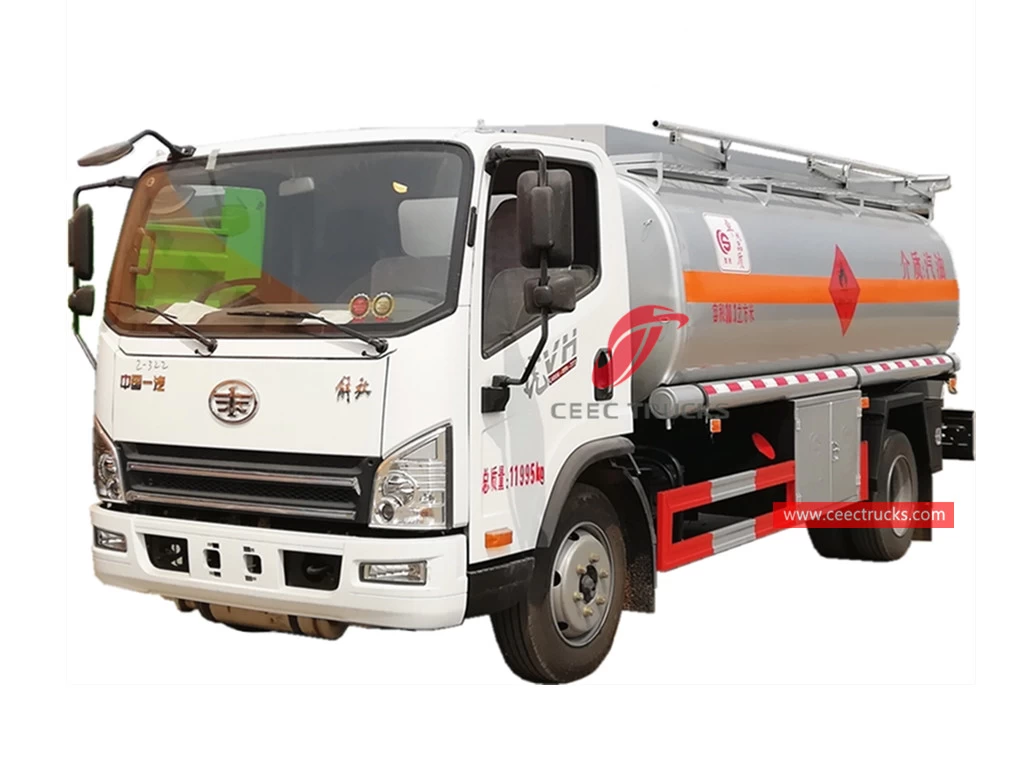

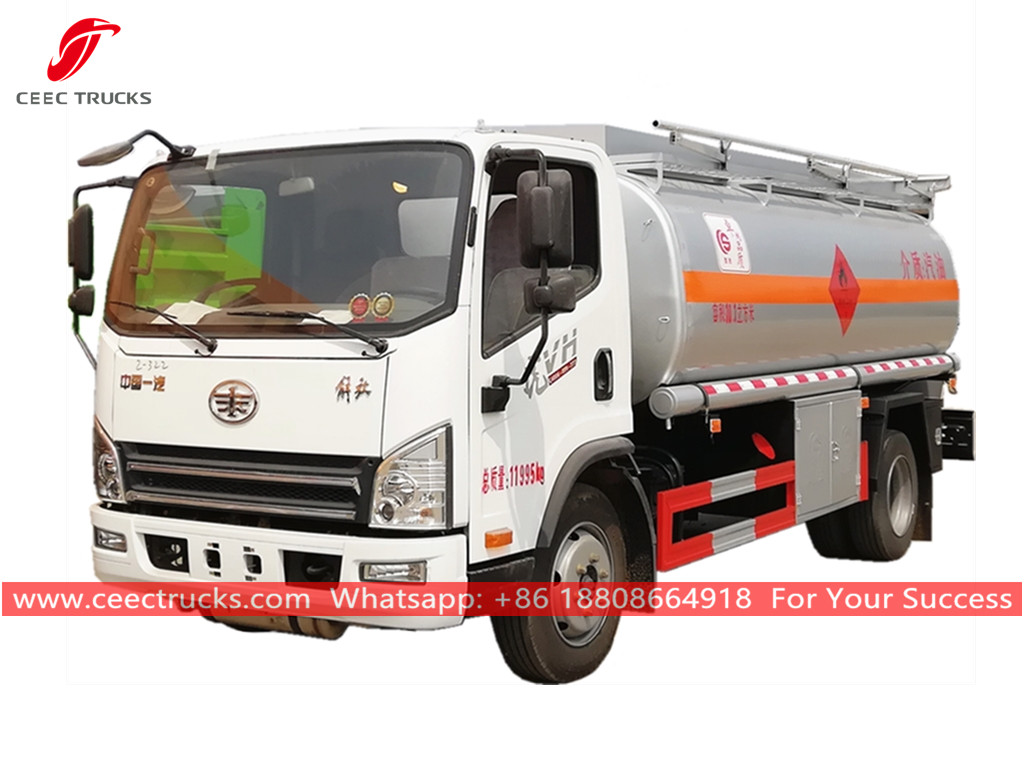

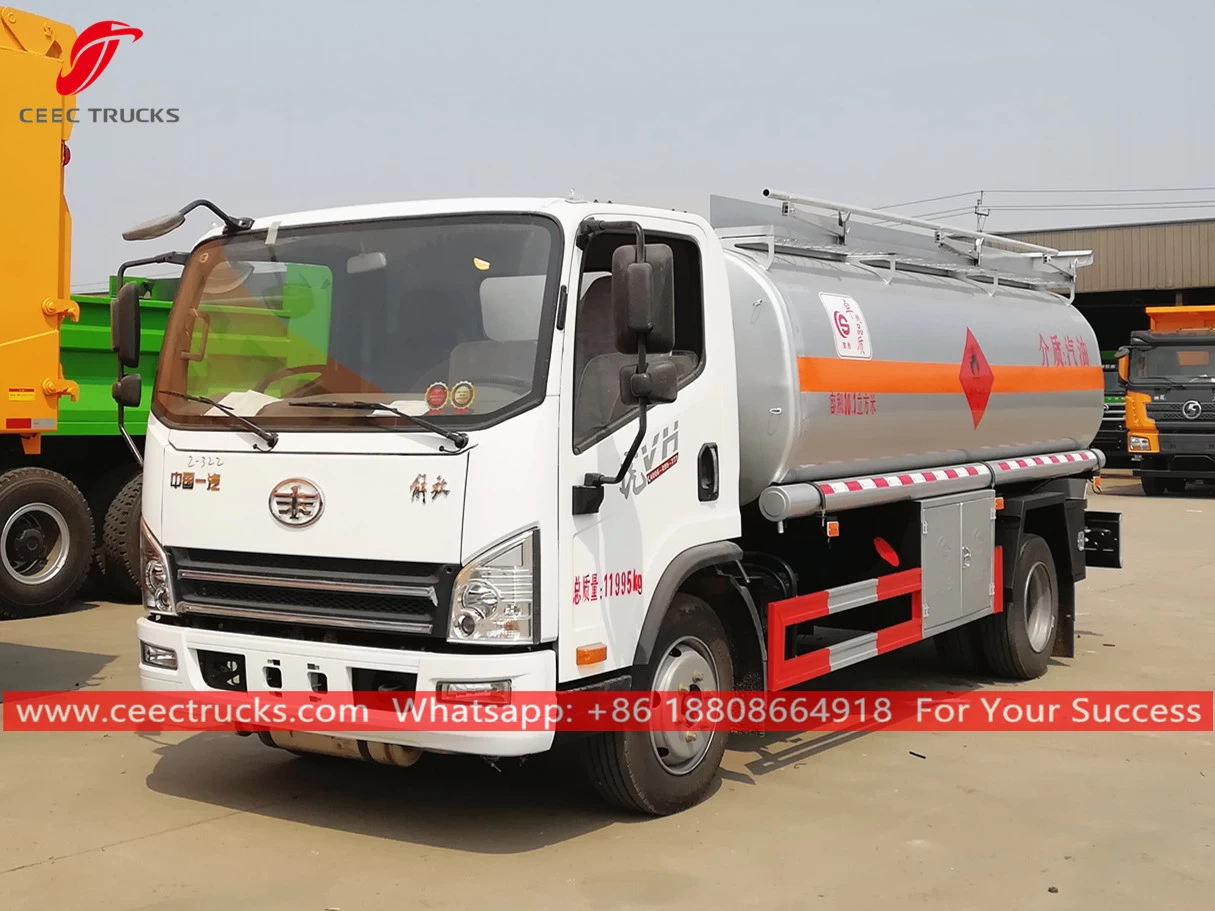

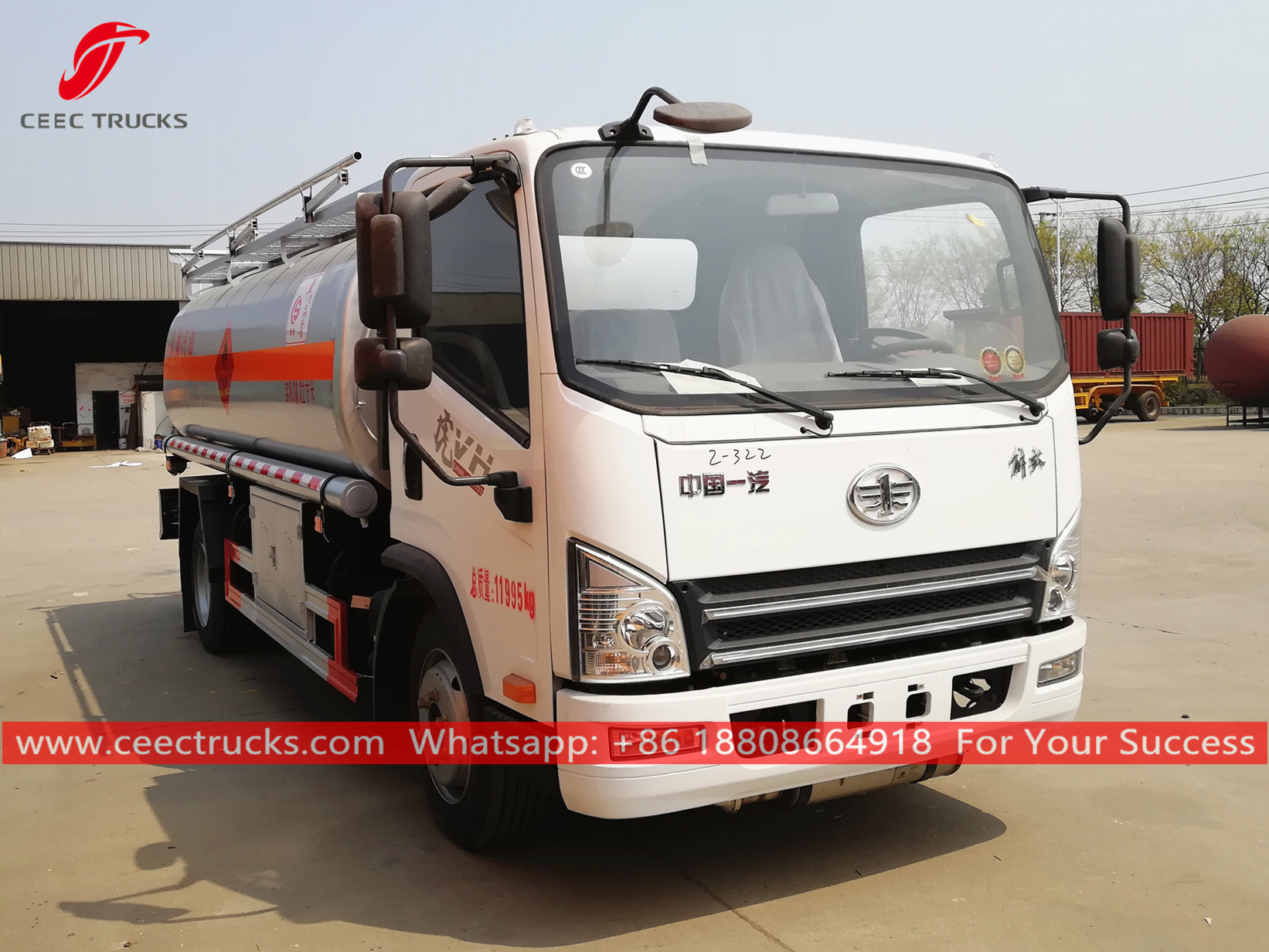

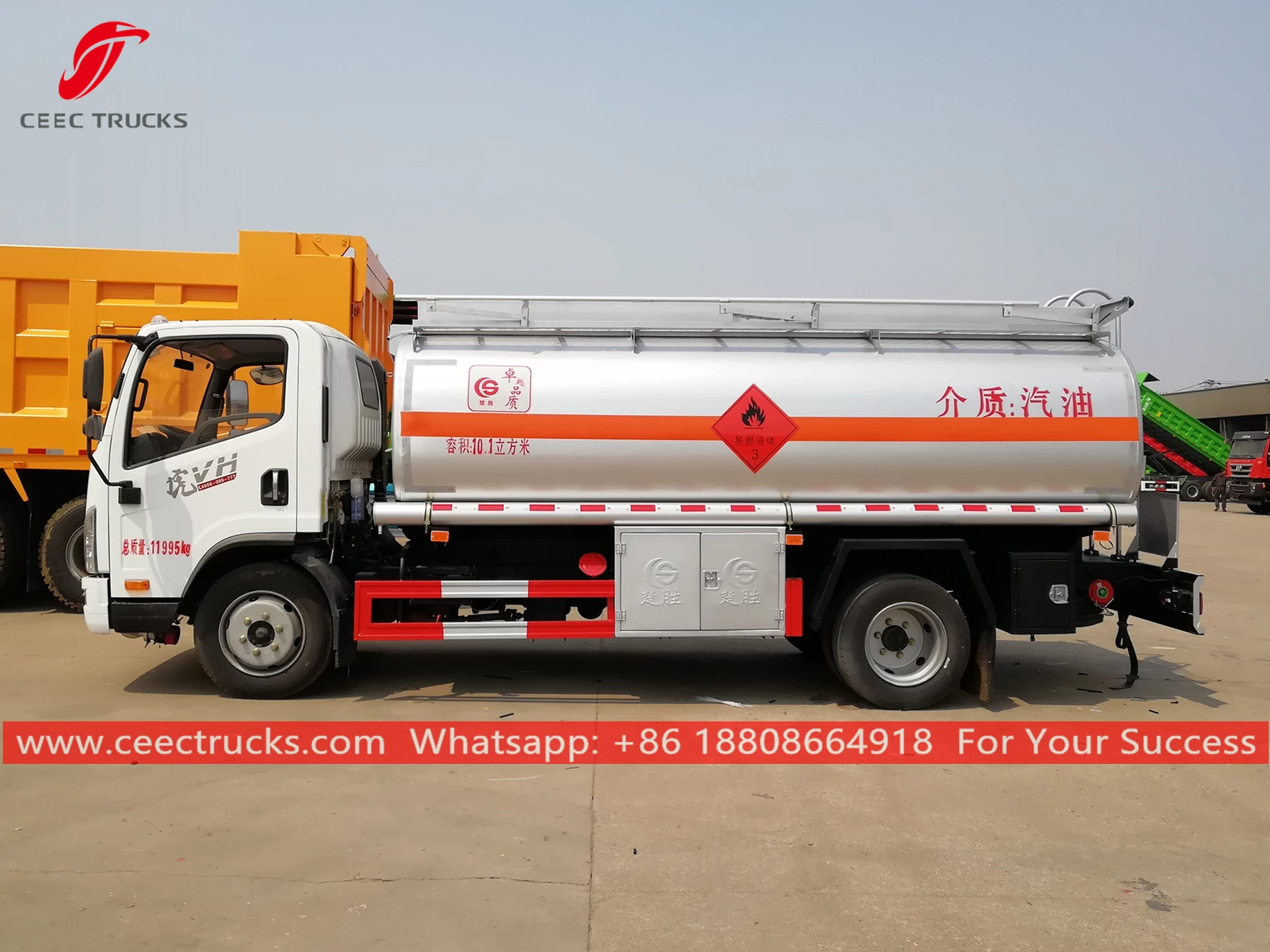

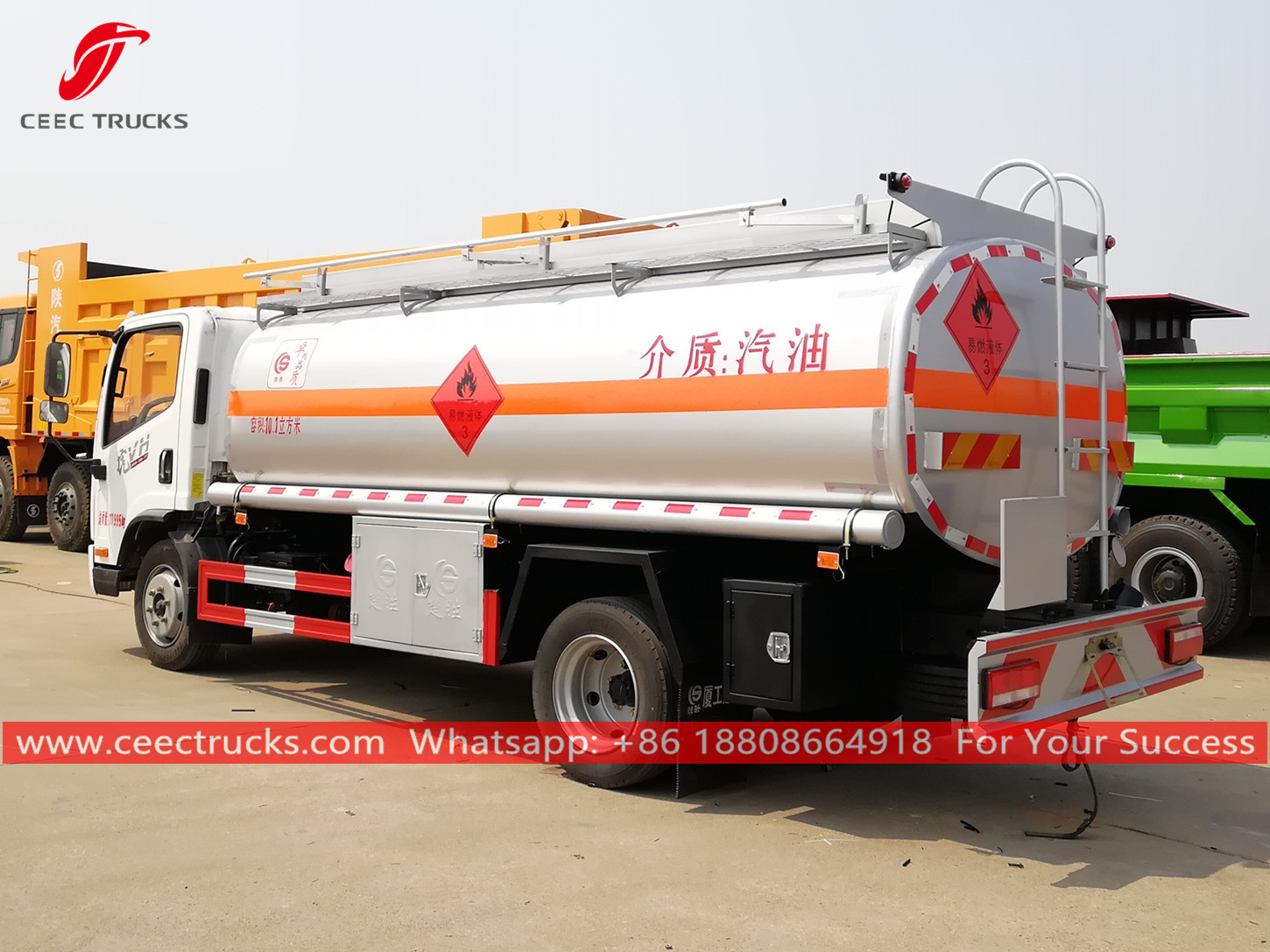

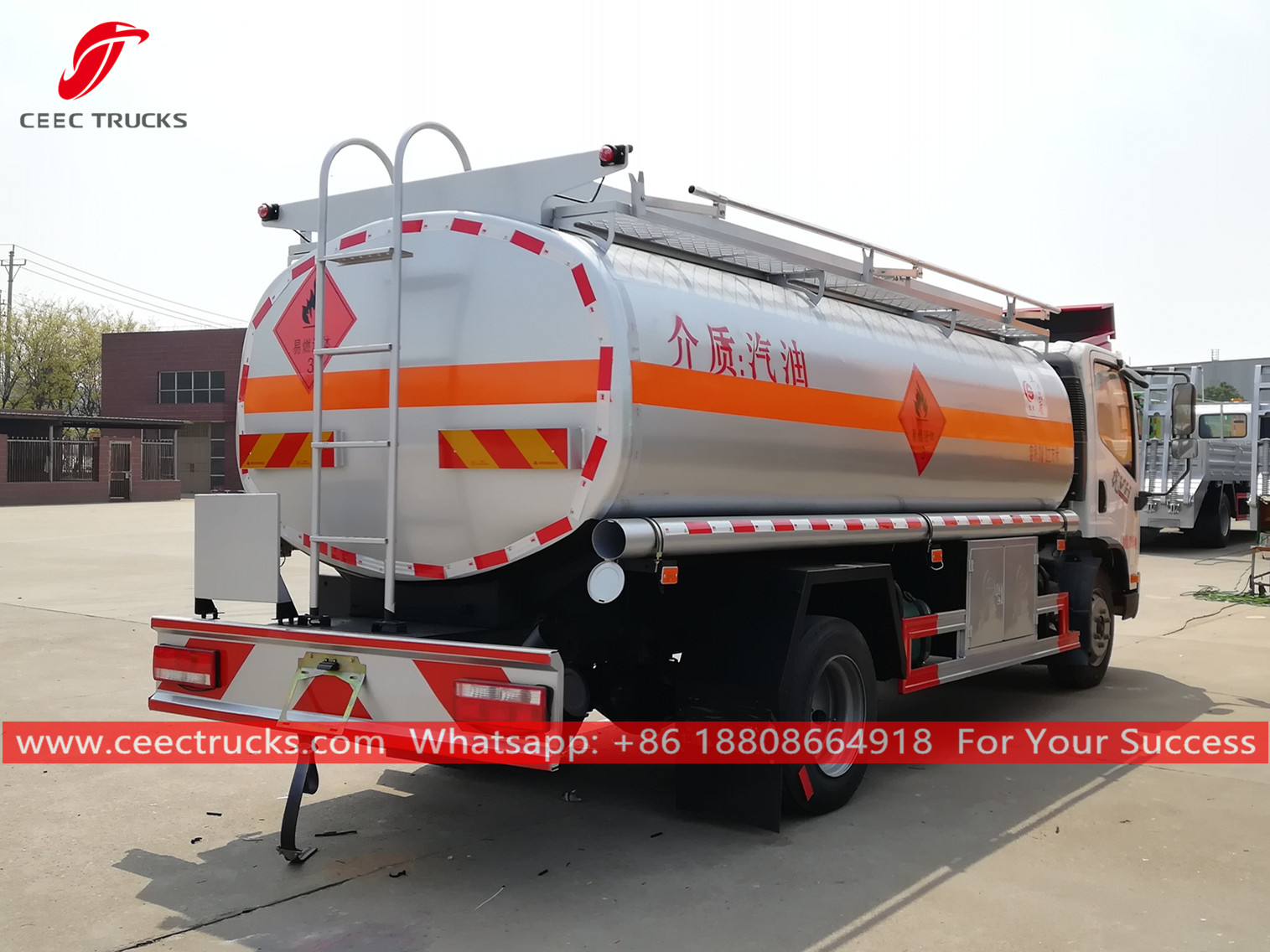

Small Fuel bowser truck FAW (also called FAW oil bowser, fuel tanker truck FAW, new oil tanker truck, 6 wheel diesel bowser, petrol tanker truck, fuel transport truck, refuel tanker truck, Fuel Delivery Truck) is used to transport oil, diesel, gasoline, kerosene, etc.
CEEC TRUCKS fuel bowser can be divided into many compartments to transport different types of fuels, lubricant, crude oil, alcohol...
The fuel truck can be equipped with oil pump and refueling machine, all for easy operation.
Key Features:
---- FAW chassis, perfect performance
---- WEICHAI engine option, super powerful, no overhaul within 100,000 km.
---- Tanker body capacity from 3 to 40 Cublic Meter.
---- Easy operation and easy maintenance.
---- Various types of refuse container lifter are available.
Specifications:
|

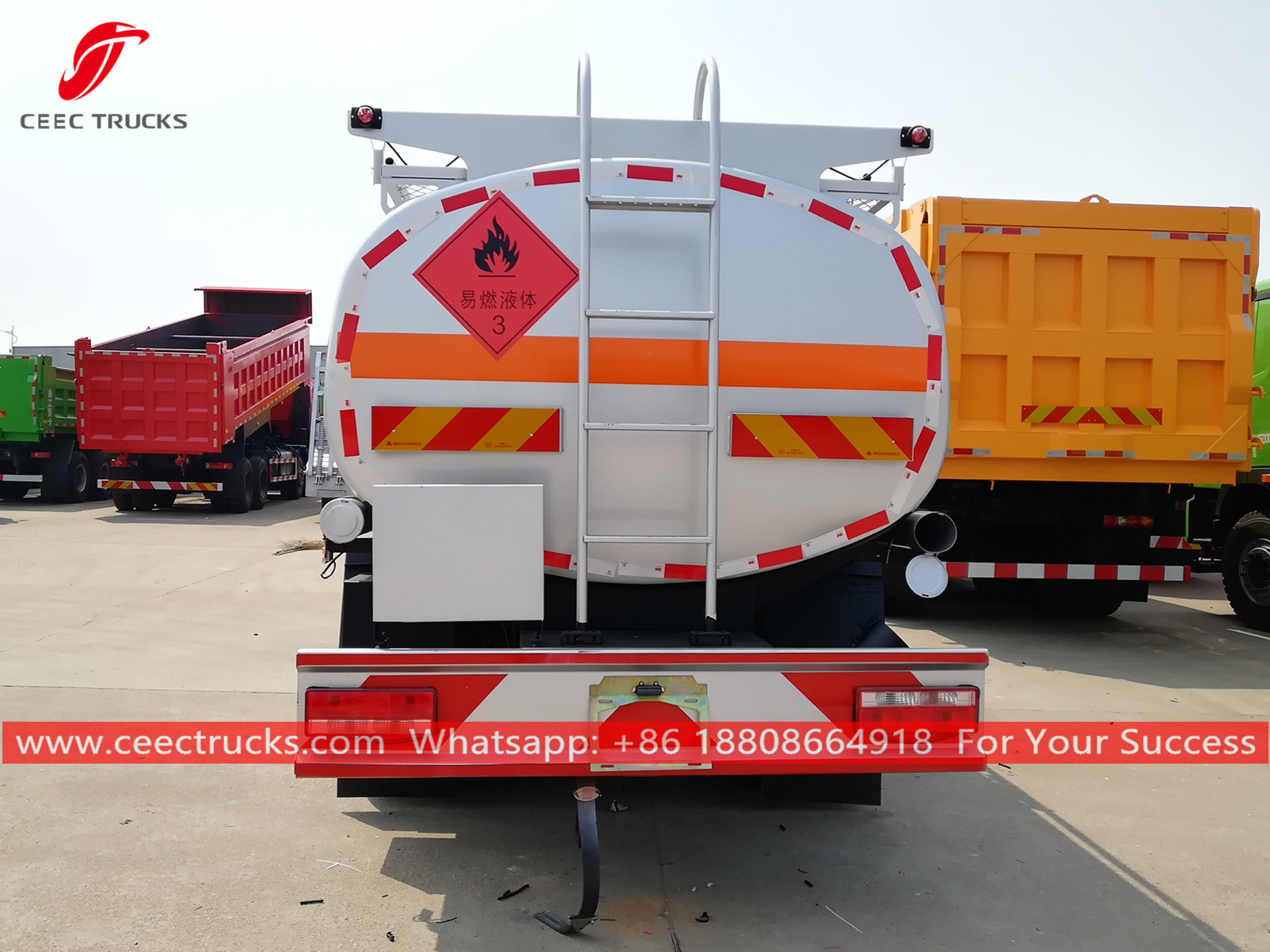

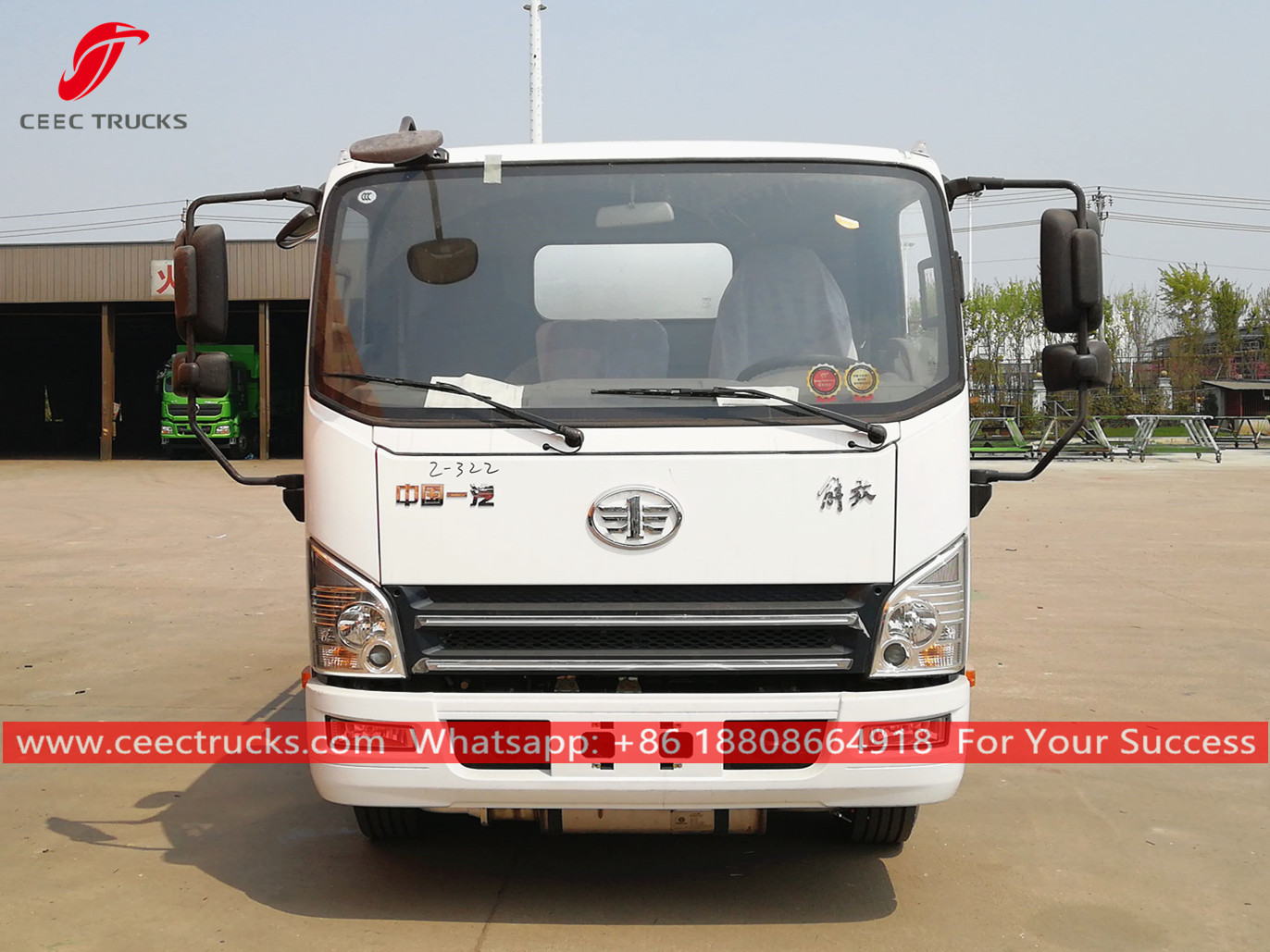

FAW Oil Bowser vehicle (10,000 Litres)
|
|
General
|
Vehicle Brand
|
CEEC TRUCKS
|
|
Chassis Brand
|
FAW
|
|
Overall Dimension
|
7020 * 2200 * 2800 mm
|
|
GVW / Kerb Weight
|
11,995kg / 5,060kg
|
|
Cab
|
Cab Capacity
|
3 persons allowed
|
|
Air Conditioner
|
Heating/cooling air conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
WEICHAI
|
|
Power
|
130 HP (96 KW)
|
|
Displacement
|
3660 ml
|
|
Emission Standard
|
Euro 5
|
|
Chassis
|
Drive Type
|
4X2 (left hand drive)
|
|
Transmission
|
6 speed levers with 1 reverse
|
|
Wheelbase/No. of axle
|
3900 mm / 2
|
|
Tire Specification
|
8.25R20
|
|
Tire Number
|
12 tires and 1 spare tire
|
|
Max Speed
|
80 km/h
|
|
Paint
|
Metallic paint
|
|
Superstructure
|
Body capacity
|
10,000 Litres
|
|
Tanker Material
|
Carbon Steel
|
|
Pump
|
Fuel pump equipped for overhead delivery
|
|
Suction head
|
6 m
|
|
Hose
|
High quality, wire strengthened hose,
with cooper wire, anti-static
|
|
Refueling Machine
|
Equipped based on customer requirement
|
|
Control panel
|
English or Your language
|
|
All

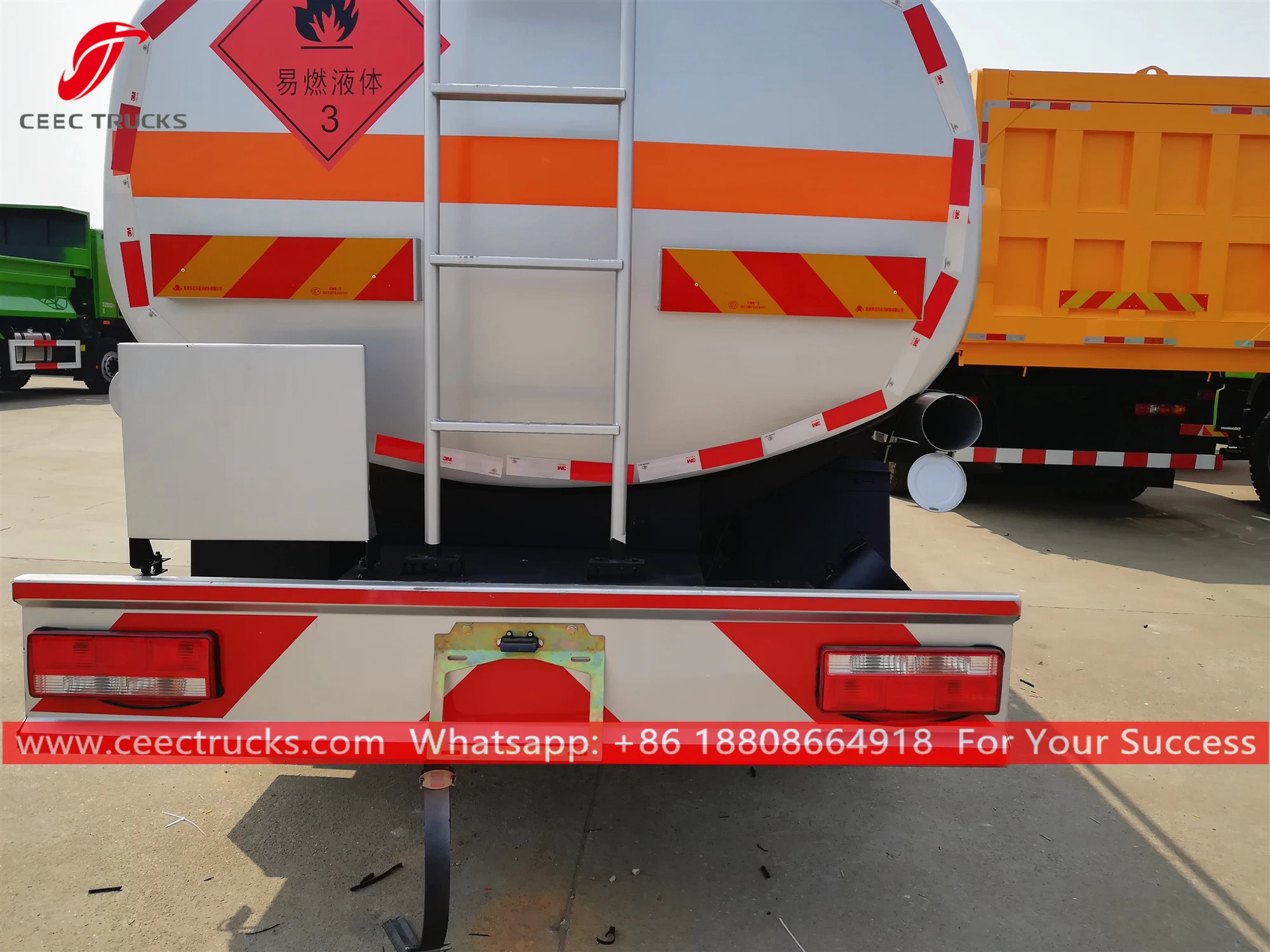

standard accessories: manhole, ladder, anti-static belt, anti-slip
walkway, handrail, fire extinguisher, inlet, discharge, reflective
stickers...
|
|
Optional
|
** Tank material could be carbon steel, stainless steel, aluminum (Aluminum tanker).
** It can be divided into many compartments.
** Imported American pump as optional.
** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge, etc
** Heat preservation & heating system could be added.
** Bottom loading system can be equipped.
|
