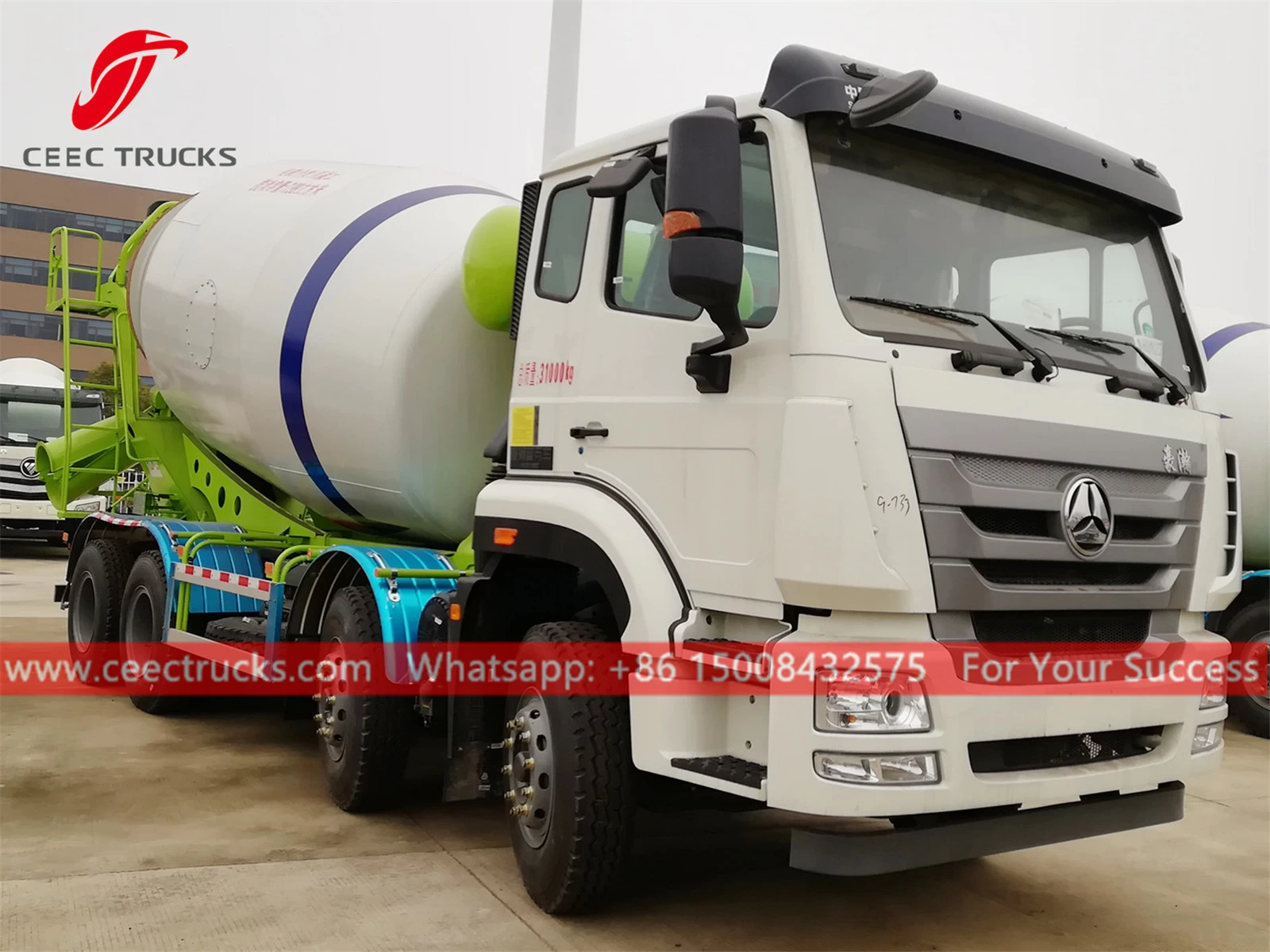

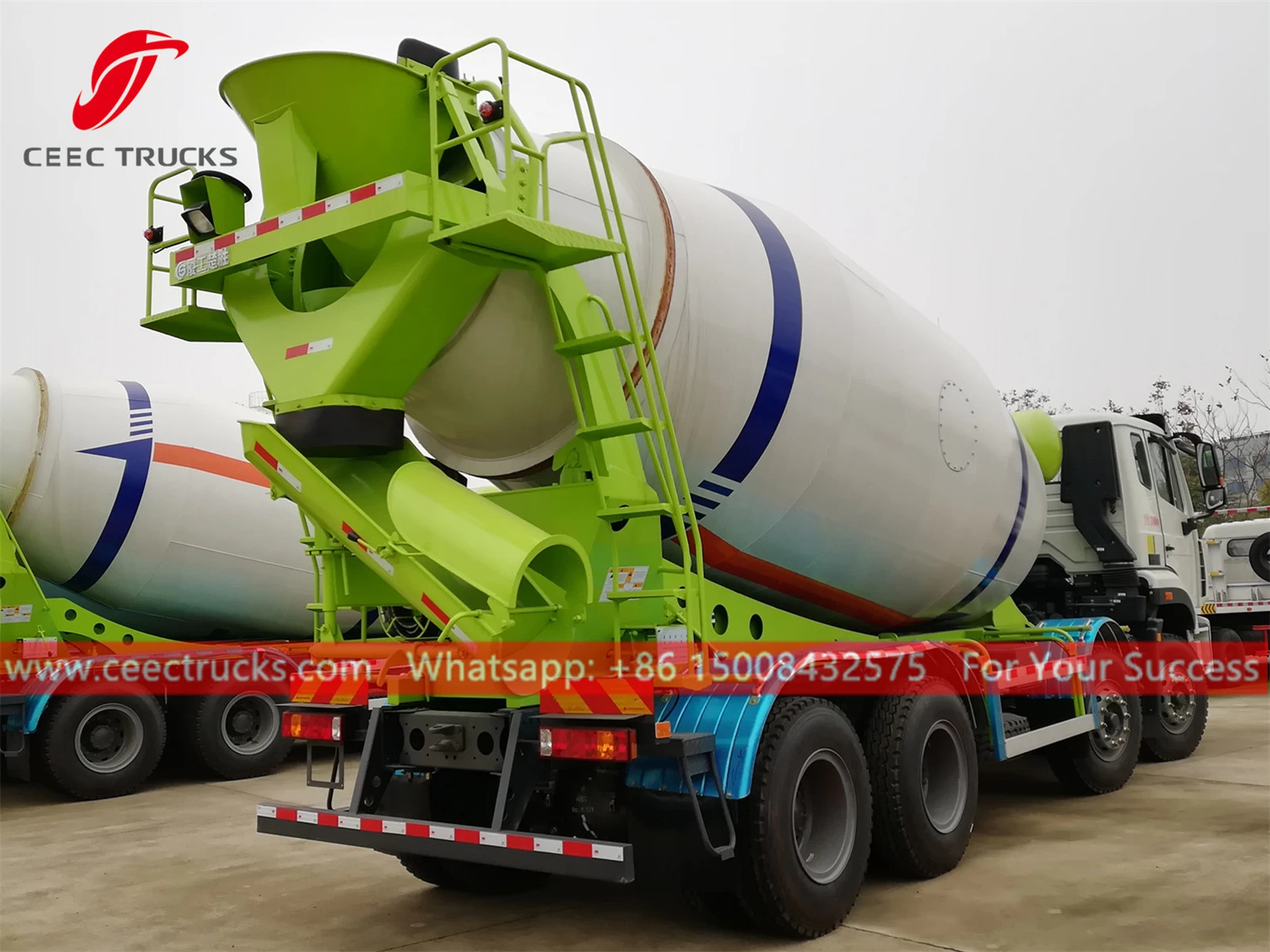

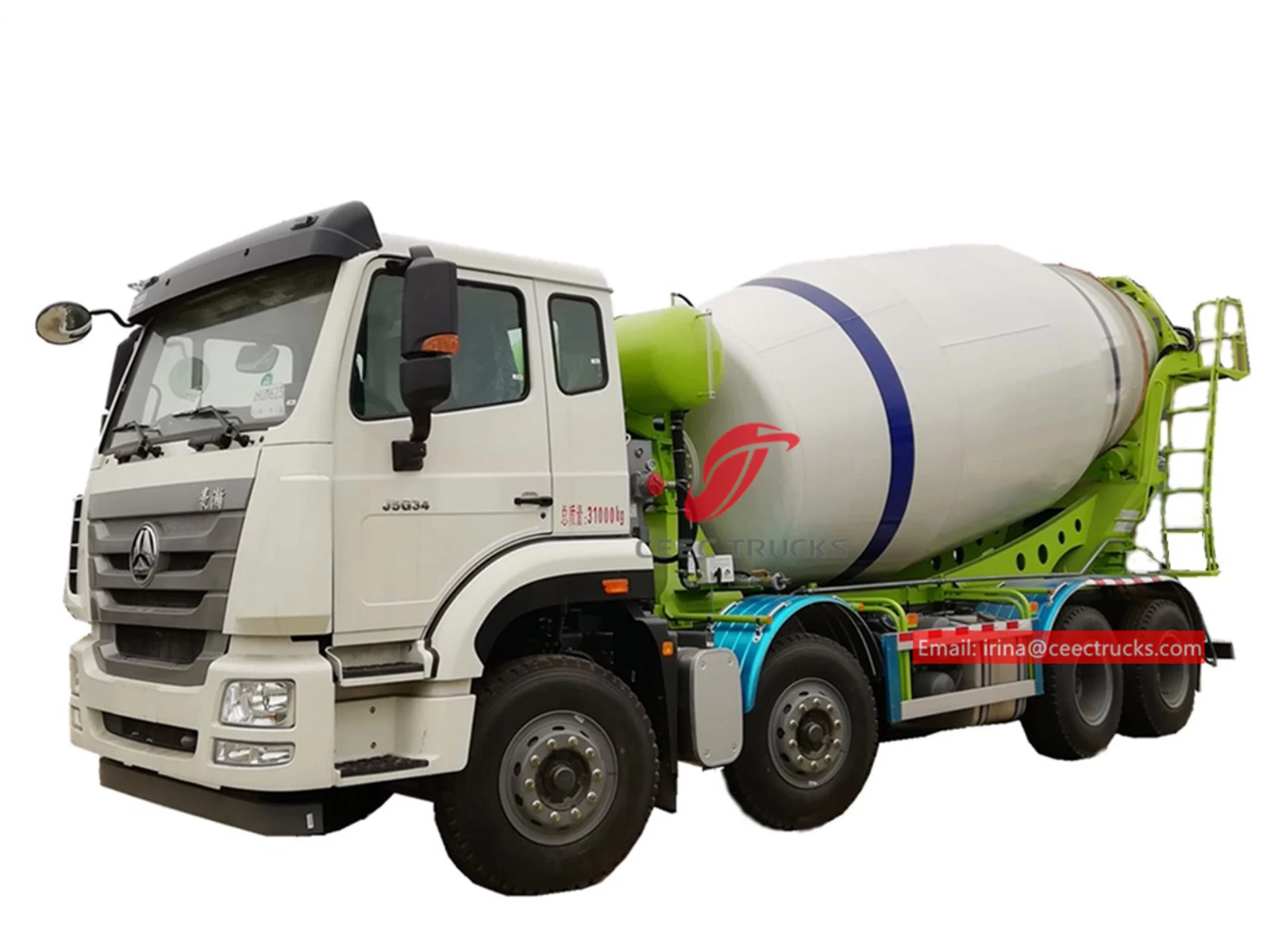

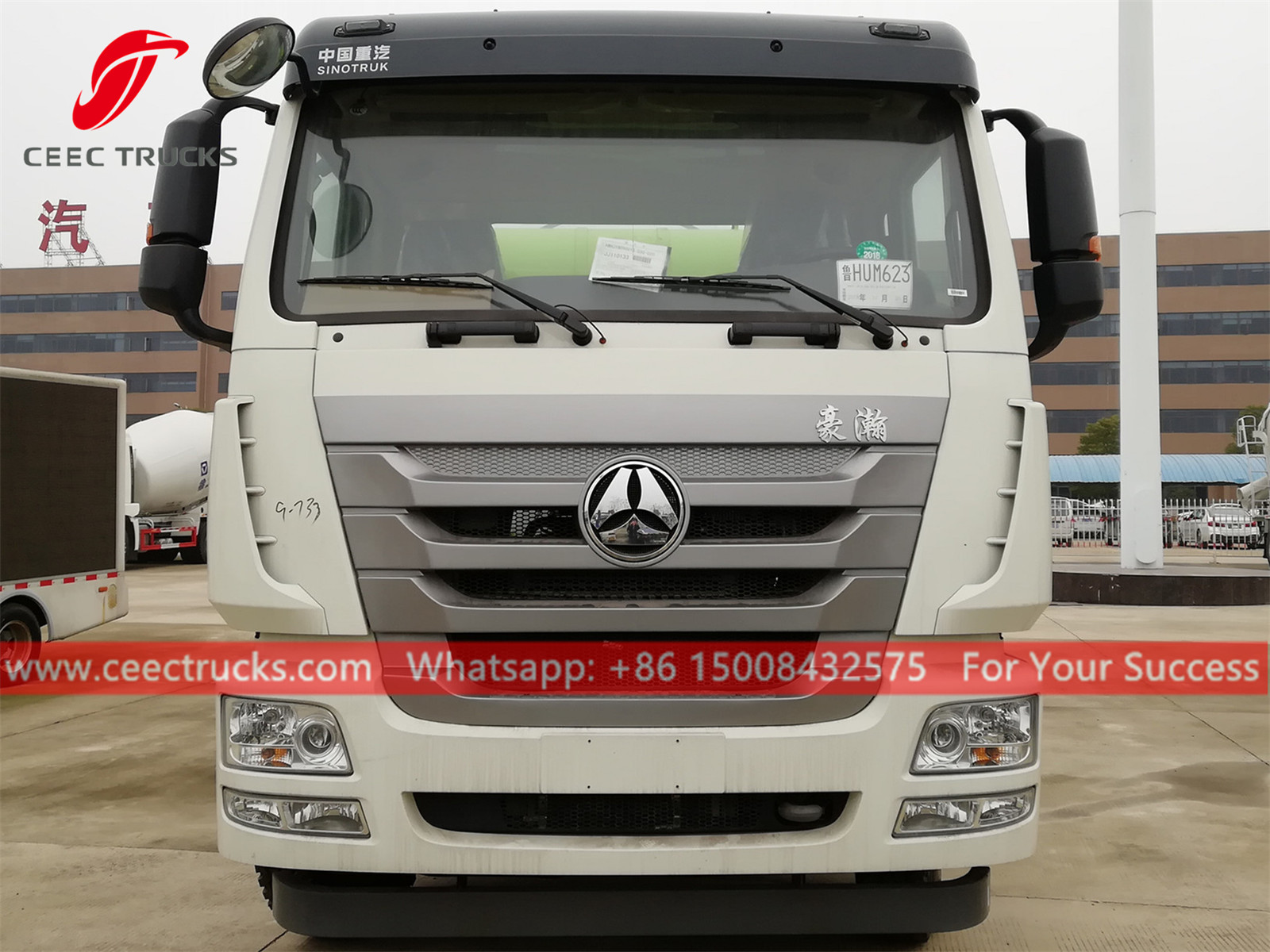

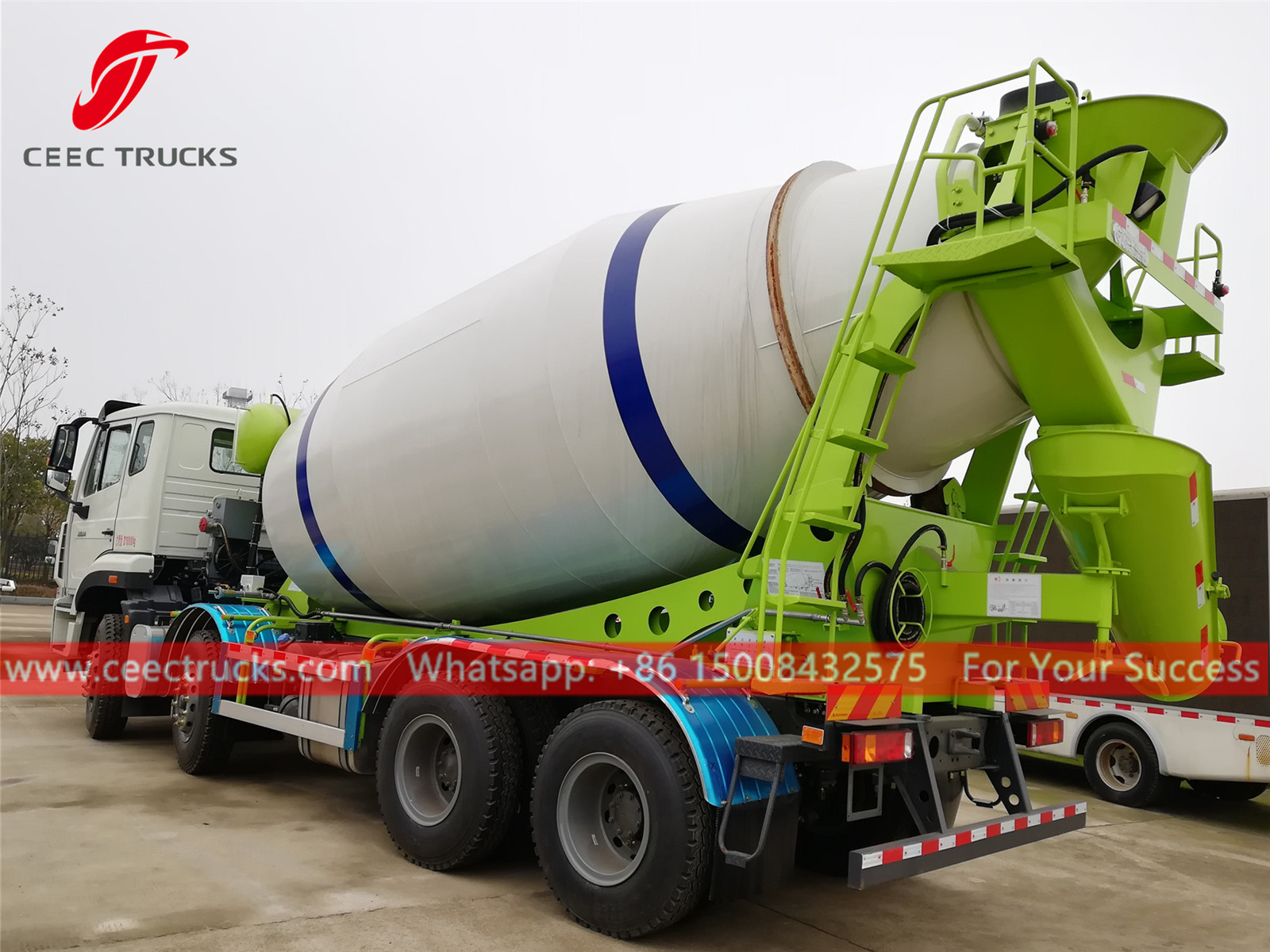

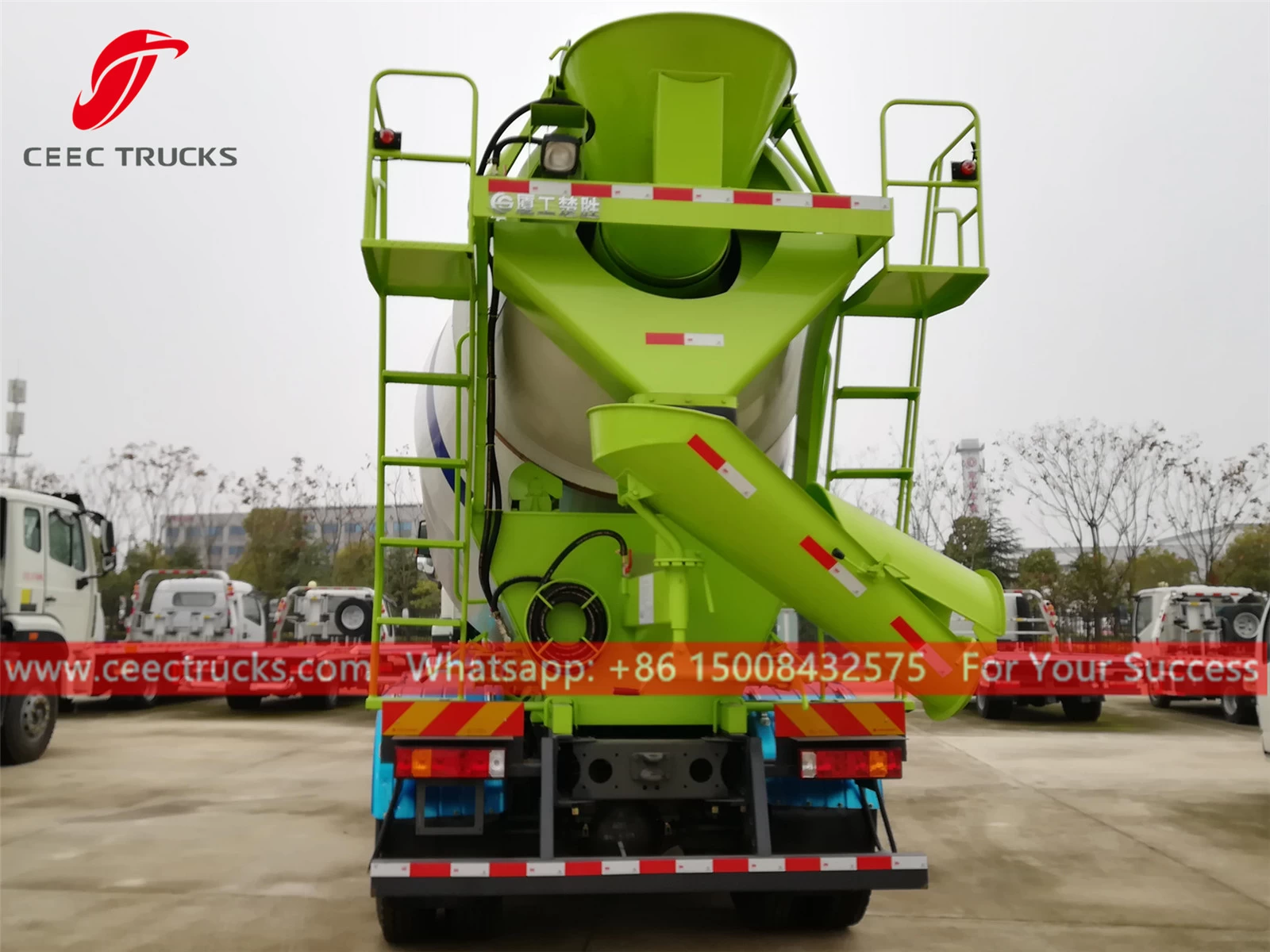

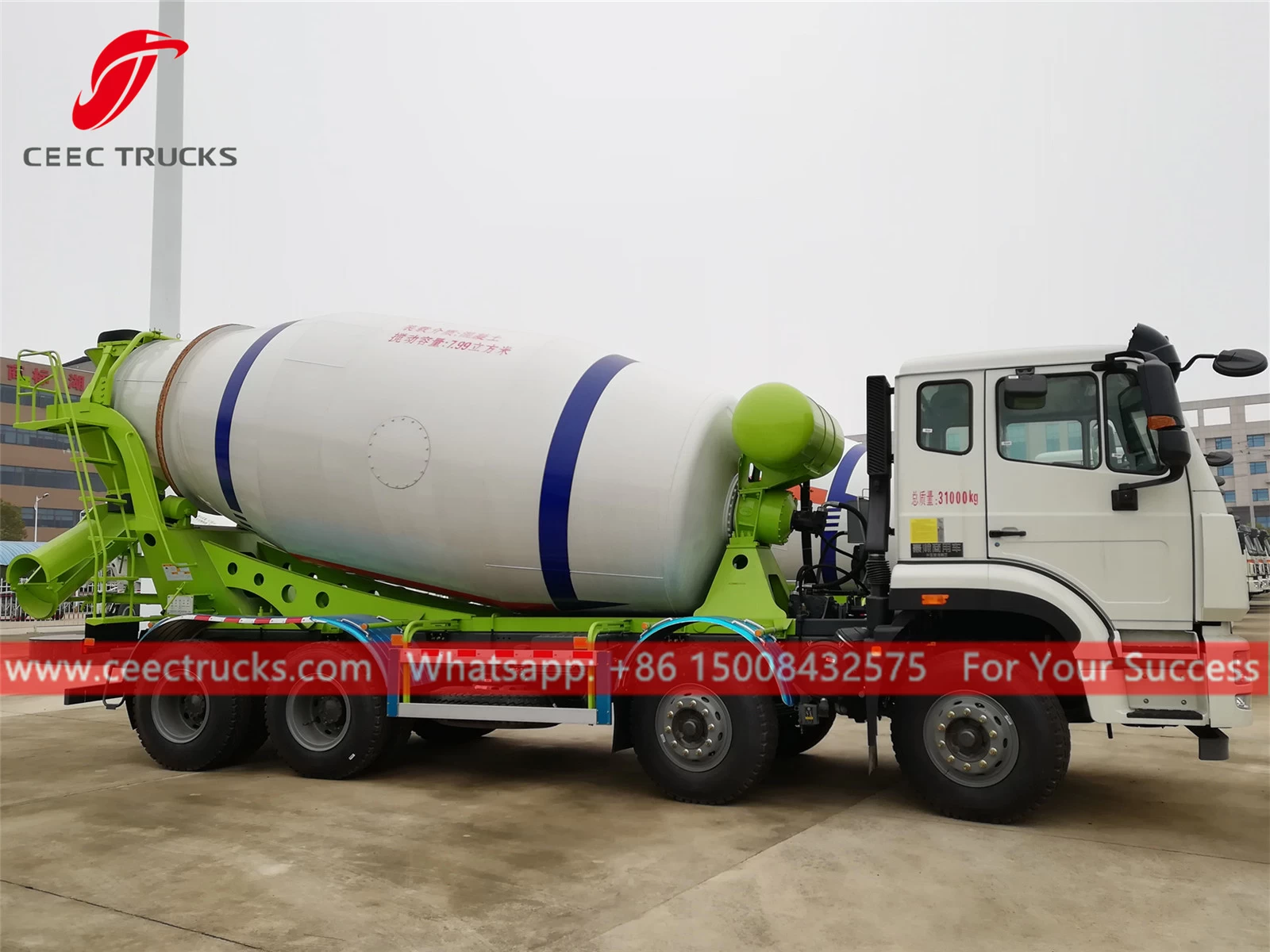

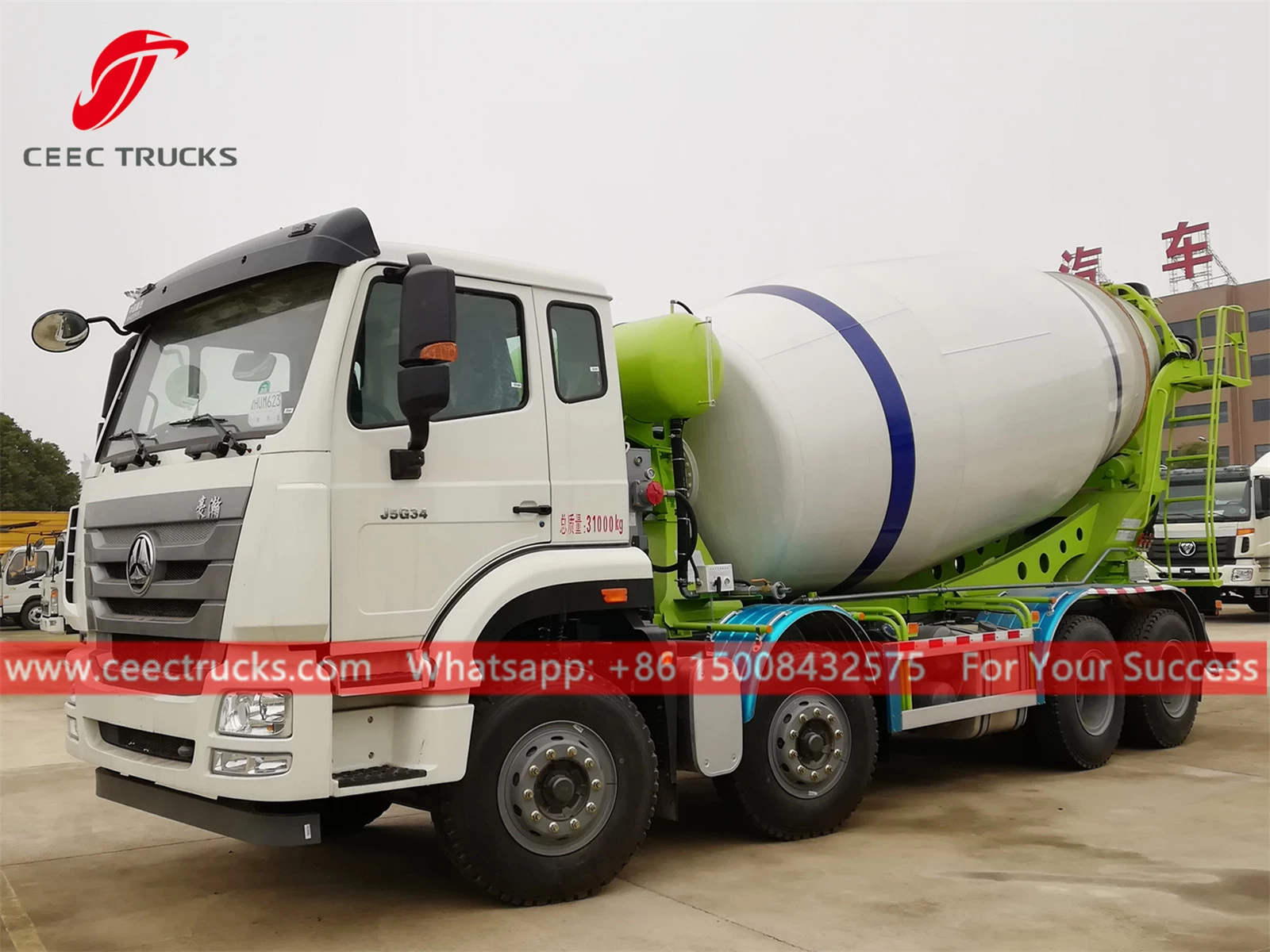

10CBM Mixer truck SINOTRUK

SINOTRUK 10cbm concrete mixer truck, 8x4 LHD chassis, weicha 340HP diesel engine, HW13710L 10-shift manual gearbox, as for main parts motor, pump, reducer, which can have brand optional as Eaton, PMP, Rexroth, Bonfiglioli, etc, painting and logos depend on request.

Facebook Twitter Pinterest LinkedIn 分享



 Applications:

SINOTRUK 8x4 Concrete Mixer truck (also called transit mixer, concrete transport truck, mixer truck, cement mixing truck, concrete mixer, cement mixer, volumetric mixer truck, agitator truck, Cement mixer truck, Transit mixer truck ) is designed for both overseas and domestic high end heavy truck markets. In order to prevail over its rivals in the global competition, key components of the tipper truck are designed in close collaboration with top suppliers in the world.



CEEC Trucks  mixer truck is manufactured using the cutting-edge technology and components in the world such as WABCO double-cylinder air compressor, brake valve, HYVA front hydraulic system, etc.



 Key Features:

---- SINOTRUK heavy duty chassis, perfect performance
---- WEICHAI engine, super powerful; reliable performance, no overhaul within 100,000 km.

---- Pay loading from 3CBM to 18CBM.
---- Easy operation and easy maintenance.

---- Various types of Hydraulic main parts are available.

mixer truck advantage



 Specifications:



SINOTRUK transit Mixer truck (10 cbm)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

SINOTRUK

Overall Dimension

9275 * 2496 * 3250 mm

GVW / Kerb Weight

31,000kg / 14,420kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

WEICHAI

Power

340 HP (250 KW)

Displacement

6870 ml

Emission Standard

Euro 3 or 4

Chassis

Drive Type

8X4, (left hand drive)

Transmission

SINOTRUK 10 speed levers with 1 reverse

Wheelbase/No. of axle

1800+3250+1350 mm / 4

Tire Specification

11.00R20

Tire Number

12 tires and 1 spare tire

Max Speed

82 km/h

Paint

Metallic paint

Superstructure

Mixer tank volume

10 cubic meter

Barrel wall Thickness

5 mm

Barrel wall material T520JJ

Loading speed

≥  1.2

Discharging speed

≥  2.7

Rest rate

≤  1

Control

Both side with hydraulci control

Pump Import Brand
Motor Import Brand
Reducer Import Brand

Color & LOGO

According to wish

All standard accessories: All tools. .

Ladder, warning lights, PTO fire extinguisher, basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** Other body capacity can be choose.

** Other material and plate thickness can be choose.
