Product name

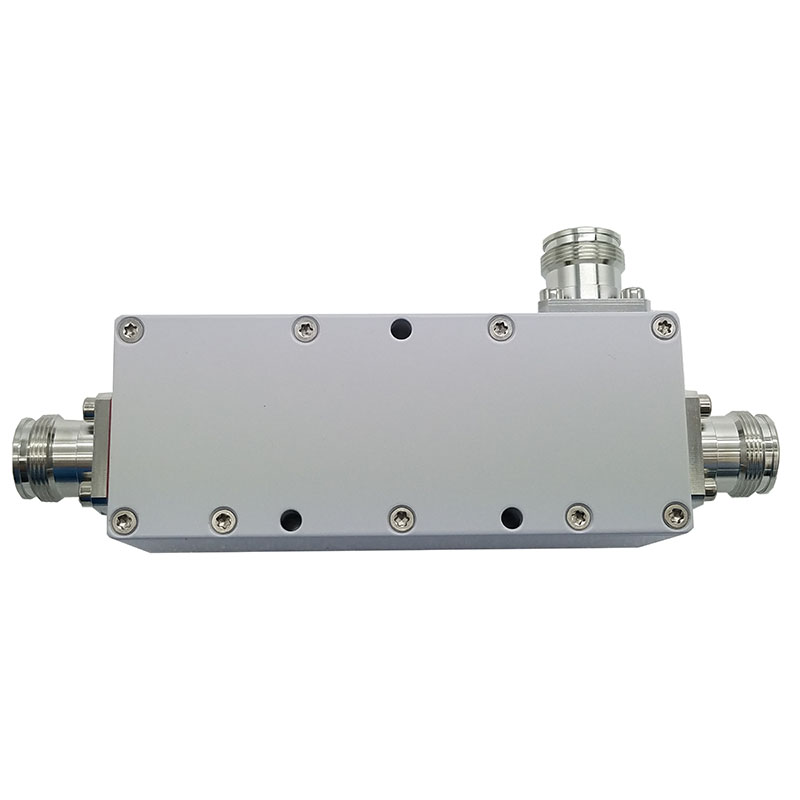

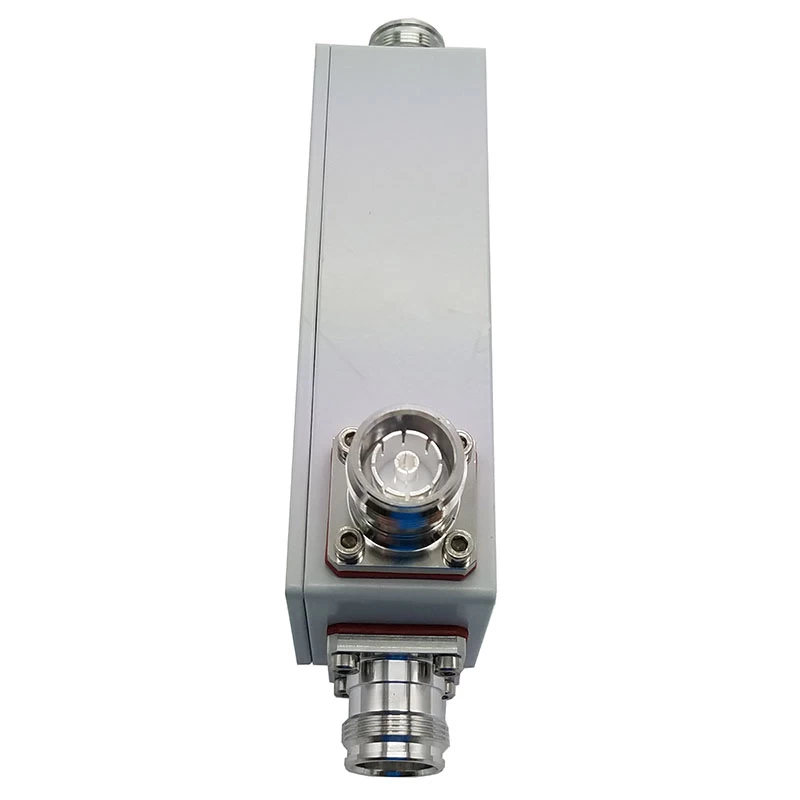

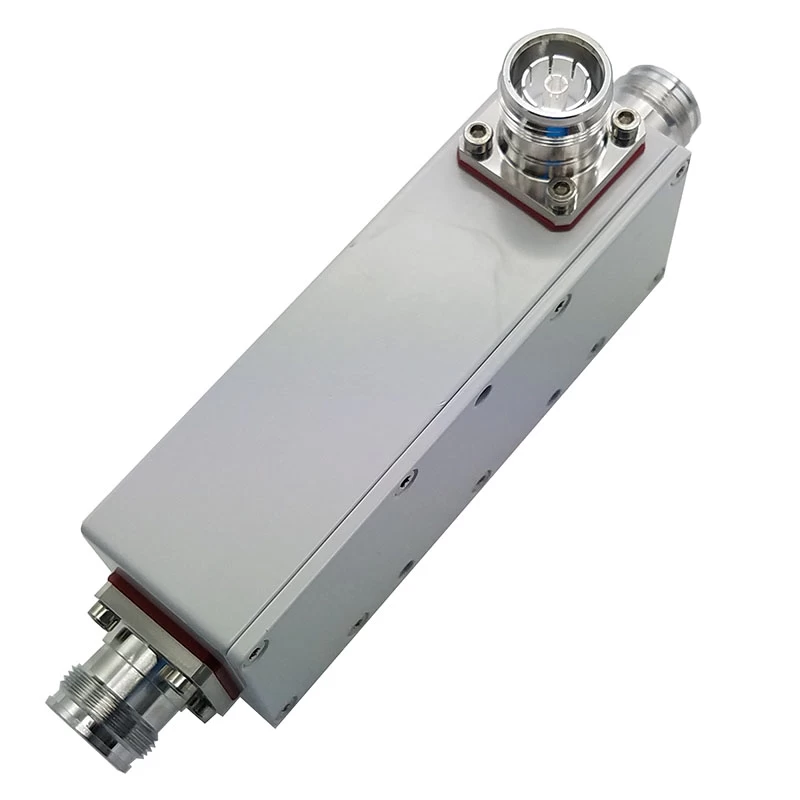

5G 698-4000MHz directional coupler for IBS BTS DAS
Product features
◆ Wide Frequency Band 698-4000MHz
◆ Low Passive Intermodulation(-155dBc)
◆ Low VSWR &Insertion Loss
◆ High Isolation, Outdoor IP65
◆ Widely used for In-building Solutions
Technical &Mechanical Specifications
|
Model No.
|
PWCP-0640-06-4F
|
PWCP-0640-08-4F
|
PWCP-0640-10-4F
|
PWCP-0640-13-4F
PWCP-0640-15-4F
|
PWCP-0640-20-4F
|
PWCP-0640-30-4F
|
|
Freq(MHz)
|
698-3600/3600-4000
|
|
Coupling(dB)
|
6
|
8
|
10
|
13/15
|
20
|
30
|
|
IL (698-3600)
IL (3600-4000)
|
≤1.85
≤1.95
|
≤1.6
≤1.7
|
≤1.0
≤1.1
|
≤0.9/≤0.7
≤1.0/≤0.8
|
≤0.6
≤0.7
|
≤0.6
≤0.7
|
|
Accuracy(dB)
|
±1.0
|
±1.0
|
±1.2
|
±1.3/±1.3
|
±1.4
|
±1.7
|
|
Isolation(dB)
|
≥22
|
≥23
|
≥26
|
≥28/≥30
|
≥35
|
≥43
|
|
VSWR
|
≤1.30 (698-3600); ≤1.35 (3600-4000)
|
|
PIM(dBc)
|
≤-155dBc@2*43dBm
|
|
Power(W)
|
300 (average)
|
|
Impedance
|
50 ohm
|
|
Connector
|
N-Female
|
|
Color
|
Grey or Black
|
|
Temp(deg)
|
-30~+65
|
|
Application
|
Indoor &Outdoor, IP65
|
