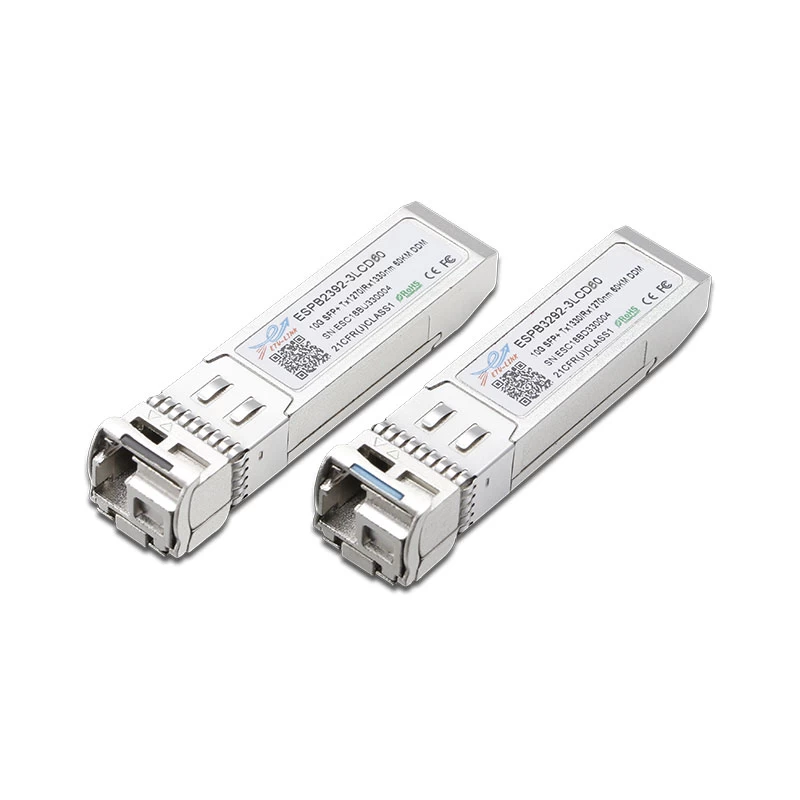

ESBxxX-3LCD80
10Gbps SFP+ Bi-Directional Transceiver, 80KM Reach
Features
Ø Up to 11.1Gbps Data Links
Ø Up to 80km transmission on SMF
Ø 1490nm EML laser and APD receiver for ESPB4592-3LCD80
1550nm EML laser and APD receiver for ESPB5492-3LCD80
Ø 2-wire interface with integrated Digital Diagnostic monitoring
Ø EEPROM with Serial ID Functionality
Ø Hot-pluggable SFP+ footprint
Ø Compliant with SFP+ MSA with LC connector
Ø Single + 3.3V Power Supply
Ø Commercial/Industrial case
operating temperature range: -10°C to 70°C /-40°C to 85°C
Ø Low power dissipation：
ESPBxx92-3LCD80: 1.5W power dissipation for Commercial temperature
ESPBxx92-3LID80: 1.6W power dissipation for Industrial temperature
Applications
Ø 10GBASE-BX
Standard
Ø Compliant with SFF-8472
Ø Compliant to SFF-8431
Ø RoHS Compliant.
Product Description
ESBxxX-3LCD80 is hot pluggable 3.3V Small-Form-Factor transceiver module. It designed expressly for high-speed communication applications that require rates up to 11.1Gb/s,it designed to be compliant with SFF-8472 SFP+ MSA. The module data link up to 80km in 9/125um single mode fiber.
