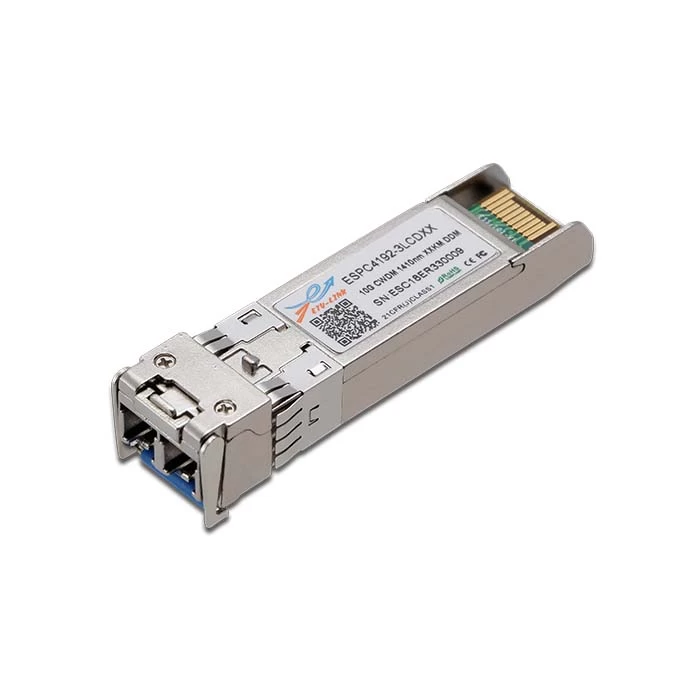

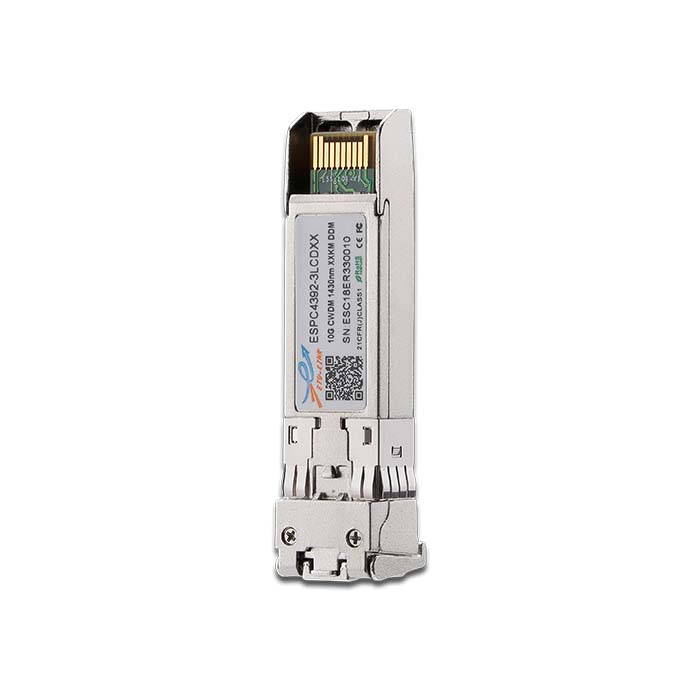

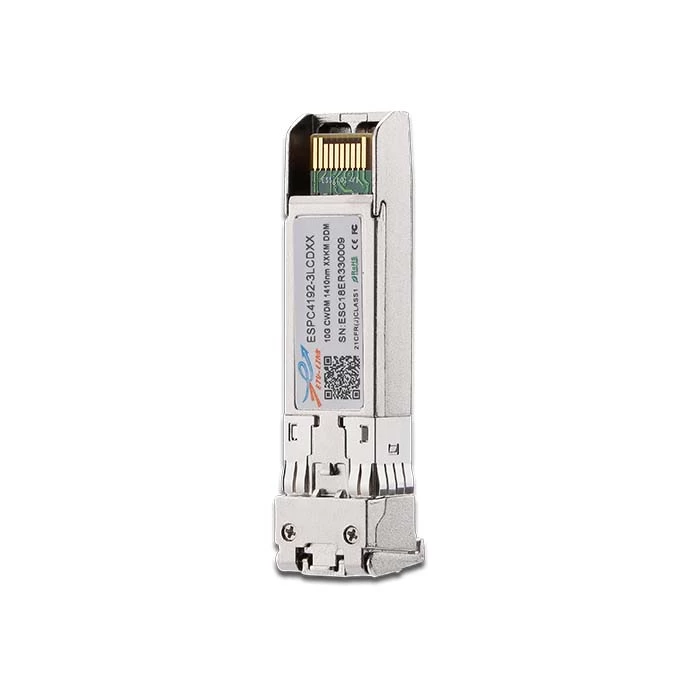

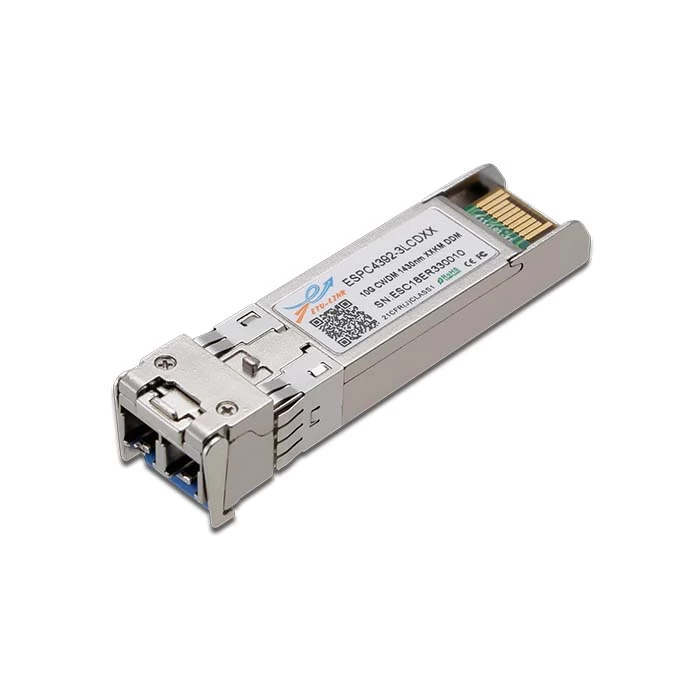

ESCxxX-3LCD10
10Gbps CWDM 10KM SFP+ Transceiver
Features
Ø Up to 11.1Gbps Data Links
Ø Up to 10km transmission on SMF
Ø Power dissipation <1.5W
Ø Uncooled CWDM DFB Laser and PIN receiver
Ø Metal enclosure, for lower EMI
Ø 2-wire interface with integrated Digital Diagnostic monitoring
Ø Hot-pluggable SFP+ footprint
Ø Specifications compliant with SFF 8472
Ø Compliant with SFP+ MSA with LC connector
Ø Single 3.3V power supply
Ø Case operating temperature range:0°C to 70°C
Applications
Ø 10GBASE-LR/LW
Ø 10G Ethernet
Standard
Ø Compliant to 802.3ae 10GBASE-LR/LW
Ø Compliant to SFF-8431
Ø RoHS Compliant.
