EXCxxX-3LCD20

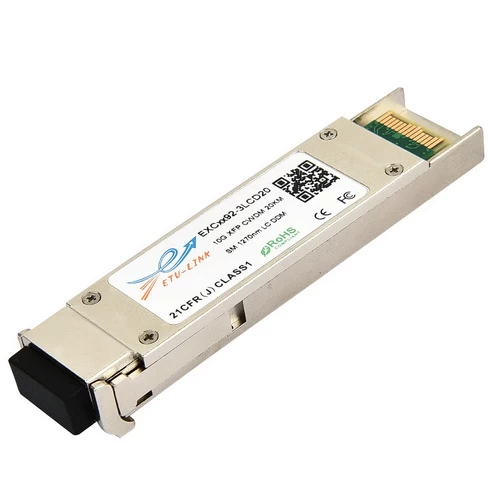

10Gbps CWDM 1270~1450nm 20KM XFP Transceiver
Features
Ø 10-Wavelengths Uncooled CWDM DFB laser from1270nm to
Ø 1330nm, with Step 20nm
Ø Supports 9.95Gbps to 11.3Gbps bit rates
Ø XFP MSA Rev 4.5 Compliant
Ø Maximum link length of 20KM with SMF
Ø No reference clock required
Ø +1.8V,+3.3V Supply Voltage
Ø Low Power Dissipation 2.5W Maximum
Ø XFI and lineside loopback Mode Supported
Ø 0ºC to 70ºC Operating Case Temperature
Ø Diagnostic Performance Monitoring of module temperature,
Ø Supply Voltages, laser bias current, transmit optical power, and receive optical power
Ø RoHS6 compliant (lead free)
Applications
Ø SDH STM I-64.1 at 9.953Gbps
Ø 10GBASE-LR/LW 10G Ethernet
Ø 10G Fiber Channel
Description
ETU-Link EXCxxX-3LCD20 is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source
Agreement (MSA), supporting data-rate of 10.3125Gbps(10GBASE-LR) or 9.953Gbps 10GBASE-LW) and transmission distance up to 20KM on SMF.
The transceiver module comprises a transmitter with uncooled CWDM DFB laser and a receiver with a
PIN photodiode. Transmitter and receiver are separate within a wide temperature range of 0℃ to +70℃ and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10GbE systems.
