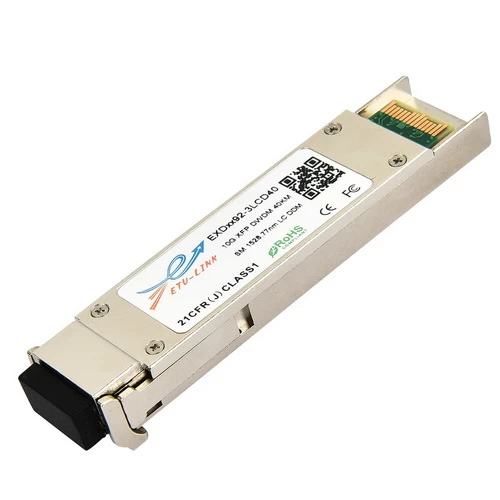

EXDxxX-3LCD40
10Gbps DWDM 1534.64~1561.83nm 40KM XFP Transceiver
Features
Ø Wavelength selectable to C-band ITU-T grid wavelengths
Ø Suitable for use in 100GHz channel spacing DWDM systems
Ø XFP MSA Rev 4.5 Compliant
Ø Data rate from 9.95Gbps to 11.3Gbps
Ø No Reference Clock required
Ø Cooled EML and PIN receiver
Ø link length up to 40km
Ø Low Power Dissipation 3.5W Maximum
Ø XFI and lineside loopback Mode Supported
Ø -5ºC to 70ºC Operating Case Temperature
Ø Diagnostic Performance Monitoring of module temperature,
Ø Supply Voltages, laser bias current, transmit optical power, and receive optical power
Ø RoHS6 compliant (lead free)
Applications
Ø SONET OC-192 & SDH STM 64
Ø 10GBASE ER/EW
Ø 40km 10G Fiber Channel
Ø DWDM Networks
Description
ETU-Link EXDxxX-3LCD40 Transceiver exhibits excellent wavelength stability, supporting operation at 100 GHz channel, cost effective module. It is designed for 10G DWDM SDH, 10GBASE-ER/EW and 10G Fiber- Channel applications.
The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. ETU-Link DWDM XFP transceiver provides an enhanced monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
